High Frequency VF Series

High Frequency VF Series

0
Views: 2,397
  • Product parameters

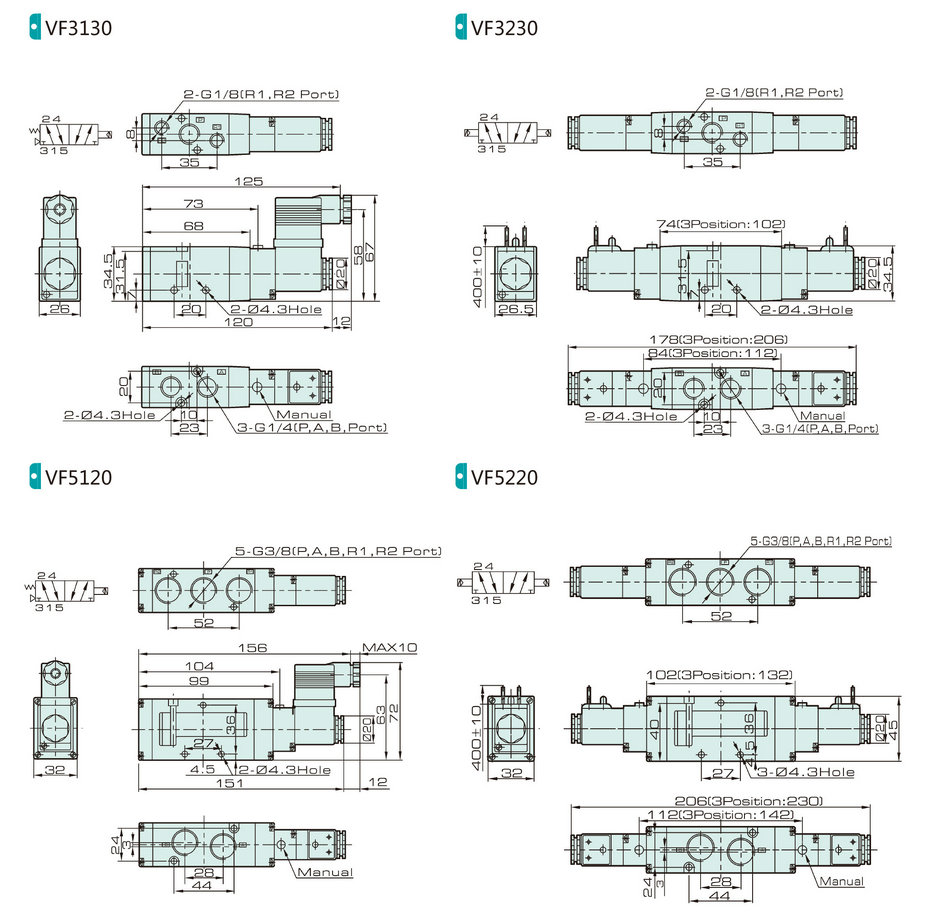

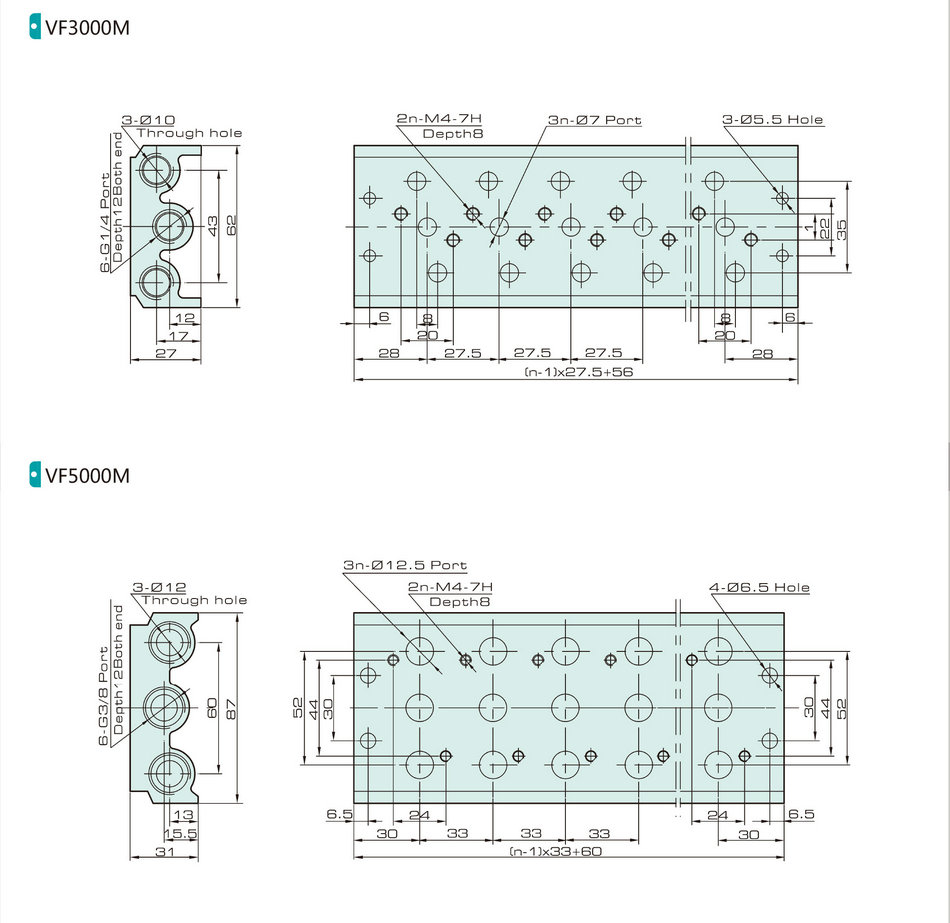

  • Product size

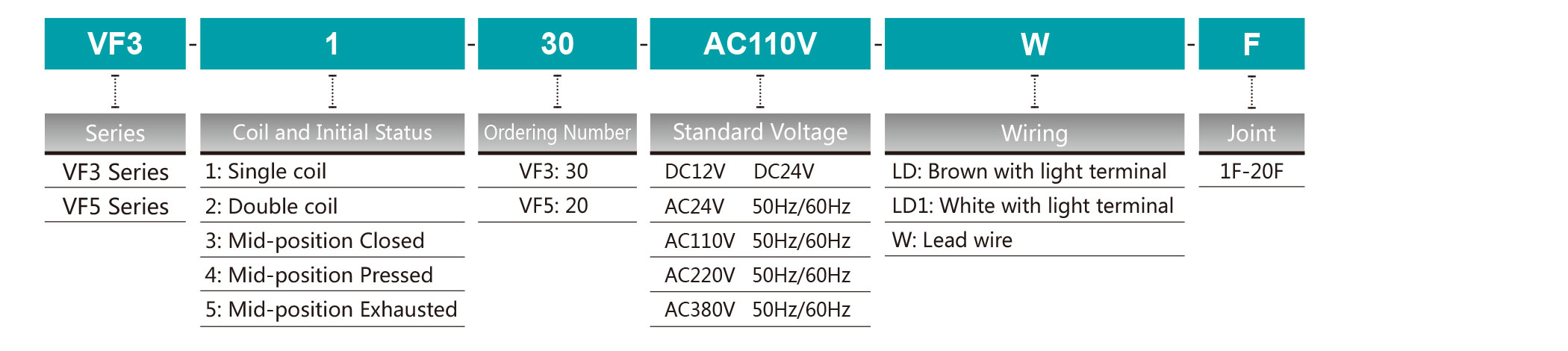

Ordering Code







Specification



Model

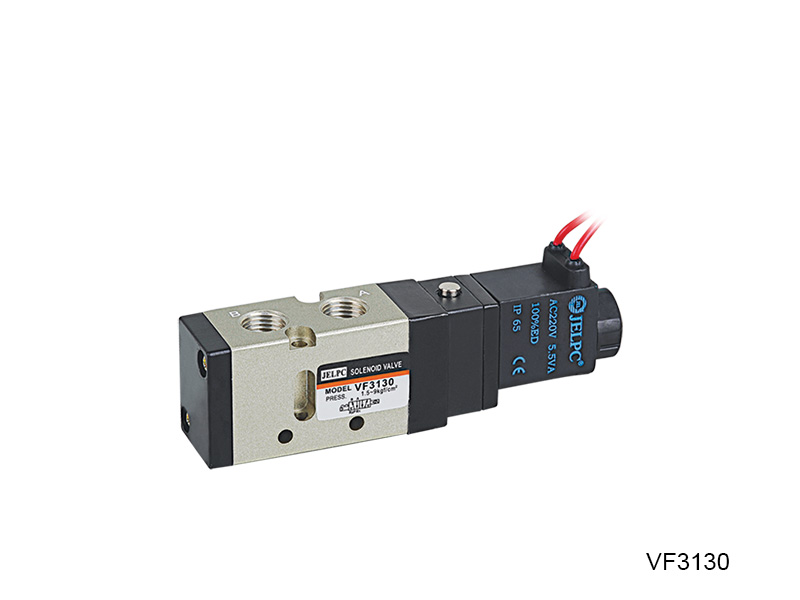

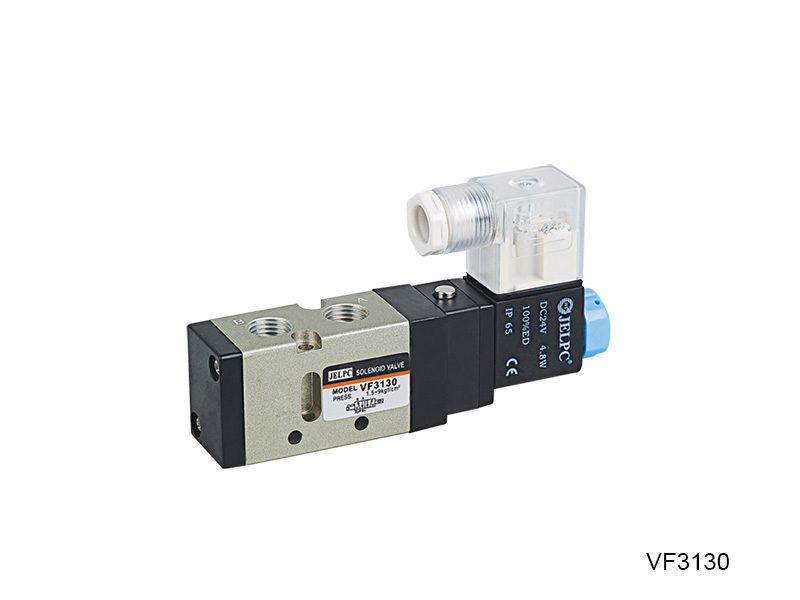

VF3130

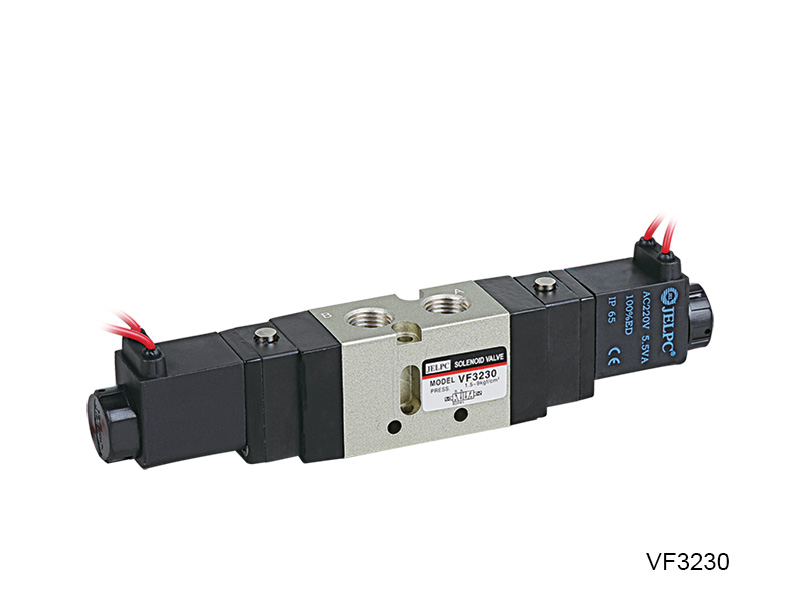

VF3230

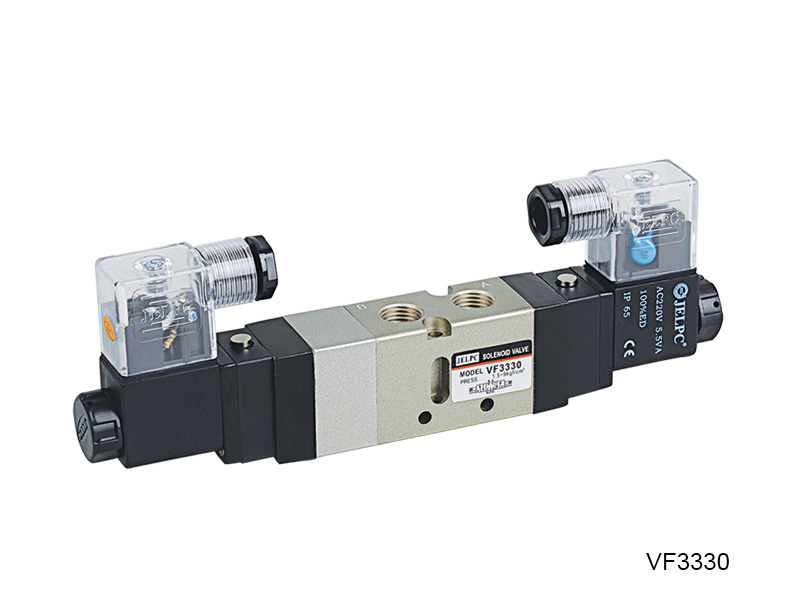

VF33(4/5)30

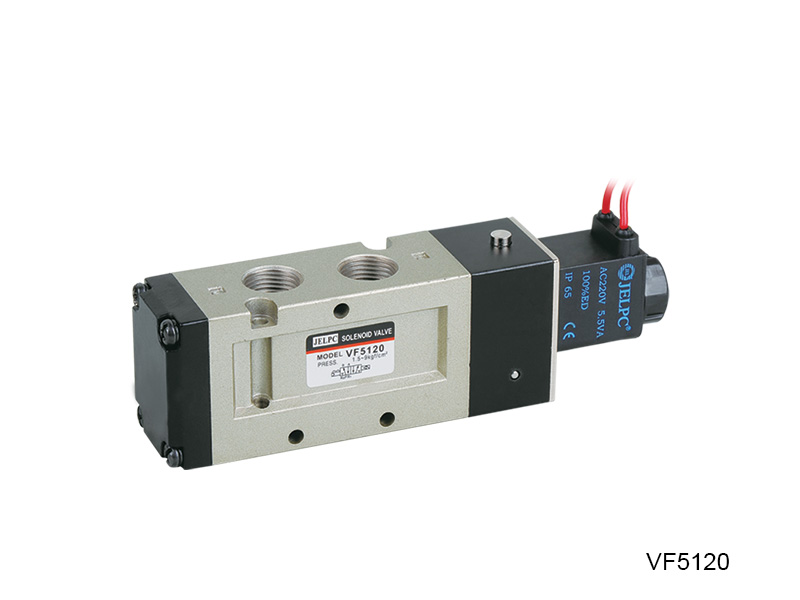

VF5120

VF5220

VF53(4/5)50

Valve Type

5/2 way

5/3 way

5/2 way

5/3 way

Effective Cross Section Area

16 mm²(CV = 0.89)

12mm²(CV=0.67)

25 mm²(CV = 1.40)

18 mm²(CV=1.00)

Working Medium Operation

40 Micron Filtered Air Internal Piloted

Working-pressure

0.15～0.8 MPa

Max. Test Pressure

1.2 MPa

Ambient Temperature

-20～70℃

Operating Voltage Tolerance

± 10%

Power Consumption

AC: 5.5 VA DC: 4.8 W

Protect Class

F Class, IP 65

Wiring / Connector

Cable / Lead Wire or DIN Connector

Switching Frequency

5 Cycles / Sec.

Response Time

0.05 Sec.

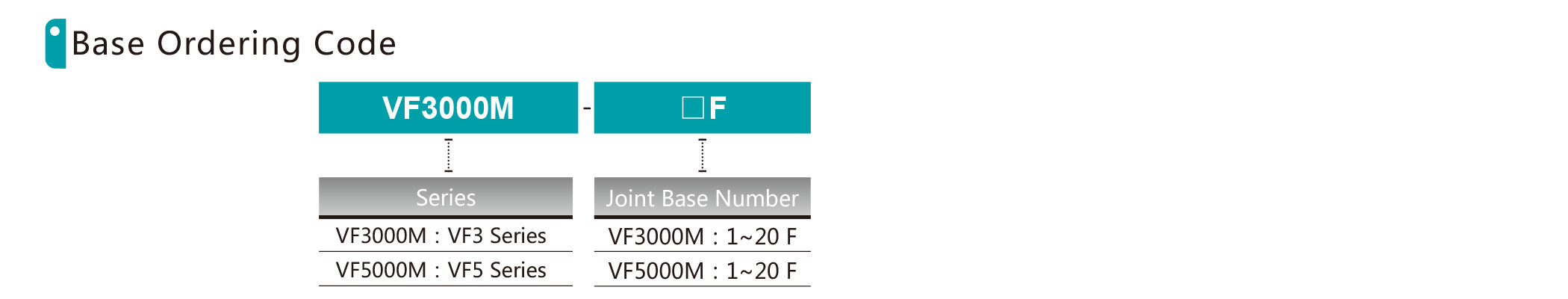

Base Ordering Code
