Manual Operator NAMUR

Manual Operator NAMUR

0
Views: 2,557
  • Product parameters

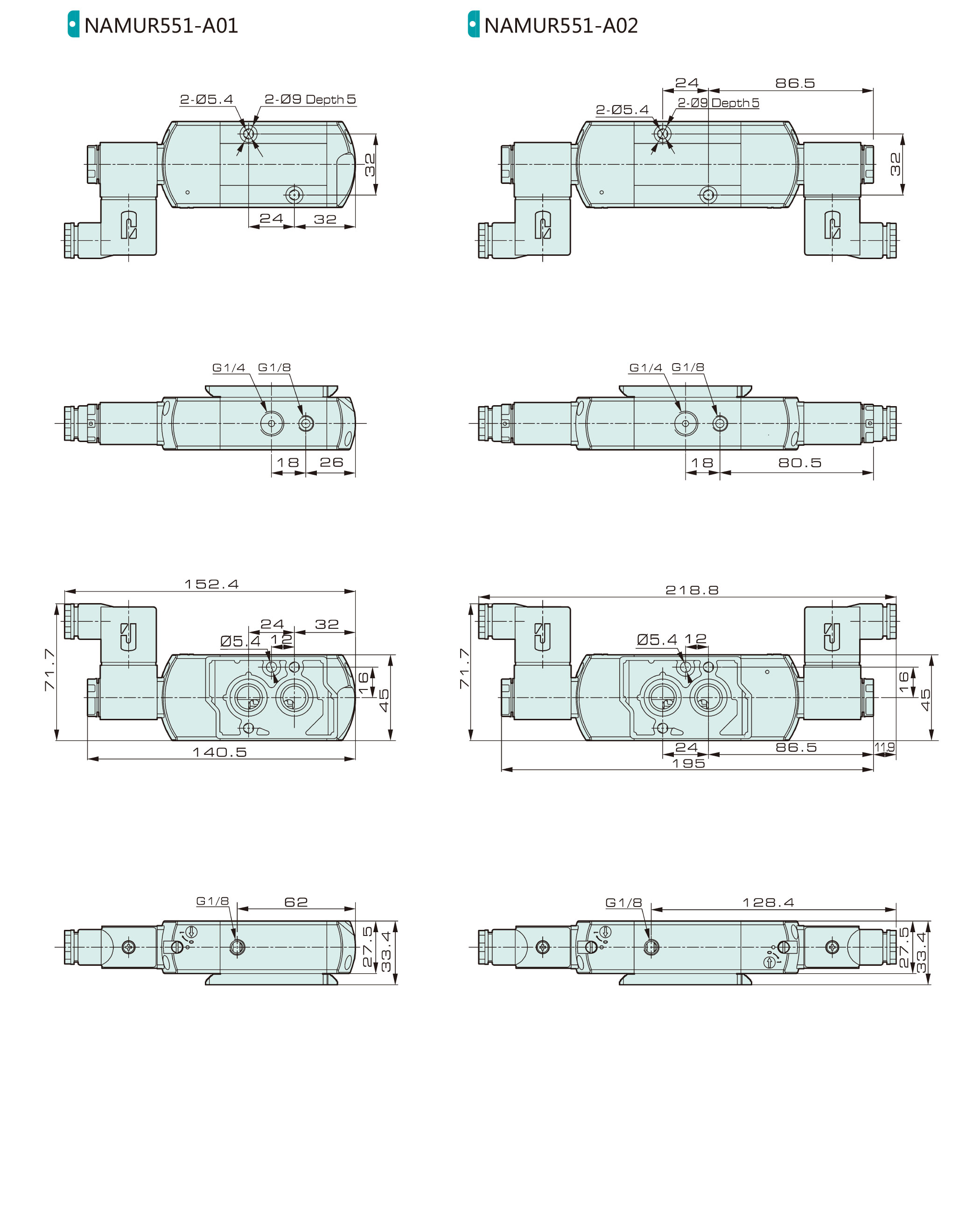

  • Product size

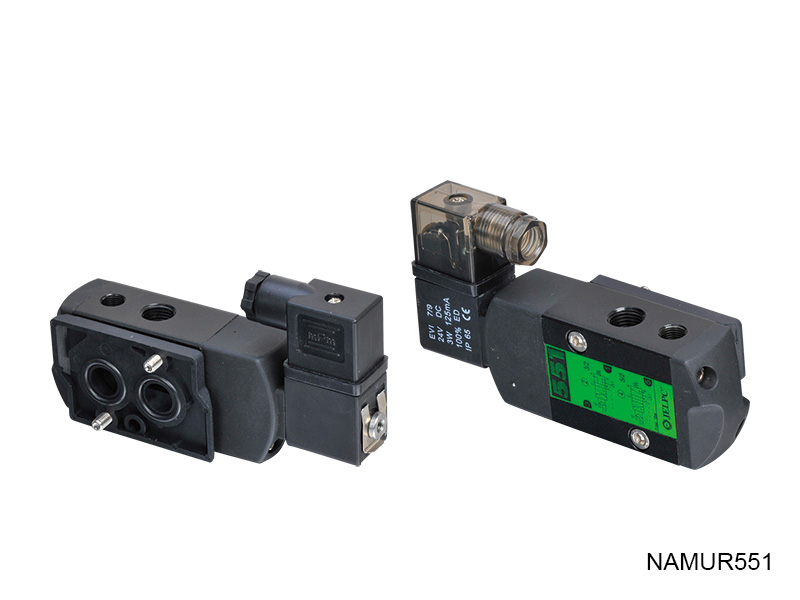

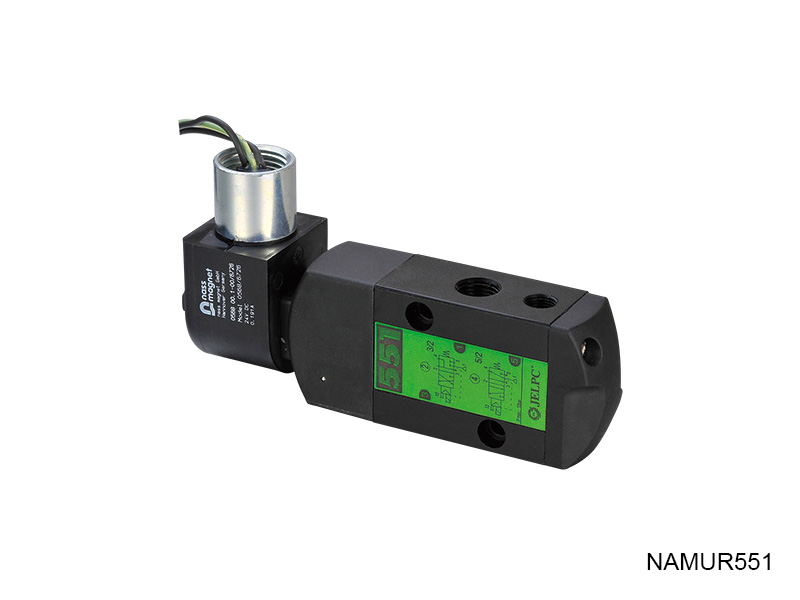

Features

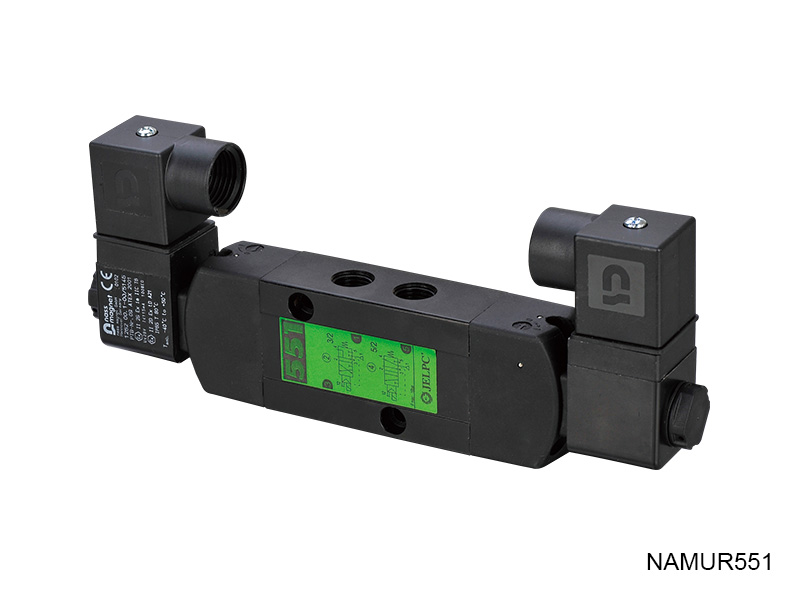

1. Aluminum valve body, with thread connector and Namur interface.

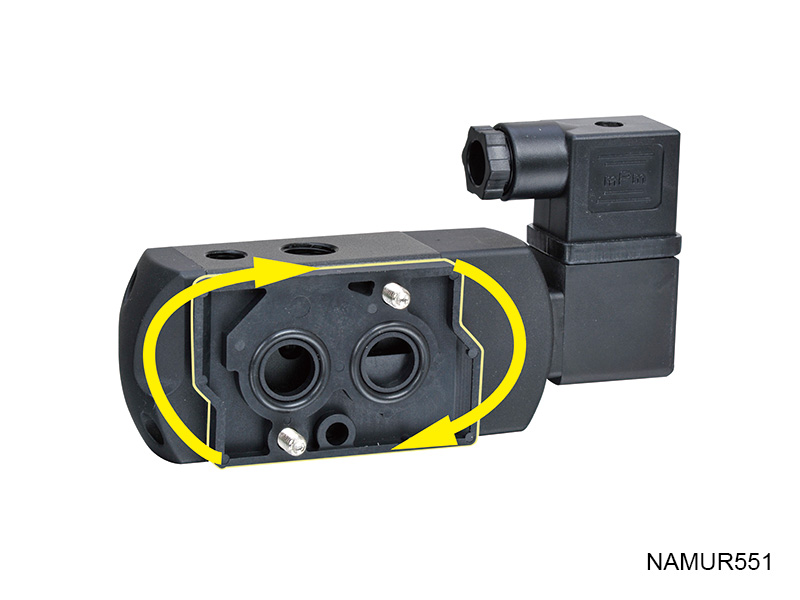

2. A slide valve can be assembeled to 3/2 closed or 5/2 in order to contorol acting and single acting actuator.

3. With hand operator.

4. Coil can be rotated 360°.

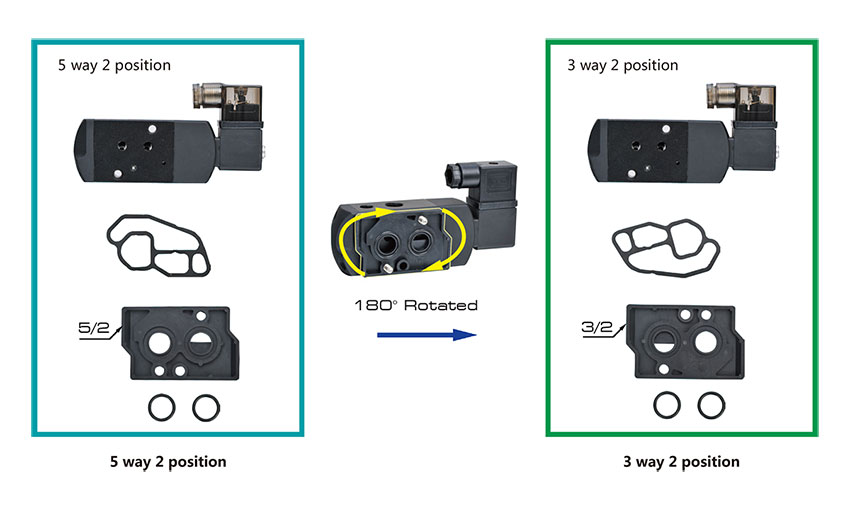

Install Instruction

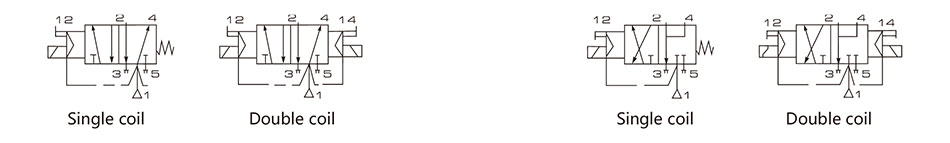

Symbol

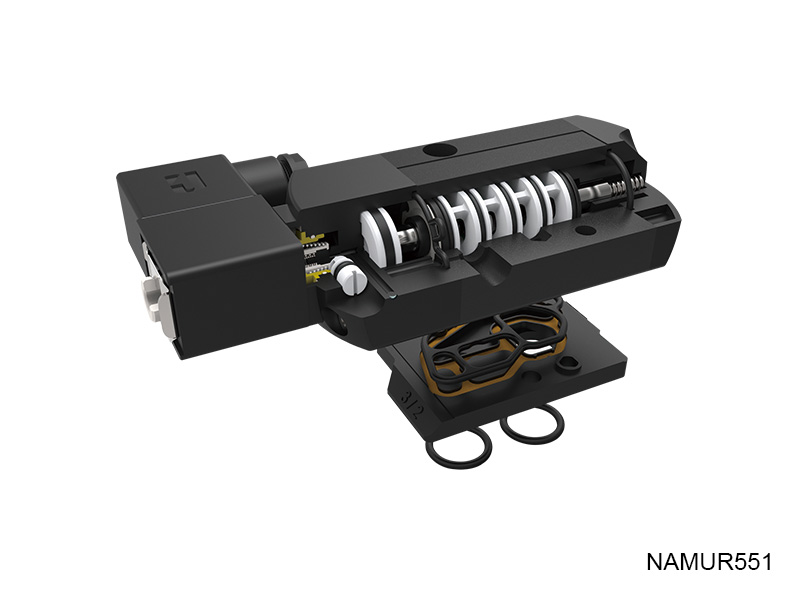

Internal Structure

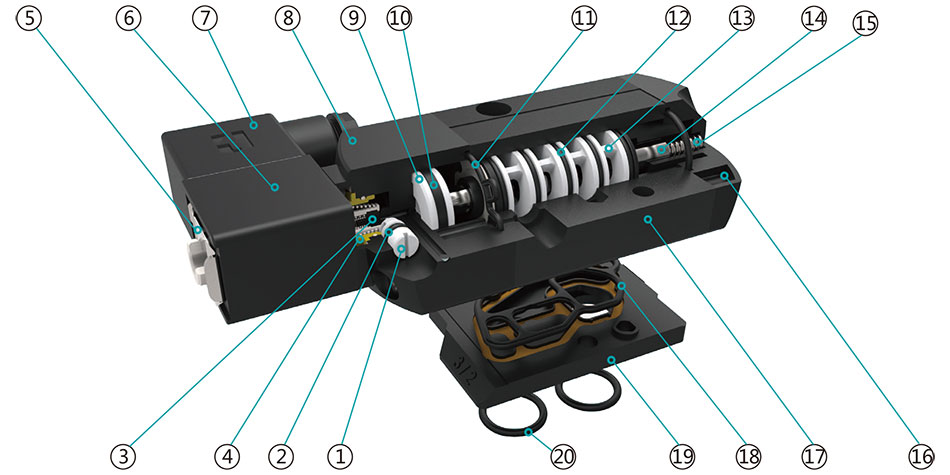

Parts



Number

Name

Number

Name

1

Mannual Ride Spindle

11

Seal

2

O ring

12

O ring

3

Seal

13

Sleeve

4

Spring

14

Spool

5

Clip

15

Spring

6

Coil

16

End-cap

7

Terminal

17

Body

8

Pilot Set

18

Seal

9

Piston

19

Corverting Plate

10

Piston Seal

20

O ring

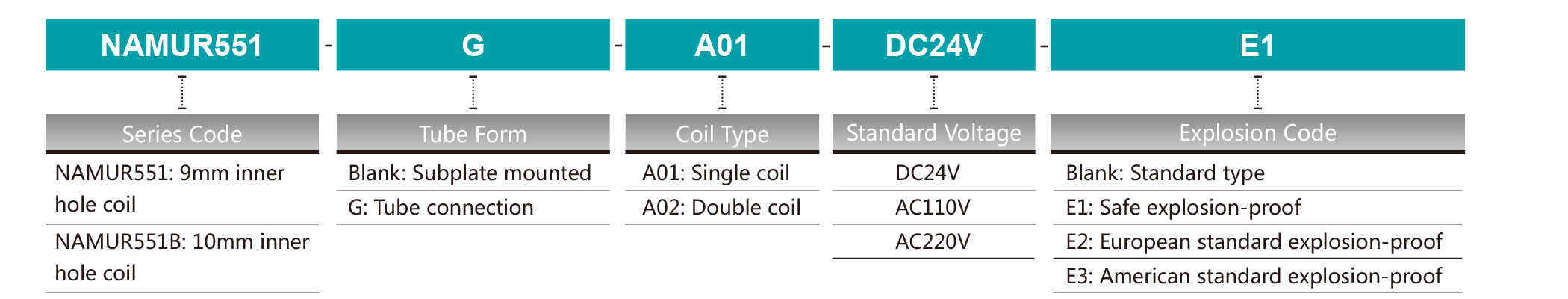

Ordering Code







Specification



Working Pressure

2-10bar

Max Pressure

10bar

Flow Rate

700L/min

Medium

Air, Clean air

Ambient Temperature

-25℃ to +60℃

Seal

NBR+PUR

Port Size

Inlet=G1/4" Exhaust=G1/8"





Feature



Coil Power

DC 3W; AC 4VA

Standard Voltage

DC24V; AC220V

Voltage Tolerance

±10%

Insulation Class

F

Protect Class

IP65

Operation

100%
