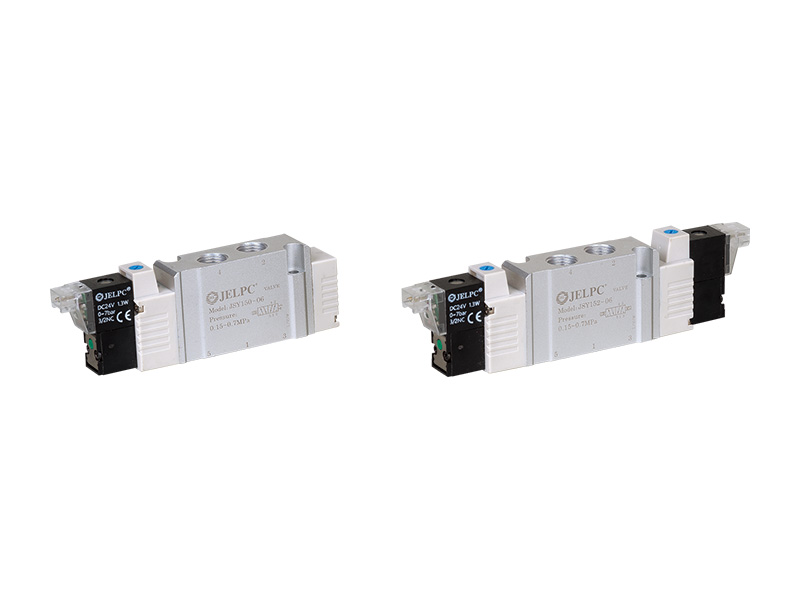

Less Friction JSY series

Less Friction JSY series

0
Views: 2,952
  • Product parameters

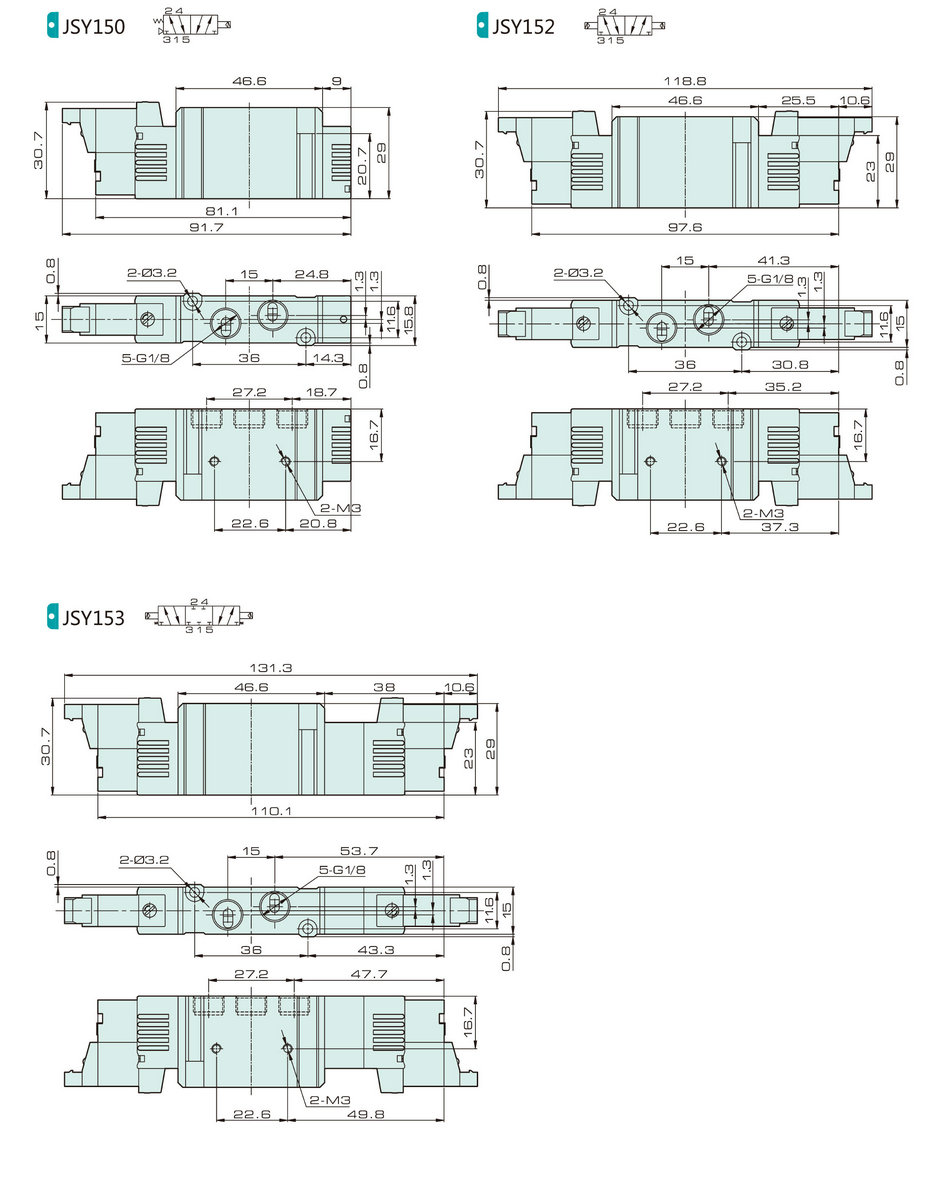

  • Product size

APPL:201330366828.5



Features

1. Inner exhausting structure and no pollution.

2. Low power consumption of 1.2W.

3. Sliding structure and special to upgrade flow, life time, seal function and response.

4. Special treatment to look after inner hole for less friction, lower starting pressure and long life time.

5. Integrated intallation to save space.





Internal Structure

Parts

Number

Name

Number

Name

Number

Name

1

Valve body

7

Mannual ride spindle

13

Flat ring

2

Pilot seat

8

Plug unit

14

Valve spool

3

Pilot piston

9

Armature

15

Reset piston

4

Cross slot pan screw

10

Dysmorphism seal

16

Reset piston Y plug

5

Piston Y ring

11

Valve spool Y ring

17

Cross slot pan screw

6

Spring

12

Anti-friction seal

18

Back cover

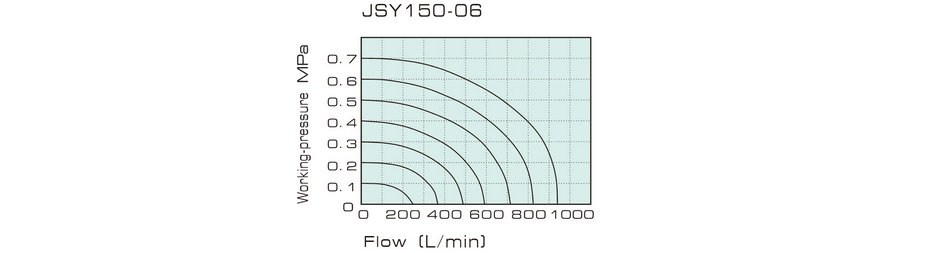

Flow Chart





Ordering Code







Specification



Model

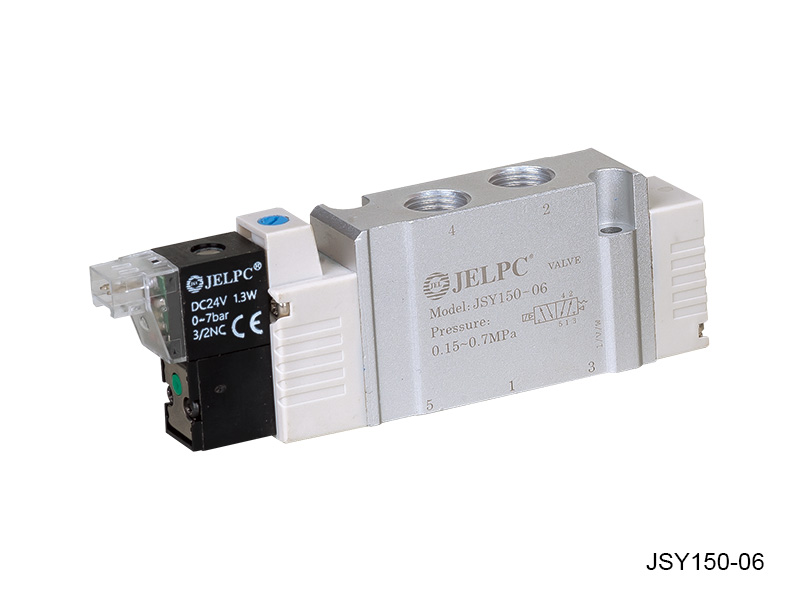

JSY150-06

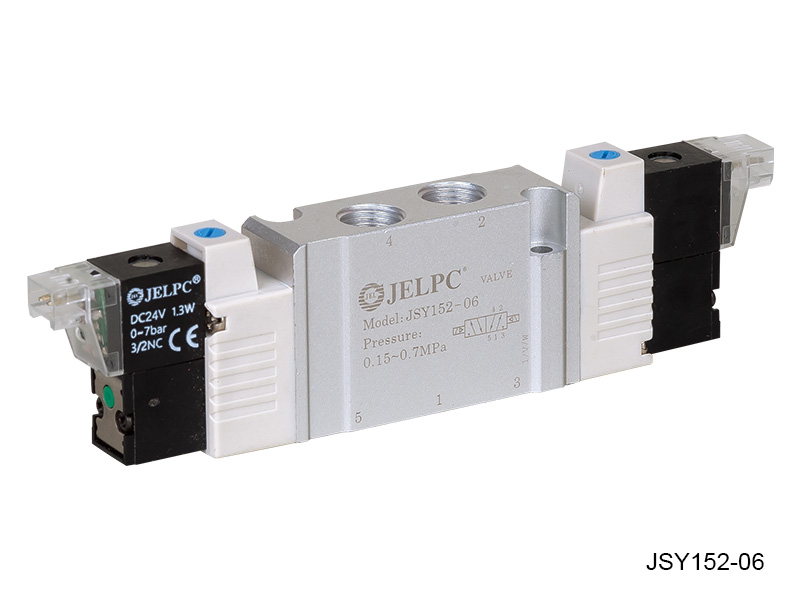

 JSY152-06

JSY15BC-06

 JSY153P-06 JSY153E-06

Valve type

5/2 way

5/3 way

Effective cross section area

8.3mm² (CV = 0.49 )

7.2mm² (CV = 0.42)

Port size

Inlet=Outlet=Exhaust=G1/8"

Working medium

40 Micron filted air

Working pressure

0.15～0.7MPa

 0.1～0.7MPa

0.15～0.7MPa

Max pressure

1MPa

Working temperature

0～50℃

Power consumption

1.2W

Switching frequency

5 Cycles/sec
