Features：
1. The Anti-friction seal is added at both ends of the valve spool to make the valve spool more stable during the switching process and increase the valve life time.
2. Seals original imported from Japan; Optimize valve body inner flow path; Maximum increase the air flow area.
3. Valve Piloted Seat is from Taiwan, the surface design with 5 pcs stripe; Increased the strength of Mannual ride spindle; The appearance is more distinctive.
4. The valve body surface treatment adopts a new environmental protection process.
5. Fully automated assembling & test line with good product consistency.

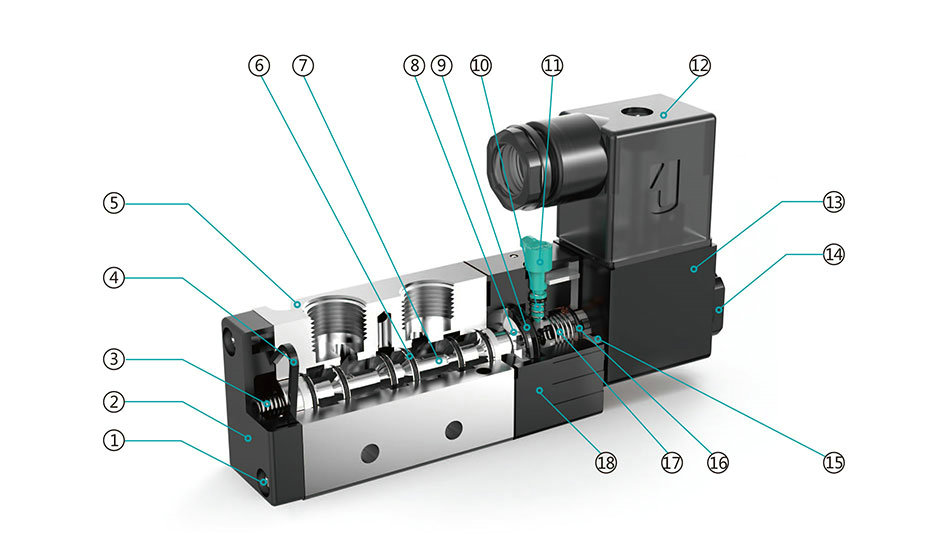

Internal Structure
Parts
| Number | Name | Number | Name | Number | Name |
| 1 | Cross slot pan screw | 7 | Valve spool | 13 | Coil |
| 2 | Back cover | 8 | Piston | 14 | Coil nut |
| 3 | Spring | 9 | Y ring | 15 | Fix plate |
| 4 | Anomalous seal | 10 | Spring | 16 | O ring |
| 5 | Valve body | 11 | Mannual ride spindle | 17 | Plunger |
| 6 | Flat ring | 12 | Terminal | 18 | Pilot seat |

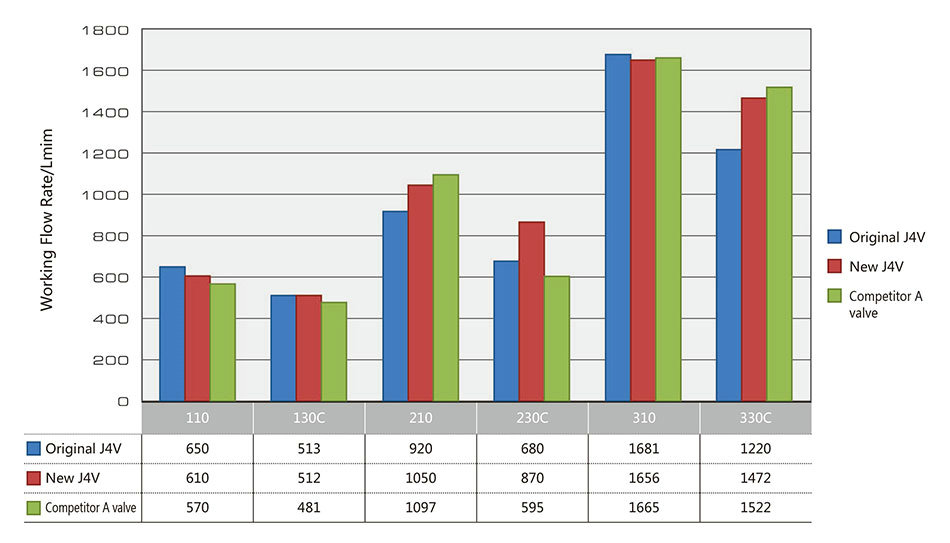

Improvement of Flow Performance Indicator

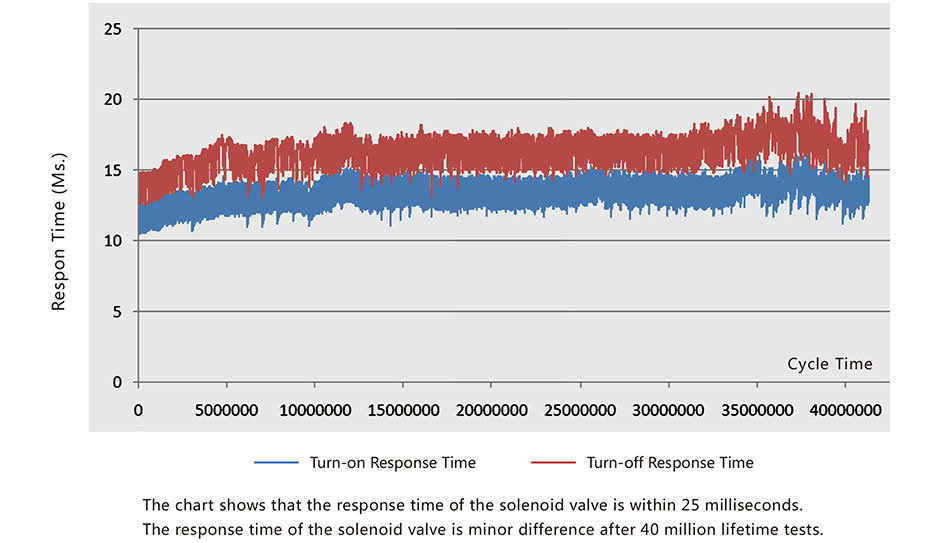

Improvement of Life-time
Order code：

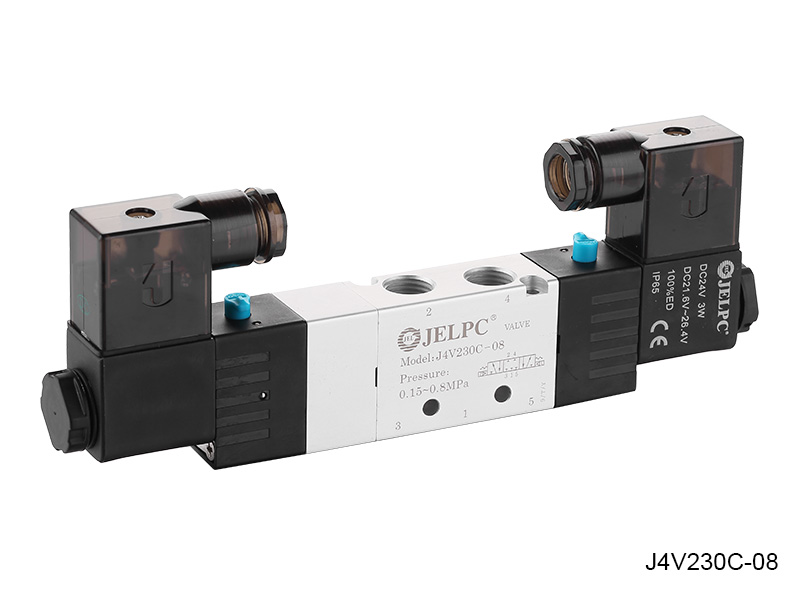

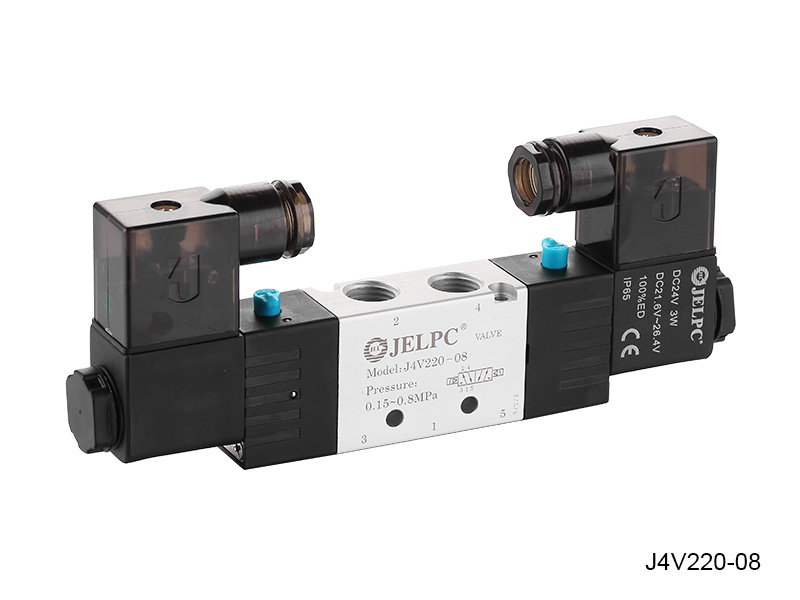

Specification
|
Model |
J4V210-06 | J4V220-06 | J4V230C-06 | J4V230E-06 | J4V230P-06 | J4V210-08 | J4V220-08 | J4V230C-08 | J4V230E-08 | J4V230P-08 |
| 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
|
Valve Type |
5/2 way | 5/3 way | 5/2 way | 5/3 way | ||||||
|
Effective Cross Section Area |
14 mm²(CV=0.78) | 12 mm² (CV=0.67) | 16 mm² (CV=0.89) | 12 mm² (CV=0.67) | ||||||
|
Model |
J3V210-06 | J3V220-06 | 3A210- 06 | 3A220-06 | J3V210-08 | J3V220-08 | 3A210-08 | 3A220-08 | ||
|
Valve Type |
3/2 way | |||||||||
|
Effective Cross Section Area |
14 mm² (CV = 0.78) | 16 mm² (CV = 0.89) | ||||||||
|
Port Size |
Inlet, Outlet, Exhaust Port ＝ G 1/8″ | Inlet, Outlet ＝ G 1/4″ , Exhaust Port ＝ G 1/8″ | ||||||||
|
Working Medium |
40 Micron Filtered Air | |||||||||
|
Operation |
Internal piloted | |||||||||
|
Working-pressure |
0.15～0.8 MPa | |||||||||
|
Max. Test Pressure |
1.2MPa | |||||||||
|
Ambient Temperature |
-20 ~ 70 ℃ | |||||||||
|
Operating Voltage Tolerance |
± 10% | |||||||||
|
Power Consumption |
AC: 3.5VA DC: 2.5W | |||||||||
|
Connector Protection |
F Class, IP 65 | |||||||||
|
Wiring / Connector |
Cable / Lead Wire or DIN Connector | |||||||||
|
Switching Frequency |
5 Cycles / Sec. | |||||||||
|
Response Time |
0.05 Sec. | |||||||||

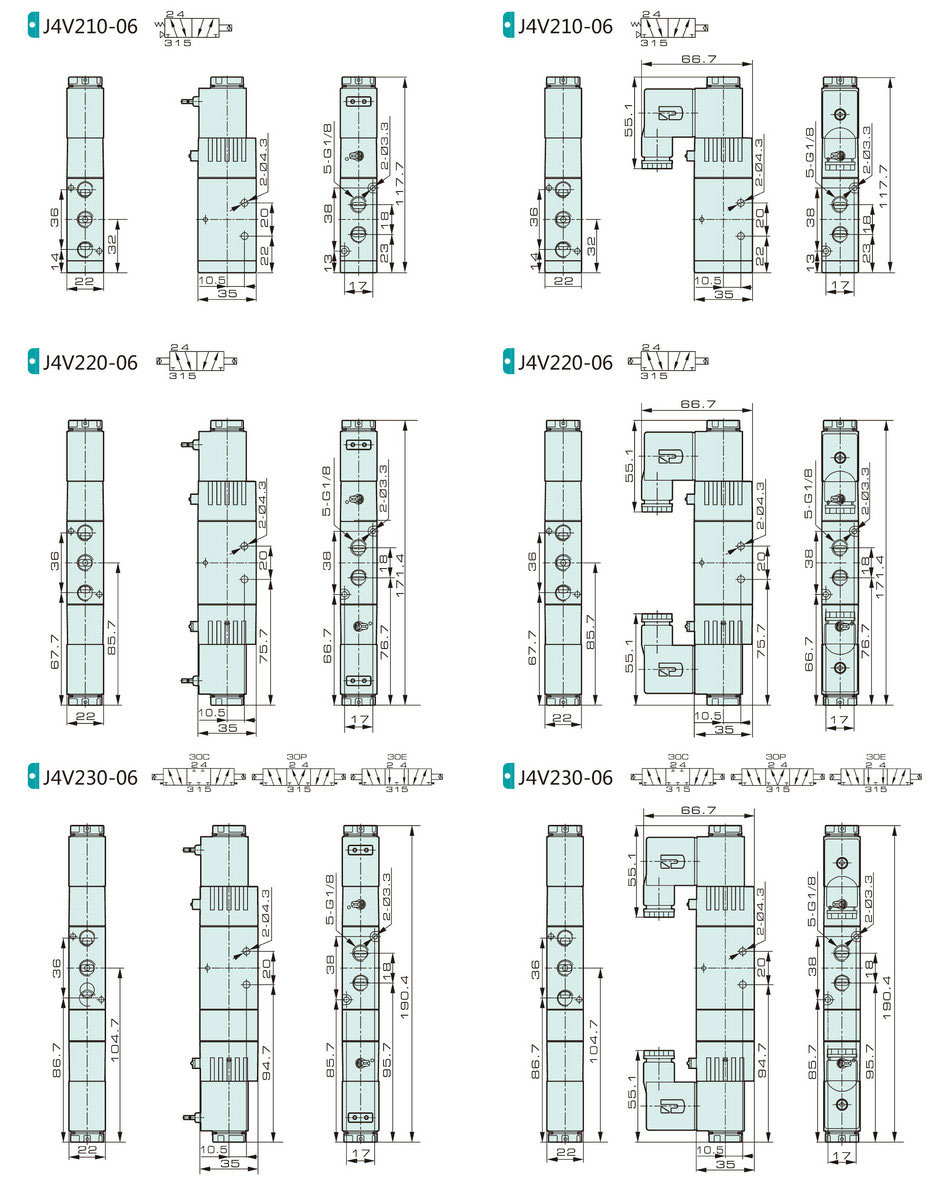

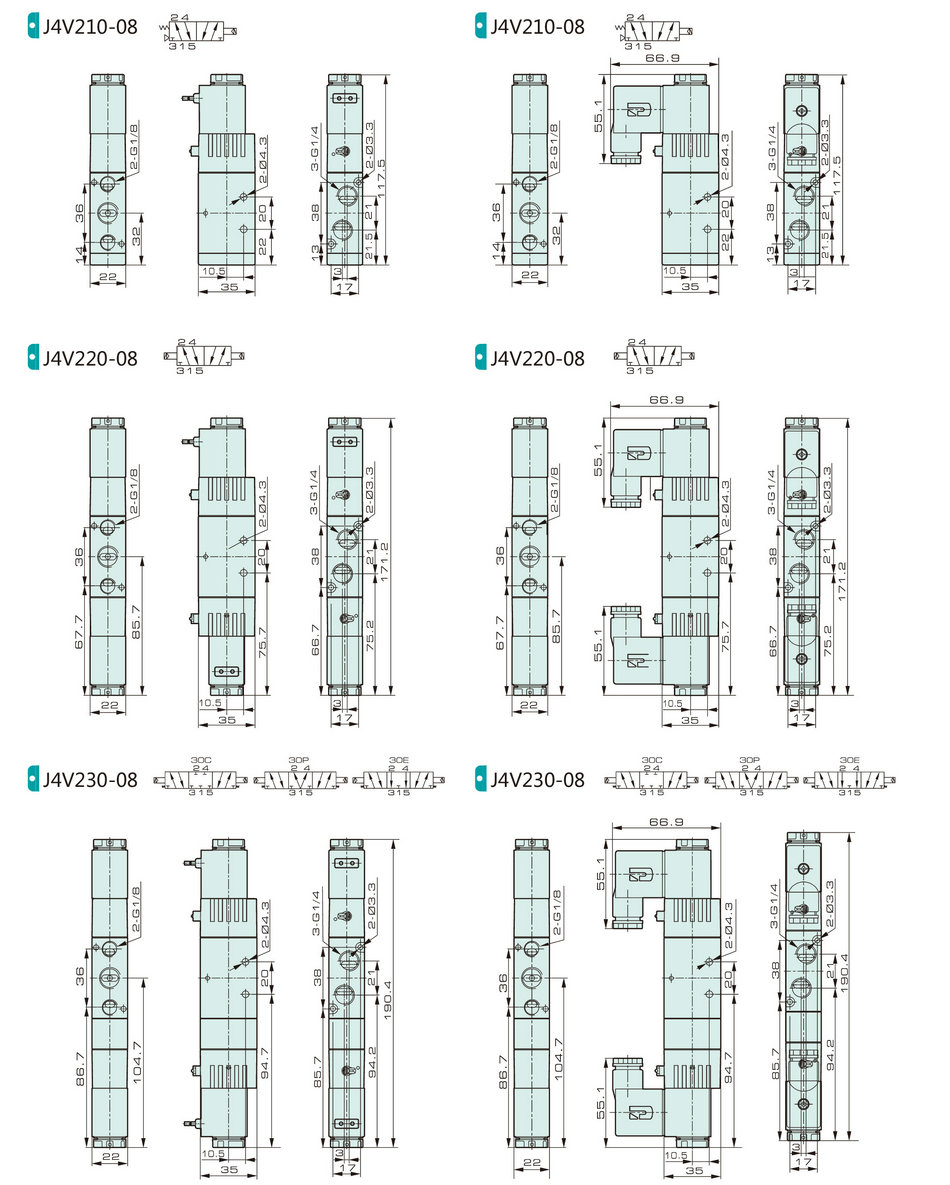

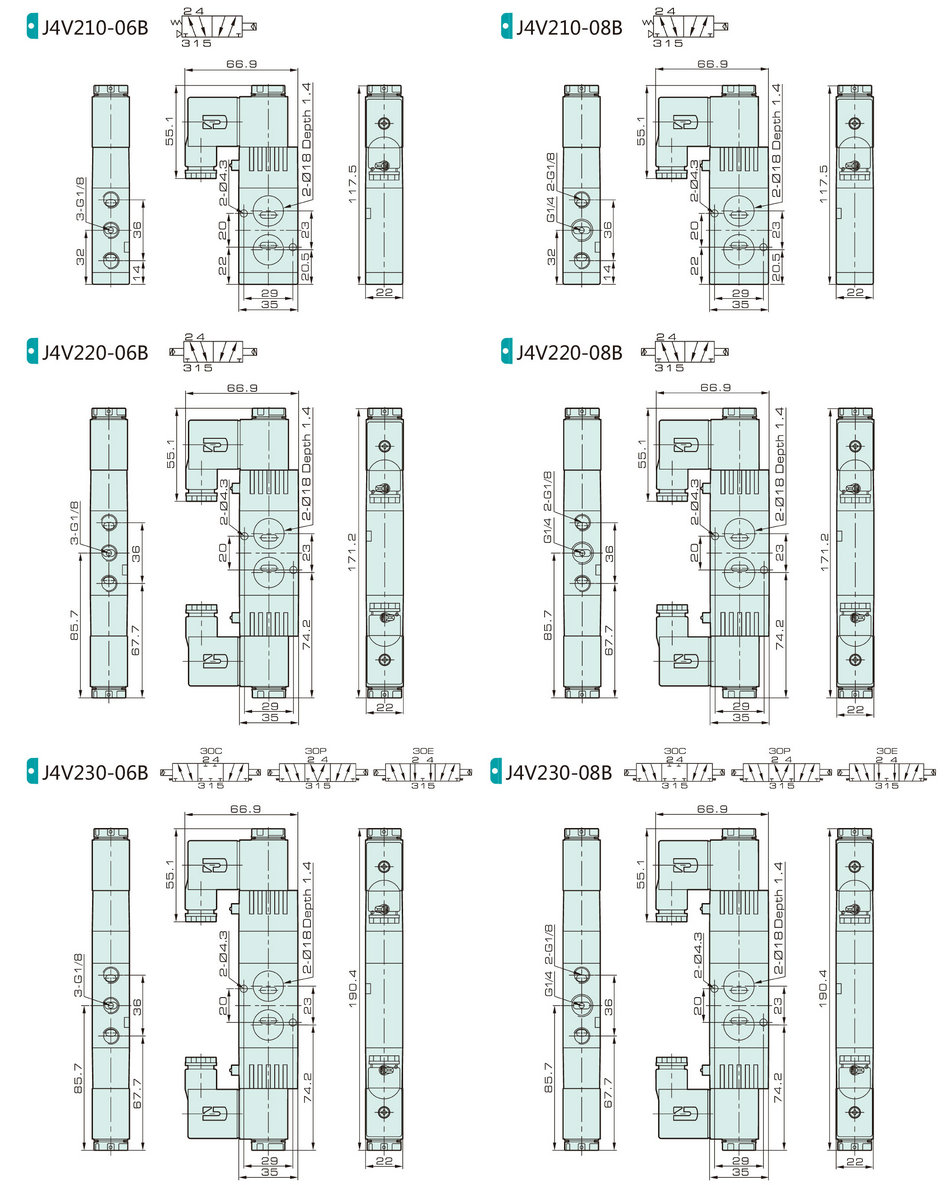

Overall Dimension:
