High Precision BM Series

High Precision BM Series

0
Views: 2,531
  • Product parameters

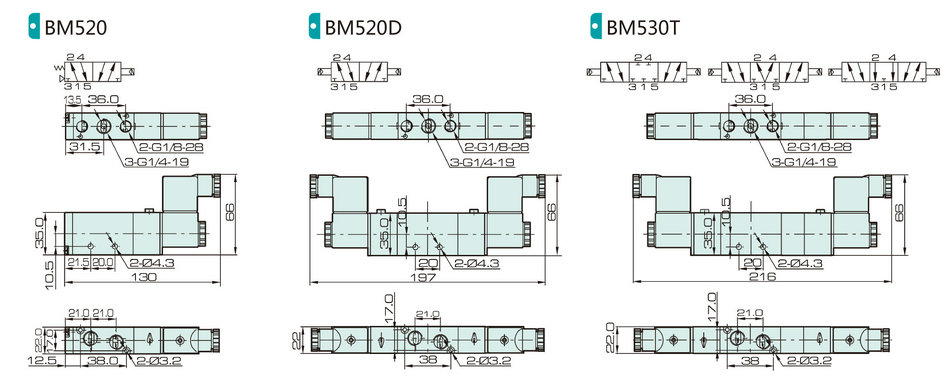

  • Product size

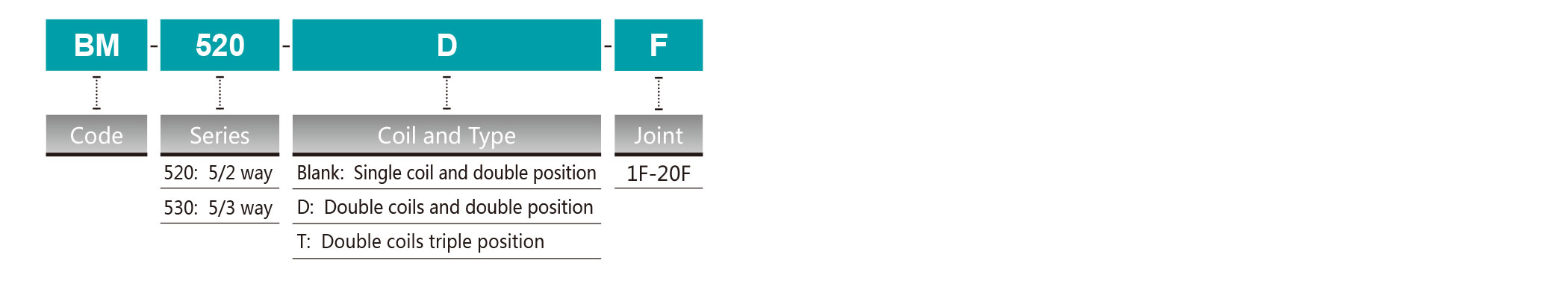

Ordering Code









Specification



Model

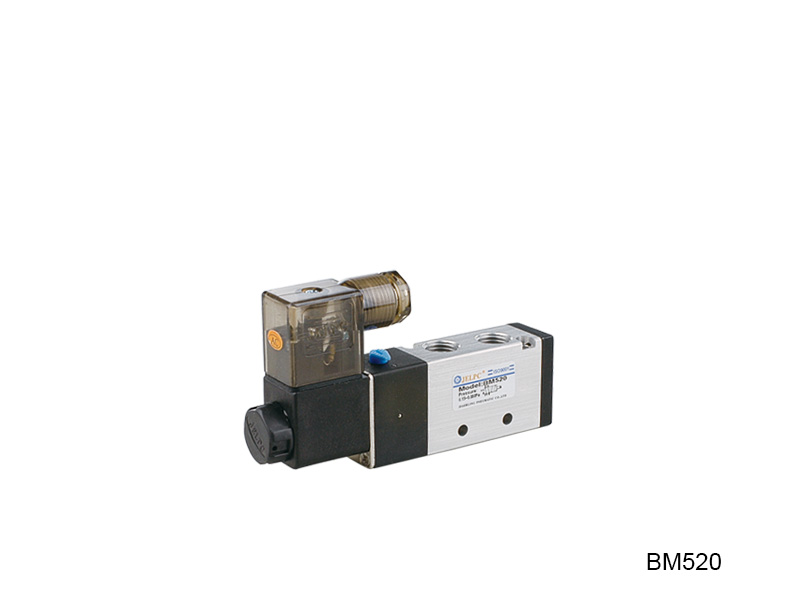

BM520

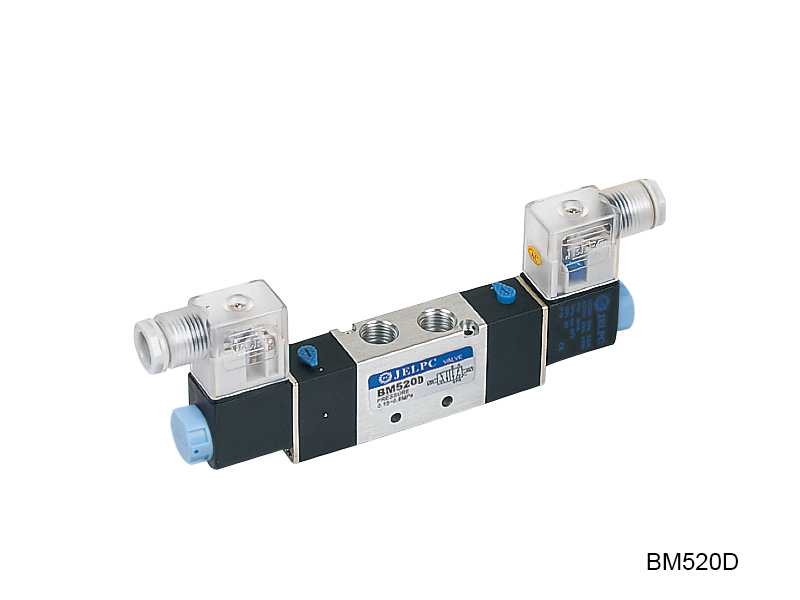

BM520D

BM520T

Valve Type

5/2 way

5/3 way

Effective Cross Section Area

16 mm²(CV=0.89)

12 mm²(CV=0.67)

Working Medium

40 Micron Filtered Air

Operation

Internal Piloted

Working-pressure

0.15～0.8 MPa

Max. Test Pressure

1.2 MPa

Max. Ambient Temperature

-20～70℃

Operating Voltage Tolerance

± 10%

Power Consumption

AC: 5.5 VA DC: 4.8 W

Protect Class

F Class, IP 65

Wiring / Connector

Cable / Lead Wire or DIN Connector

Switching Frequency

5 Cycles / Sec.

Response Time

0.05 Sec.
