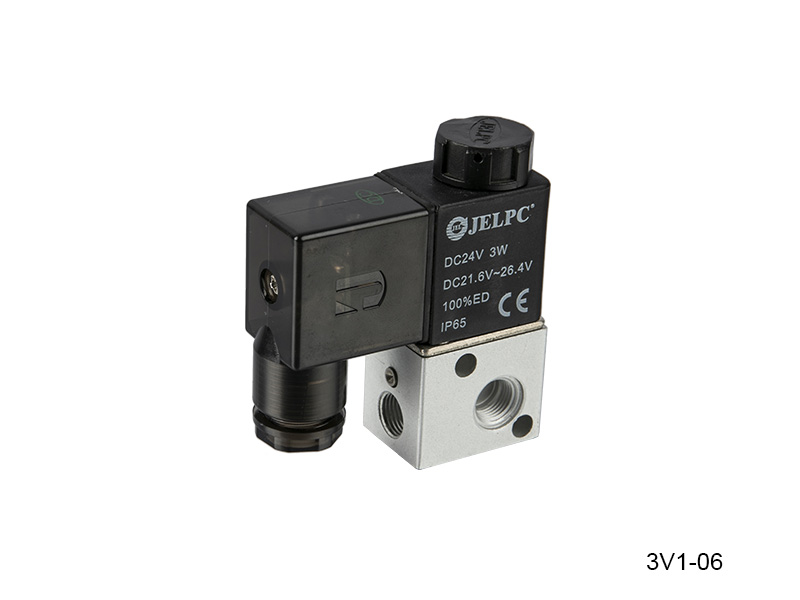

3V1 Series Direct Acting Solenoid Valve

3V1 Series Direct Acting Solenoid Valve

0
Views: 3,558
  • Product parameters

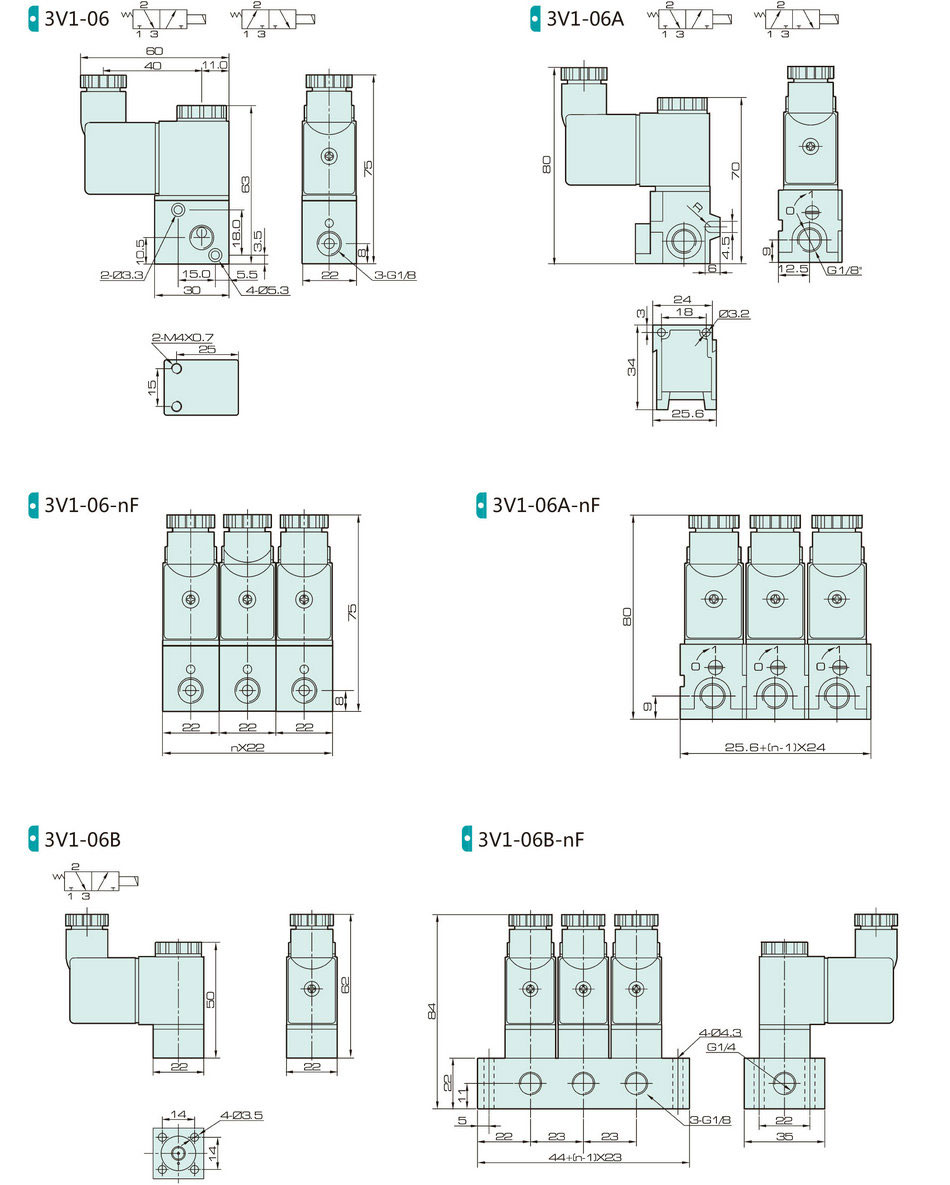

  • Product size

Features

1. We guarantee inner hole roughness within our new processing.

2. Can be assembling with many joints.

3. To import German soft magnetic stainless steel to improve the magnetic performance and reduce coil capacity 30% .

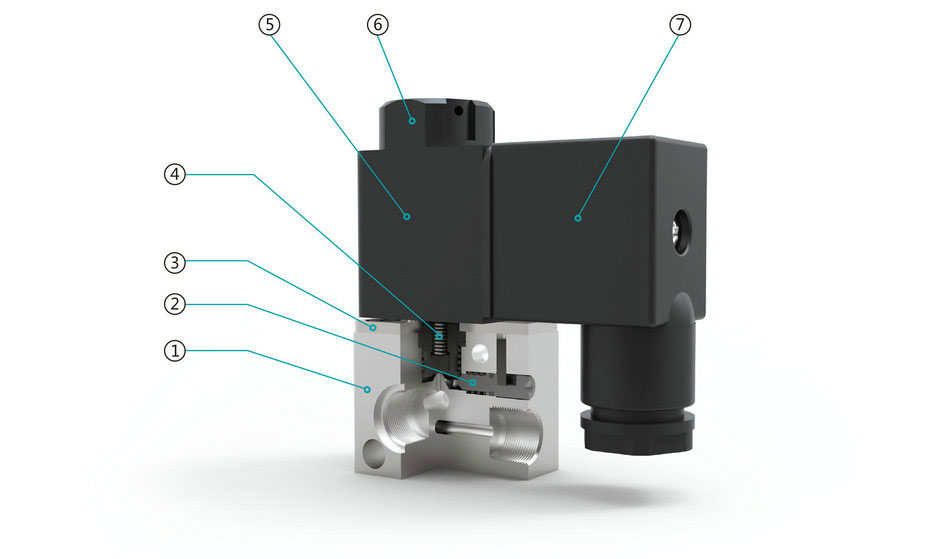

Internal Structure





Parts



Number

Name

Number

Name

l

Valve body

5

Coil

2

Mannual ride spindle

6

Coil nut

3

Connecting part

7

Terminal

4

Solenoid plunger









Flow

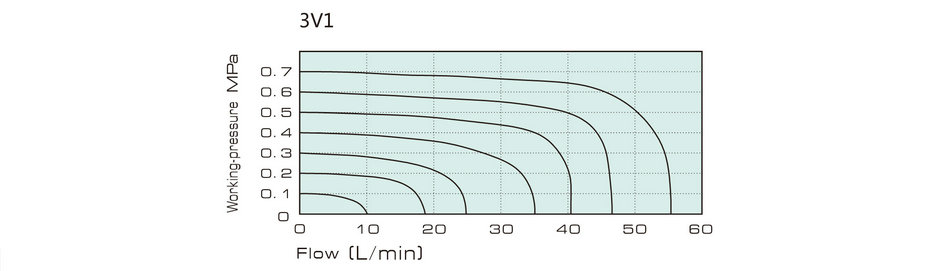

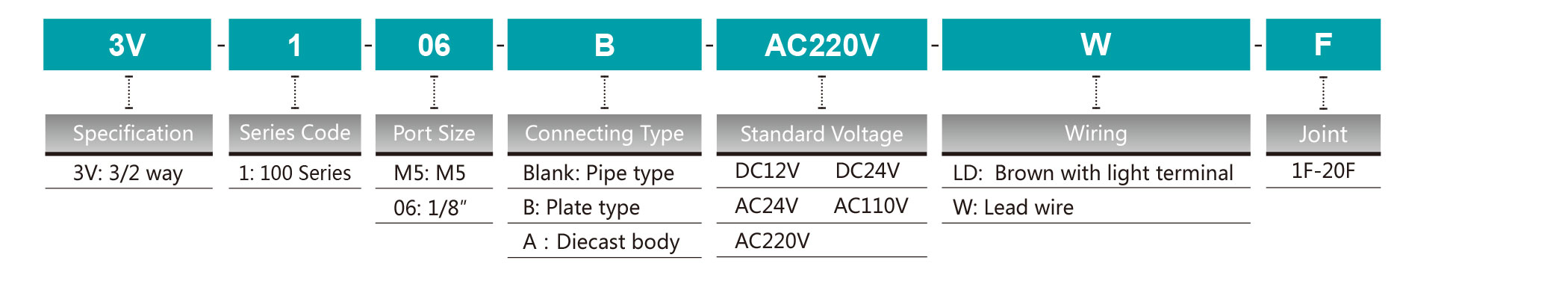

Ordering Code





Note: Normal Open 3V1 valve'voltage only assembly DC24V 6.5W Coil





Specification



Model

3V1-M5

 3V1-06(B/A)-NC

Working Medium

40 Micron Filtered Air

Operation

Direct

Port Size

M5

 1/8" (Without or G1/8")

Ambient Temperature

-10～+60℃

Gas Temperature

5～6CTC

Air Outlet Diameter

1.0mm

Lubrication

Not Required

Working-pressure

0～0.8 MPa

Max. Test Pressure

1.2 MPa

Power Consumption

AC: 5.5VA DC: 4.8W

Protect Class

IP65

Wiring / Connector

Cable / Lead Wire or DIN Connector

Material of Body

Aluminum Alloy

Switching Frequency

10 Cycles / Sec.

Insulation

F Class

Operating Voltage Tolerance

±10%

Response Time

0.05 Sec.

Flow Aperture

01mm
