Ordering Code

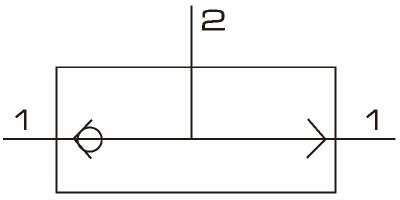

Symbol
Specification
|
Model |
ST-01 |
ST-02 |
ST-03 |
ST-04 |
ST-06 |
ST-08 |
|
Working Medium |
Air |
|||||
|
Effective Cross Section Area |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G3/4" |
G1" |
|
Port Size |
7.5 mm² |
21 mm² |
40 mm² |
60 mm² |
110 mm² |
190 mm² |
|
Working Pressure |
0～1.0MPa |
|||||
|
Ambient Temperature |
-20～70℃ |
|||||

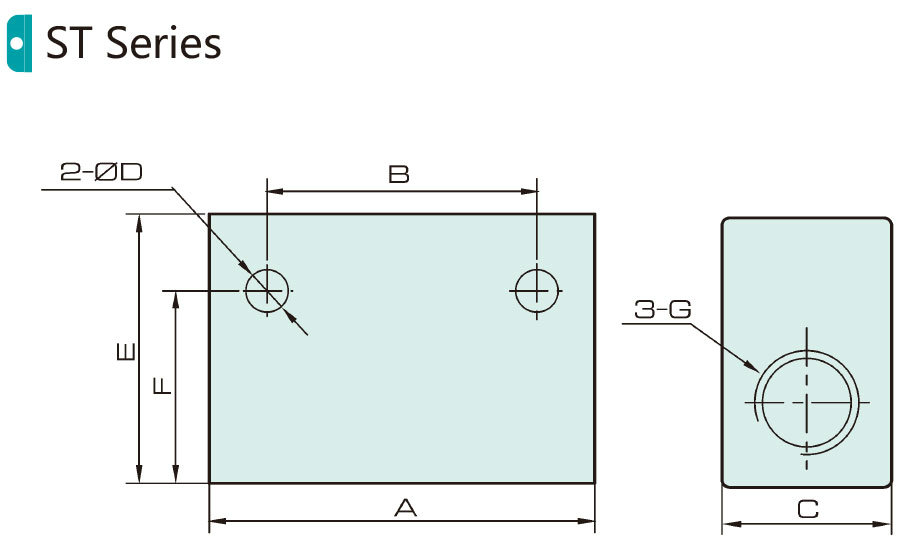

Overall Dimension
Dimension
|
Model/Symbol |
A |
B |
C |
D |
E |
F |
G |
|

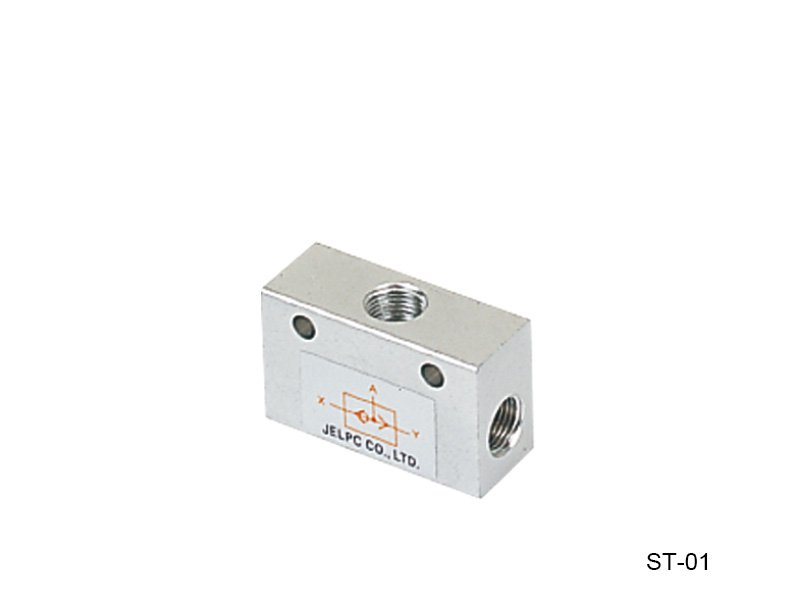

ST-01 |
40 |
24 |
16 |
4.5 |
25 |
20.5 |
G1/8" |
|

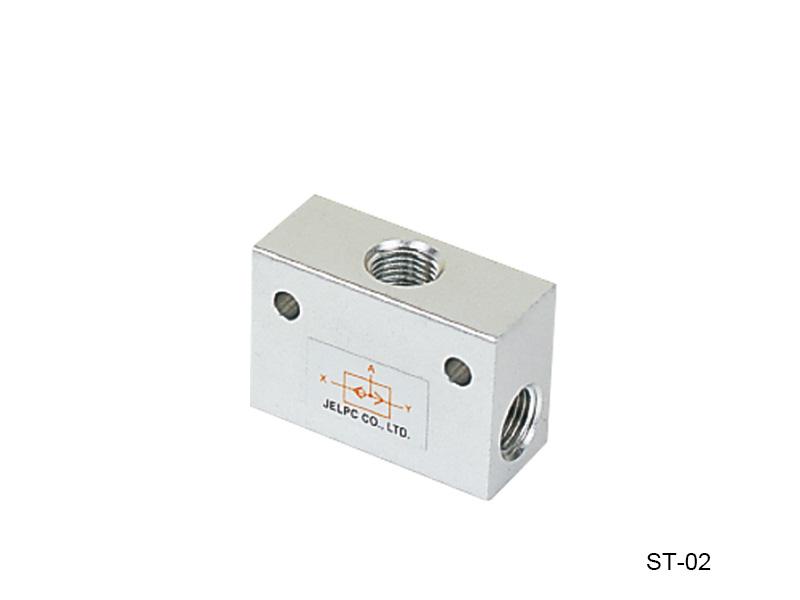

ST-02 |
50 |
35 |
22 |
5.5 |
35 |
25 |
G1/4" |
|
ST-03 |
75 |
48 |
30 |
7 |
50 |
42 |
G3/8" |
|
ST-04 |
75 |
48 |
30 |
7 |
50 |
42 |
G1/2" |
|
ST-06 |
110 |
72 |
40 |
7 |
70 |
58 |
G3/4" |
|
ST-08 |
110 |
72 |
40 |
7 |
70 |
58 |
G1" |
