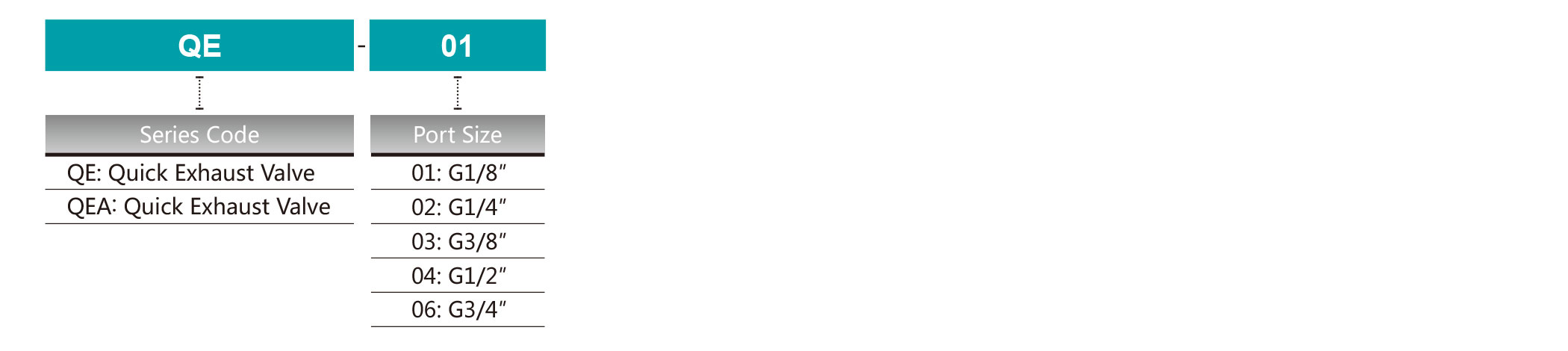

Ordering Code
Symbol
Specification
|
Model |

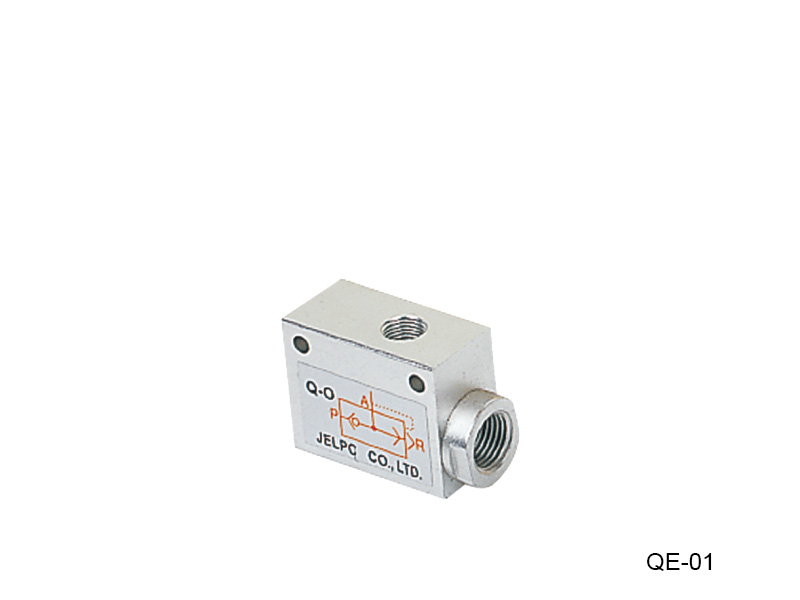

QE-01 |

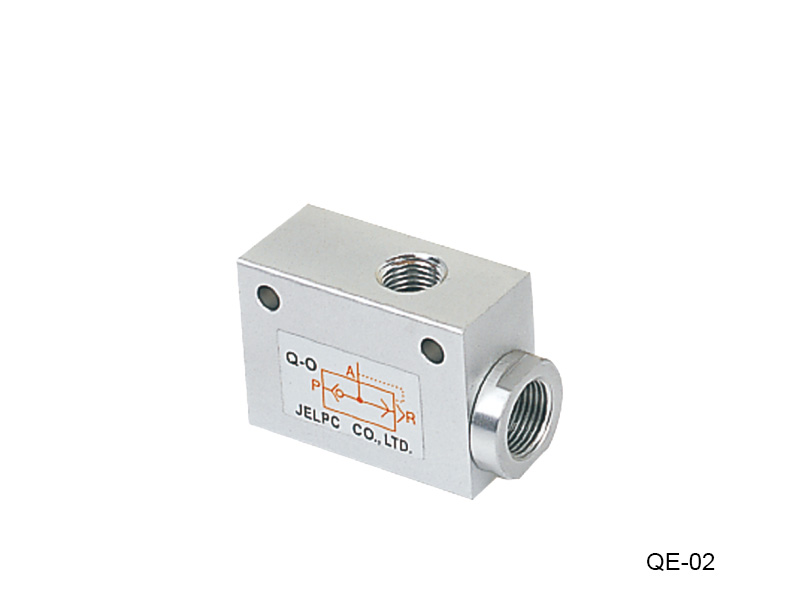

QE-02 |

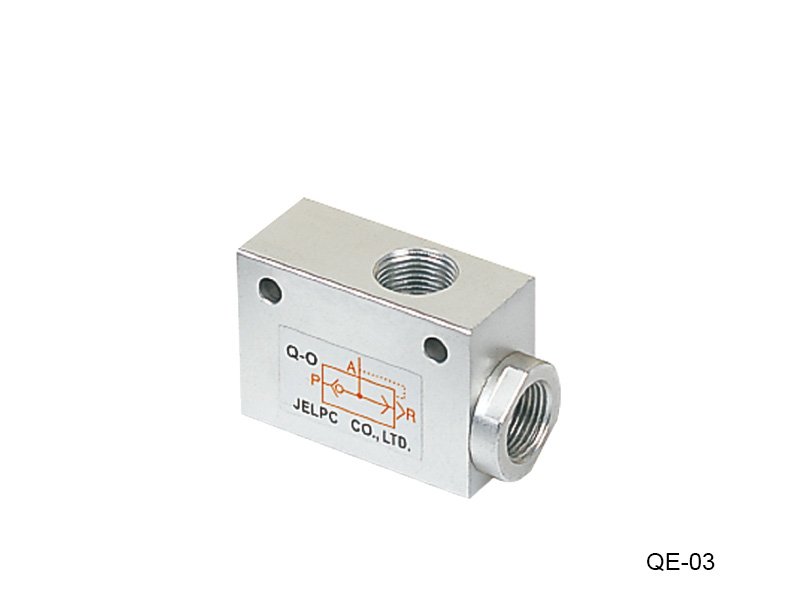

QE-03 |
QE-04 |
QE-06 |
|
Port Size |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G3/4" |
|
Effective Cross Section Area |
16 mm² |
27.5 mm² |
28 mm² |
71 mm² |
72.5 mm² |
|
Working Medium |
Air |
||||
|
Working Pressure |
0～1.0MPa |
||||
|
Ambient Temperature |
-20～70℃ |
||||

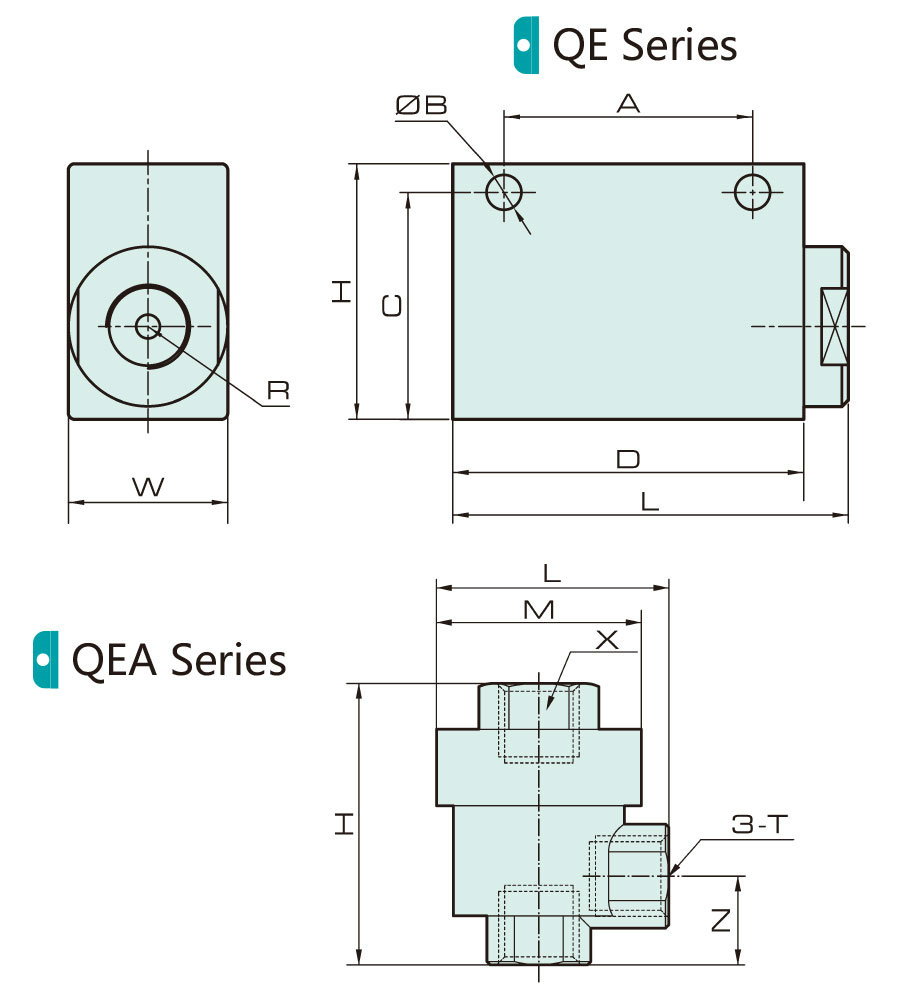

Overall Dimension
Dimension
|
Model/Symbol |
R |
Bore |
L |
W |
H |
A |
B |
C |
D |
|
QE-01 |
G1/8 |
G1/4 |
46 |
20 |
32 |
30 |
4.3 |
27 |
40 |
|
QE-02 |
G1/4 |
G3/8 |
61 |
25 |
40 |
39 |
5.5 |
33 |
55 |
|
QE-03 |
G3/8 |
G3/8 |
61 |
25 |
40 |
39 |
5.5 |
33 |
55 |
|
QE-04 |
G1/2 |
G3/8 |
52 5 |
28 |
36 |
- |
- |
- |
48 |
|
QE-06 |
G3/4 |
G3/4 |
98 |
38 |
64 |
60 |
8.5 |
51 |
90 |
|
Model/Symbol |
T |
H |
L |
M |
N |
X |
|
QEA-01 |
G1/8 |
40 |
32 |
28 |
12 |
14 |
|
QEA-02 |
G1/4 |
45 |
38 |
33.5 |
14 |
17 |
|
QEA-03 |
G3/8 |
55.5 |
47 |
39 |
15.5 |
22 |
|
QEA-04 |
G1/2 |
62 |
55 |
43 |
22 |
24 |
|
QEA-06 |
G3/4 |
91 |
66 |
53 |
35 |
34 |
