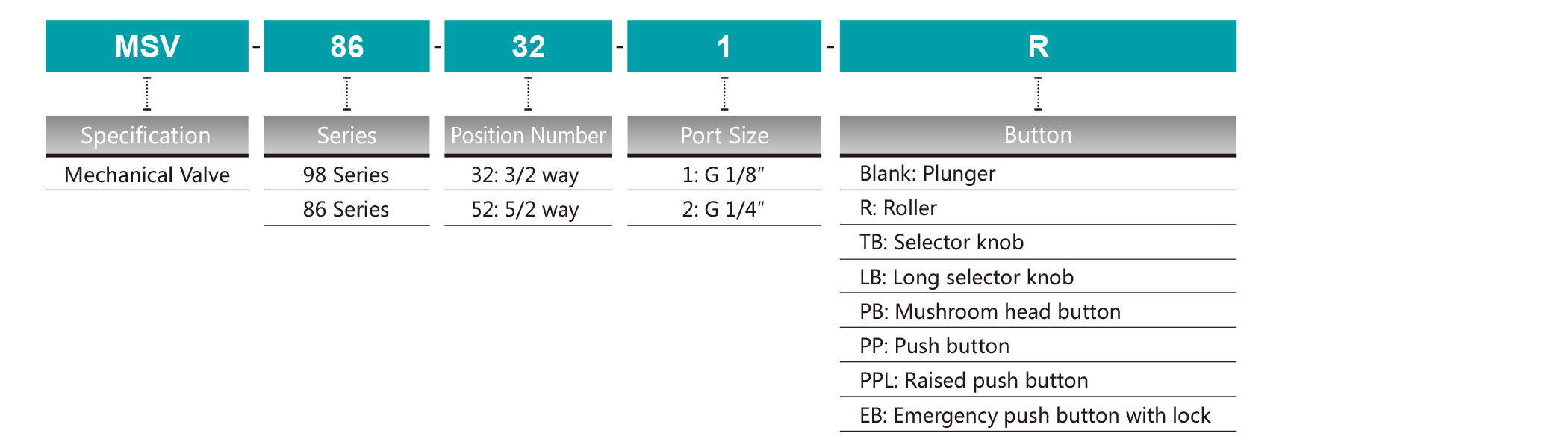

Ordering Code
Specification
|
Model |
MSV86321 |
MSV86522 |
MSV98322 |
|
Working Medium |
40 Micron Filtered Air |
||
|
Valve Type |
3/2 Way |
5/2 Way |
3/2 Way |
|
Working Pressure |
0～0.8 MPa |
0～0.8 MPa |
0～0.8 MPa |
|
Ambient Temperature |
-20～70℃ |
||
|
Effective Cross Section Area |
12mm²(CV=0.67) |
16mm²(CV=0.89) |
16mm²(CV=0.89) |
|
Port Size |
G1/8" |
G1/4" |
G1/4" |

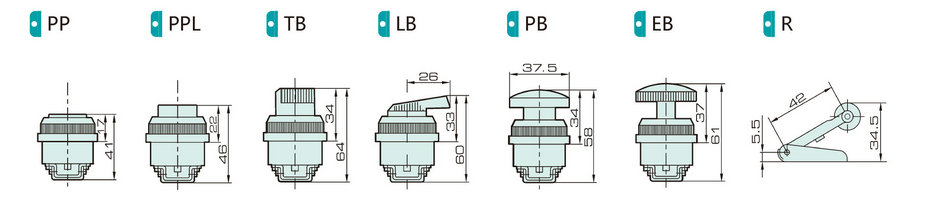

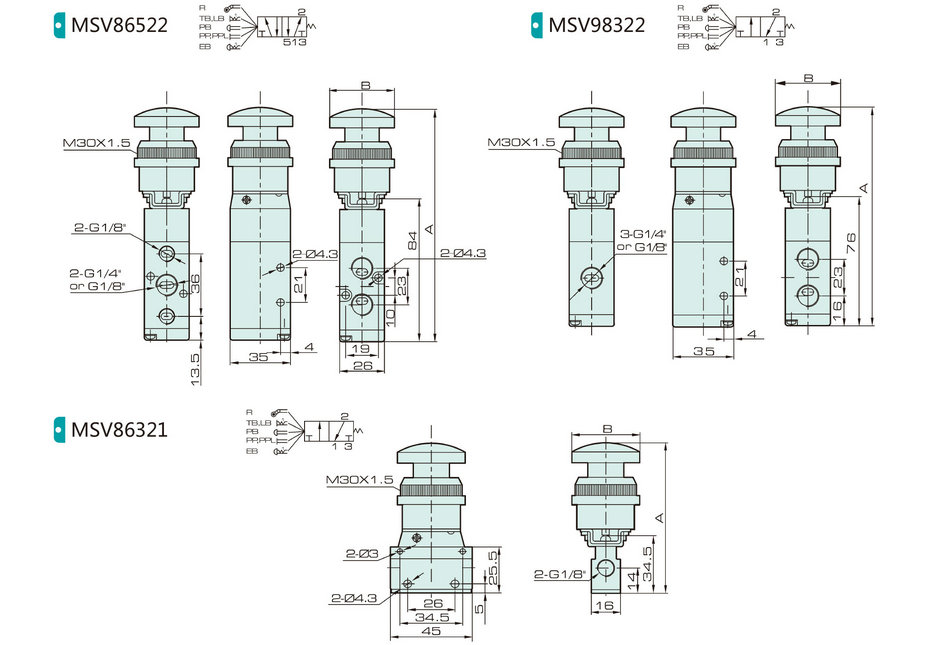

Overall Dimension
Dimension
|
Series |
Symbol / Model |
PP |
PPL |
LB |
TB |
EB |
PB |
R |
|

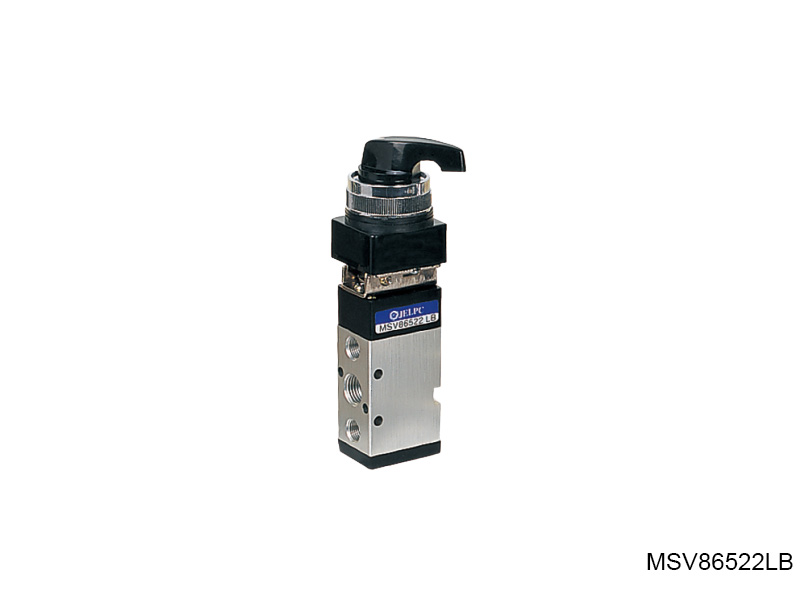

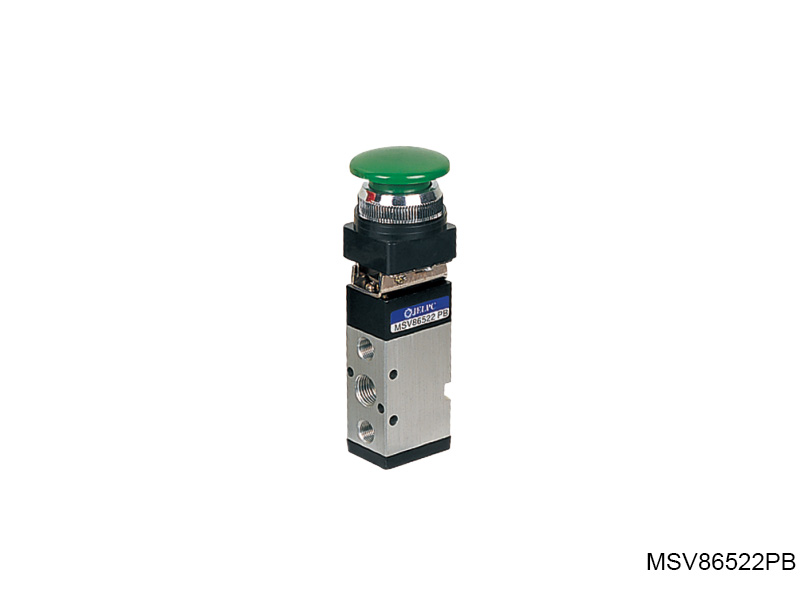

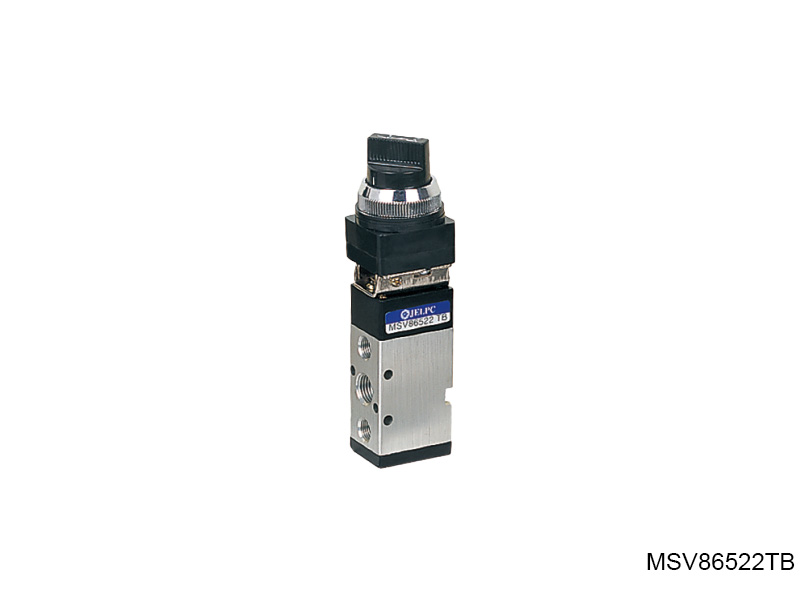

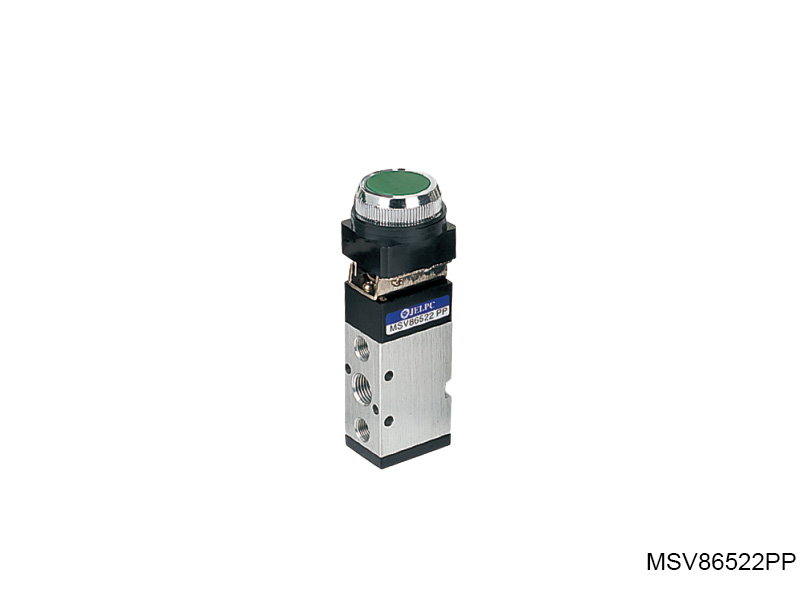

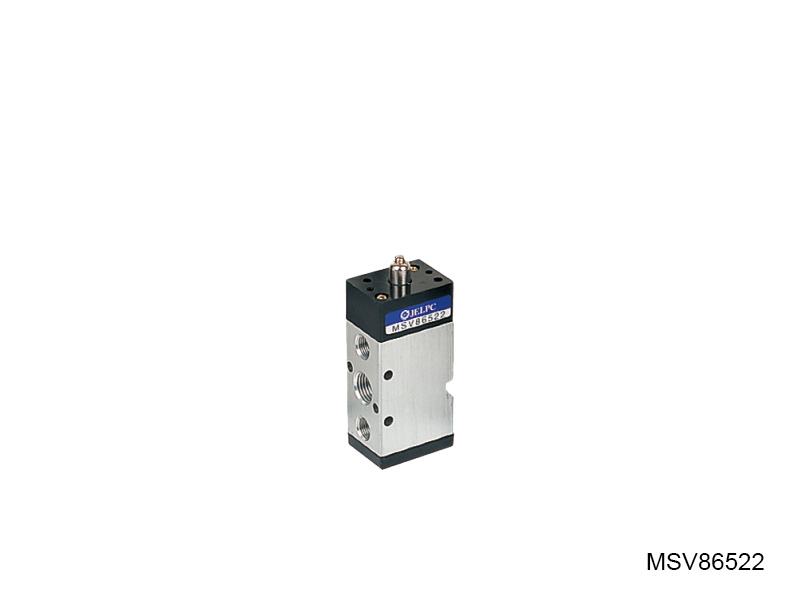

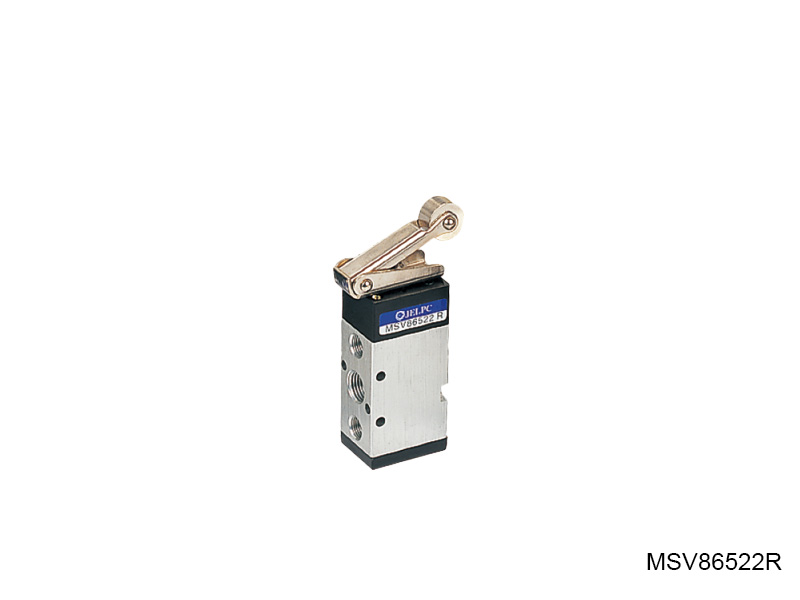

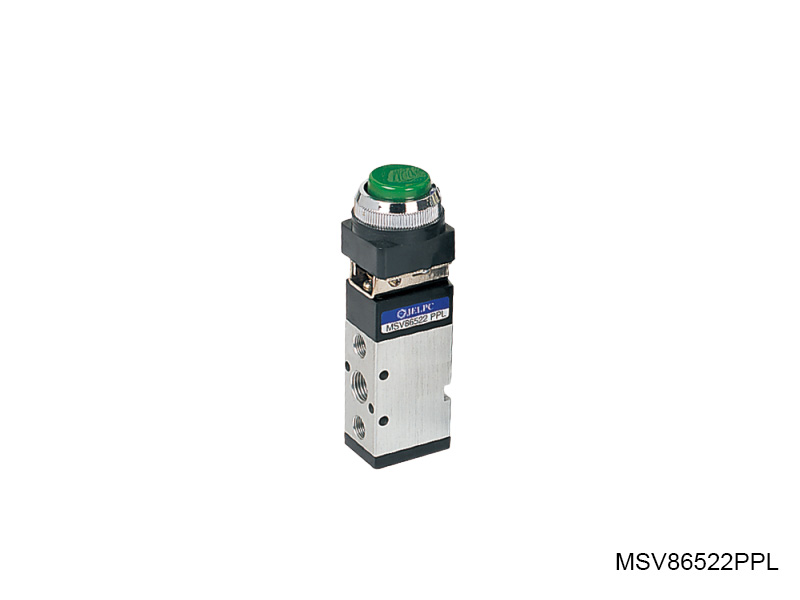

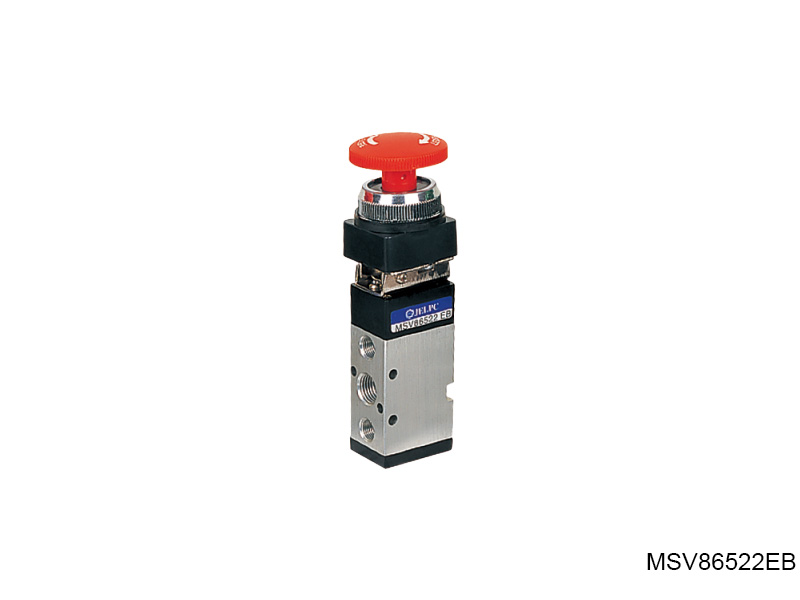

MSV86522 |
A |
114 |
119 |
133 |
136.5 |
134 |
131 |
107.5 |
|
B |
39.5 |
24.5 |
26.5 |
36.5 |
39.5 |
37.5 |
42.5 |
|
|

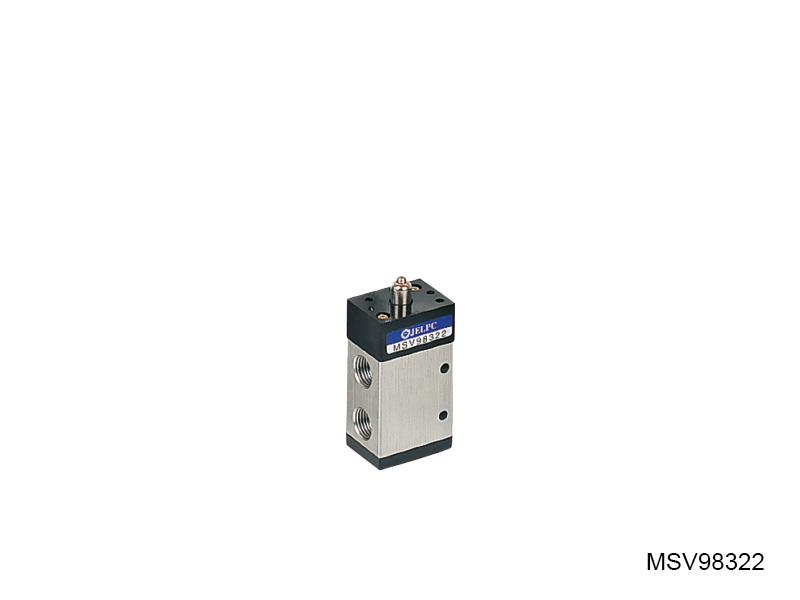

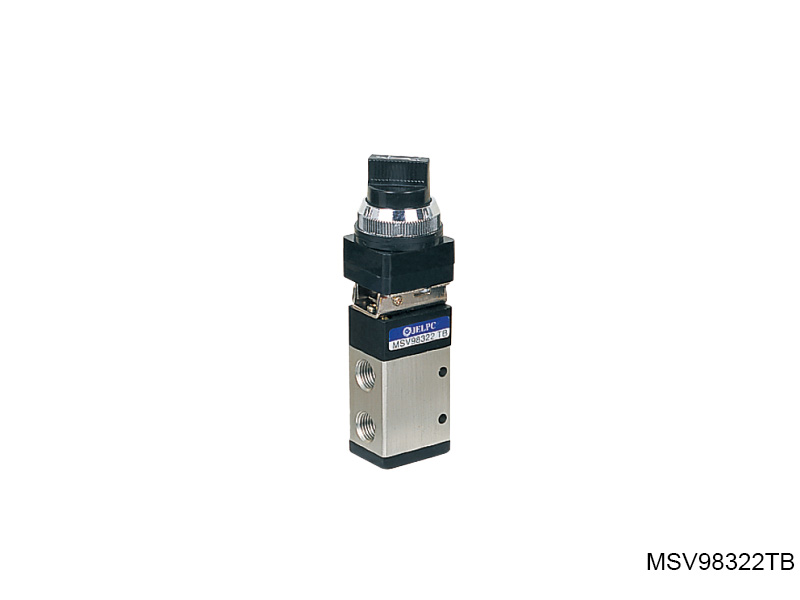

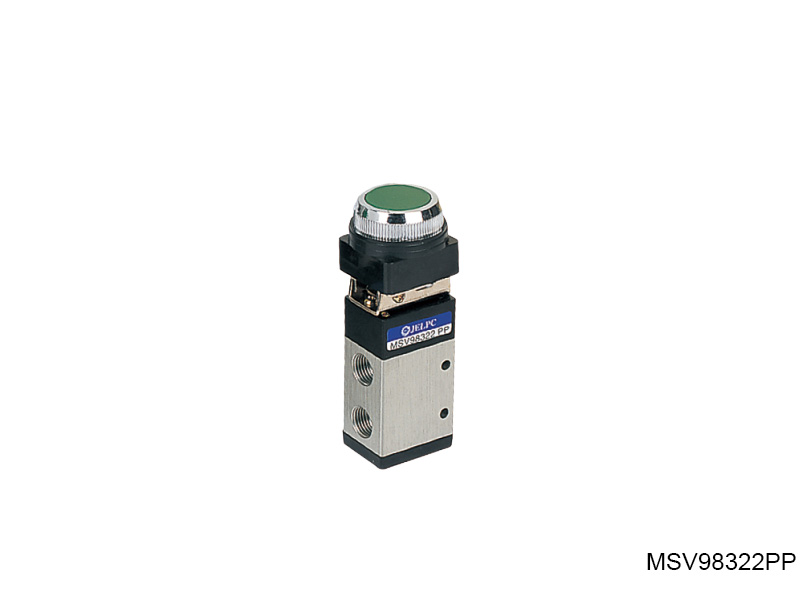

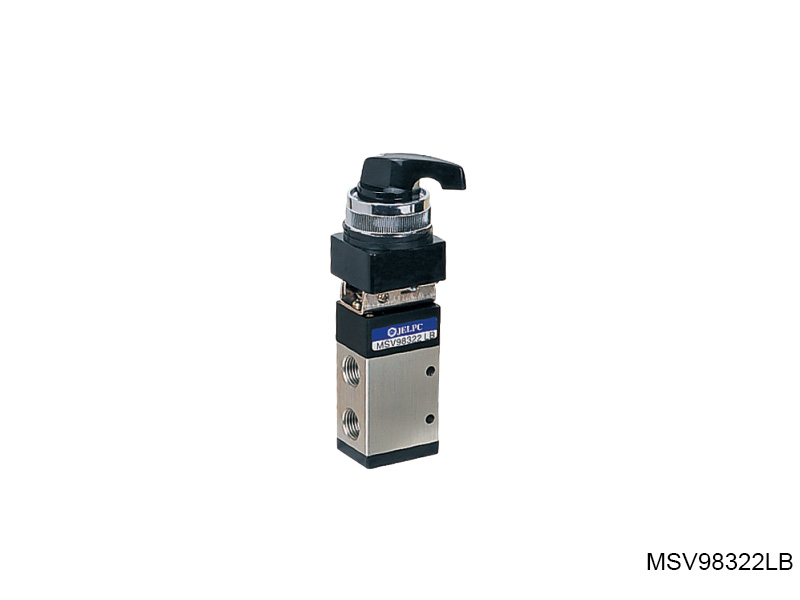

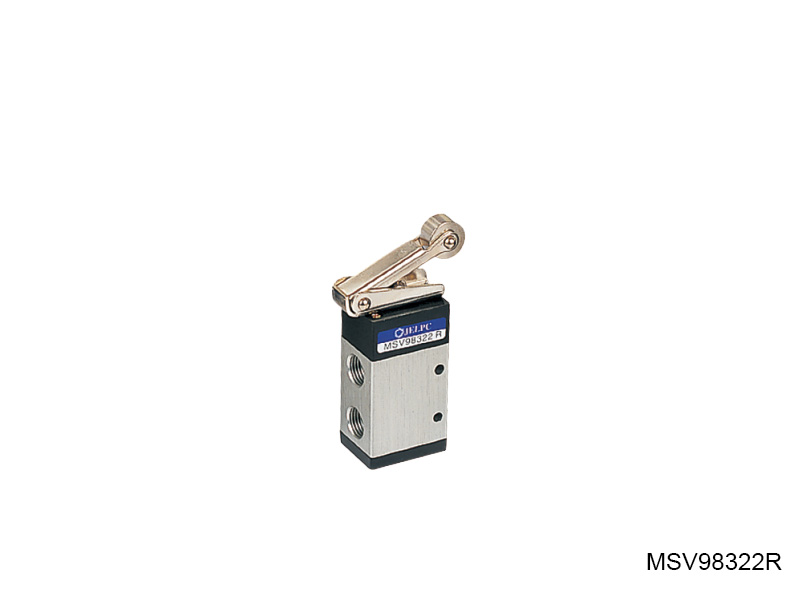

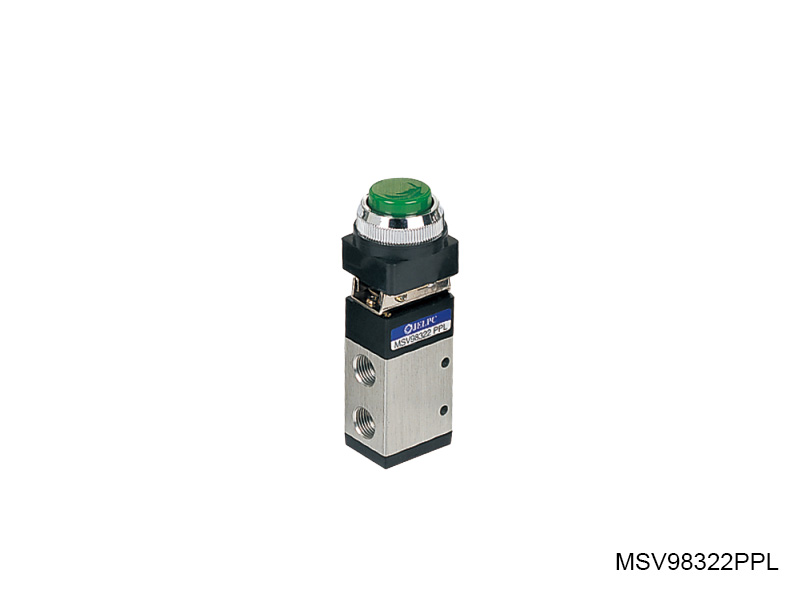

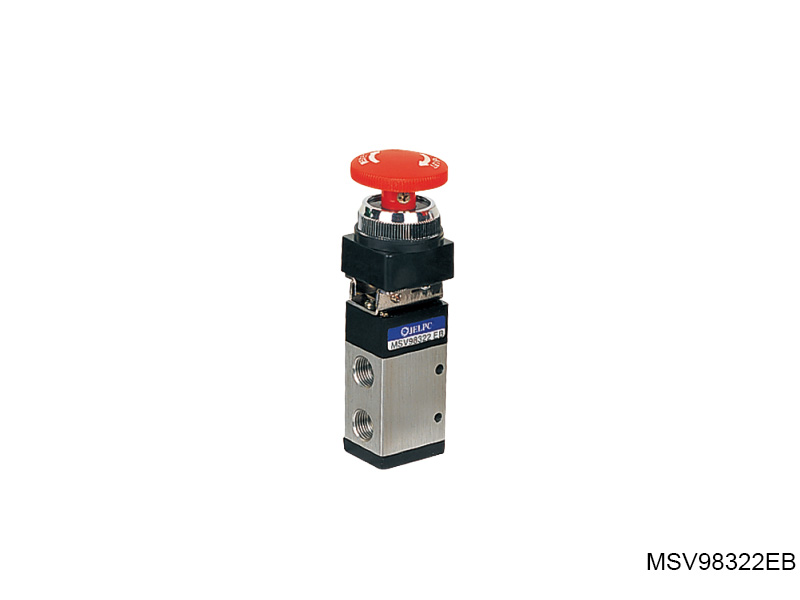

MSV98322 |
A |
106 |
111 |
125 |
129.5 |
126 |
123 |
99.5 |
|
B |
39.5 |
24.5 |
26.5 |
36.5 |
39.5 |
37.5 |
425.5 |
|
|

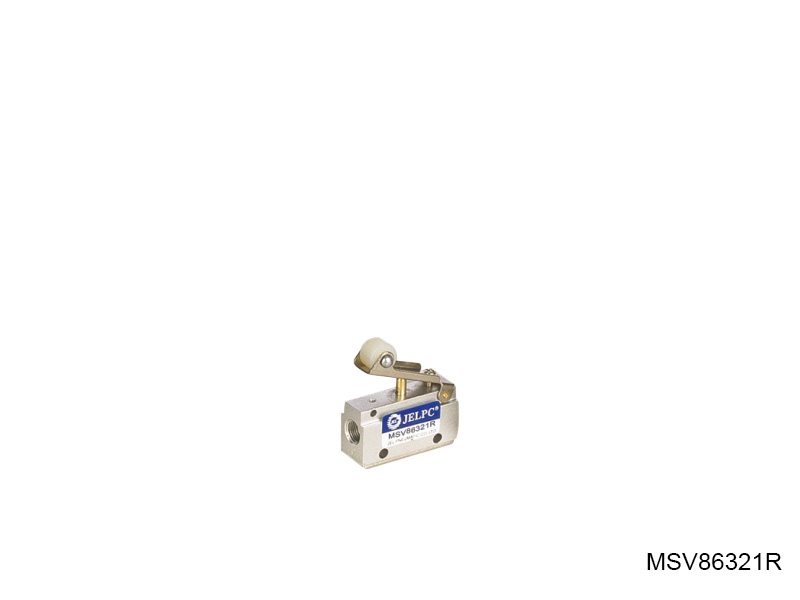

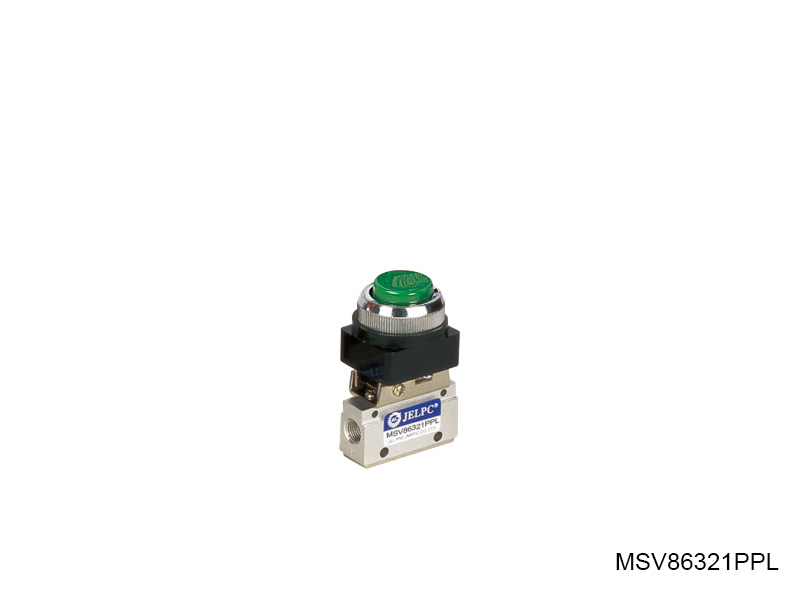

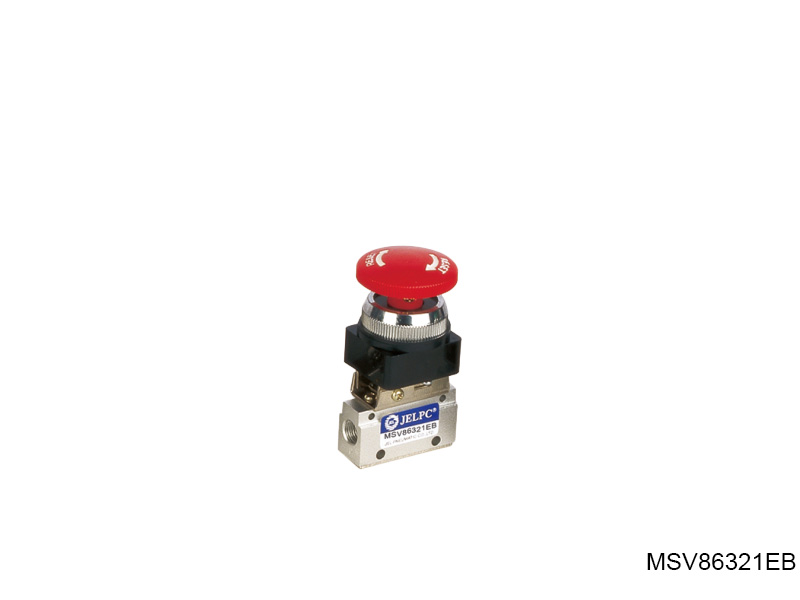

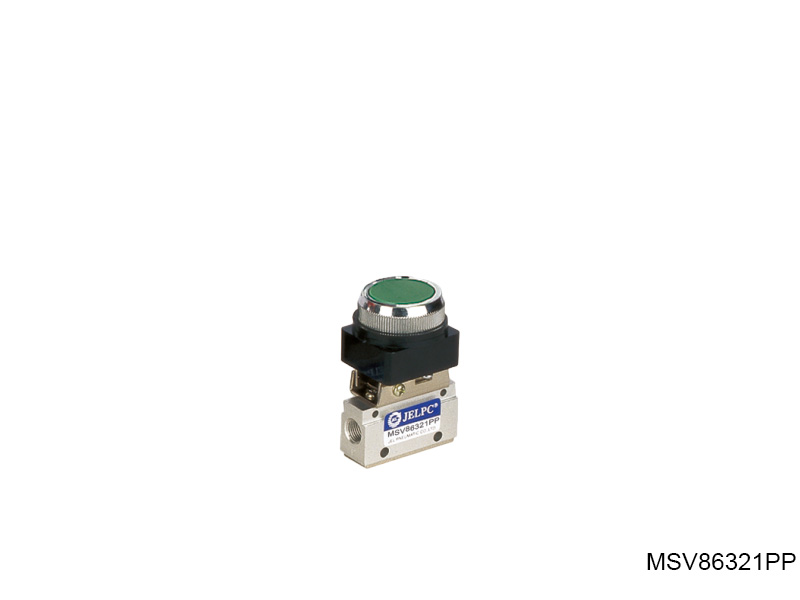

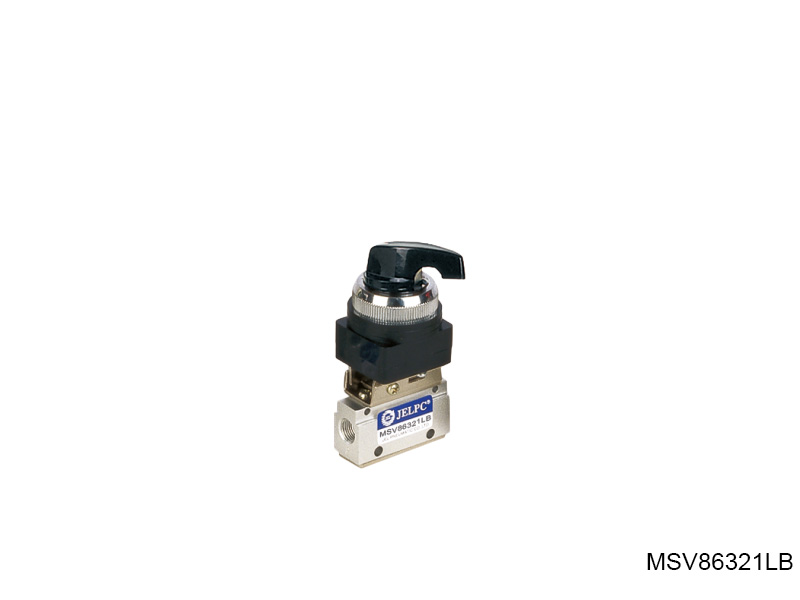

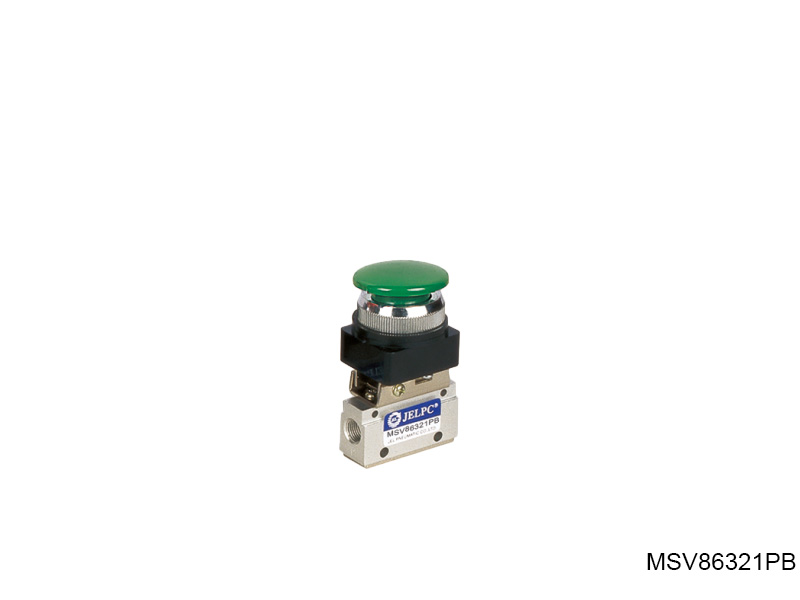

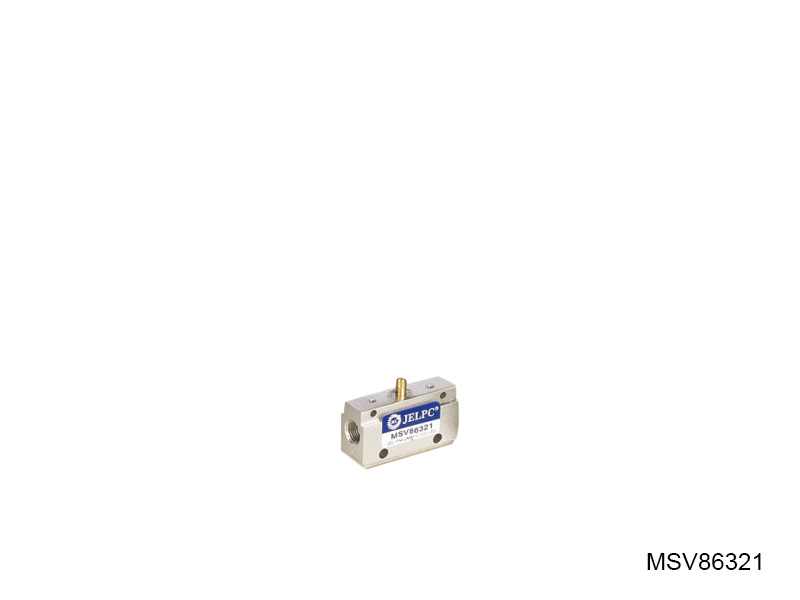

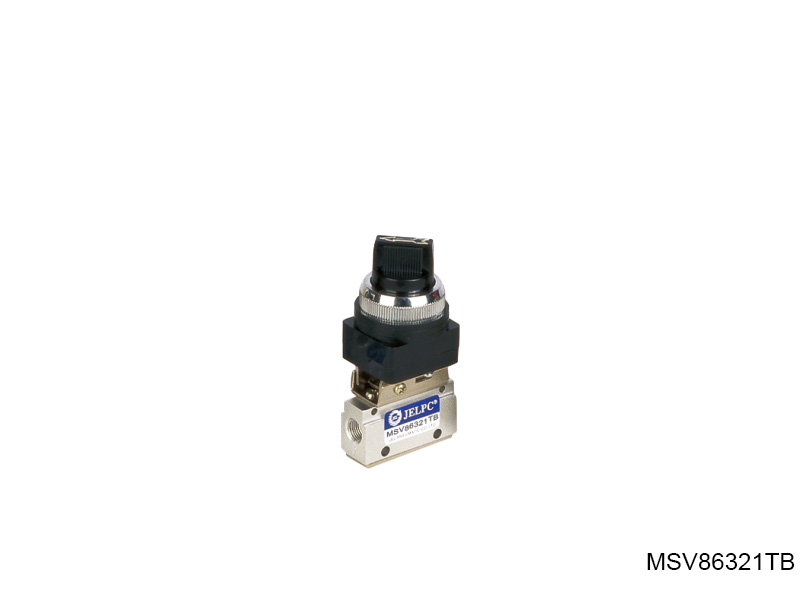

MSV86321 |
A |
66 |
71 |
85 |
88.5 |
86 |
83 |
59.5 |
|
B |
39.5 |
24.5 |
26.5 |
36.5 |
39.5 |
37.5 |
42.5 |
