Low Power Consumption HV, K Series

Low Power Consumption HV, K Series

Hand Switching Valve

0
Views: 1,969
  • Product parameters

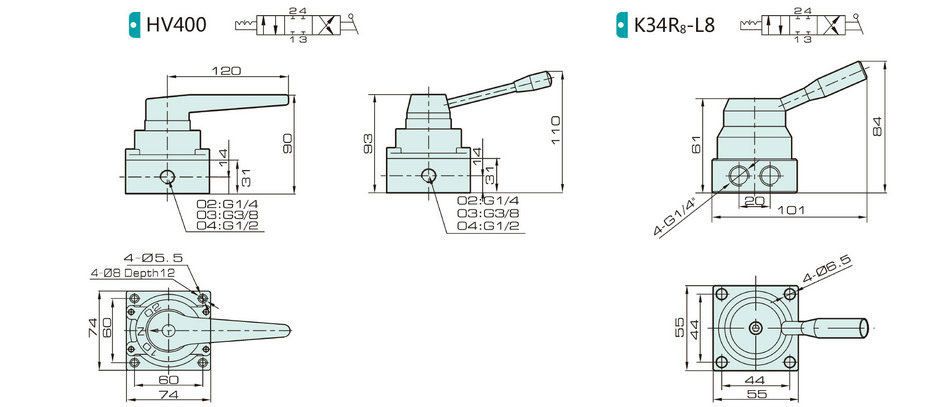

  • Product size

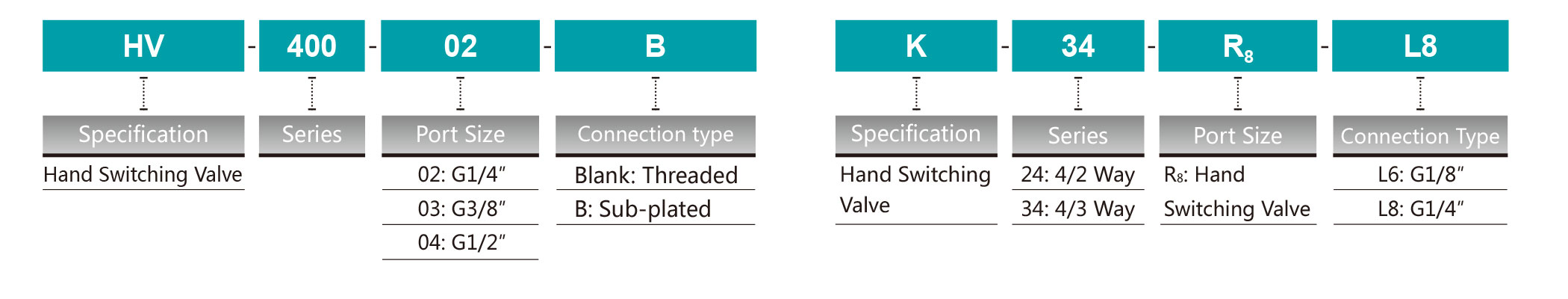

Ordering Code







Specification



Model

HV400-02

HV400-03

HV400-04

K34R8-L6

 K34R8-L8

Working Medium

40 Micron Filtered Air

Port Size

G1/4"

G3/8"

G1/2"

G1/8"

 G1/4"

Effective Cross Section Area

30 mm²(CV=1.68)

18 mm²(CV=1.00)

Working Pressure

0～0.8 MPa

Max. Ambient Temperature

-20～70℃
