Feature
2/3 Hand sliding valve can be used as switch of Air source. When Air source is switched off, the remained air in system can be released.

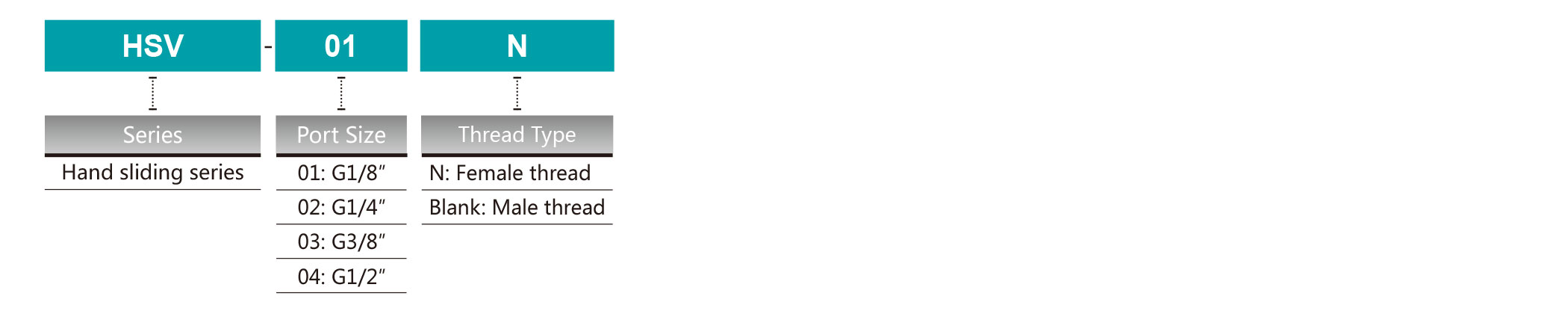

Ordering Code

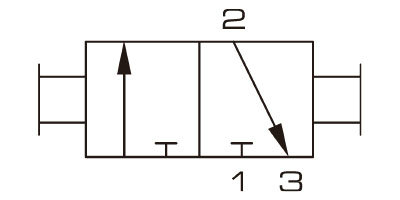

Symbol
Specification
|
Model |
HSV-01 |
HSV-02 |
HSV-03 |
HSV-04 |
|
Port Size |
G1/8" |
G11/4" |
G3/8" |
G1/2" |
|
Orifice Size |
4mm |
7mm |
10mm |
12mm |
|
Working Medium |
Filtered and Compressed Air |
|||
|
Working Pressure |
0~1.0MPa |
|||
|
Ambient Temperature |
-20～70℃ |
|||
|
Operating Force |
20N |
|||

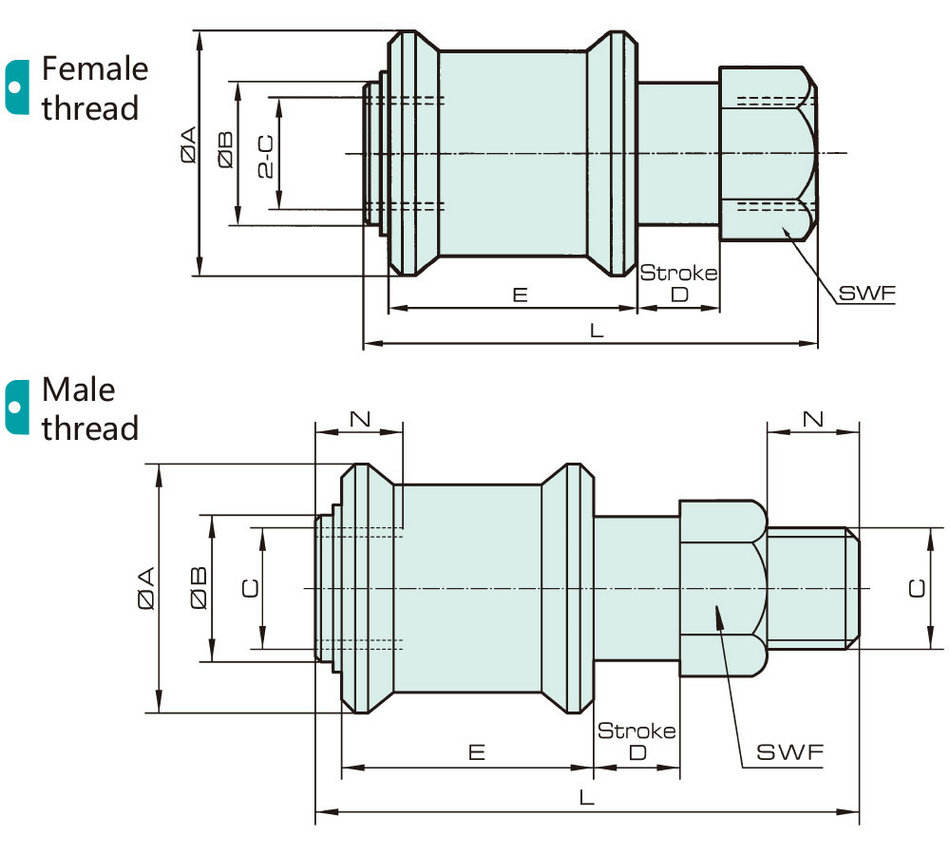

Overall Dimension
Dimension
|
Model/Symbol |
A |
B |
C |
D |
E |
F |
L |
|
HSV-01N |
20 |
13 |
G1/8 |
5.5 |
20 |
14 |
32 |
|
HSV-02N |
27 |
18 |
G1/4 |
9.5 |
32 |
19 |
48 |
|
HSV-03N |
30 |
21 |
G3/8 |
9.5 |
32 |
22 |
48 |
|
HSV-04N |
38 |
24 |
G1/2 |
17 |
40 |
27 |
70 |
|
Model/Symbol |
A |
B |
C |
D |
E |
F |
N |
L |
|
HSV-01 |
20 |
13 |
G1/8 |
5.5 |
20 |
14 |
6 |
38 |
|
HSV-02 |
27 |
18 |
G1/4 |
95 |
32 |
19 |
10 |
58 |
|
HSV-03 |
30 |
21 |
G3/8 |
95 |
32 |
22 |
10 |
58 |
|
HSV-04 |
38 |
24 |
G1/2 |
17 |
40 |
27 |
10 |
80 |
