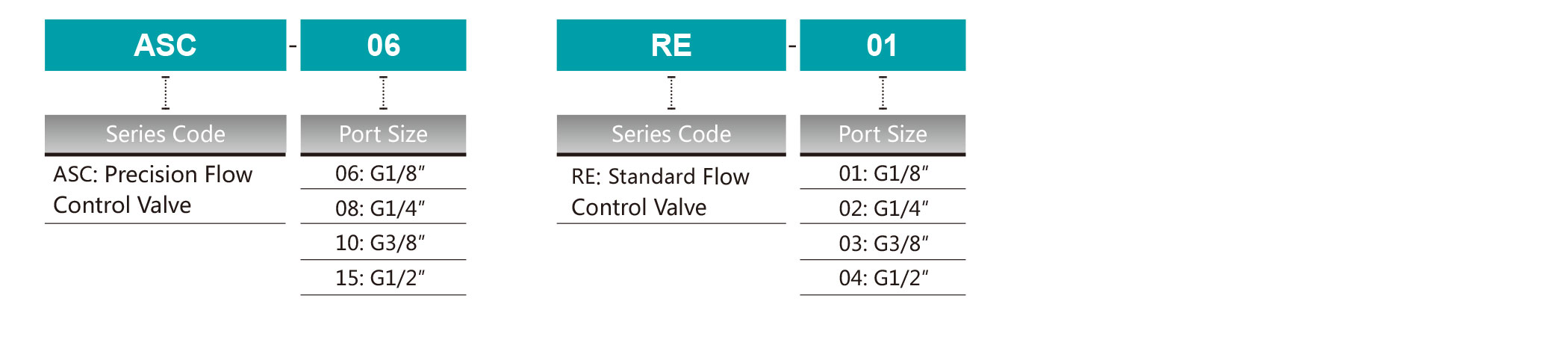

Ordering Code

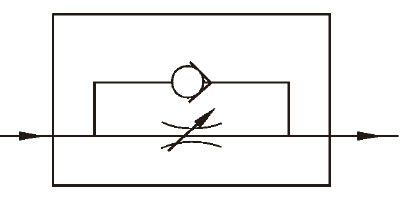

Symbol
Specification
|
Model |
Accurate Type |
Ordinary Type |
||||||
|

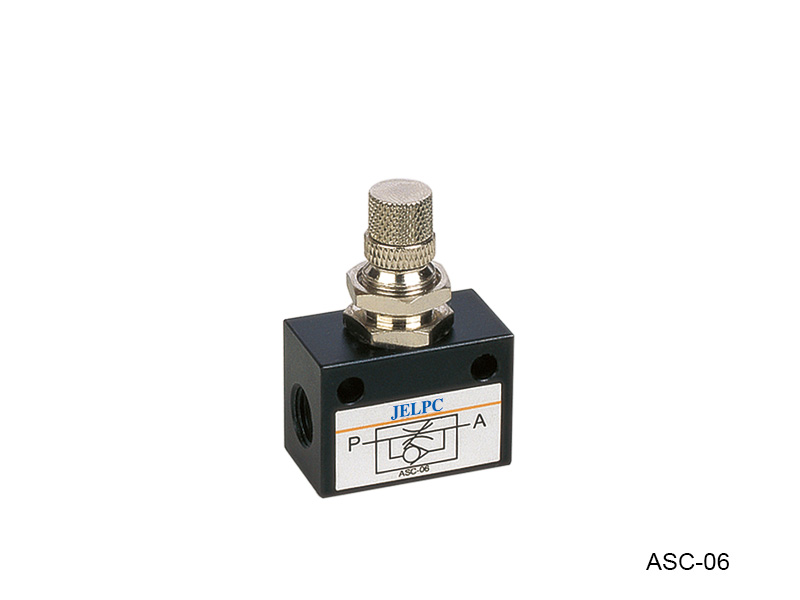

ASC-06 |

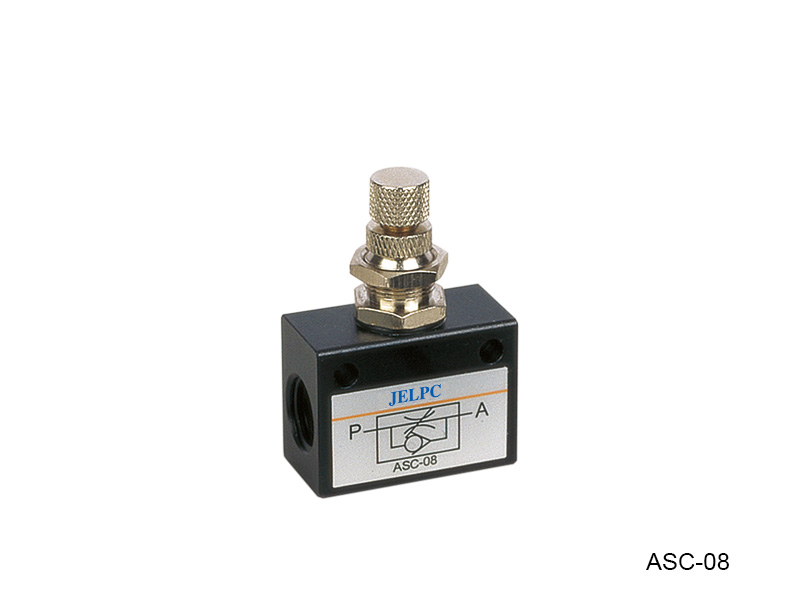

ASC-08 |

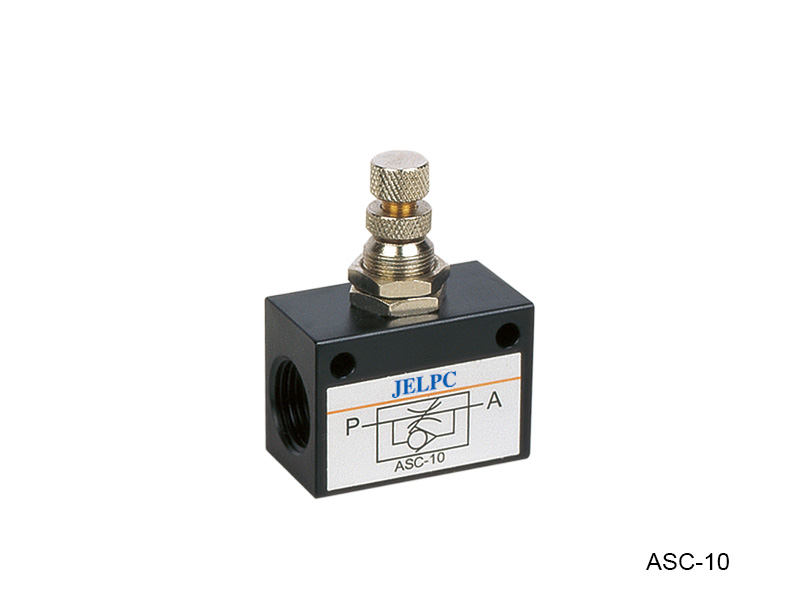

ASC-10 |

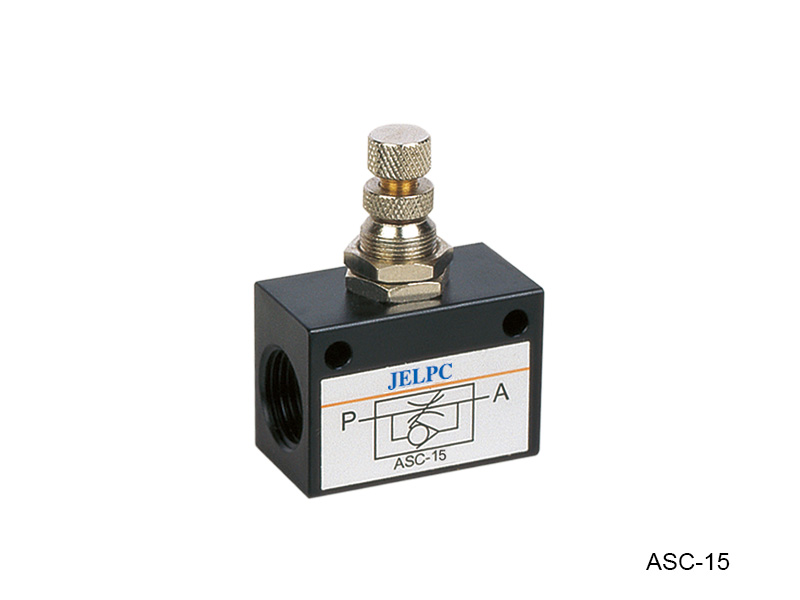

ASC-15 |

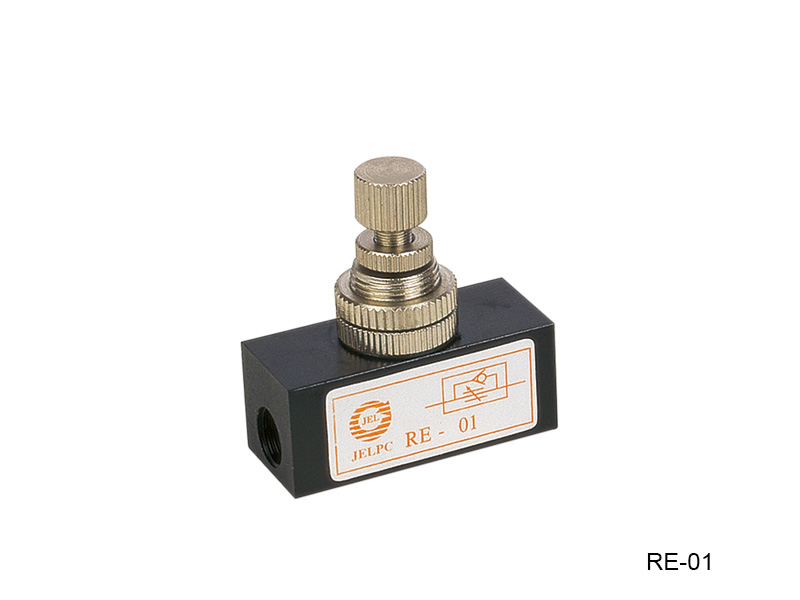

RE-01 |

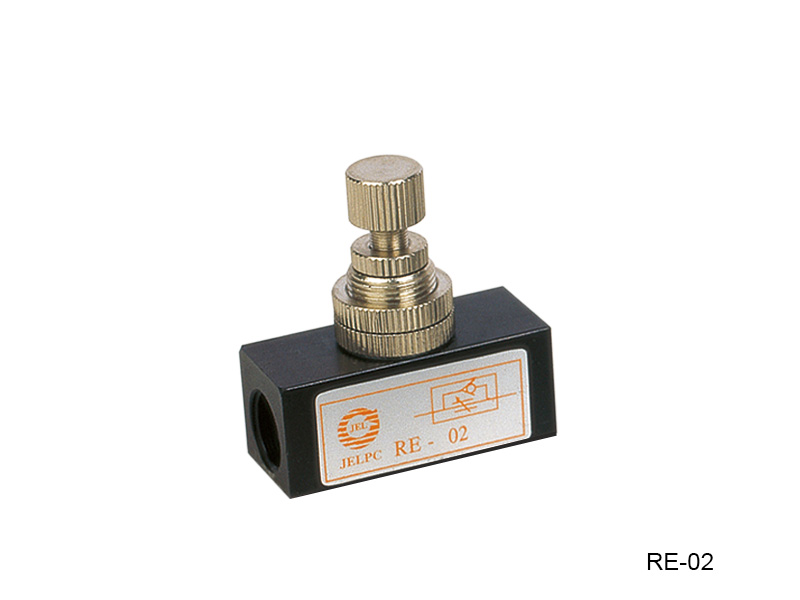

RE-02 |
RE-03 |

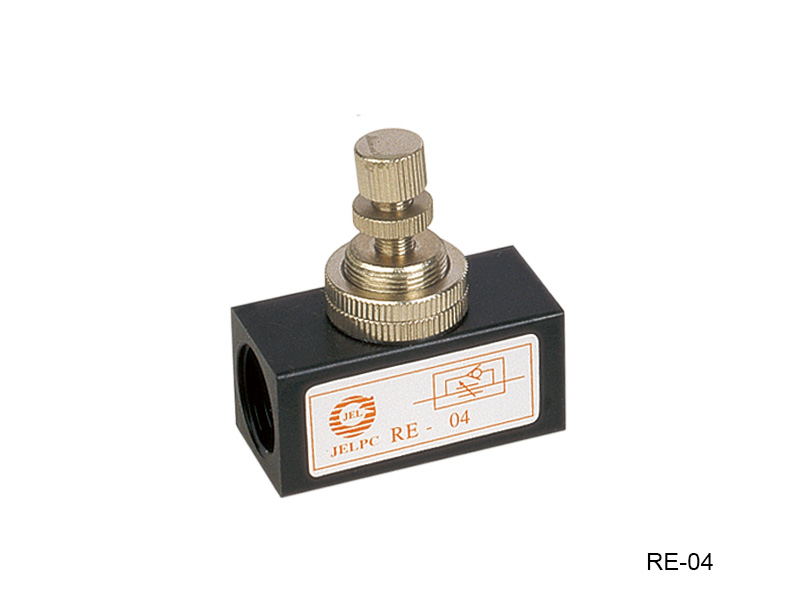

RE-04 |
|
|
Port Size |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
|
Working Medium |
Air |
|||||||
|
Working Pressure |
0～0.95MPa |
|||||||
|
Ambient Temperature |
-20～70℃ |
|||||||

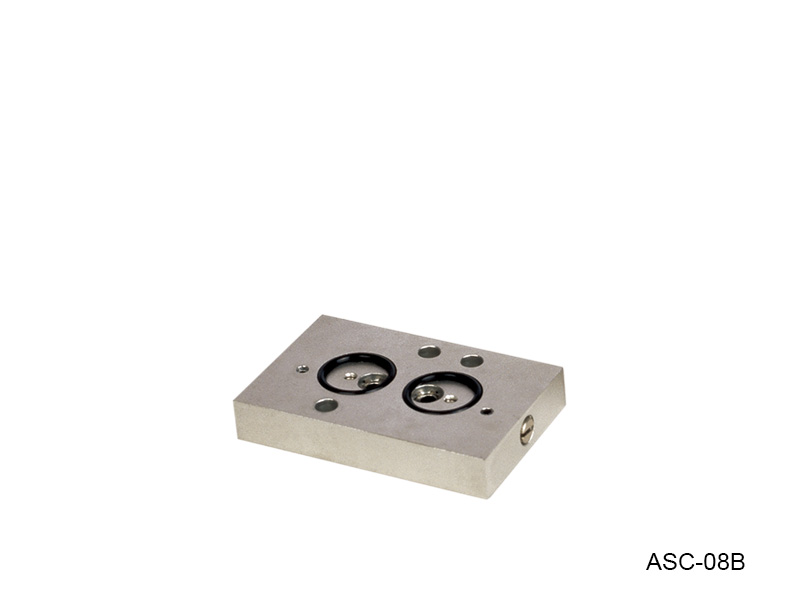

* ASC-08B installation conforms to NUMAR standard to control the speed of executive unit.

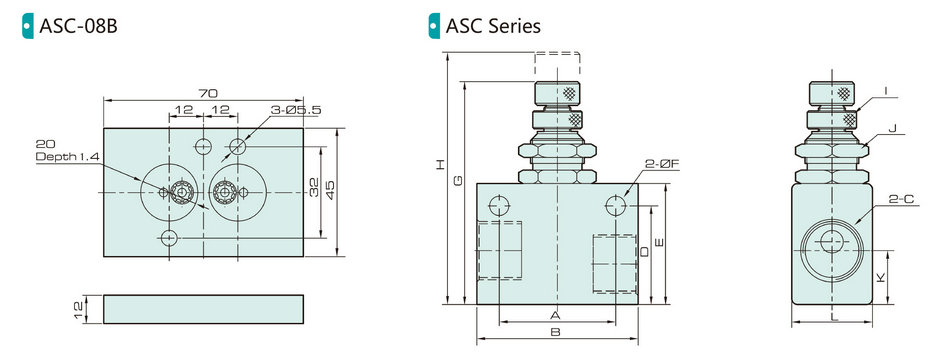

Overall Dimension
Dimension
|
Model Symbol |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
|
ASC-06 |
22 |
32 |
Gl/8 |
22 |
27 |
4.3 |
49.7 |
56.5 |
M6X0.5 |
M12X0.75 |
12 |
18 |
|
ASC-08 |
26 |
36 |
Gl/4 |
22 |
27 |
4.3 |
49.7 |
56.5 |
M6X0.5 |
M12X0.75 |
12 |
18 |
|
ASC-10 |
28 |
40 |
G3/8 |
25 |
30 |
4.3 |
52.7 |
59 5 |
M6X0.5 |
M12X0 75 |
13 |
22 |
|
ASC-15 |
28 |
40 |
Gl/2 |
30 |
35 |
4.3 |
58.7 |
65.5 |
M6X0.5 |
M12X0.75 |
13.5 |
26 |

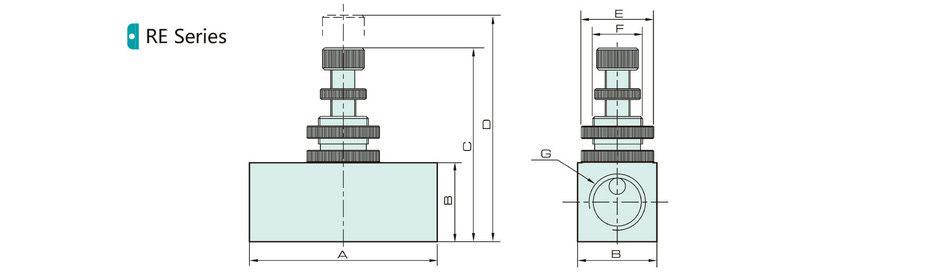

Overall Dimension
Dimension
|
Model / Symbol |
A |
B |
C |
D |
E |
F | G |
|
RE-01 |
45 |
19 |
43 |
50 |
Φ19 |
M14×1 |
G1/8 |
|
RE-02 |
45 |
19 |
43 |
50 |
Φ19 |
M14×1 |
G1/4 |
|
RE-03 |
55 |
25 |
55 |
62 |
Φ25 |
M18×1 |
G3/8 |
|
RE-04 |
55 |
25 |
55 |
62 |
Φ25 |
M18×1 |
G1/2 |
