90 Degrees 4HV Series Manufacturers

Home / Products / Valve / Mechanical Valve and Other / 90 Degrees 4HV Series

Products

90 Degrees 4HV Series

90 Degrees 4HV Series

Hand Switching Valve

0
Views: 2,249
  • Product parameters

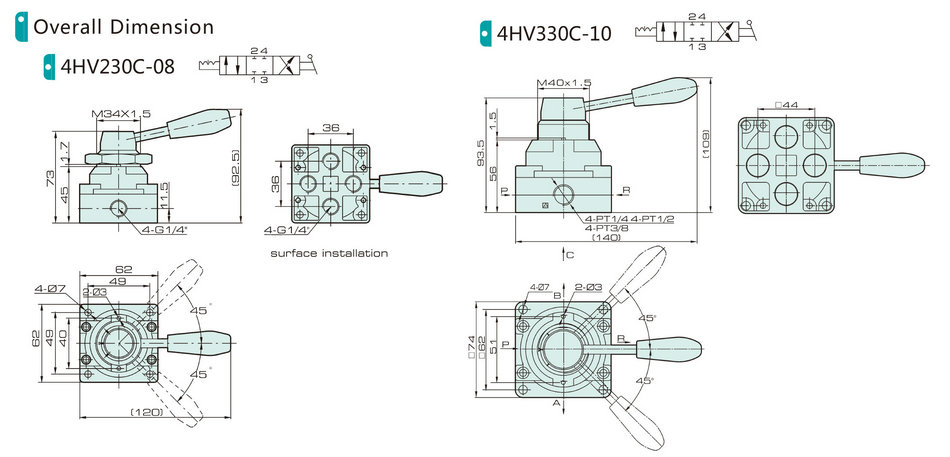

  • Product size

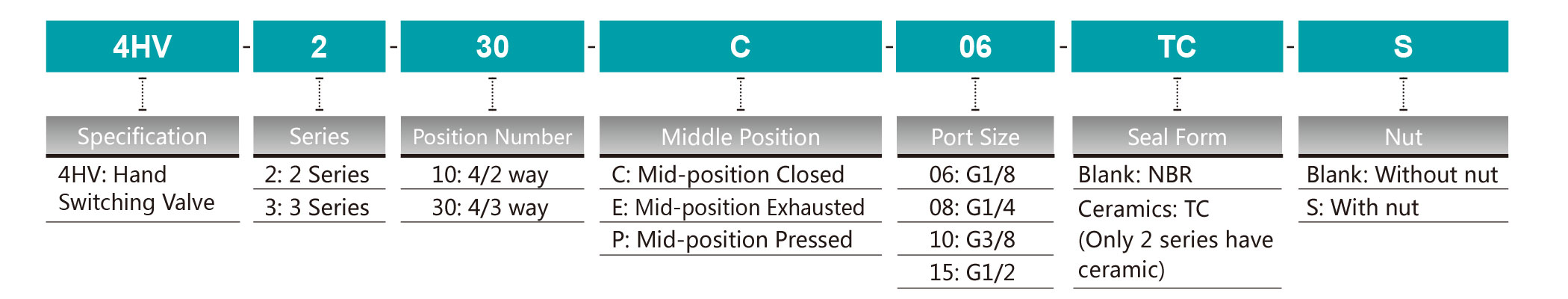

Ordering Code







Specification



Model

4HV2□□□-06

4HV2□□□-08

4HV3□□□-08

4HV3□□□-10

4HV4□□□-15

4HV4□□□-20

Working Medium

40 Micron Filtered Air

Port Size

G1/8"

G1/4"

G1/4"

G3/8"

G1/2"

G3/4"

Working Pressure

1.0 MPa

Max. Test Pressure

1.2 MPa

Max. Ambient Temperature

-20～70℃

Working Angle

90
