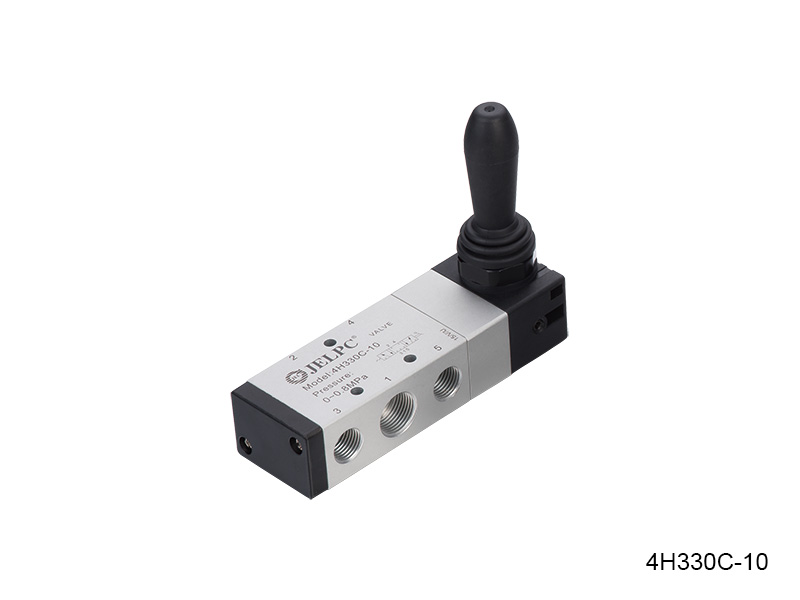

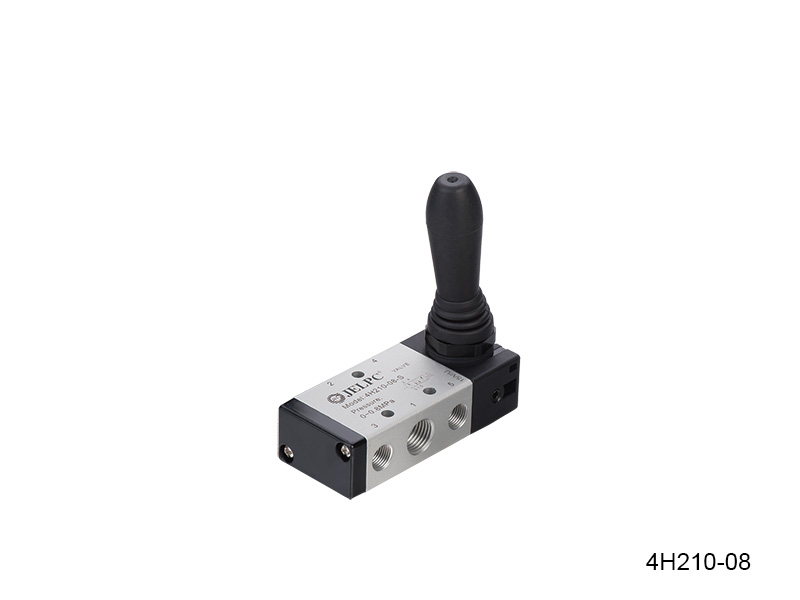

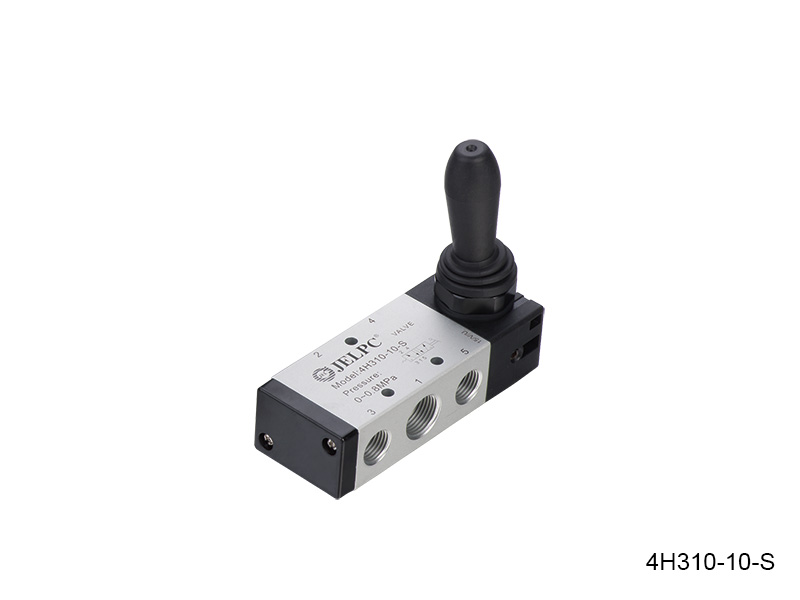

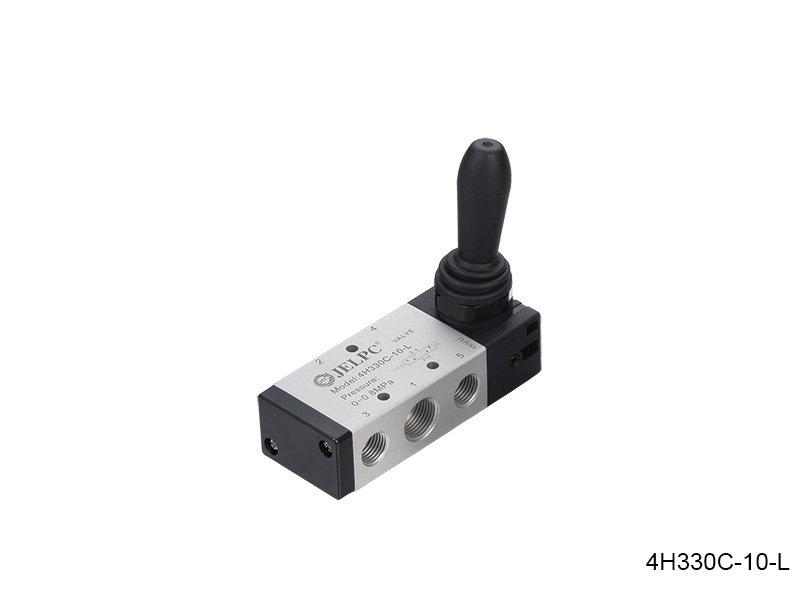

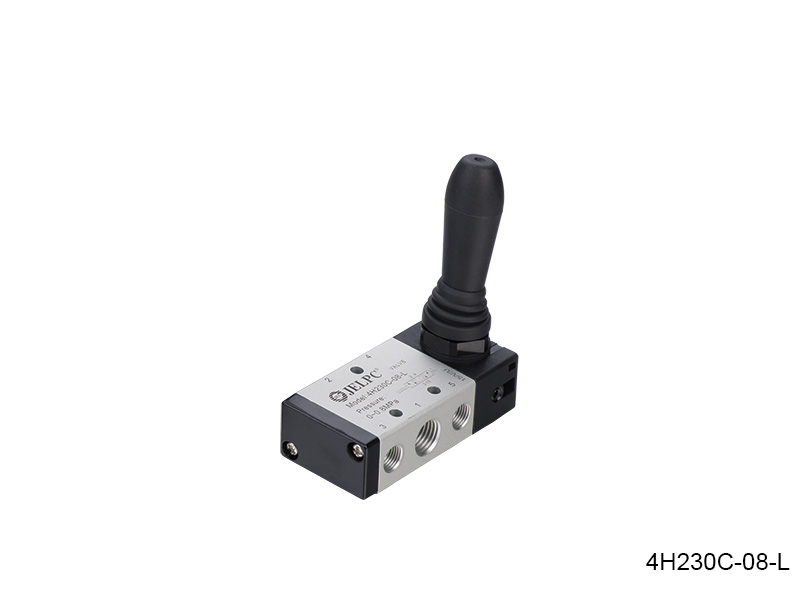

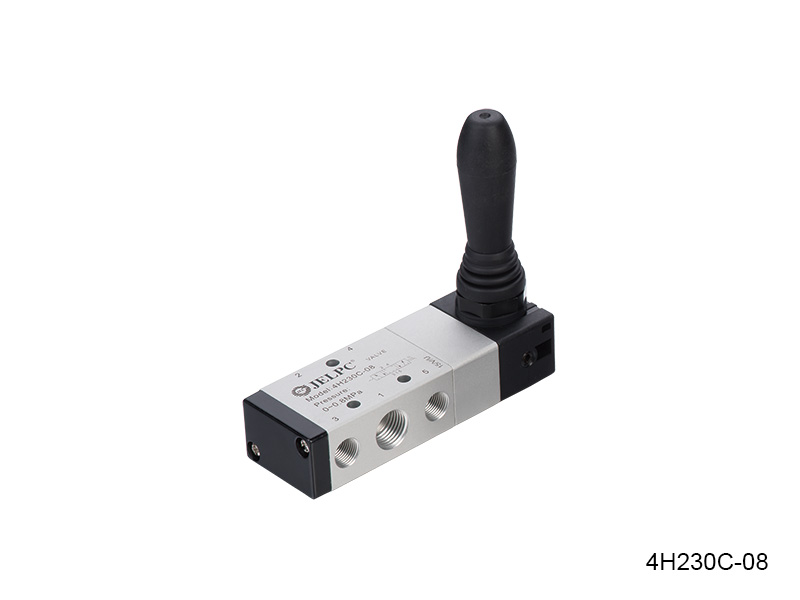

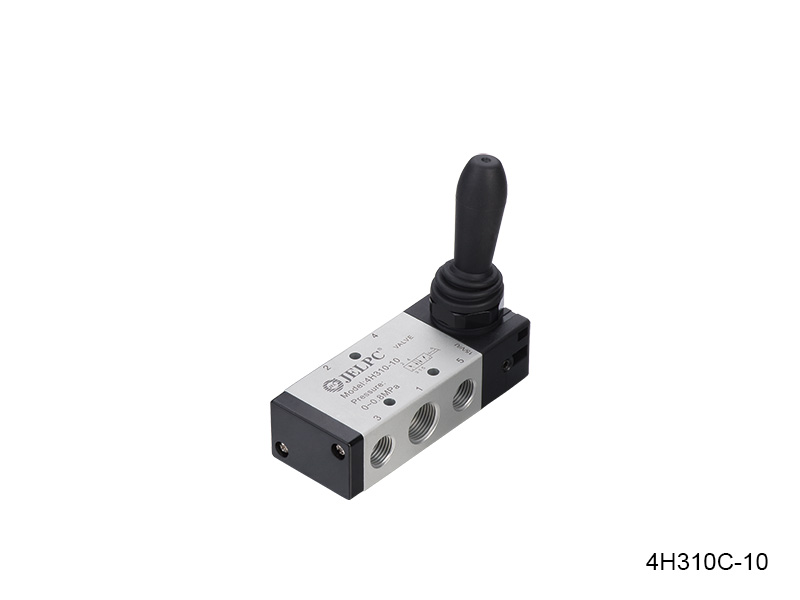

4H Series Hand Pull Valve

4H Series Hand Pull Valve

Hand Pull Valve

0
Views: 3,700
  • Product parameters

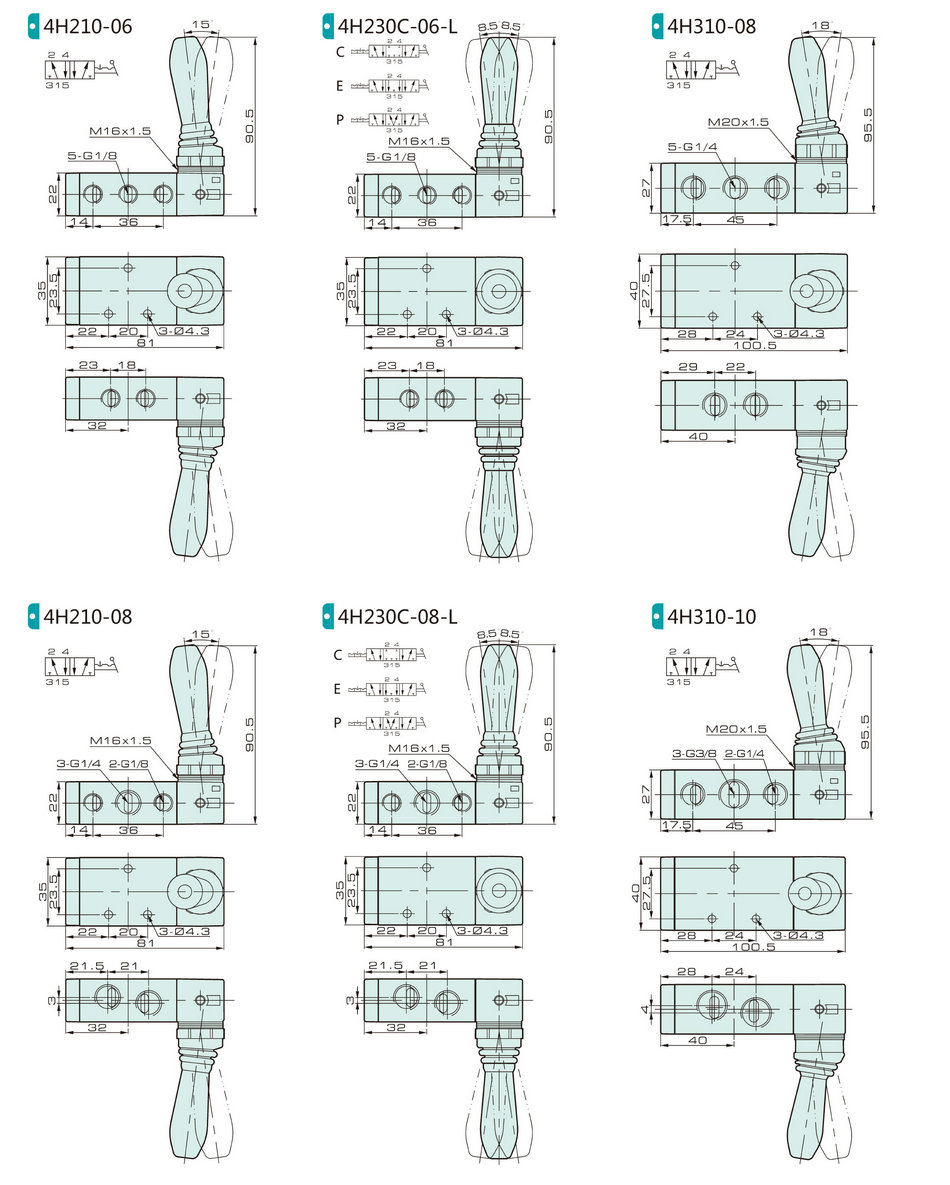

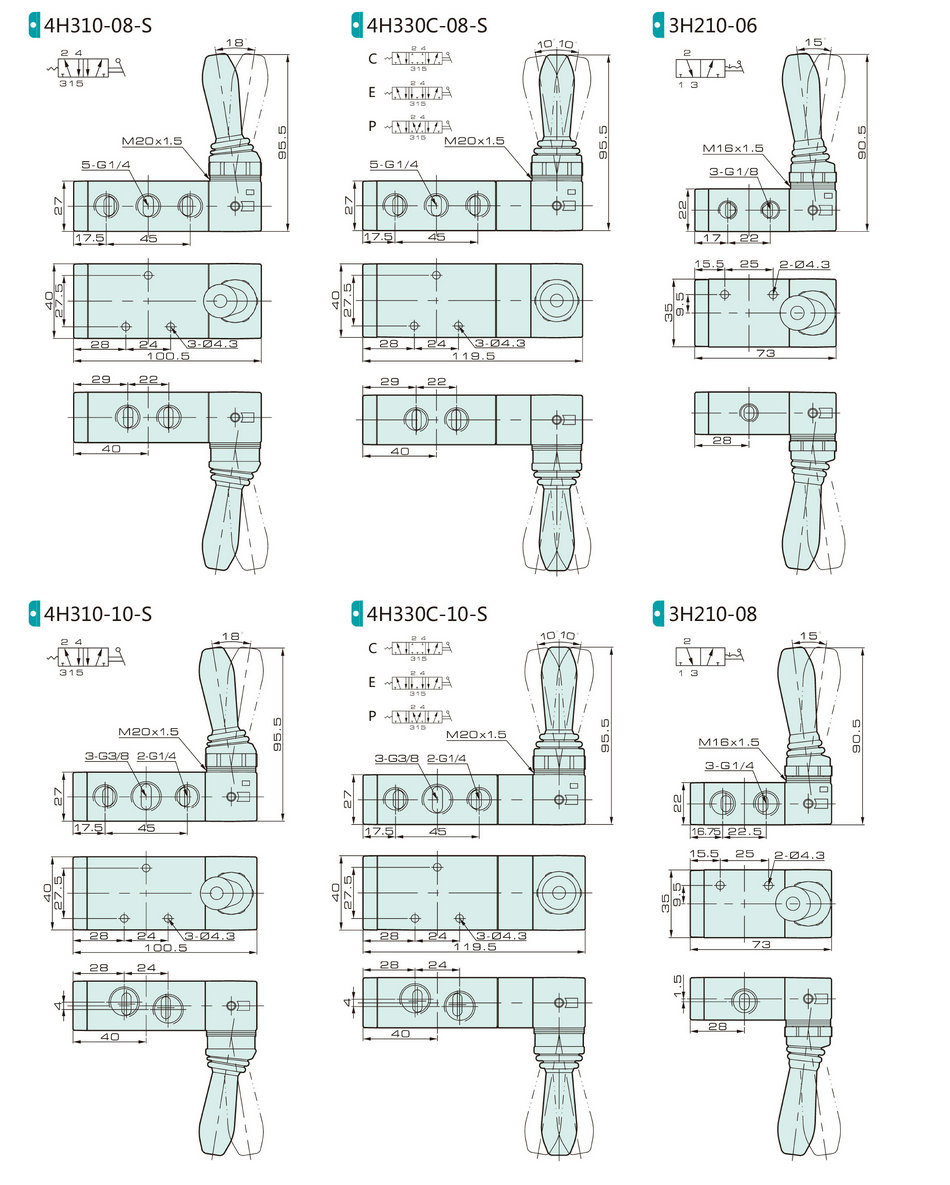

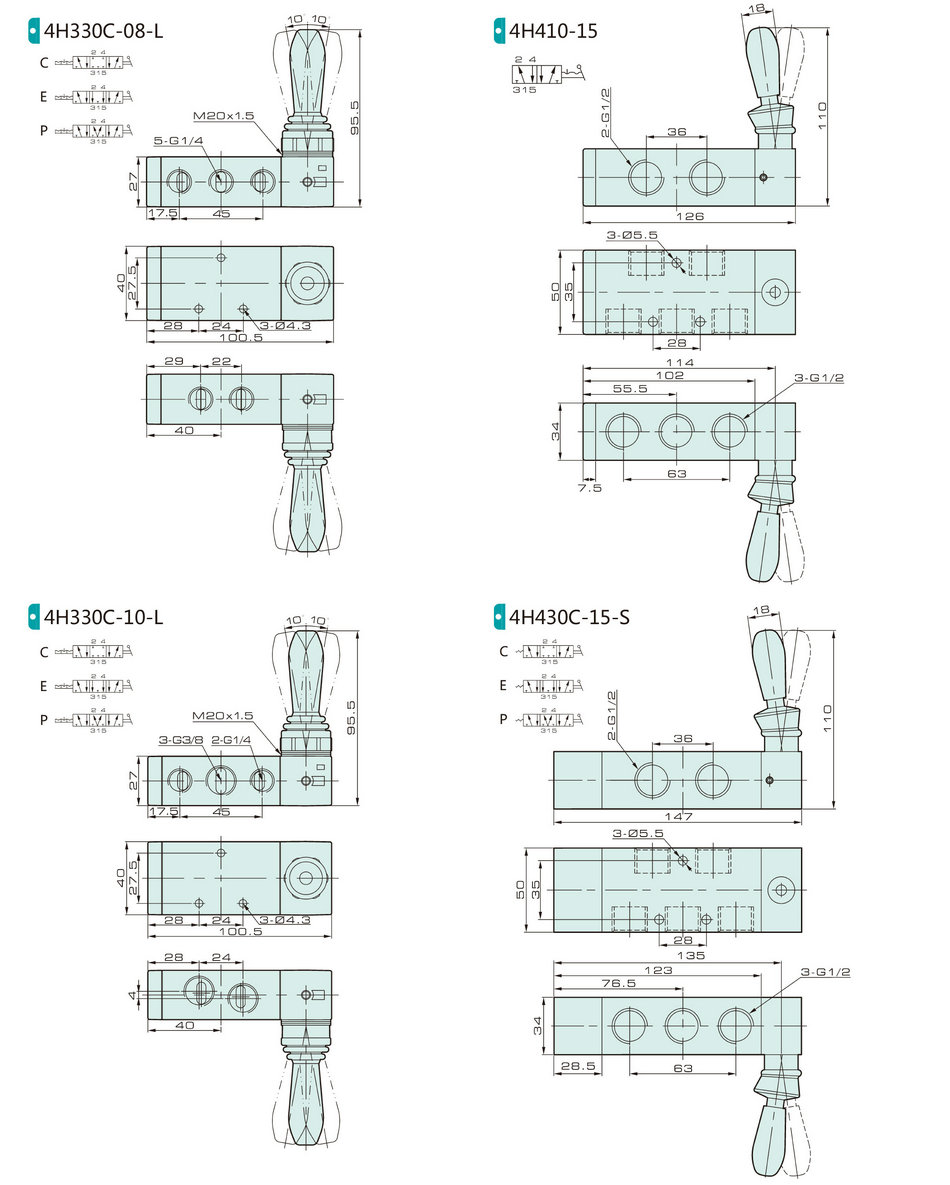

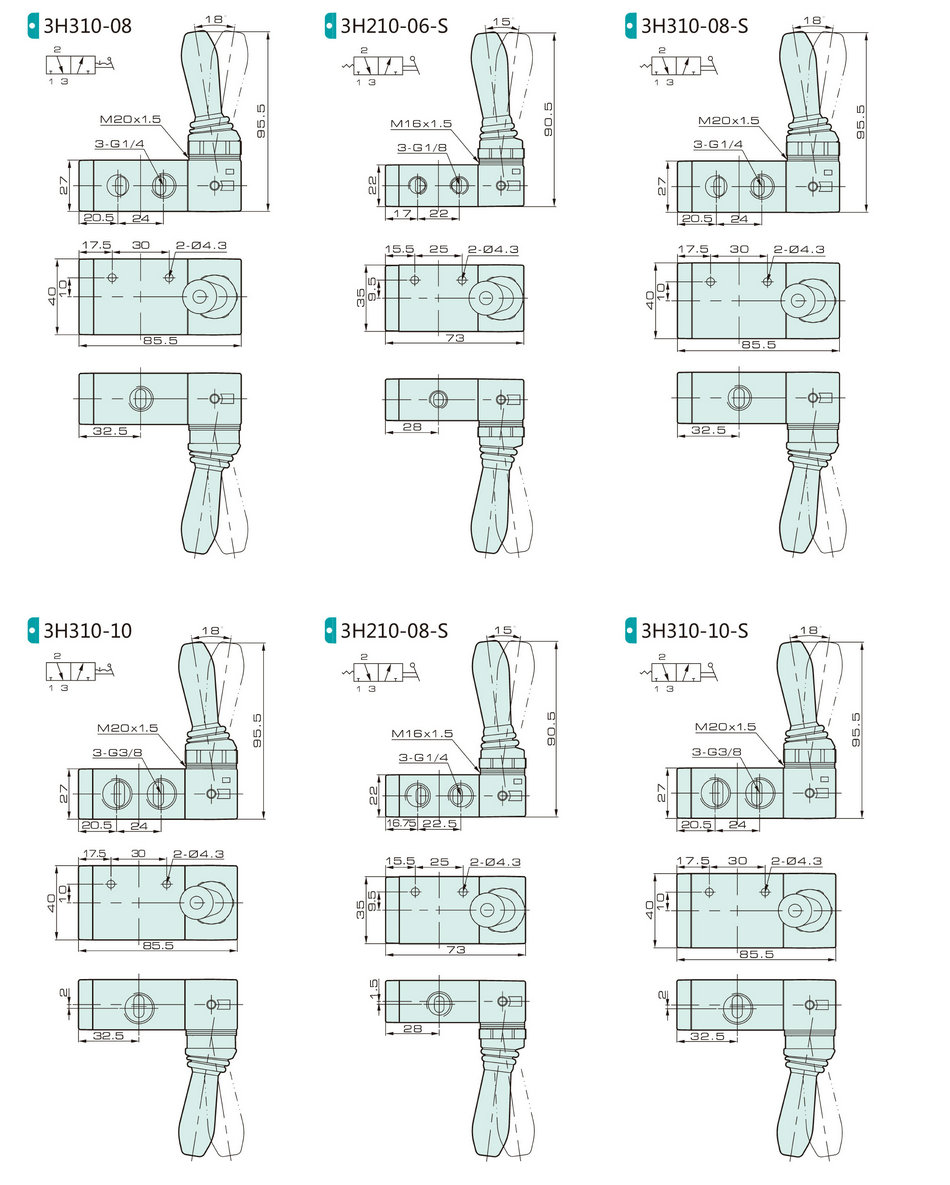

  • Product size

Features

1. We guarantee inner hole roughness within our new processing.

2. Handle base use high strength plastic to beastifl the apperance.

3. To import German high standard special grease which provides film in order to reduce friction.

4. Valve spool use seals which import from Japan to increase the life time.

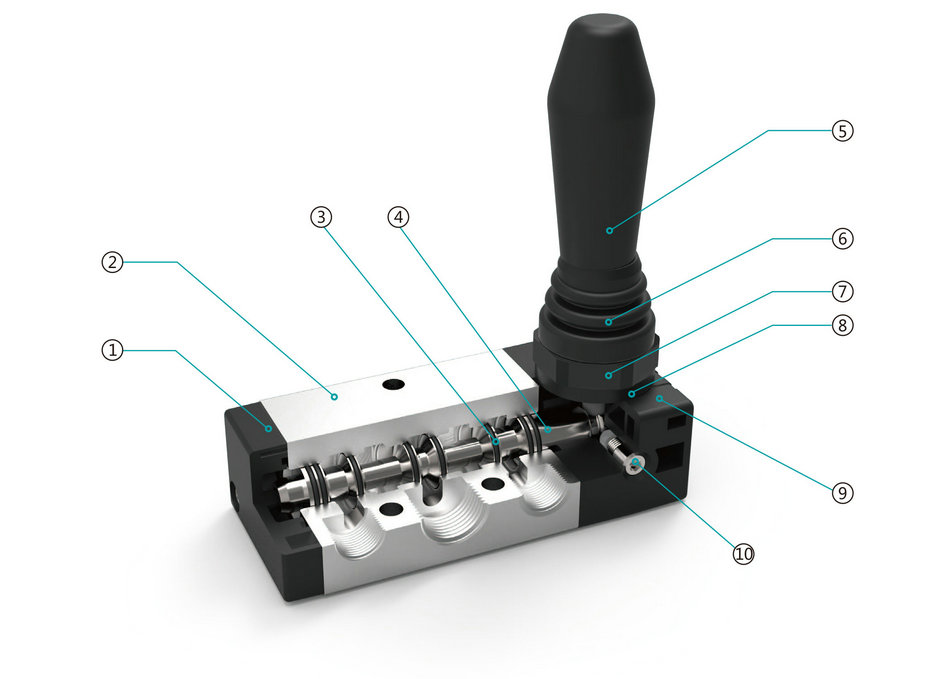

Internal Structure





Parts



Number

Name

Number

Name

l

Back cover

6

Dirt-proof boot

2

Valve body

7

Lock nut

3

Flat ring

8

Gasket

4

Valve spool

9

Top cover

5

Handle

10

Set screw





Ordering Code







Specification



Model

4H210-06

4H210-08

4H230-08

4H310-08

4H310-10

4H330-10

4H410-15

4H430-15

Working Medium

40 Micron Filtered Air

Operation

Direct

Effective Cross Section Area

14mm²CV=0.78)

16mm²(CV=0.89)

12mm²(CV=0.67)

25mm²(CV=1.4)

30mm²(CV=1.68)

18mm²(CV=1.00)

50mm²(CV=2.79)

30mm²(CV=1.68)

Port Size

Inlet, Outlet, Exhaust Port＝G1/8"

Inlet, Outlet＝G1/4" Exhaust Port=G1/8"

Inlet, Outlet, Exhaust Port＝G1/4"

Inlet, Outlet, Exhaust Port＝G1/4"

Inlet, Outlet＝G3/8" Exhaust Port＝G1/4"

Inlet, Outlet, Exhaust Port＝G1/2"

Working Pressure

0～0.8MPa

Working Temperature

-20～70℃
