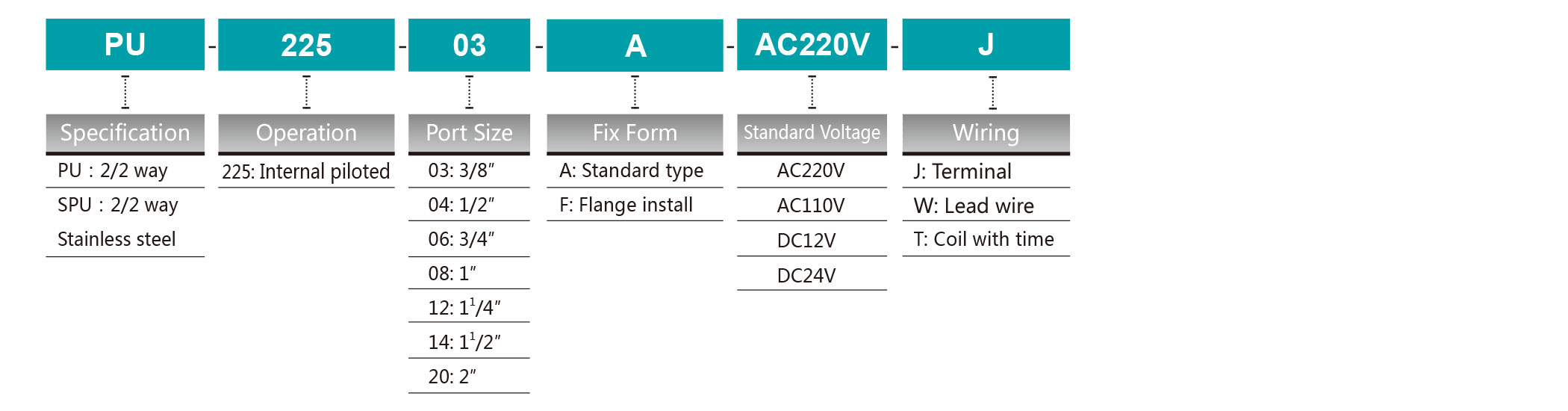

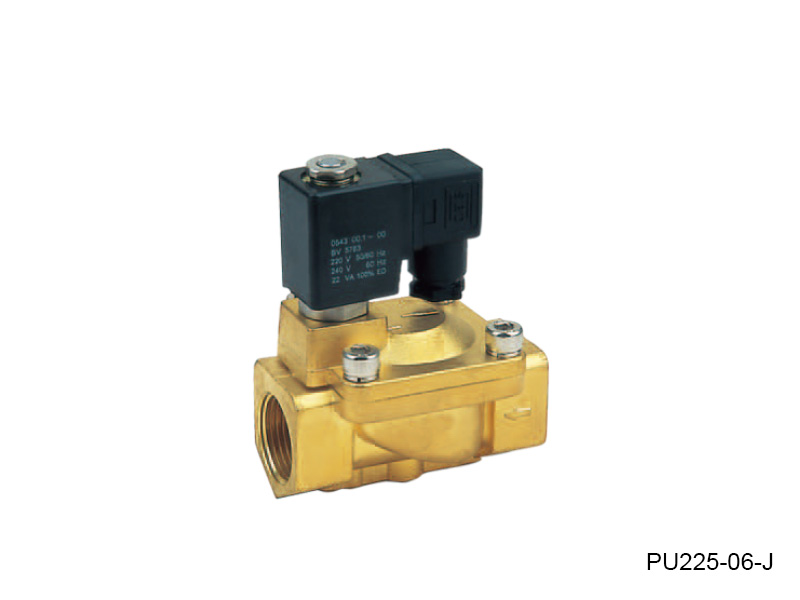

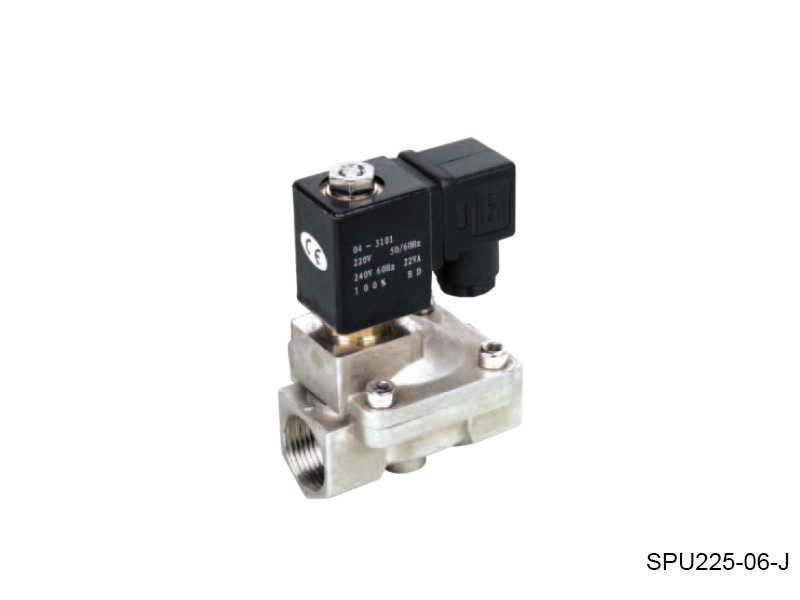

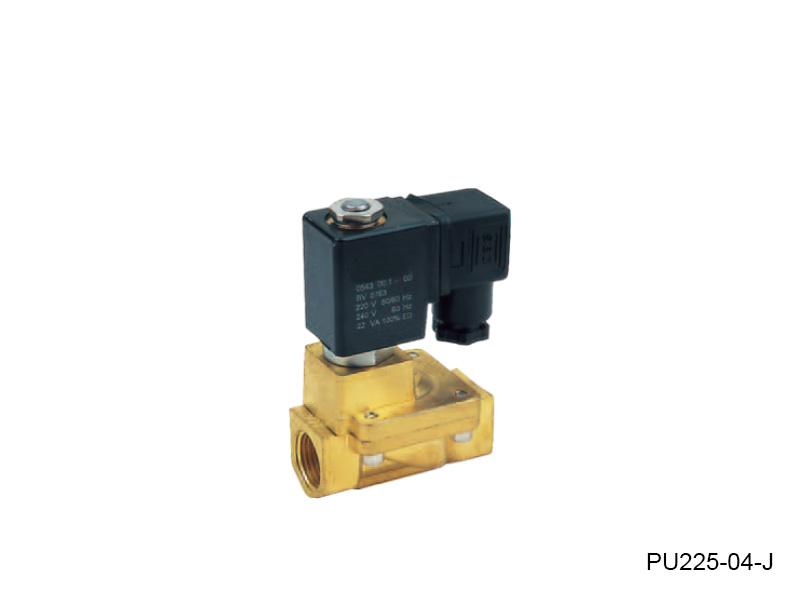

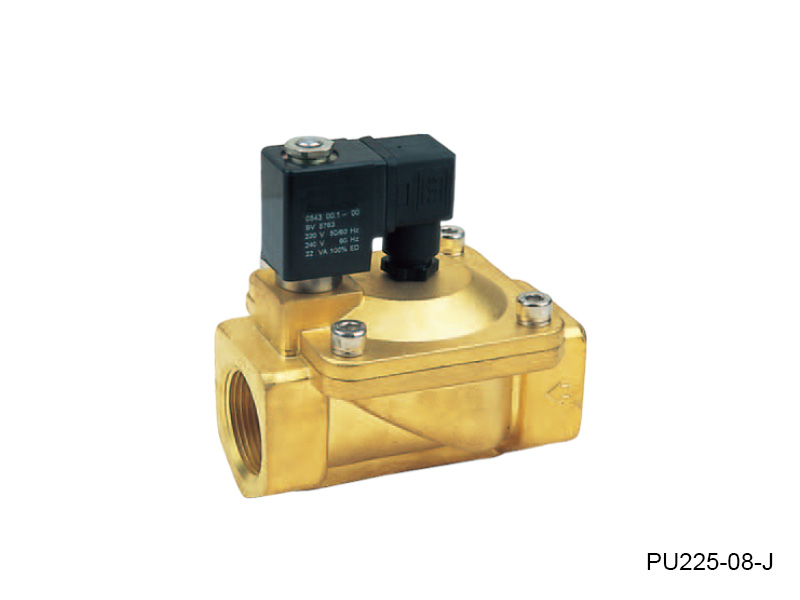

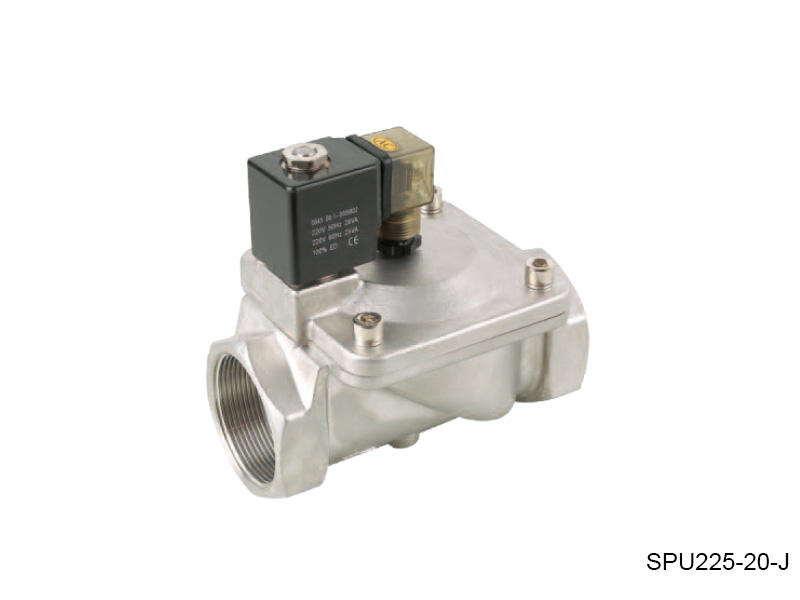

Ordering Code
Symbol
Specification
|
Model |
PU225-03A |
PU225-04A |
PU225-06A |
PU225-08A |
PU225-12A |
PU225-14A |
PU225-20A |
| SPU225-03A |
SPU225-04A |
SPU225-06A |
SPU225-08A |
SPU225-12A |
SPU225-14A |
||
|
Working Medium |
Air, Water, Oil |
||||||
|
Operation |
Internal Piloted |
||||||
|
Type |
Normal Close |
||||||
|
Orifice |
13mm |
13mm |
25mm |
25mm |
38mm |
38mm |
50mm |
|
CV Value |
4.50 |
4.50 |
12.00 |
12.00 |
22.00 |
30.00 |
48 |
|
Port Size |
3/8" |
1/2" |
3/4" |
3/4" |
1¼" |
1½" |
2" |
|
Medium of Body |
Brass or Steel |
||||||
|
Operation Fluid Viscosity |
Below 50 CST |
||||||
|
Working-pressure |
0.05～1.0 MPa |
||||||
|
Max. Test Pressure |
1.5 MPa |
||||||
|
Ambient Temperature |
-10～80 ℃ |
||||||

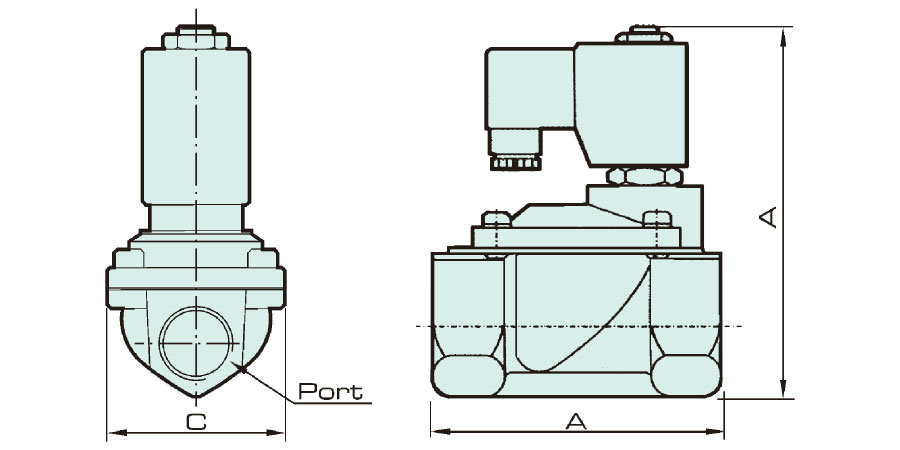

Overall Dimension
Dimension
|
Model |
Bore | A | B | C |
|
PU225 03A |
PT3/8" |
66 |
106 |
48 |
|
SPU225 03A |
||||
|
PU225-04A |
PT1/2" |
66 |
106 |
48 |
|
SPU225-04A |
||||
|
PU225-06A |
PT3/4" |
75 |
112 |
58 |
|
SPU225-06A |
||||
|
PU225-08A |
PT1" |
97 |
124.5 |
70 |
|
SPU225-08A |
|
Model |
Bore |
A |
B |
C |
|
PU225-12A |
PT1¼" |
127 |
140 |
95 |
|
SPU225-12A |
||||
|
PU225-14A |
PT1½" |
127 |
140 |
95 |
|
SPU225-14A |
||||
|
PU225-20A |
PT2" |
160.5 |
159 |
114 |
