2V Series Flow Control Valve

2V Series Flow Control Valve

2/2 Way Solenoid Valve

0
Views: 3,162
  • Product parameters

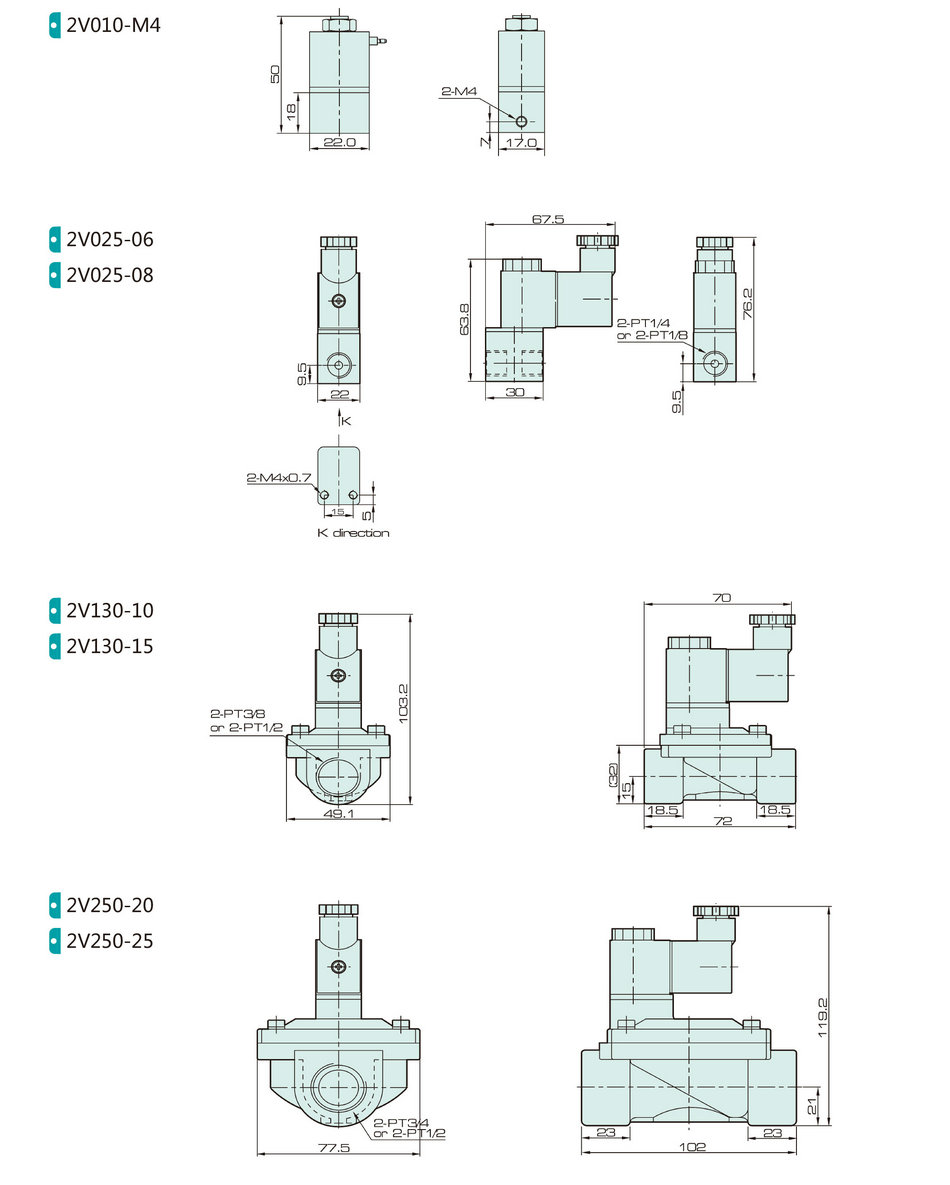

  • Product size

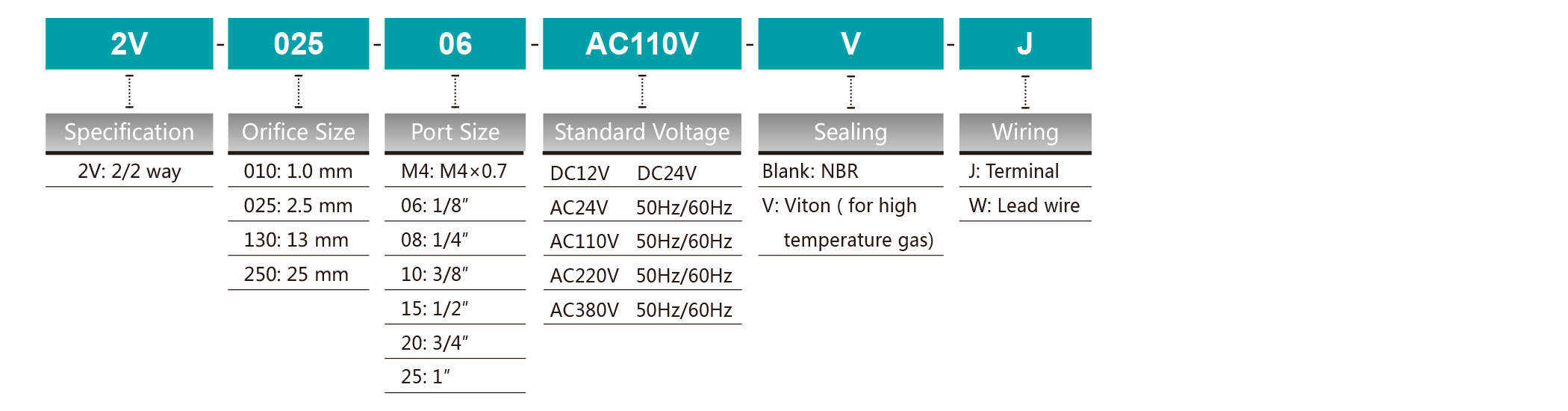

Ordering Code







Symbol





Specification



Model

2V010-M4

2V025-06

 2V025-08

2V130-10

 2V130-15

2V2 50-20

 2V250-25

Working Medium

Air, Water, Oil

Operation

Direct

Internal piloted

Type

Normal Close

Orifice

1.0mm

2.5mm

13mm

25mm

CV Value

0.04

0.23

6.2

23

Port Size

M4×0.7

1/8"

 1/4"

3/8"

 1/2"

3/4"

 1"

Operation Fluid Viscosity

Below 20 CST

Working-pressure

0.05-0.7 MPa

Max. Test Pressure

1.2MPa

1.6MPa

l.0MPa

Max. Ambient Temperature

-10～80℃

Operating Voltage Tolerance

± 10%

Protect Class

IP 65

Power Consumption

AC: 6.5 VA DC: 6.5 W

Insulation

F Class

Material of Body

Aluminum or Brass (Nickel Plated)

Brass

Material of Oil Seal

NBR Or VITON

NBR Or VITON

Response Time

0.05 Sec.
