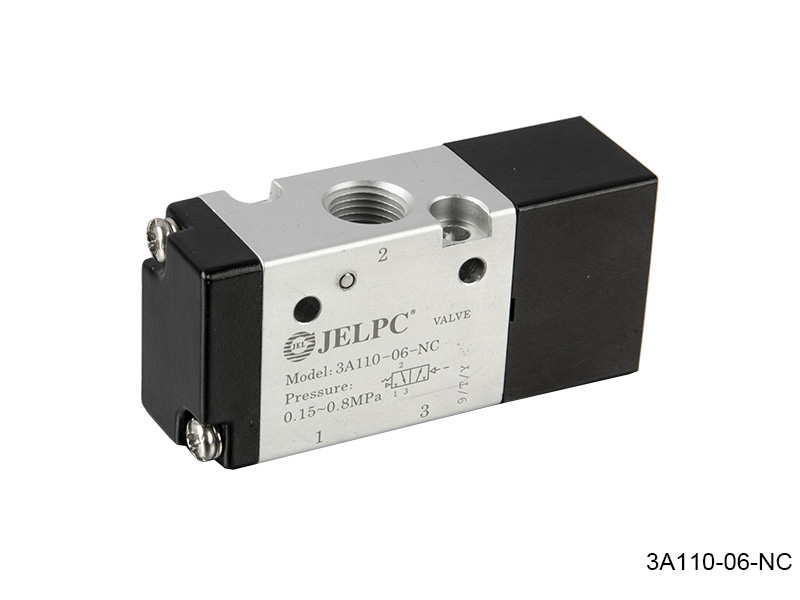

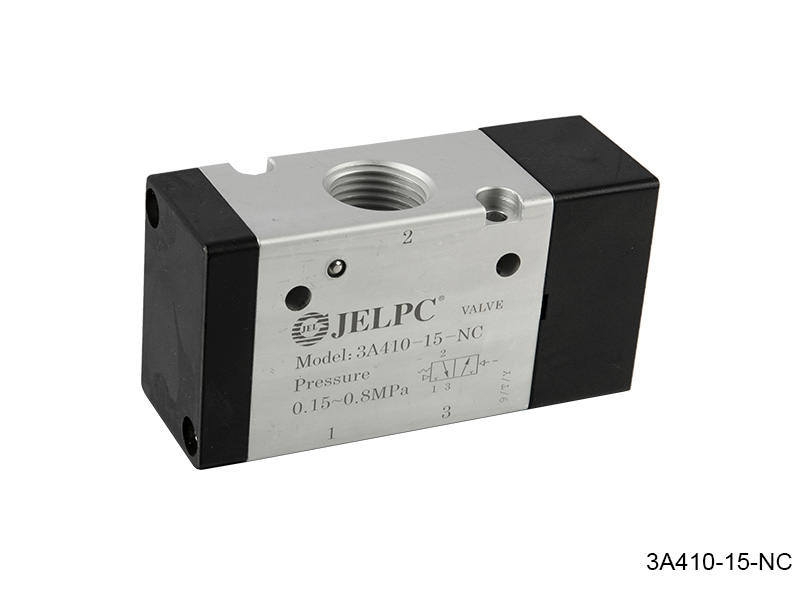

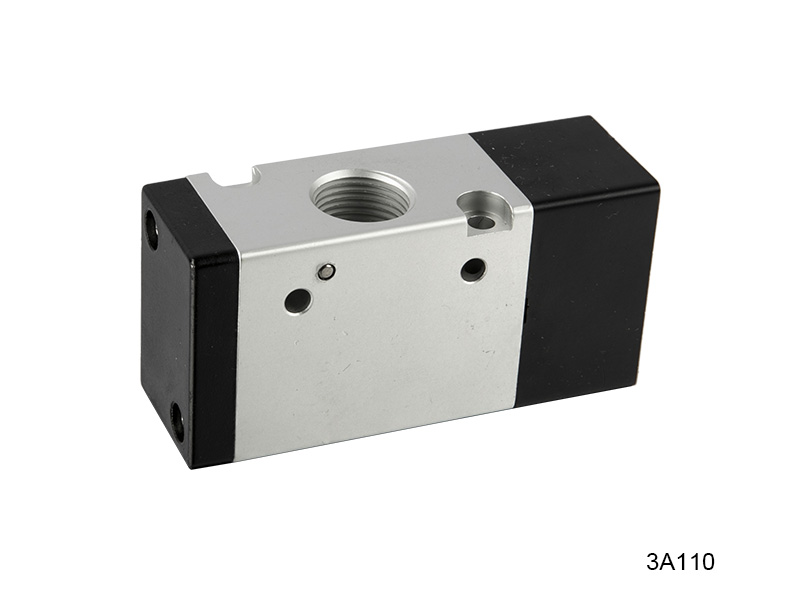

DC Air Pilot Valves

DC Air Pilot Valves

0
Views: 2,754
  • Product parameters

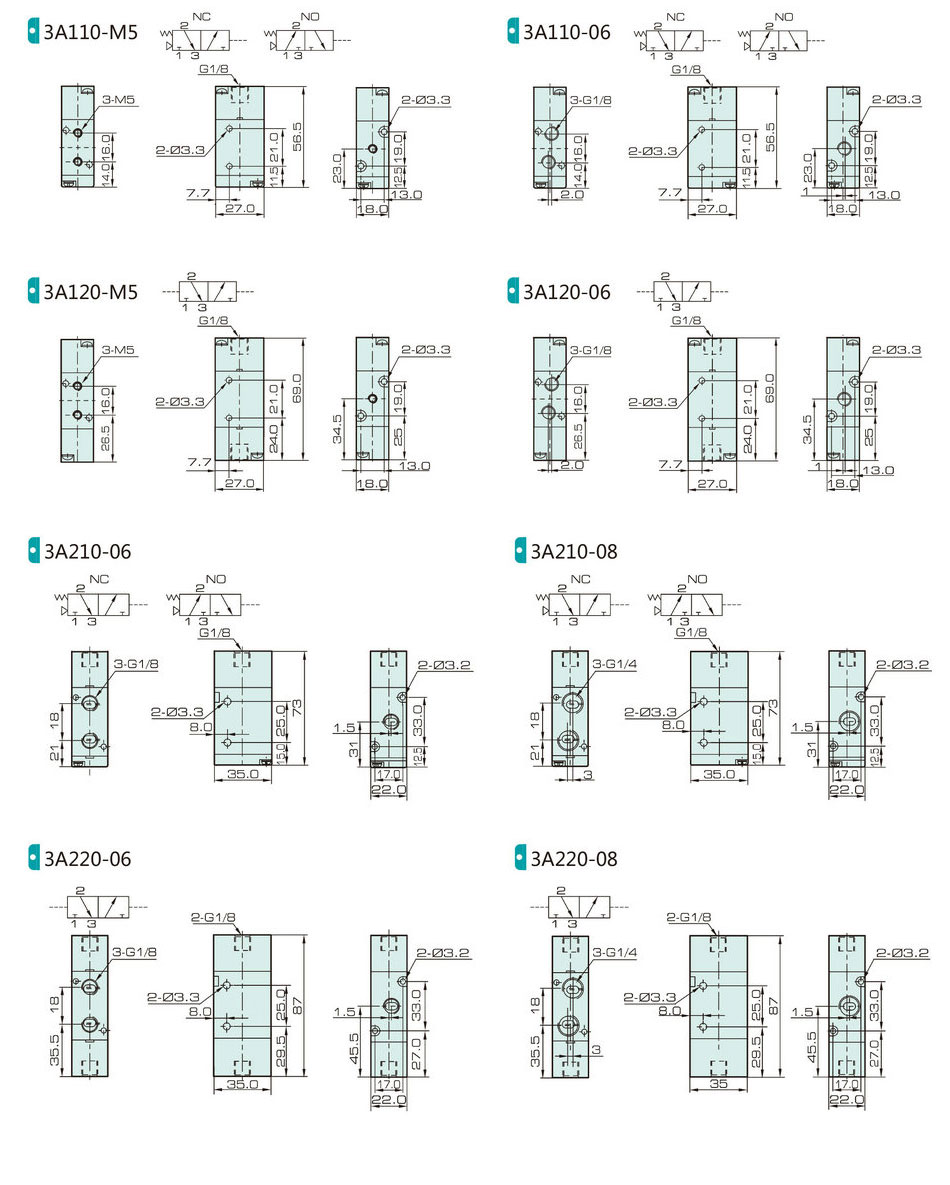

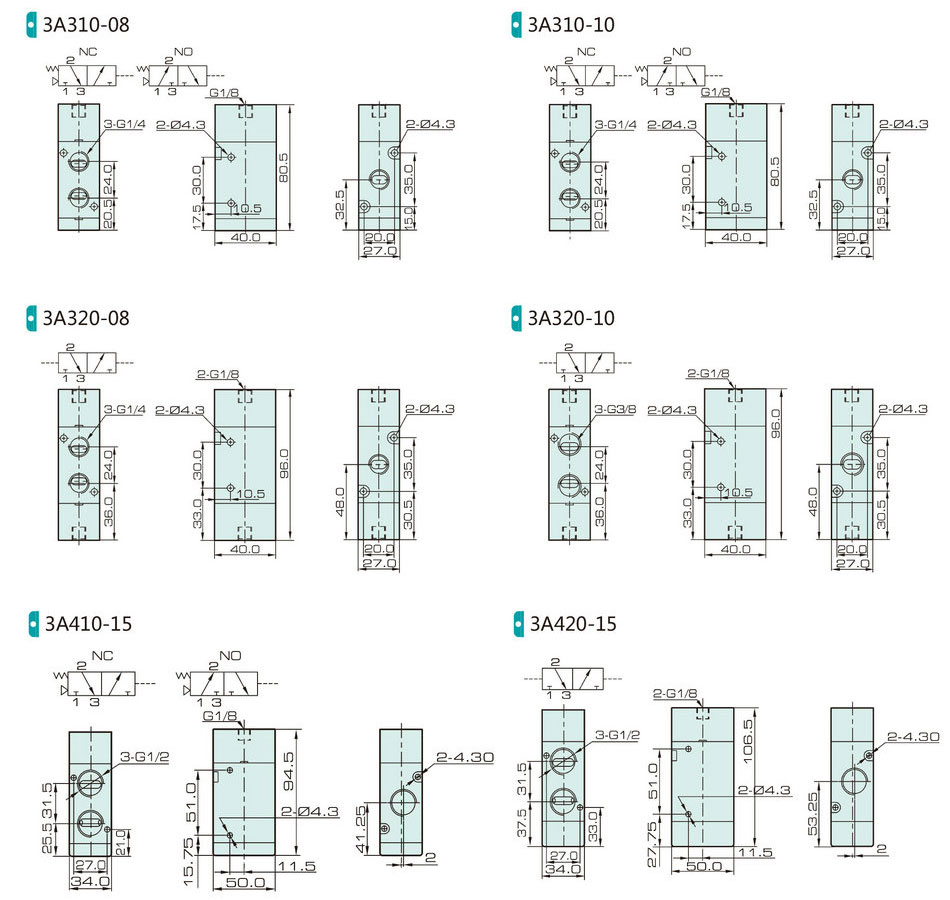

  • Product size

Order code：







Specification



Model

 J4V110-M5 J4V120-M5 J4V130C-M5 J4V130E-M5 J4V130P-M5 J4V110-06 J4V120-06 J4V130C-06 J4V130E-06 J4V130P-06
4A110-M5 4A120-M5 4A130C-M5 4A130E-M5 4A130P-M5 4A110-06 4A120-06 4A130C-06 4A130E-06 4A130P-06

Valve Type

 5/2 way 5/3 way 5/2 way 5/3 way

Effective Cross Section Area

 10 mm 2 (CV = 0.56) 7 mm 2 (CV = 0.40) 12 mm 2 (CV = 0.67) 9 mm 2 (CV = 0.5)

Model

 J3V110-M5 J3V120-M5 3A110-M5 3A120-M5 J3V110-06 J3V120-06 3A110-06 3A120-06

Valve Type

 3/2 way

Effective Cross Section Area

 10 mm 2 (CV = 0.56) 12 mm 2 ( CV = 0.67)

Port Size

 Inlet, Outlet, Exhaust Port ＝ M5 × 0.8 Inlet, Outlet, Exhaust Port ＝ G 1/8″

Working Medium

 40 Micron Filtered Air

Operation

 Internal piloted

Working-pressure

 0.15～0.8 MPa

Max. Test Pressure

 1.2MPa

Ambient Temperature

 -20 ~ 70 ℃

Operating Voltage Tolerance

 ± 10%

Power Consumption

 AC: 2.5VA DC: 2.5W

Connector Protection

 F Class, IP 65

Wiring / Connector

 Cable / Lead Wire or DIN Connector

Switching Frequency

 5 Cycles / Sec.

Response Time

 0.05 Sec.
