MCS2 Series Manufacturers

Home / Products / VALVE TERMINAL / MCS2 Series / MCS2 Series

Products

MCS2 Series

MCS2 Series

0
Views: 2,144
  • Product parameters

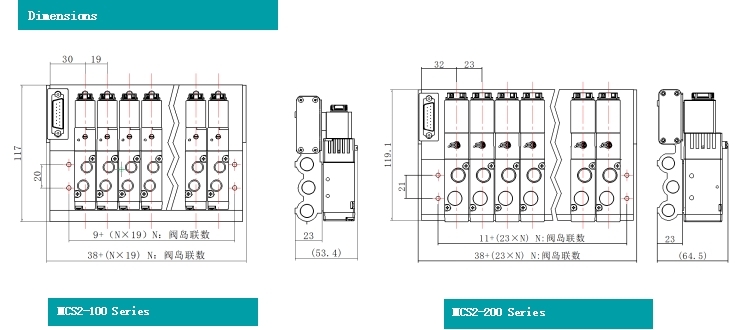

  • Product size



MCS2-100

MCS2-200

Number of positions

Two-position five-way

Two-position five-way

Effective cross-sectional area

12mm2 (CV=0.67)

16mm2 (CV=0.89)

Inlet and exhaust caliber

G1/4

G1/4

Working caliber

G1/8

G1/4

Action method

Internal pilot

Use pressure

0.15~0.8MPa

Maximum withstand voltage

1.2MPa

Operating temperature

-10~60℃

Voltage range

±10%

Single valve power

2.5W

3W

Maximum operating frequency

5/s

Shortest excitation time

0.05s
