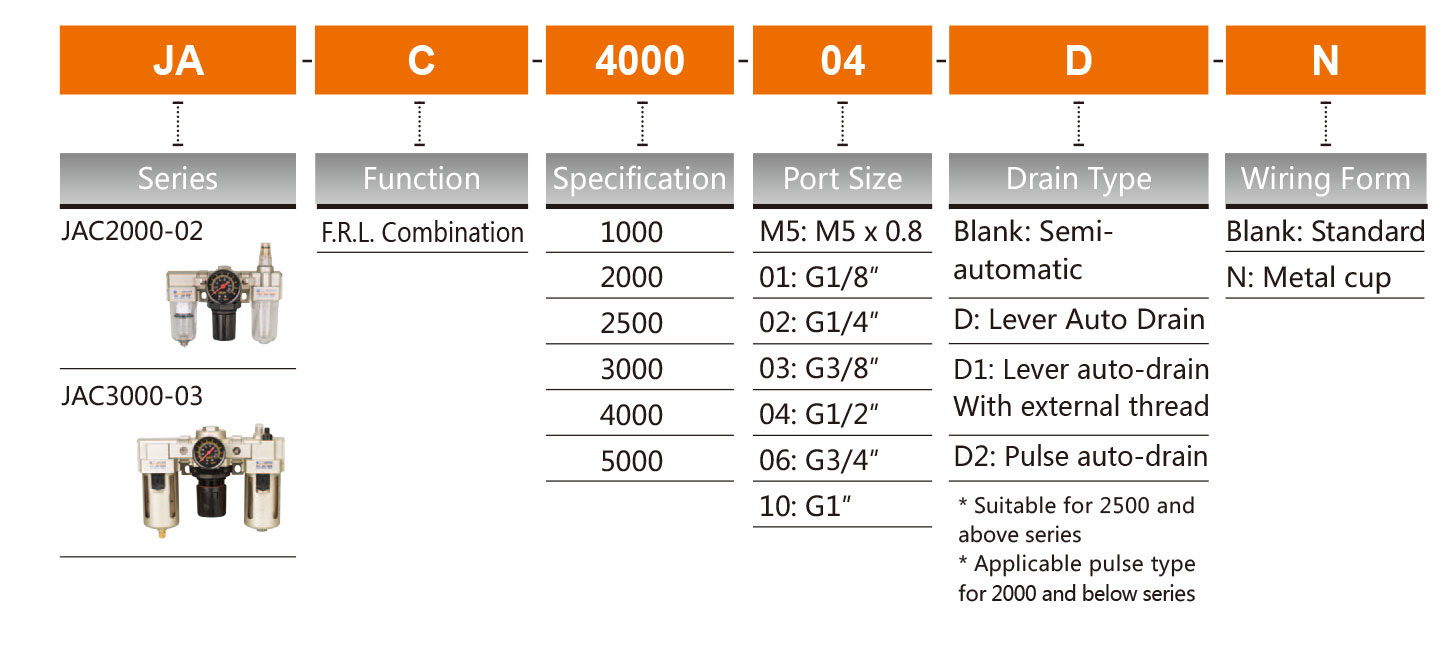

JAC Series Air Filter Combination

Model

JAC1000-M5

JAC2000-01

JAC2000-02

JAC2500-02

JAC2500-03

JAC3000-02

JAC3000-03

JAC4000-0B

JAC4000-04

JAC4000-06

JAC5000-06

JAC5000-10

Rated Flow

90

500

500

1500

1500

2000

2000

4000

4000

4500

5000

5000

Port Size

M5

1/8

1/4

1/4

3/8

1/4

3/8

3/8

1/2

3/4

3/4

1

Filter Precision

Max. Adjustable Pressure

Proof Pressure Resistance

1.5 MPa

Operating Temperature Range

5～60 ℃

0.05～0.85 MPa

Recommended Lubricant

ISO VG 32

Container Material

Poly Carbonate

Protective Cup Cover

Unavailable

Drain Function

Differential Drain

Differential Drain, Automatic Drain

Valve Type

With Overflow

Assembly

Filter

JAF1000-M5

JAF2000 01

JAF2000 02

JAFB000 02

JAFB000-02

JAF3000 02

JAFB000 03

JAF4000 03

JAF4000-04

JAF4000-06

JAF5000 06

JAF5000-10

Regulator

JAR1000-M5

JAR2000 01

JAR2000 02

JAR2500 02

JAR2500 02

JAR3000 02

JAR3000 03

JAR4000-03

JAR4000 04

JAR4000-06

JAR5000 06

JAR5000-10

Lubricator

JAL1000-M5

JAL2000-01

JAL2000-02

JAL3000-02

JAL3000-02

JAL3000-02

JAL3000-03

JAL4000-03

JAL4000-04

JAL4000-06

JAL5000-06

JAL5000-10

Model

JAC1010-M5

JAC2010-01

JAC2010-02

JAC3010-02

JAC3010-03

JAC4010-03

JAC4010-04

JAC4010-06

JAC5010-06

JAC5010-10

Rated Flow

90

500

500

1700

1400

3000

3000

3000

4000

4000

Port Size

M5

1/8

1/4

1/4

3/8

3/8

1/2

3/4

3/4

1

Filter Precision

25 μm

Max. Adjustable Pressure

Proof Pressure Resistance

1.5 MPa

Operating Temperature Range

5～60 ℃

0.05～0.7 MPa

Recommended Lubricant

ISO VG 32

Container Material

Poly Carbonate

Protective Cup Cover

Unavailable

Drain Function

Differential Drain

Semi-automatic Drain, Automatic Drain

Valve Type

With Overflow

Assembly

Filter Regulator

JAW1000-M5

JAW2000-01

JAW2000-02

JAW3000-02

JAW3000-03

JAW4000-03

JAW4000-04

JAW4000-06

JAW5000-06

JAW5000-10

Lubricator

JAL1000-M5

JAL2000-01

JAL2000-02

JAL3000-02

JAL3000-03

JAL4000-03

JAL4000-04

JAL4000-06

JAL5000-06

JAL5000-10

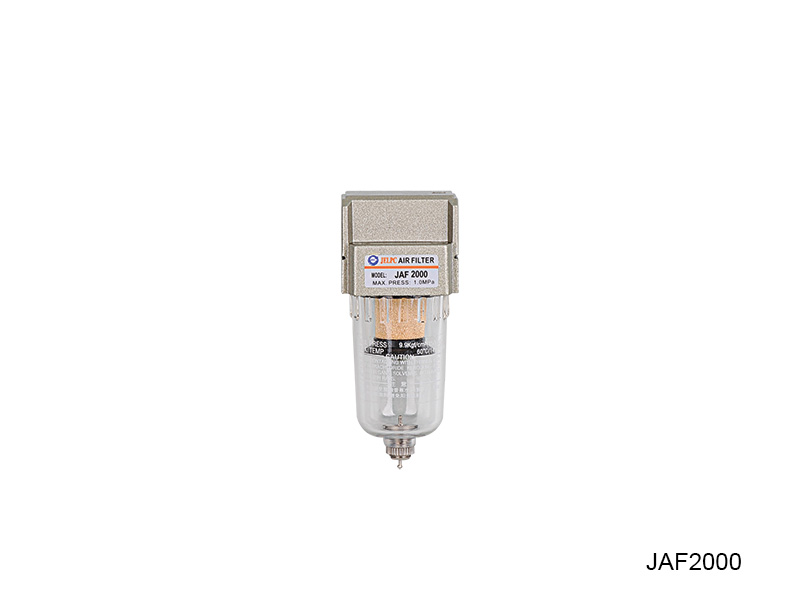

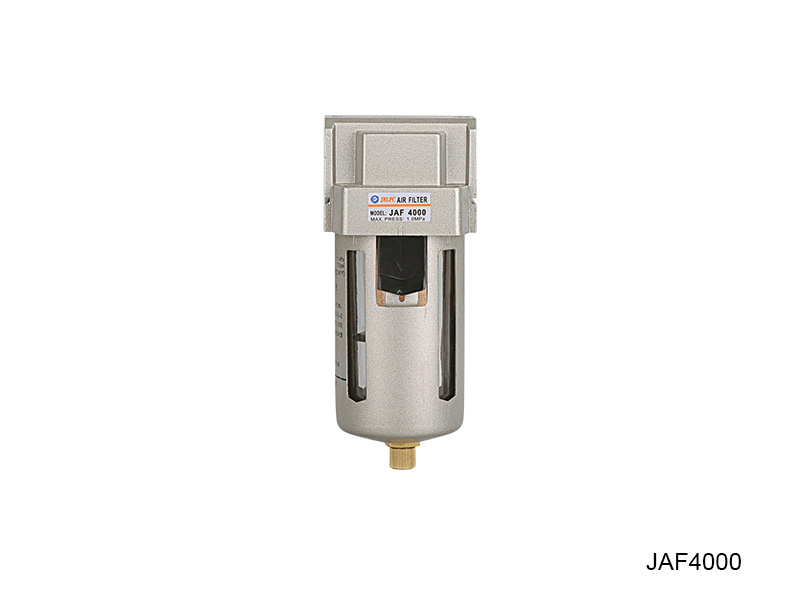

Model

JAF1000-M5

JAF2000-01

JAF2000-02

JAF3000-02

JAF3000-03

JAF4000-03

JAF4000-04

JAF4000-06

JAF5000-06

JAF5000-10

Rated Flow

110

750

750

1500

1500

4000

4000

6000

7000

7000

Port Size

M5

1/8

1/4

1/4

3/8

3/8

1/2

3/4

3/4

1

Filter Precision

25 μm

Max. Adjustable Pressure

1.0 MPa

Proof Pressure Resistance

1.5 MPa

Ambient Temperature Range

5～60 ℃

Container Material

Poly Carbonate

Container Cup

Unavailable

Iron

Drain Function

Differential Drain

Semi-automatic Drain, Automatic Drain

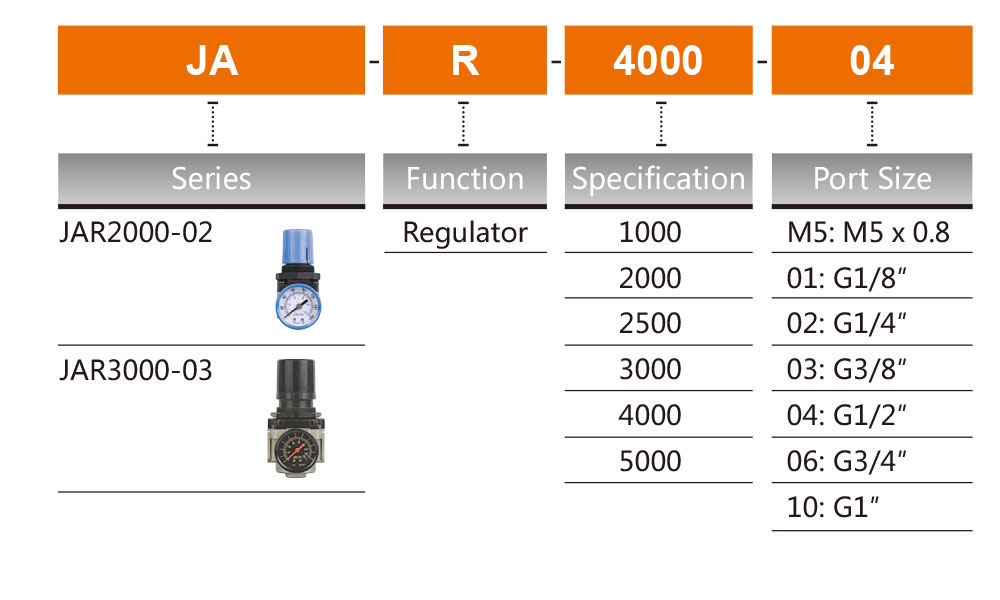

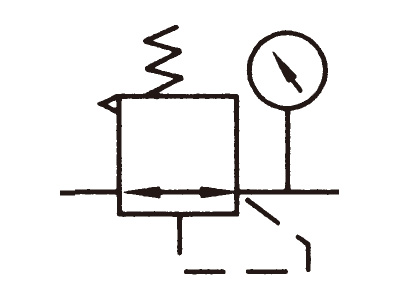

Model

JAR1000-M5

JAR2000-01

JAR2000-02

JAR2500-02

JAR2500-03

JAR3000-02

JAR3000-03

JAR4000-03

JAR4000-04

JAR4000-06

JAR5000-06

JAR5000-10

Rated Flow

110

550

550

2000

2000

2500

2500

6000

6000

6000

8000

8000

Port Size

M5

1/8

1/4

1/4

3/8

1/4

3/8

3/8

1/2

3/4

3/4

1

Max. Adjustable Pressure

1.0 MPa

Proof Pressure Resistance

1.5 MPa

Range of Adjustable Pressure

5～60 ℃

Range of Adjustable Pressure

0.05～0.7 MPa

0.05～0.85 MPa

Valve Type

With Overflow

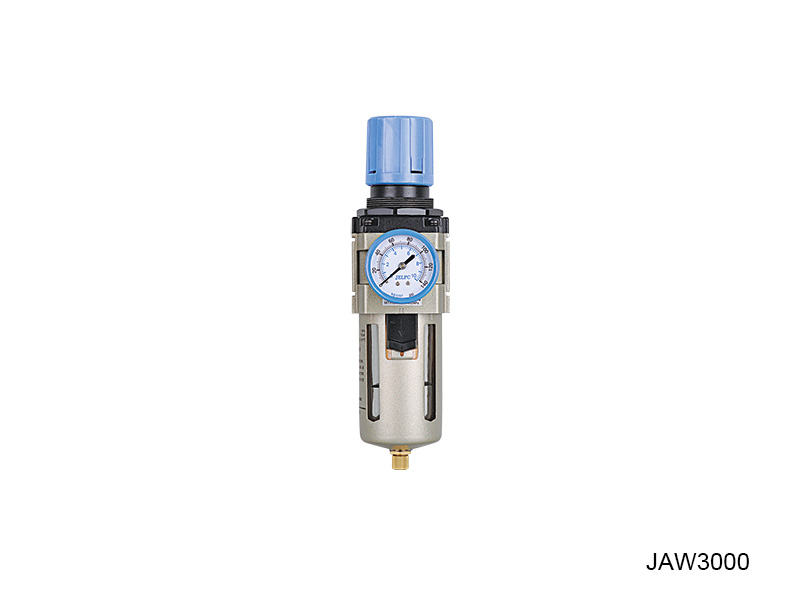

Model

JAW1000-M5

JAW2000-01

JAW2000-02

JAW3000-02

JAW3000-03

JAW4000-03

JAW4000-04

JAW4000-06

JAW5000-06

JAW5000-10

Rated Flow

100

550

550

2000

2000

4000

4000

4500

5500

5500

Port Size

M5

1/8

1/4

1/4

3/8

3/8

1/2

3/4

3/4

1

Filter Precision

25 μm

Max. Adjustable Pressure

1.0 MPa

Proof Pressure Resistance

1.5 MPa

Operating Temperature Range

5～60 ℃

Range of Adjustable Pressure

0.05～0.7 MPa

0.05～0.85 MPa

Container Material

Poly Carbonate

Container Cup

Unavailable

Iron

Drain Function

Differential Drain

Semi-automatic Drain, Automatic Drain

Valve Type

With Overflow

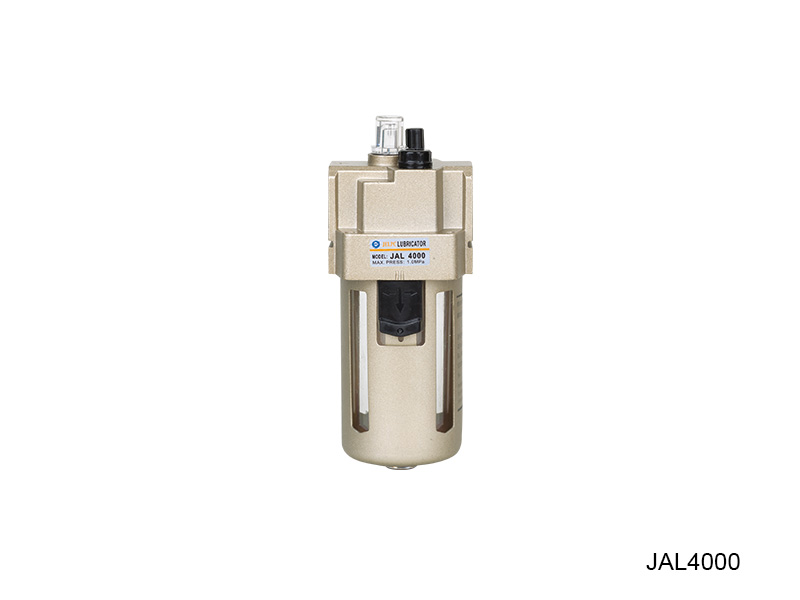

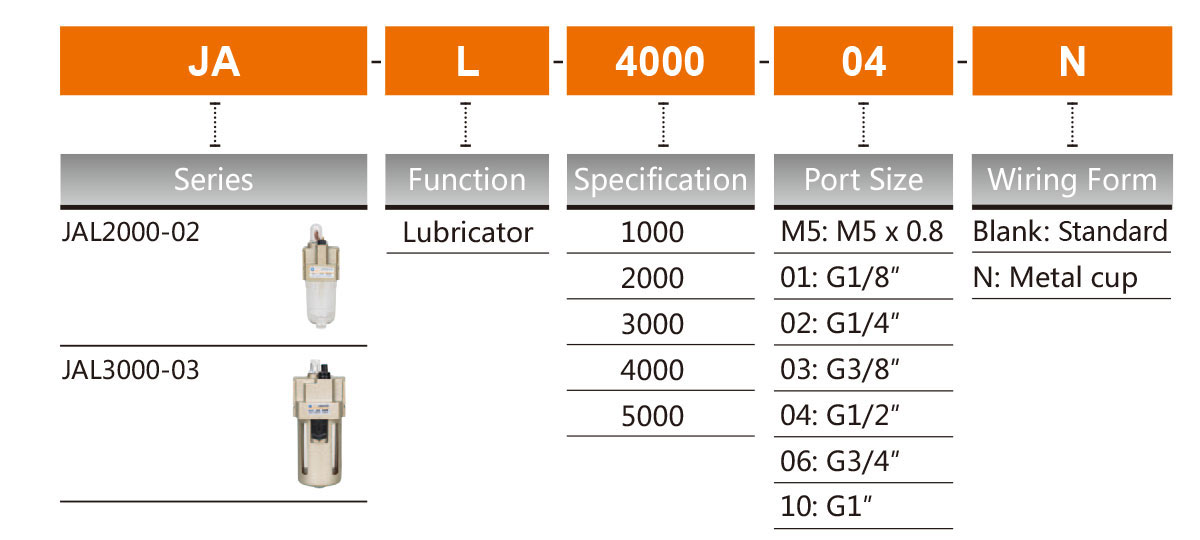

Model

JAL1000-M5

JAL2000-01

JAL2000-02

JAL3000-02

JAL3000-03

JAL4000-03

JAL4000-04

JAL4000-06

JAL5000-06

JAL5000-10

Rated Flow

95

800

800

1700

1700

5000

5000

6300

7000

7000

Port Size

M5

1/8

1/4

1/4

3/8

3/8

1/2

3/4

3/4

1

Max. Adjustable Pressure

1.0 MPa

Proof Pressure Resistance

1.5 MPa

Operating Temperature Range

5～60 ℃

Recommended Lubricant

0.05～0.7 MPa

ISO VG 32

Container Material

Poly Carbonate

Container Cup

Unavailable

Iron

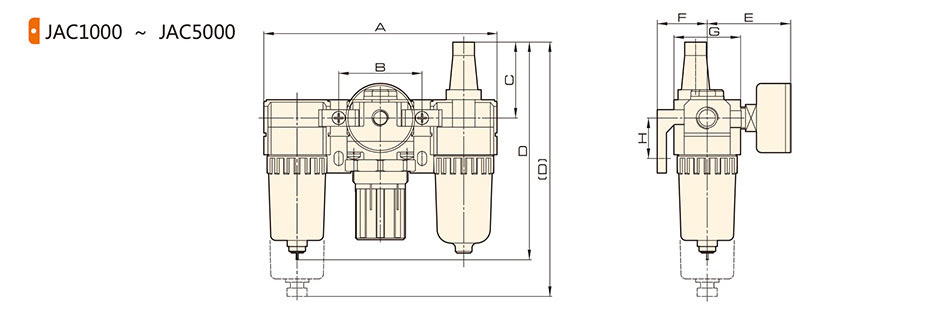

Model

Bore

A

JAC1000

M5

91

33

25.5

84.5

26

25

25

20

JAC2000

1/8 - 1/4

140

50

45.5

130.5 ( 152.5 )

56.8

30

40

24

JAC2500

1/4 - 3/8

181

64

38

156.5

60.8

41

53

35

JAC3000

1/4 - 3/8

181

64

38

156.5

60.8

41

53

35

JAC4000

3/8 - 1/2

238

84

41

191.5

65.5

50

70

40

JAC4000-06

3/4

253

89

41

193

69.5

50

70

40

JAC5000

3/4 - 1

300

105

48

271.5

75.5

69.8

90

50

Model

Bore

A

B

C

D

E

F

G

H

JAC1010

M5

109.5

50.5

29

58

26

25

25

20

JAC2010

1/8 - 1/4

158 (180)

73

45

90

56.8

30

40

24

JAC3010

1/4 - 3/8

211

92.5

58.5

117

60.8

41

53

35

JAC4010

3/8 - 1/2

262

112

77

154

70.5

50

70

40

JAC4010-06

3/4

267

114

82

164

70.5

50

70

40

JAC5010

3/4 - 1

338

116

97.5

195

75.5

69.8

90

50

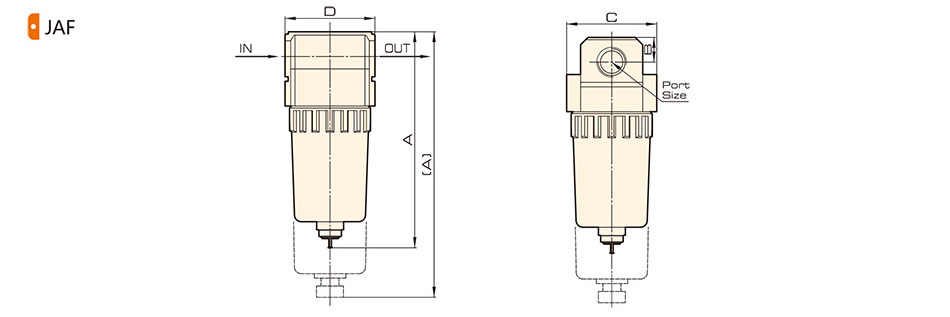

Model

Bore

A

B

JAF1000

M5

66

7

25

-

JAF2000

1/8 - 1/4

96 (118 )

11

40

40

JAF3000

1/4 - 3/8

132.5

14

53

53

JAF4000

3/8 - 1/2

168.5

18

70

70

JAF4000-06

3/4

172.5

20

70

70

JAF5000

3/4 - 1

247.5

24

90

90

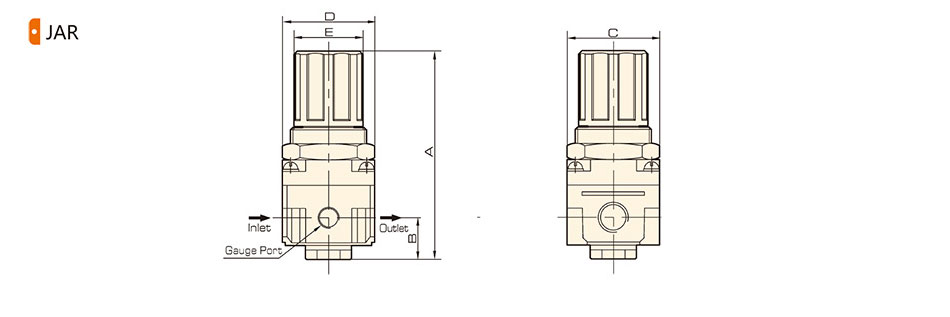

Model

Bore

A

B

C

D

E

JAR1000

M5

61.5

11

25

25

28

JAR2000

1/8 - 1/4

95

17

40

40

34

JAR2500

1/4 - 3/8

102.5

25

48

53

34

JAR3000

1/4 - 3/8

127.5

35

53

53

40

JAR4000

3/8 - 1/2

149.5

37.5

70

70

54

JAR4000-06

3/4

154

40.5

70

75

54

JAR5000

3/4 - 1

168

48

90

90

54

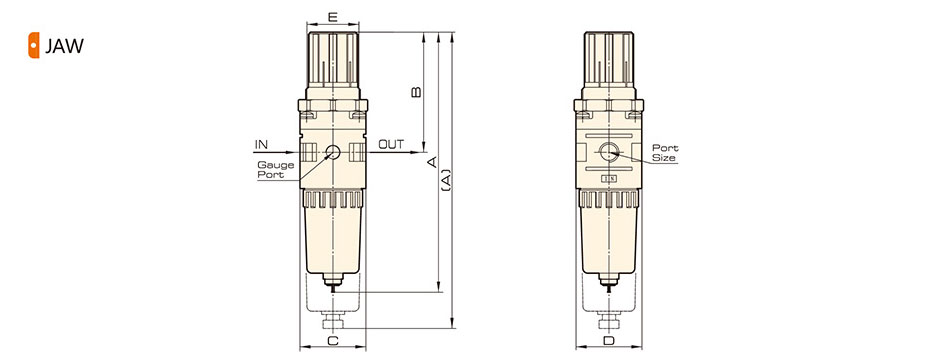

Model

Bore

A

JAW1000

M5

109.5

50.5

25

28

28

JAW2000

1/8 - 1/4

158 ( 180 )

73

40

40

34

JAW3000

1/4 - 3/8

211

92.5

53

53

40

JAW4000

3/8 - 1/2

262

112

70

70

54

JAW4000-06

3/4

267

114

70

70

54

JAW5000

3/4 - 1

338

116

90

90

54

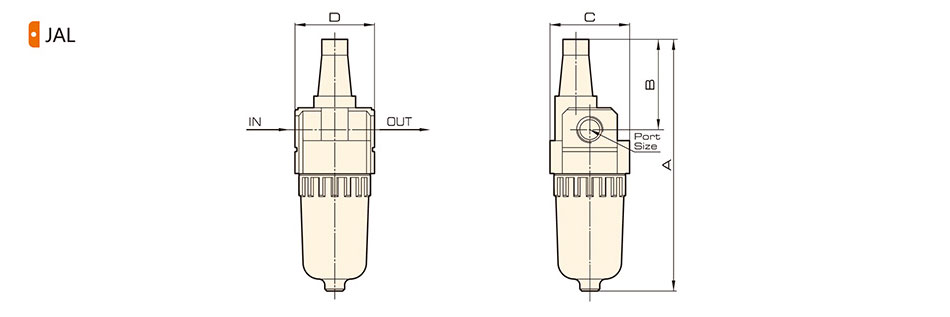

Model

Bore

A

JAL1000

M5

81.5

25.5

25

-

JAL2000

1/8 - 1/4

126.5

45.5

40

40

JAL3000

1/4 - 3/8

142

38

53

53

JAL4000

3/8 - 1/2

177

41

70

70

JAL4000-06

3/4

177

39

70

70

JAL5000

3/4 - 1

254

45

90

90
