GC Series Air Source Treatment

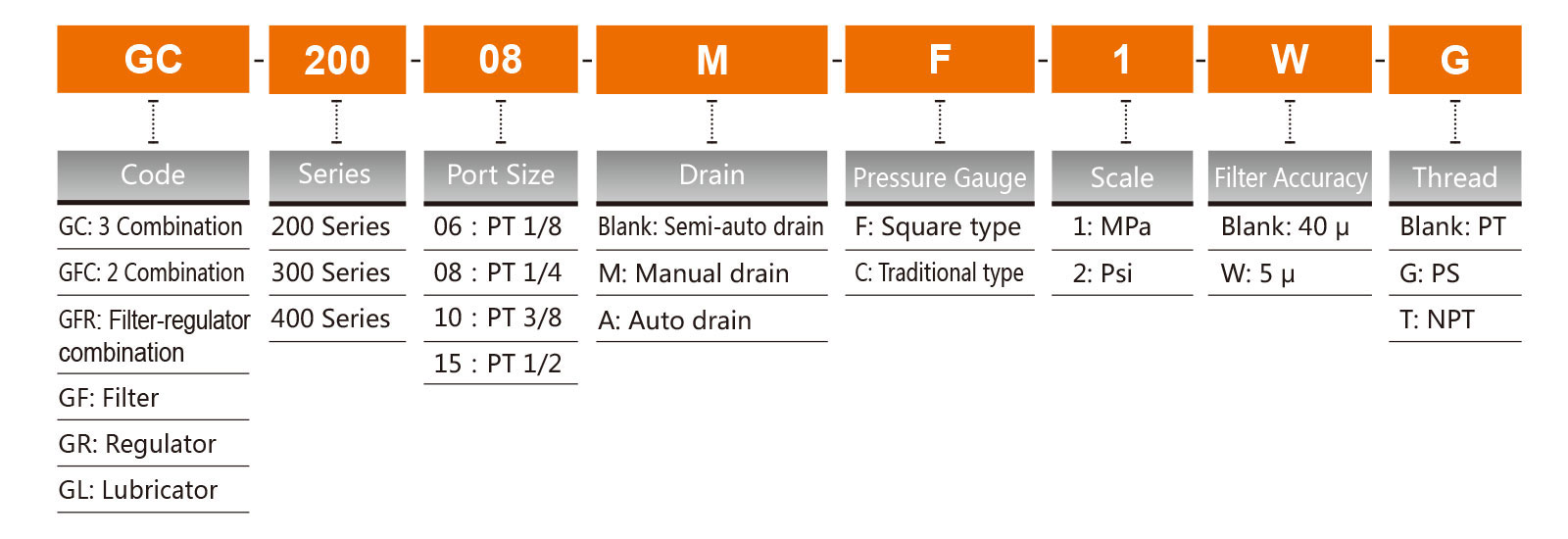

Model

GC200-06

GC200-08

GC300-08

GC300-10

GC300-15

GC400-10

GC400-15

Working medium

Air

Port Size

PT1/8

PT11/4

PT1/4

PT3/8

PT1/2

PT3/8

PT1/2

Filtration

40 μ or 5 μ

Adjustable pressure range

0.15 ~ 0.9 MPa

Maximum working pressure

1.0 MPa

Proof Pressure

1.5 MPa

Operating Temperature Range

5 ~ 60 ℃

Capacity of Filter Cup

10 CC

40 CC

80 CC

Capacity of Oil Cup

25 CC

75 CC

160 CC

Recommended Lubrication

ISO VG 32 or Same Grade

Weight

580 g

1300 g

2358 g

Components

Filter

GF 200-06

GF 200-08

GF 300-08

GF 300-10

GF 300-15

GF 400-10

GF 400-15

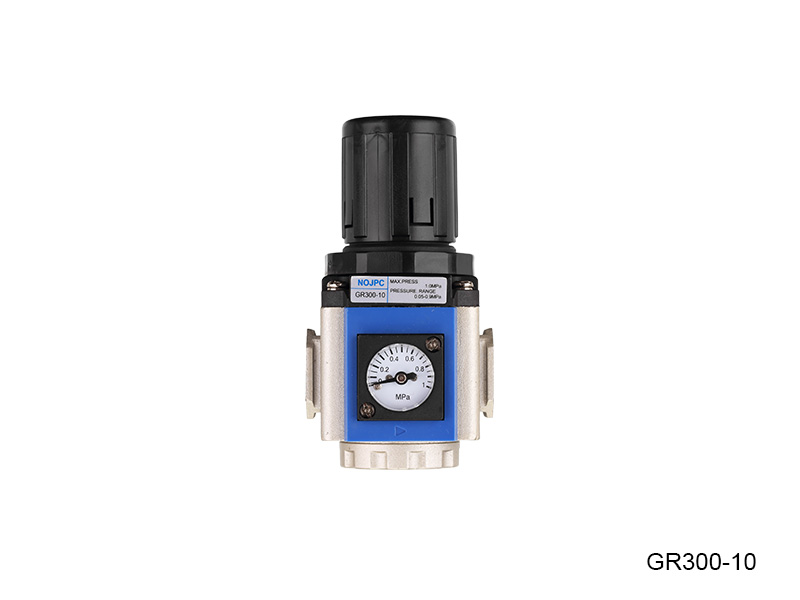

Regulator

GR 200-06

GR 200-08

GR 300-08

GR 300-10

GR 300-15

GR 400-10

GR 400-15

Lubricator

GL 200-06

GL 200-08

GL 300-08

GL 300-10

GL 300-15

GL 400-10

GL400-15

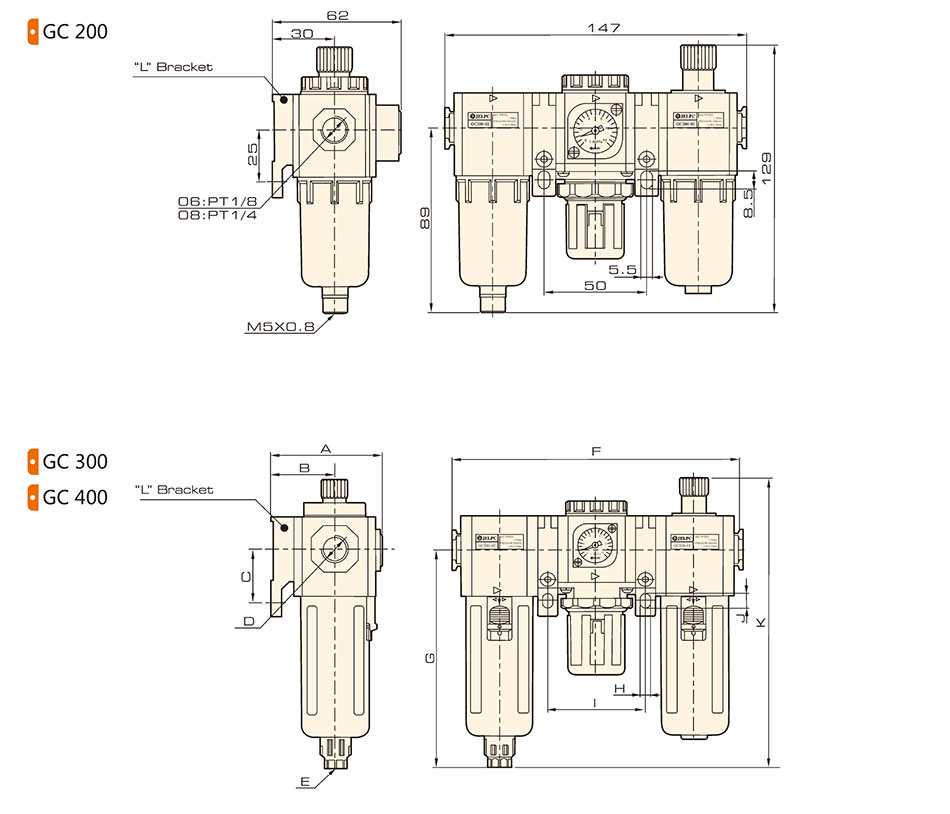

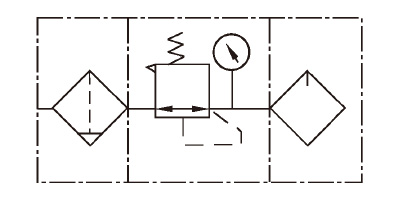

Model/Symbol

A

B

C

D

E

F

G

H

I

J

K

GC300-08

71

41.5

35

PT1/4

PS1/8

188

143

6.5

64

9

188

GC300-10

71

41.5

35

PT3/8

PS1/8

188

143

6.5

64

9

188

GC300-15

71

41.5

35

PT1/2

PS1/8

188

143

6.5

64

9

188

GC400-10

85.5

50

40

PT3/8

PS1/4

248

166.5

8.6

84

12

216

GC400-15

85.5

50

40

PT1/2

PS1/4

248

166.8

8.6

84

12

216
