Patent Product
Infringement must be prohibited
Patent No.：ZL 200930344937.0
ZL 200920124808.5
Feature
SQ Series cylinder is a new super economical cylinder patent product. Body and covers are latest innovated, with new structure, smart, cost reduced, material saved. The installation dimension is the same as SI, conforms to ISO 15552 standard.

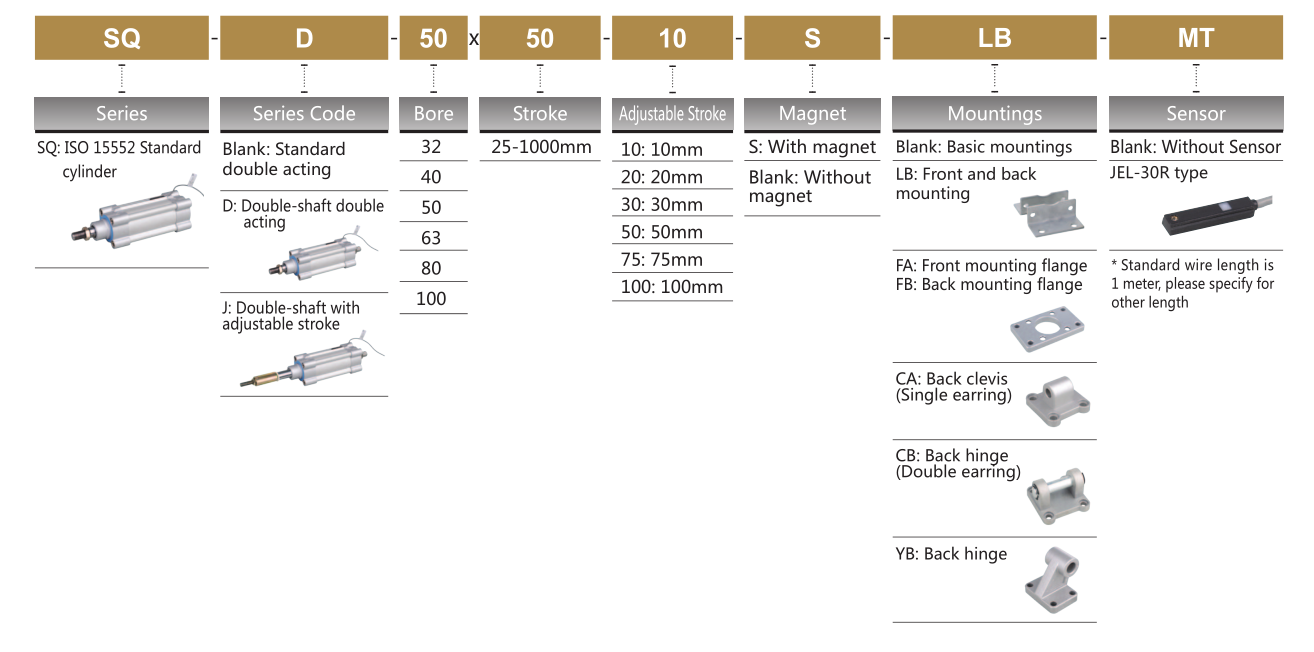

Ordering Code
Specification
|
Bore (mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
Operation |
Double Acting |
||||||
|
Working Medium |
Air |
||||||
|
Mounting |
Basic FA FB CA CB LB YB |
||||||
|
Operating Pressure Range |
0.1～1MPa |
||||||
|
Proof Pressure |
1.5MPa |
||||||
|
Operating Temperature Range |
-20～70℃ |
||||||
|
Operating Speed Range |
50～800mm/s |
||||||
|
Cushion |
Adjustable Cushion |
||||||
|
Adjustable Cushion Stroke |
20 mm |
26 mm |
|||||
|
Port Size |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
|||
Overall Dimension
Dimension
|
Bore/Symbol |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
|
32 |
142 |
16 |
94 |
30 |
33 |
4 |
25 |
22 |
17 |
6 |
M10xl.25 |
M6 |
|
40 |
159 |
20 |
105 |
35 |
34 |
4 |
29.5 |
24 |
17 |
7 |
M12xl.25 |
M6 |
|
50 |
175 |
27 |
106 |
40 |
42.5 |
5 |
32 |
32 |
23 |
8 |
M16xl.5 |
M8 |
|
63 |
190 |
26 |
122 |
45 |
42 |
5 |
36 |
32 |
23 |
8 |
M16xl.5 |
M8 |
|
80 |
214 |
35 |
127 |
45 |
53 |
6 |
37 |
40 |
26 |
10 |
M20xl.5 |
M10 |
|
100 |
229 |
40 |
137 |
55 |
52 |
6 |
39 |
40 |
26 |
10 |
M20xl.5 |
M10 |
|
Bore/Symbol |
M |
N |
O |
P |
Q |
R |
S |
T |
U |
V |
W | X |
|
32 |
12 |
15 |
G1/8 |
5 |
3 |
6.5 |
45 |
32.5 |
12 |
10 |
25 |
4 |
|
40 |
12 |
17.5 |
G1/4 |
7 |
3 |
7 |
52 |
38 |
16 |
13 |
33 |
4 |
|
50 |
12 |
20 |
G1/4 |
7 |
3 |
9 |
65 |
46.5 |
20 |
17 |
36 |
4 |
|
63 |
12 |
22 |
G3/8 |
8 |
5 |
9 |
76 |
56.5 |
20 |
17 |
38 |
4 |
|
80 |
15 |
23 |
G3/8 |
10 |
5 |
12 |
94 |
72 |
25 |
22 |
43 |
5 |
|
100 |
15 |
26 |
G1/2 |
10 |
5 |
14 |
112 |
89 |
25 |
22 |
43.5 |
6 |
*The installation dimension of super economy SQ series cylinder is the same as SI series cylinder and all the cylinder acessories and sensor switch can share with SI cylinder.
