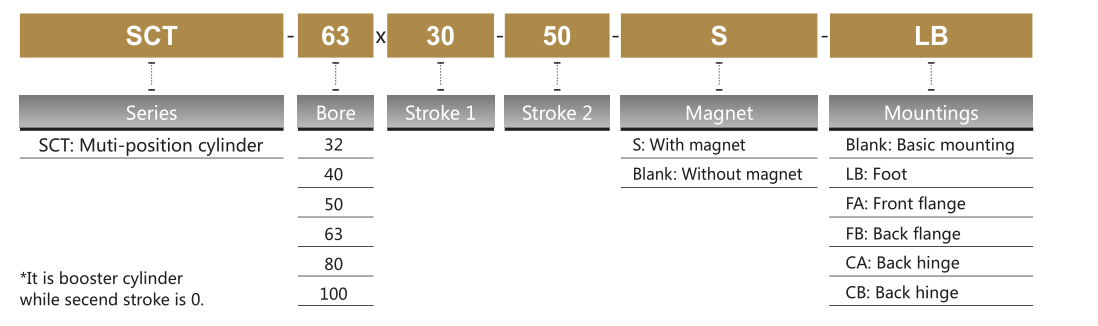

Ordering Code
|
SCT |
63 |
30 |
50 |
S |
LB |
|
Series |
Bore |
Stroke 1 |
Stroke 2 |
Magnet |
Mountings |
|
SCT: Muti-position cylinder |
32 |
|
|
S: With magnet |
Blank: Basic mounting |
|
|
40 |
|
|
Blank: Without magnet |
LB: Foot |
|
|
50 |
|
|
|
FA: Front flange |
|
|
63 |
|
|
|
FB: Back flange |
|
|
80 |
|
|
|
CA: Back hinge |
|
*It is booster cylinder while secend stroke is 0. |
100 |
|
|
|
CB: Back hinge |

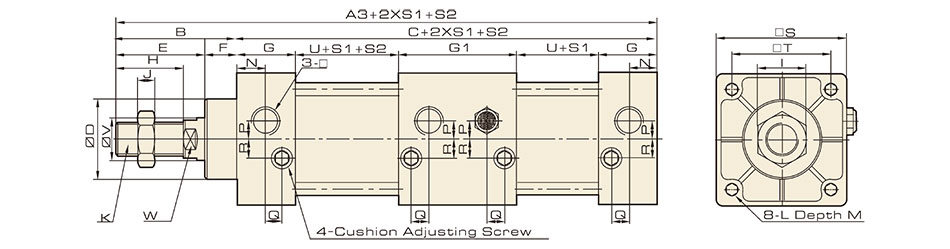

Overall Dimension
Dimension
| Bore/ Symbol | A3 | B | C | D | E | F | G | G1 | H | I | J | K |
|
32 |
233 |
47 |
186 |
28 |
32 |
15 |
27.5 |
55 |
22 |
17 |
6 |
M10×l.25 |
|
40 |
235 |
49 |
186 |
32 |
34 |
15 |
27.5 |
55 |
24 |
17 |
7 |
M12×l.25 |
|
50 |
243 |
57 |
186 |
38 |
42 |
15 |
27.5 |
55 |
32 |
23 |
8 |
M16×l.5 |
|
63 |
249 |
57 |
192 |
38 |
42 |
15 |
27.5 |
55 |
32 |
23 |
8 |
M16×l.5 |
|
80 |
296 |
75 |
221 |
47 |
54 |
21 |
33 |
73 |
40 |
26 |
10 |
M20×l.5 |
|
100 |
310 |
75 |
235 |
47 |
54 |
21 |
33 |
73 |
40 |
26 |
10 |
M20×l.5 |
|
125 |
350 |
104 |
122 |
55 |
70 |
34 |
33 |
66 |
54 |
40 |
10 |
M27×2 |
|
Bore/ Symbol |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
V |
U |
W |
|
32 |
M6×1 |
9.5 |
13.7 |
G1/8 |
3.5 |
7.5 |
7 |
45 |
33 |
12 |
38 |
10 |
|
40 |
M6×1 |
9.5 |
13.5 |
G1/4 |
6 |
8.2 |
9 |
50 |
37 |
16 |
38 |
14 |
|
50 |
M6×1 |
9.5 |
13.5 |
G1/4 |
8.5 |
8.2 |
9 |
62 |
47 |
20 |
38 |
17 |
|
63 |
M8×1.25 |
9.5 |
13.5 |
G3/8 |
7 |
8.2 |
8.5 |
75 |
56 |
20 |
41 |
17 |
|
80 |
M10×1.5 |
11.5 |
16.5 |
G3/8 |
10 |
9.5 |
14 |
94 |
70 |
25 |
41 |
22 |
|
100 |
M10×1.5 |
11.5 |
16.5 |
G1/2 |
10 |
9.5 |
14 |
112 |
84 |
25 |
47 |
22 |
|
125 |
M12×1.75 |
15.5 |
16.5 |
G1/2 |
10 |
10 |
11 |
140 |
110 |
32 |
57 |
27 |
