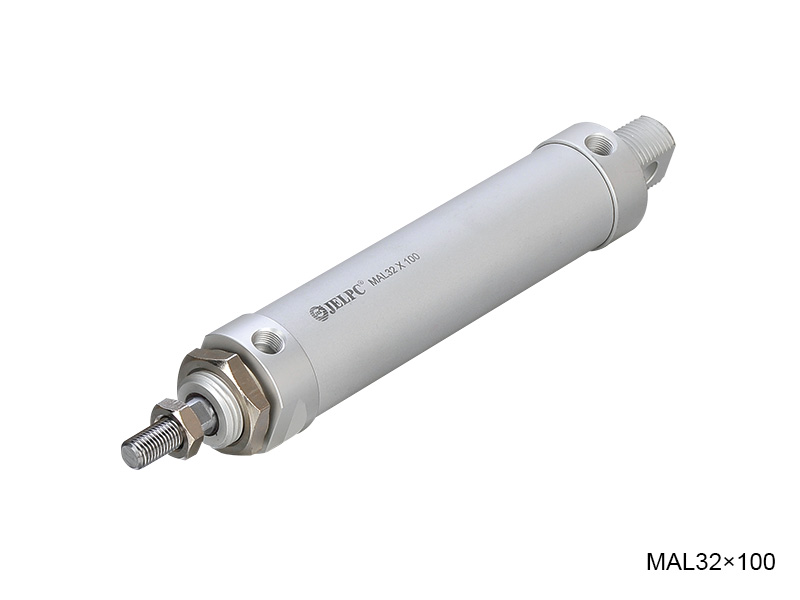

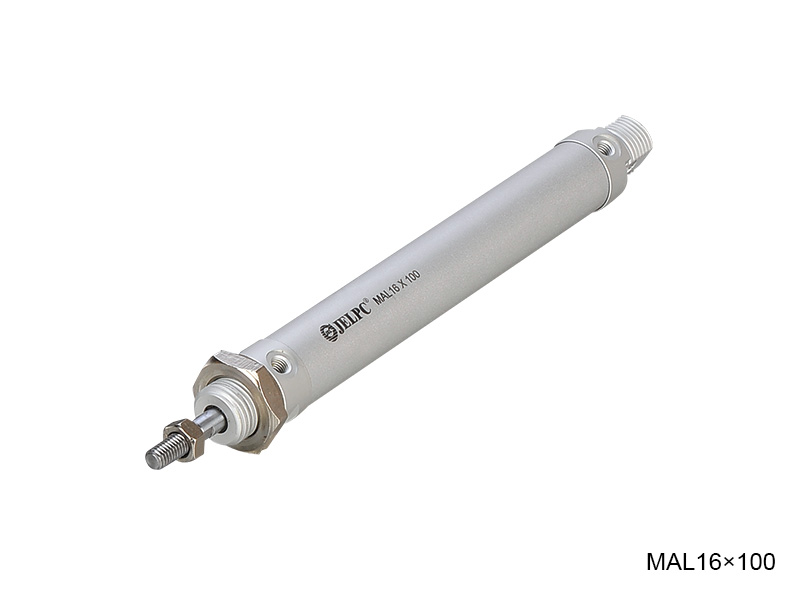

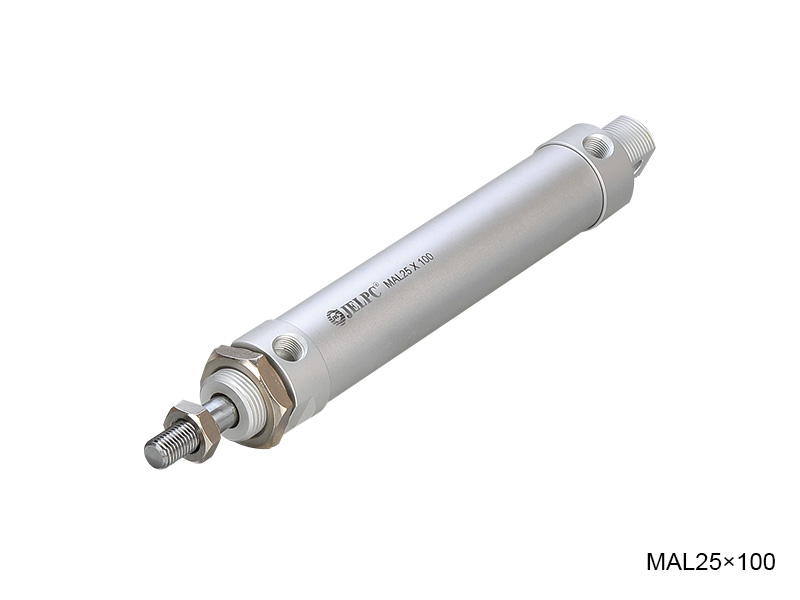

Features
1. Improving for adapting wide range applications,using precise polishing of piston rod,more sense of products quality and longer life of front seal.
2. Optima design and improve the production efficiency.
3. Combined with enterprise color planning and new structure design.
4. Using embedded gasket , increase the pressured area of pistons after collision.

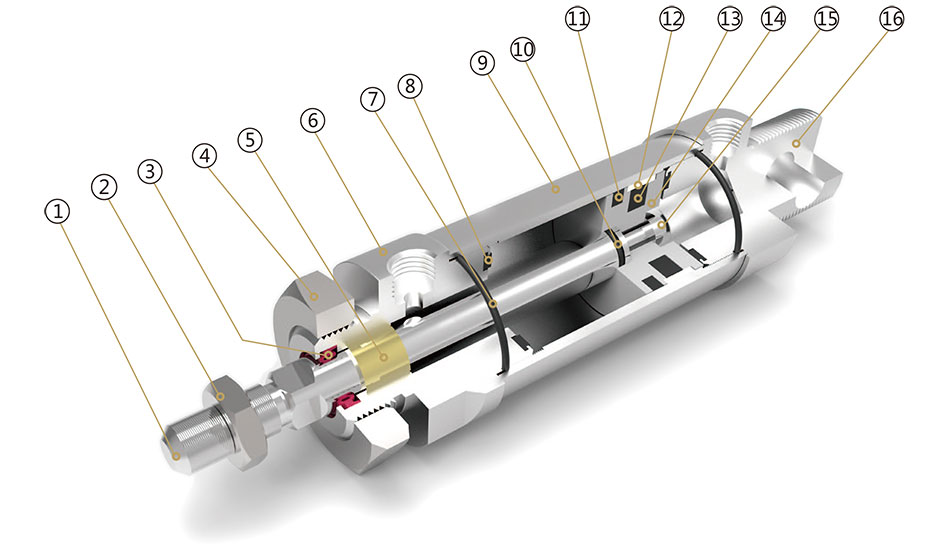

Internal Structure
Parts
Number |
Name |
Number |
Name |
1 |
Piston rod |
9 |
Barrel |
2 |
Hexagon nut |
10 |
0 ring |
3 |
Shaft seal |
11 |
Piston seal |
4 |
Hexagon nut |
12 |
Anti-friction seal |
5 |
DU bearing |
13 |
Magnet |
6 |
Front cover |
14 |
Piston |
7 |
O ring |
15 |
Socket head cap screw |
8 |
Anti-collision gasket |
16 |
Back cover |

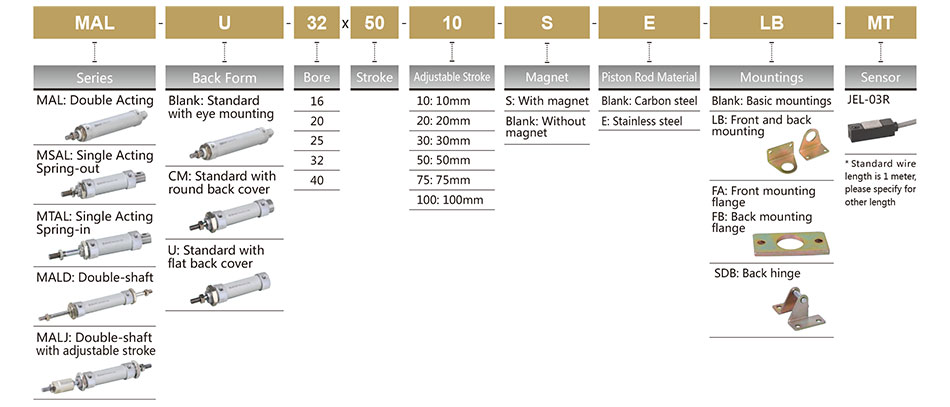

Ordering Code
Specification
Bore (mm) |
16 |
20 |
25 | 32 |
40 |
Operation |
Double Acting or Single Acting |
||||
Working Medium |
Air |
||||
Mountings |
Basic LB FA FB SDB |
||||
Operating Pressure Range |
0.1~1.0MPa |
||||
Proof Pressure |
1.5 MPa |
||||
Operating Temperature Range |
-20~80℃ |
||||
Operating Speed Range |
50~800mm/s |
||||
Cushion |
Gasket Cushion |
||||
Port Size |
M5×0.8 |
G1/8" |
G1/4" |

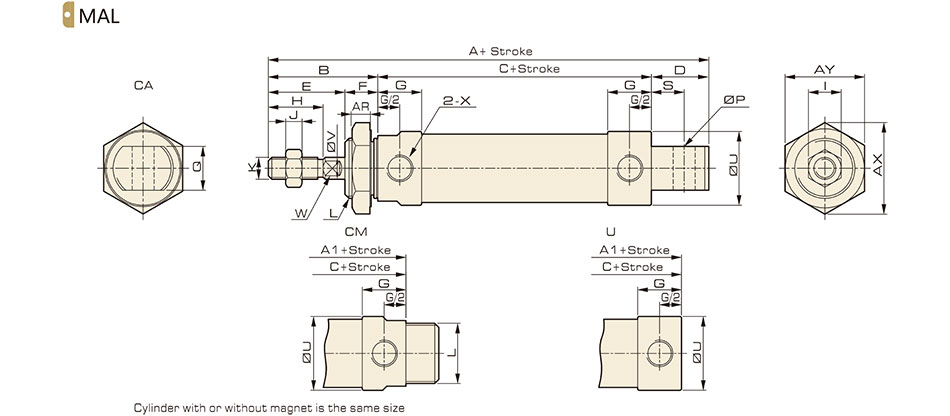

Overall Dimension
Dimension
Bore/Symbol |
A |
A1 |
B |
C |
D |
D1 |
E |
F |
G |
G1 |
H |
I | J | K |
16 |
105 |
90 |
38 |
52 |
15 |
12 |
24 |
14 |
11 |
6.5 |
16 |
10 |
5 |
M6×1l |
20 |
131 |
110 |
40 |
70 |
21 |
12 |
28 |
12 |
16 |
12 |
20 |
12 |
6 |
M8×1.25 |
25 |
135 |
114 |
44 |
70 |
21 |
14 |
30 |
14 |
16 |
11 |
22 |
17 |
6 |
M10×1.25 |
32 |
141 |
114 |
44 |
70 |
27 |
14 |
30 |
14 |
16 |
11.5 |
22 |
17 |
6 |
M10×1.25 |
40 |
165 |
138 |
46 |
92 |
27 |
14 |
32 |
14 |
22 |
15 |
24 |
19 |
7 |
M12×1.25 |
Bore/Symbol |
L |
P |
Q |
S |
U |
V |
W |
X |
AR |
AX |
AY |
Y |
16 |
M16×1.5 |
6 |
12 |
6 |
21 |
6 |
5 |
M5x0.8 |
6 |
27.8 |
24 |
6 |
20 |
M22×1.5 |
8 |
16 |
12 |
27 |
8 |
6 |
Gl/8 |
7 |
33.5 |
29 |
9 |
25 |
M22×1.5 |
8 |
16 |
12 |
32 |
10 |
8 |
Gl/8 |
7 |
33.5 |
29 |
9 |
32 |
M24×2 |
10 |
16 |
15 |
39.5 |
12 |
10 |
Gl/8 |
9 |
37 |
32 |
11.5 |
40 |
M30×2 |
12 |
20 |
15 |
47 |
16 |
14 |
Gl/4 |
9 |
46 |
40 |
14 |

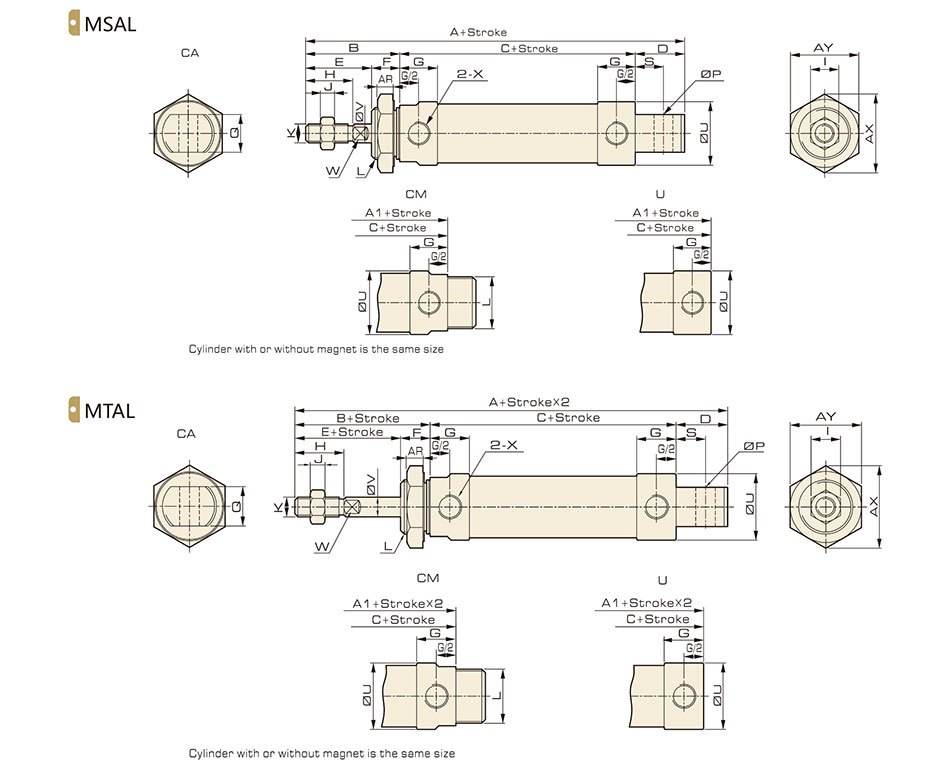

Overall Dimension
Dimension
Symbol |
A |
A1 |
B |
C |
D |
D1 |
E |
F |
G |
||||||
Bore/Stroke |
0-50 |
50-100 |
100-150 |
0-50 |
50-100 |
100-150 |
0-50 |
50-100 |
100-150 |
||||||
16 |
130 |
155 |
- |
115 |
140 |
- |
38 |
77 |
102 |
- |
15 |
12 |
24 |
14 |
11 |
20 |
156 |
181 |
206 |
135 |
160 |
185 |
40 |
95 |
120 |
145 |
21 |
12 |
28 |
12 |
16 |
25 |
160 |
185 |
210 |
139 |
164 |
189 |
44 |
95 |
120 |
145 |
21 |
14 |
30 |
14 |
16 |
32 |
166 |
191 |
216 |
139 |
164 |
189 |
44 |
95 |
120 |
145 |
27 |
14 |
30 |
14 |
16 |
40 |
190 |
215 |
240 |
163 |
188 |
213 |
46 |
117 |
142 |
167 |
27 |
14 |
32 |
14 |
22 |
Bore/Stroke |
H |
I |
J | K | L | P | Q |
S |
U |
V |
W |
X |
AR |
AX |
AY |
16 |
16 |
10 |
5 |
M6×1 |
M16xl.5 |
6 |
12 |
6 |
21 |
6 |
5 |
M5×0.8 |
6 |
27.8 |
24 |
20 |
20 |
12 |
6 |
M8×1.25 |
M22xl.5 |
8 |
16 |
12 |
27 |
8 |
6 |
G1/8 |
7 |
33.5 |
29 |
25 |
22 |
17 |
6 |
M10×1.25 |
M22xl.5 |
8 |
16 |
12 |
32 |
10 |
8 |
G1/8 |
7 |
33.5 |
29 |
32 |
22 |
17 |
6 |
M10×1.25 |
M24x2 |
10 |
16 |
15 |
39.5 |
12 |
10 |
G/18 |
9 |
37 |
32 |
40 |
24 |
19 |
7 |
M12×1.25 |
M30x2 |
12 |
20 |
15 |
47 |
16 |
14 |
G1/4 |
9 |
46 |
40 |

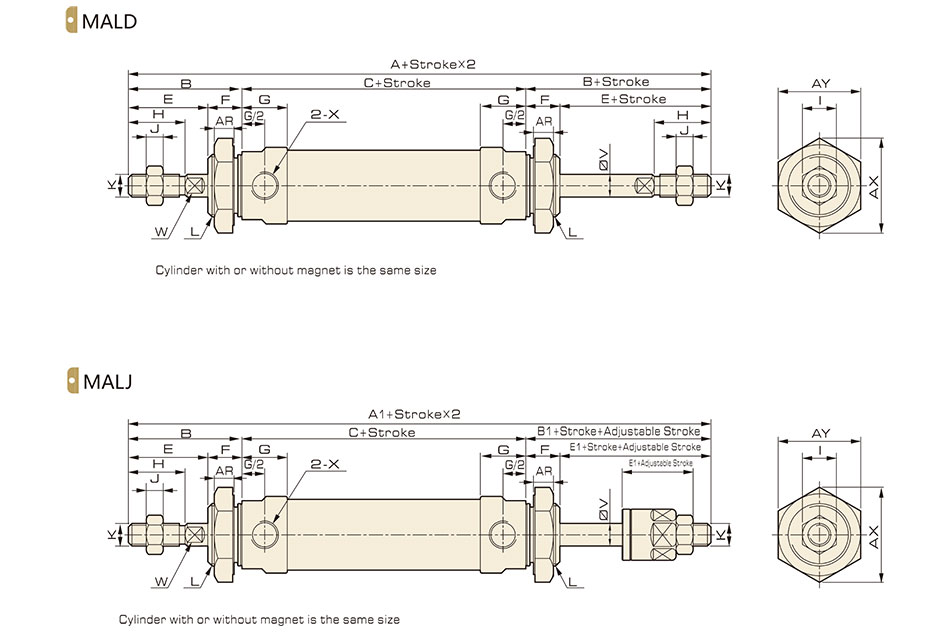

Overall Dimension
Dimension
Bore/Stroke |
A |
A1 |
B |
B1 |
C |
E |
E1 |
F |
G |
G1 |
H |
I |
J | K | L | U | V | W |
X |
AR |
AX |
AY |
Y |
16 |
128 |
125 |
38 |
35 |
52 |
24 |
21 |
14 |
11 |
6.5 |
16 |
10 |
5 |
M6×1 |
M16×1.5 |
21 |
6 |
5 |
M5×0.8 |
6 |
27.8 |
24 |
6 |
20 |
150 |
147 |
40 |
37 |
70 |
28 |
25 |
12 |
16 |
12 |
20 |
12 |
6 |
M8×1.25 |
M22×1.5 |
27 |
8 |
6 |
G1/8 |
7 |
33.5 |
29 |
9 |
25 |
158 |
155 |
44 |
41 |
70 |
30 |
27 |
14 |
16 |
11 |
22 |
17 |
6 |
M10×1.25 |
M22×1.5 |
32 |
10 |
8 |
G1/8 |
7 |
33.5 |
29 |
9 |
32 |
158 |
155 |
44 |
41 |
70 |
30 |
27 |
14 |
16 |
11.5 |
22 |
17 |
6 |
M10×1.25 |
M24×2 |
39.5 |
12 |
10 |
G1/8 |
9 |
37 |
32 |
11.5 |
40 |
184 |
180 |
46 |
42 |
92 |
32 |
28 |
14 |
22 |
15 |
24 |
19 |
7 |
M12×1.25 |
M30×2 |
47 |
16 |
14 |
G1/4 |
9 |
46 |
40 |
14 |
