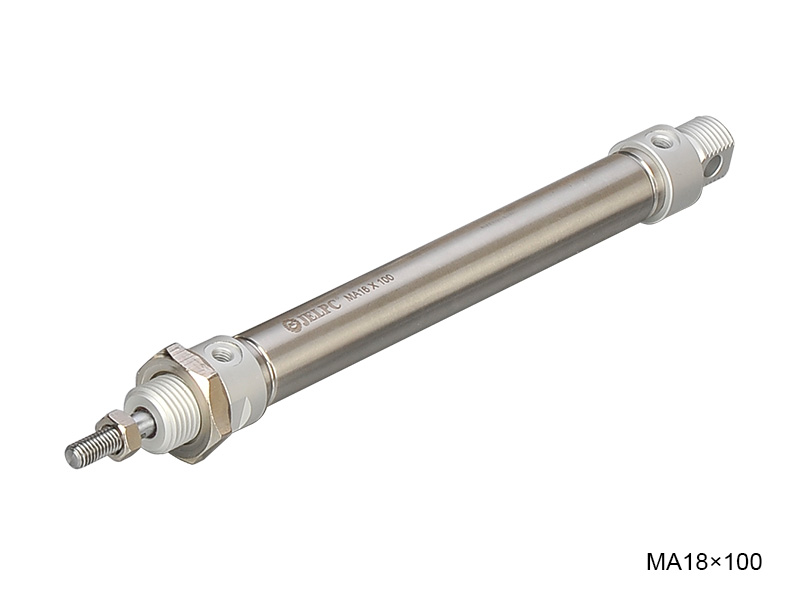

MA Series Mini Stainless Steel Cylinder

Product parameters
Product size

Features

1. Improving for adapting wide range applications,using precise polishing of piston rod, more sense of products quality and longer life of front seal.

2. Optima design and improve the production efficiency.

3. Combined with enterprise color planning and new structure design,stainless steel series cylinder integrated as the semicircular groove cramping.

4. Using embedded gasket , increase the pressured area of pistons after collision.

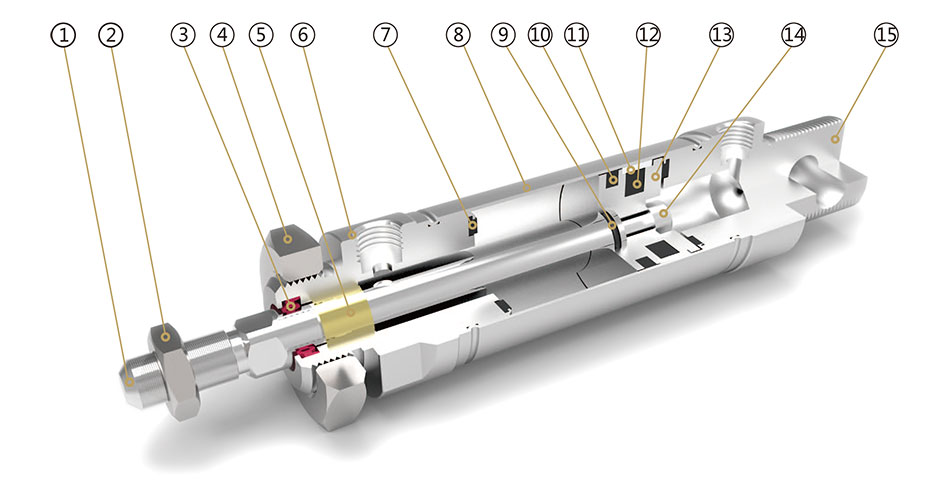

Internal Structure

Parts

Number	Name	Number	Name
l	Piston rod	9	O ring
2	Hexagon nut	10	Piston seal
3	Shaft seal	11	Anti-friction seal
4	Hexagon nut	12	Magnet
5	DU bearing	13	Piston
6	Front cover	14	Socket head cap screw
7	Anti-collision gasket	15	Back cover
8	Barrel

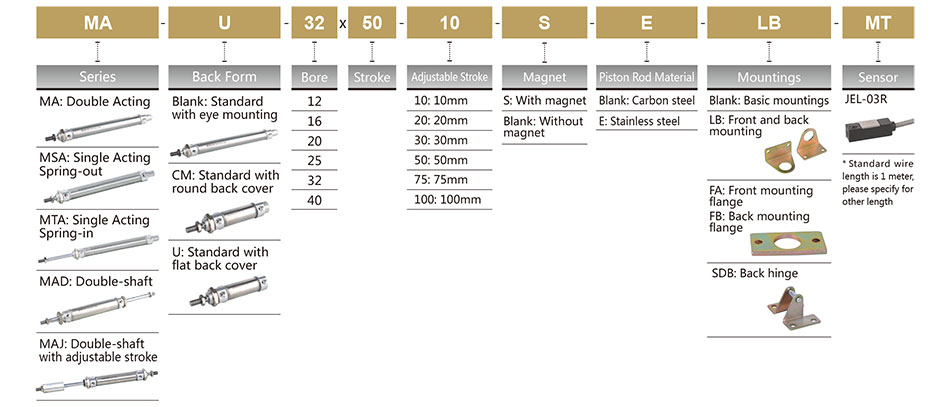

Ordering Code

Specification

Bore (mm)	12	16	20	25	32	40
Operation	Double Acting or Single Acting
Working Medium	Air
Mountings	Basic LB FA FB SDB
Operating Pressure Range	0.1～1.0MPa
Proof Pressure	1.5 MPa
Operating Temperature Range	-20～80℃
Operating Speed Range	50～800mm/s
Cushion	Gasket Cushion
Port Size	M5×0.8		G1/8"

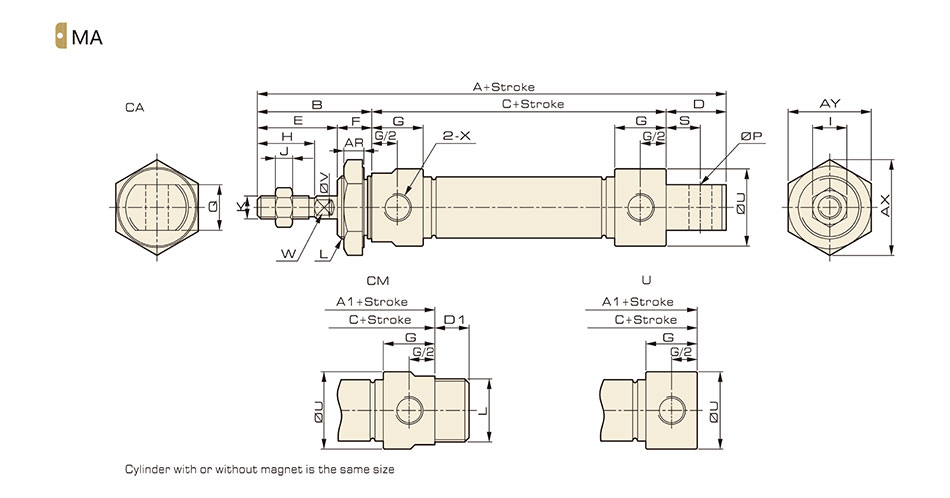

Overall Dimension

Dimension

Bore/Stroke	A	A1	B	C	D	D1	E	F	G	H	I	J	K
12	113	97	38	59	16	12	22	16	12	16	10	5	M6x1
16	114	98	38	60	16	12	22	16	12	16	10	5	M6x1
20	137	116	40	76	21	12	28	12	18	20	12	6	M8x1.25
25	141	120	44	76	21	14	30	14	16	22	17	6	M10x1.25
32	147	120	44	76	27	14	30	14	16	22	17	6	M10x1.25
40	150	123	46	77	27	14	32	14	16.7	24	19	7	M12x1.25

Bore/Stroke	L	P	Q	S	U	V	W	X	AR	AX	AY
12	M16xl.5	6	12	9.5	21	6	5	M5×0.8	6	27.8	24
16	M16xl.5	6	12	9	21	6	5	M5×0.8	6	27.8	24
20	M22xl.5	8	16	12	27	8	6	G1/8	7	33.5	29
25	M22xl.5	8	16	12	30	10	8	G1/8	7	33.5	29
32	M24x2	10	16	15	35	12	10	G1/8	9	37	32
40	M30x2	12	20	15	42	16	14	G1/8	9	46	40

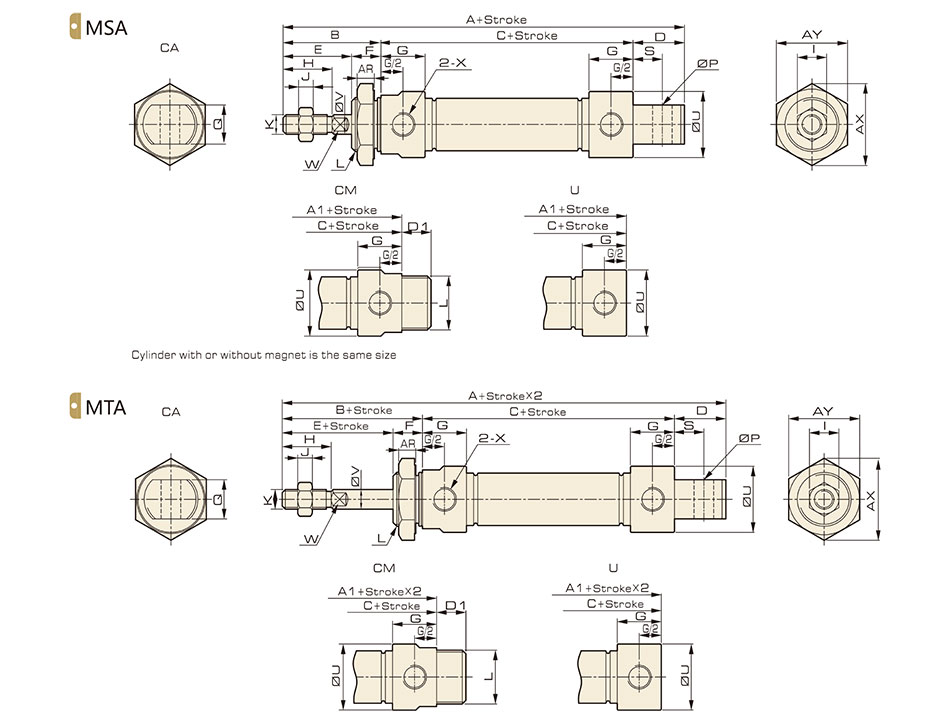

Overall Dimension

Dimension

Symbol	A			A1			B	C			D	D1	E	F	G
Bore/Stroke	0-50	50-100	100-150	0-50	50-100	100-150	B	0-50	50-100	100-150	D	D1	E	F	G
12	138	-	-	122	-	-	38	84	-	-	16	12	22	16	12
16	139	164	-	123	148	-	38	85	110	-	16	12	22	16	12
20	162	187	212	141	166	191	40	101	126	151	21	12	28	12	18
25	166	191	216	145	170	195	44	101	126	151	21	14	30	14	16
32	172	197	222	145	170	195	44	101	126	151	27	14	30	14	16
40	175	200	225	148	173	198	46	102	127	152	27	14	32	14	16.7

Bore/Symbol	H	I	J	K	L	P	B	S	U	V	W	X	AR	AX	AY
12	16	10	5	M6xl	M16xl.5	6	12	9.5	21	6	5	M5x0.8	6	27.8	24
16	16	10	5	M6xl	M16xl.5	6	12	9	21	6	5	M5x0.8	6	27.8	24
20	20	12	6	M8xl.25	M22xl.5	8	16	12	27	8	6	G1/8	7	33.5	29
25	22	17	6	M10xl.25	M22xl.5	8	16	12	30	10	8	G1/8	7	33.5	29
32	22	17	6	M10xl.25	M24x2	10	16	15	35	12	10	G1/8	9	37	32
40	24	19	7	M12xl.25	M30x2	12	20	15	42	16	14	G1/8	9	46	40

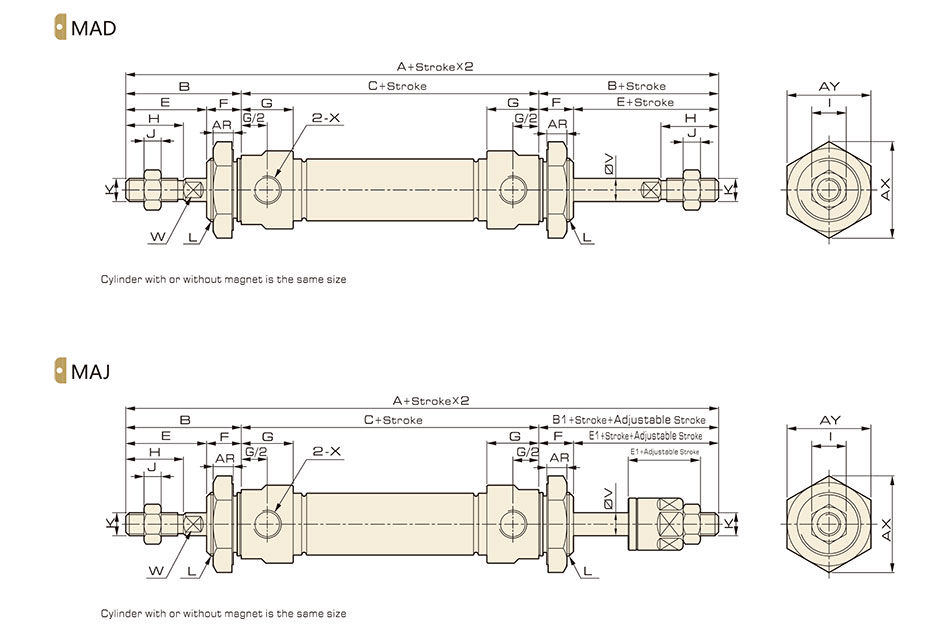

Overall Dimension

Bore/Symbol	A	A1	B	B1	C	E	E1	F	G	H	I	J	K	L	U	V	W	X	AR	AX	AY	Y
12	135	135	38	38	59	22	21	16	12	16	10	5	M6x1	M16×1.5	21	6	5	M5×0.8	6	27.8	24	6
16	136	135	38	37	60	22	21	16	12	16	10	5	M6x1	M16×1.5	21	6	5	M5×0.8	6	27.8	24	6
20	156	153	40	37	76	28	25	12	18	20	12	6	M8x1.25	M22×1.5	27	8	6	G1/8	7	33.5	29	8.5
25	164	161	44	41	76	30	27	14	16	22	17	6	M10x1.25	M22×1.5	30	10	8	G1/8	7	33.5	29	9.5
32	164	161	44	41	76	30	27	14	16	22	17	6	M10x1.25	M24×2	35	12	10	G1/8	9	37	32	11.5
40	169	166	46	42	77	32	28	14	16.7	24	19	7	M12x1.25	M30×2	42	16	14	G1/8	9	46	40	14
