Features
1. Improving for adapting wide range applications,using precise polishing of piston rod, more sense of products quality and longer life of front seal.
2. Optima design and improve the production efficiency.
3. Combined with enterprise color planning and new structure design, stainless steel series cylinder integrated as the semicircular groove cramping.
4. Change processing technology of cylinder cushion structure to ensure buffering function in stabilization.
5. Improved the range of buffering fine-tune, enable customers to more easily adjust the buffer throttling speed.

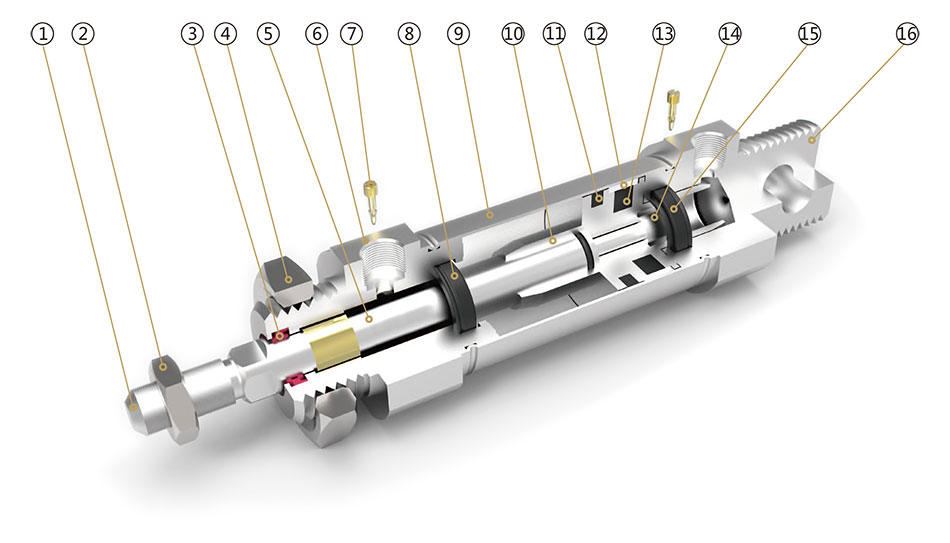

Internal Structure
Parts
|
Number |
Name |
Number |
Name |
|
l |
Piston rod |
9 |
Barrel |
|
2 |
Hexagon nut |
10 |
Piston |
|
3 |
Shaft seal |
11 |
Piston seal |
|
4 |
Hexagon nut |
12 |
Anti-friction seal |
|
5 |
DU bearing |
13 |
Magnet |
|
6 |
Front cover |
14 |
Socket head cap screw |
|
7 |
Anti-collision gasket |
15 |
Cushion |
|
8 |
Cushion |
16 |
Back cover |

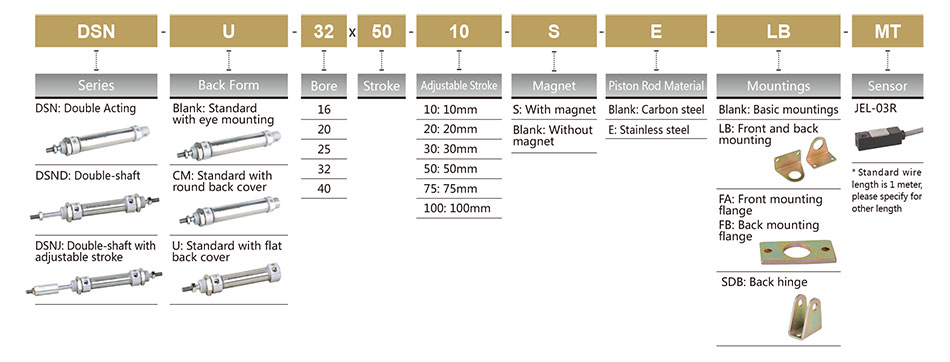

Ordering Code
Specification
|
Bore (mm) |
16 |
20 |
25 | 32 | 40 |
|
Operation |
Double Acting |
||||
|
Working Medium |
Air |
||||
|
Mountings |
Basic LB FA FB SDB |
||||
|
Operating Pressure Range |
0.1～1.0MPa |
||||
|
Proof Pressure |
1.5 MPa |
||||
|
Operating Temperature Range |
-20～80℃ |
||||
|
Operating Speed Range |
50～800mm/s |
||||
|
Cushion |
Adjustable Air Cushion |
||||
|
Port Size |
M5X0.8 |
G1/8" |
|||
Overall Dimension
Dimension
|
Bore/Symbol |
A |
A1 |
A2 |
A3 |
A4 |
A5 |
B |
C |
C1 |
D |
D1 |
D2 |
E |
E1 |
E2 |
F |
G |
G1 |
G2 |
H |
I |
|
16 |
98 |
82 |
55 |
111 |
92 |
111 |
37 |
19 |
19 |
10.5 |
6 |
7 |
10.5 |
6 |
7 |
9 |
10.5 |
6 |
7 |
16 |
16 |
|
20 |
115 |
95 |
64 |
128 |
107 |
128 |
43 |
21 |
21 |
14 |
7.5 |
10 |
14 |
7.5 |
10 |
9 |
14 |
7.5 |
10 |
20 |
18 |
|
25 |
126 |
104 |
66 |
137 |
116 |
137 |
50 |
21 |
21 |
15 |
8 |
10.5 |
15 |
8 |
10.5 |
12 |
15 |
8 |
10.5 |
22 |
22 |
|
32 |
135 |
113 |
72 |
147 |
120 |
132 |
48 |
27 |
12 |
17 |
8.5 |
12 |
17 |
8.5 |
12 |
15 |
17 |
8.5 |
12 |
22 |
18 |
|
40 |
138 |
115 |
72 |
150 |
123 |
136 |
51 |
27 |
14 |
16 |
8 |
11.5 |
16 |
8 |
11.5 |
15 |
16 |
8 |
11.5 |
23 |
20 |
|
Bore/Symbol |
J |
K |
L |
M |
N |
O |
P |
P1 |
D |
R |
S1 |
S2 |
T |
T1 |
X |
V | W | Y |
|
16 |
5 |
M6×1 |
M16×1.5 |
6 |
21 |
13 |
21 |
6 |
12 |
16 |
19 |
19 |
10 |
24 |
M5×0.8 |
6 |
15.5 |
5 |
|
20 |
6 |
M8×1.25 |
M22×1.5 |
7 |
23 |
13 |
30 |
8 |
16 |
22 |
27 |
28.5 |
12 |
29 |
G18 |
8 |
17.5 |
6 |
|
25 |
6 |
M10×1.25 |
M22×1.5 |
7 |
28 |
11 |
30 |
8 |
16 |
22 |
27 |
28.5 |
17 |
29 |
G1/8 |
10 |
17.5 |
8 |
|
32 |
6 |
M10×1.25 |
M27×2 |
9 |
26 |
12 |
38 |
10 |
20 |
27 |
35 |
36.5 |
17 |
36 |
G1/8 |
12 |
8 |
10 |
|
40 |
8 |
M14×1.5 |
M33×2 |
9 |
28 |
12 |
45 |
10 |
20 |
33 |
42 |
43.5 |
22 |
45 |
G1/4 |
16 |
10 |
14 |

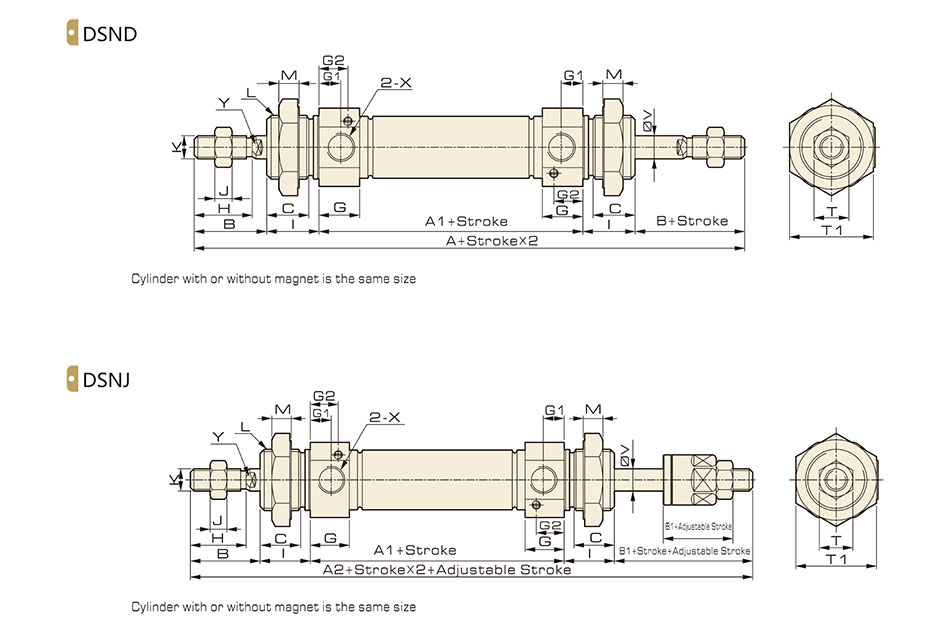

Overall Dimension
Dimension
|
Bore/Symbol |
A |
A1 |
A2 |
B |
B1 |
C |
D |
G |
G1 |
G2 |
H |
I |
J |
K |
L |
M |
T |
T1 |
V |
X |
|
16 |
129 |
55 |
129 |
21 |
21 |
13 |
5 |
10.5 |
6 |
7 |
16 |
16 |
5 |
M6x1 |
M16x1.5 |
6 |
10 |
24 |
6 |
M5x0.8 |
|
20 |
150 |
64 |
150 |
27 |
25 |
14.5 |
6 |
14 |
7.5 |
10 |
20 |
18 |
6 |
M8x1.25 |
M22x1.5 |
7 |
12 |
29 |
8 |
G1/8 |
|
25 |
166 |
66 |
165 |
28 |
27 |
18.5 |
8 |
15 |
8 |
10.5 |
22 |
22 |
6 |
M10x1.25 |
M22x1.5 |
7 |
17 |
29 |
10 |
G1/8 |
|
32 |
168 |
72 |
165 |
30 |
27 |
14 |
10 |
17 |
8.5 |
12 |
22 |
18 |
6 |
M10x1.25 |
M27x2 |
9 |
17 |
36 |
12 |
G1/8 |
|
40 |
174 |
72 |
172 |
31 |
29 |
16 |
14 |
16 |
8 |
11.5 |
23 |
20 |
8 |
M14x1.5 |
M33x2 |
9 |
22 |
45 |
16 |
G1/4 |
