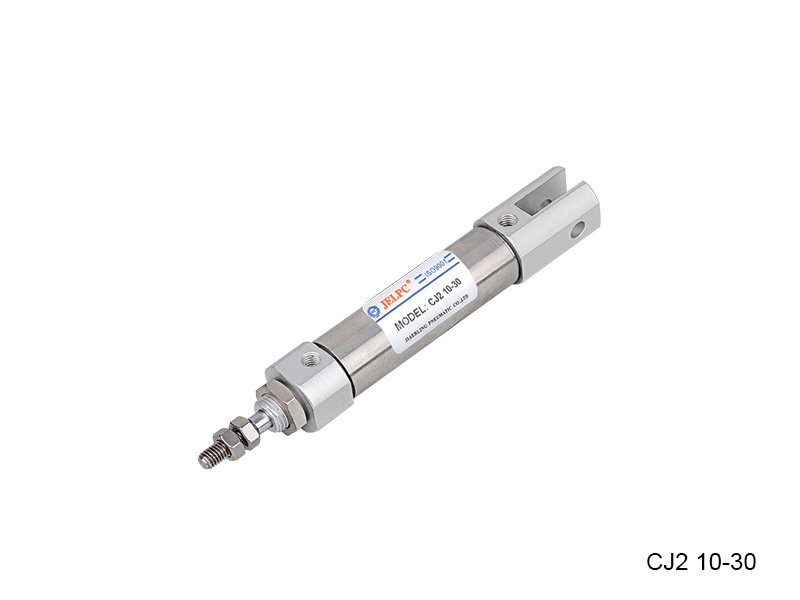

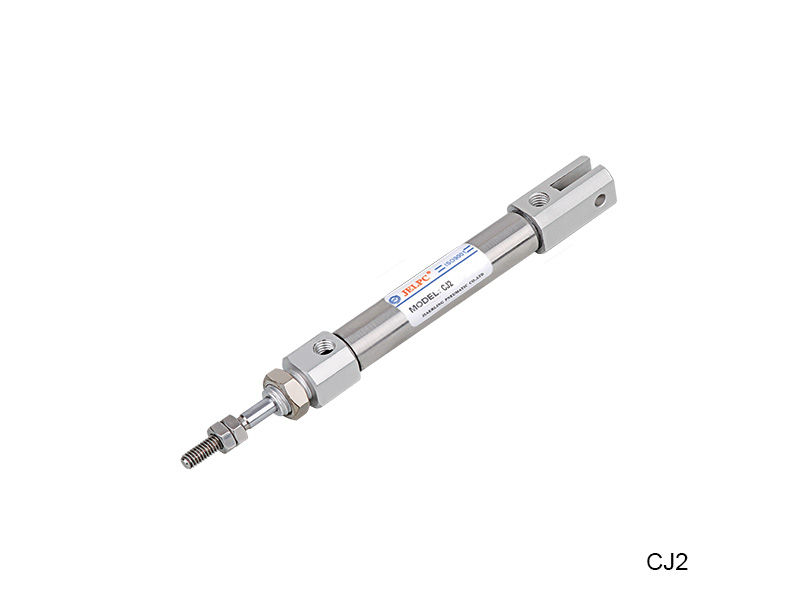

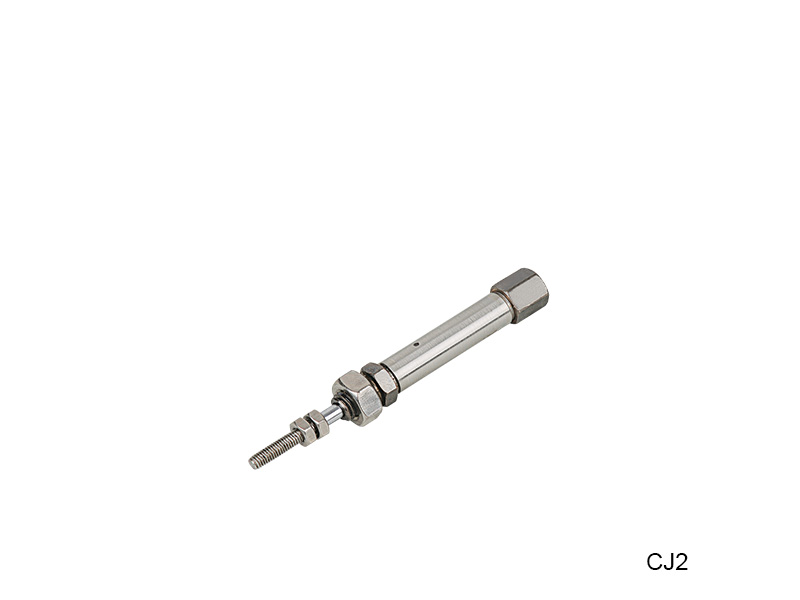

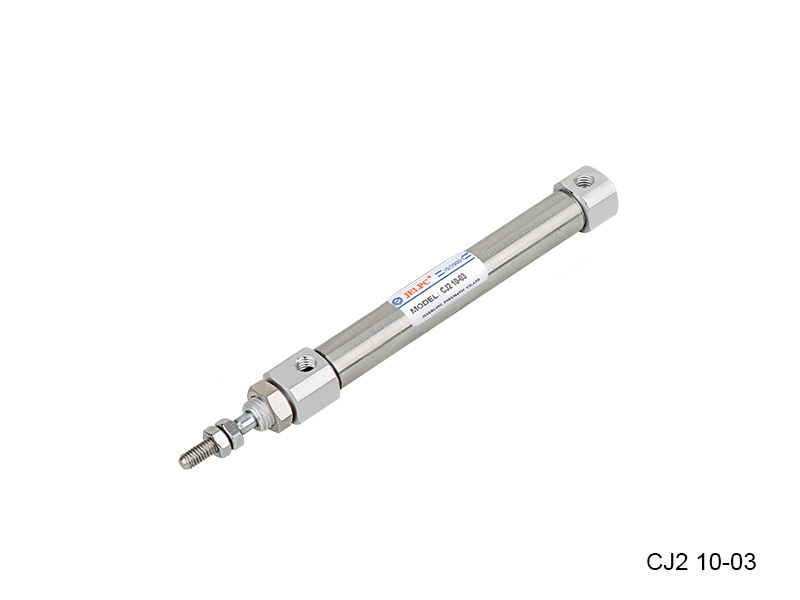

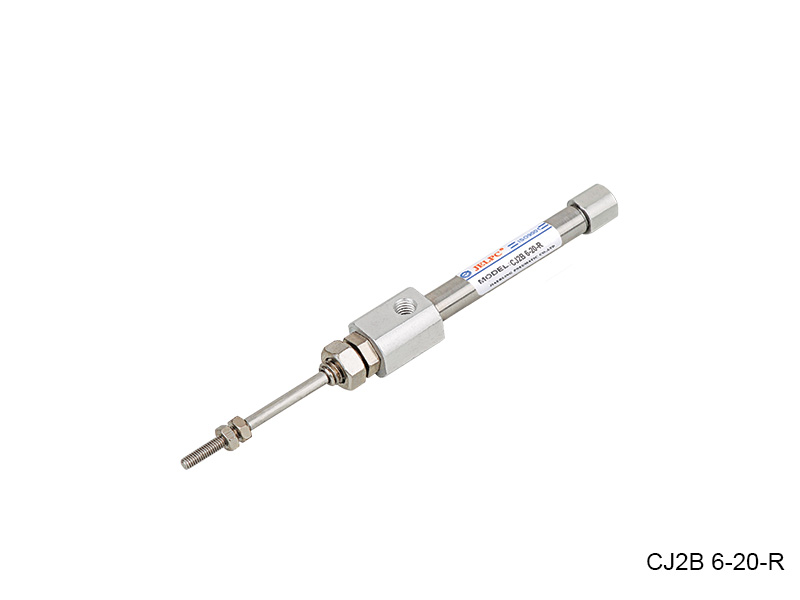

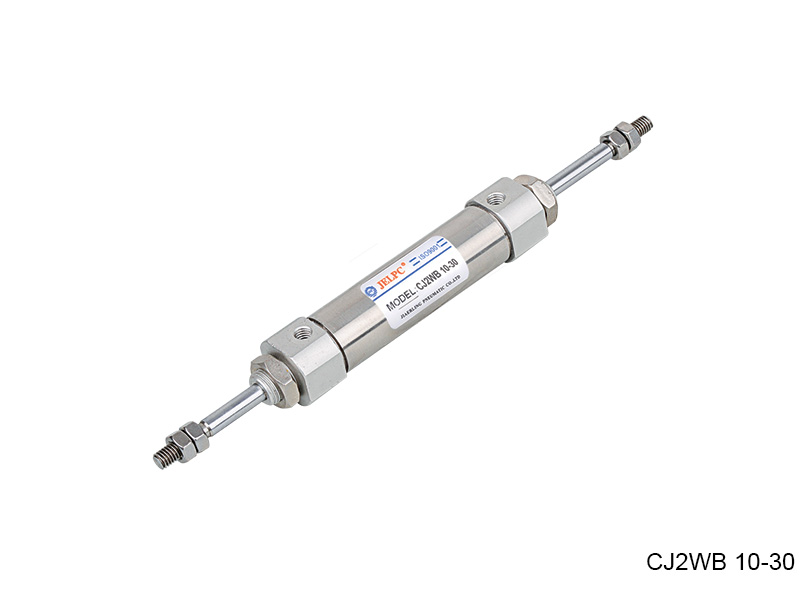

Stainless Steel Double Acting Mini Cylinder

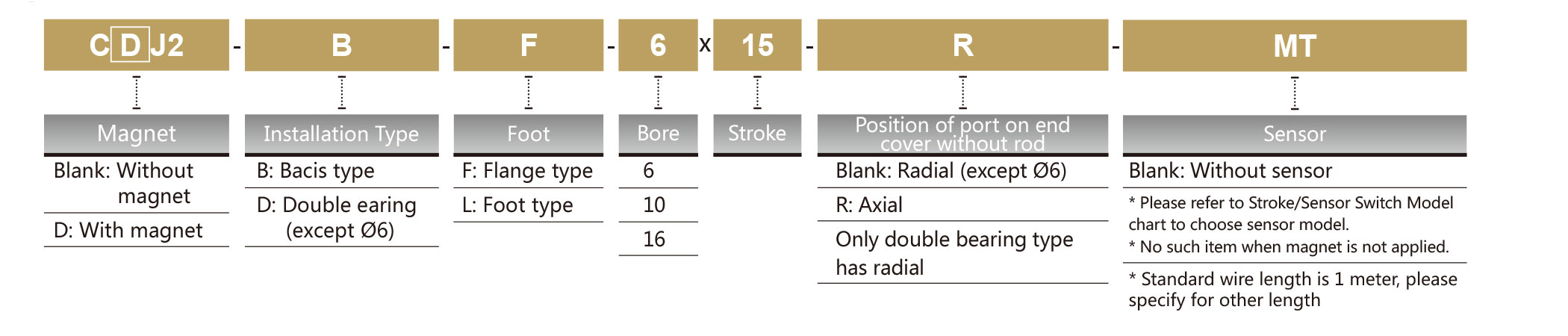

Ordering Code
Stroke/Sensor Switch Model
*To choose proper sensor switch, please refer to stroke/ sensor switch chart.
Lead wire length code: Blank-0.5 m, L-3 m. Example: C73, C73L.
No additional accessary is required for sliding type of sensor switch installation.
Bore(mm) |
Standard Stroke |
Sensor Switch Code |
Sensor Switch Code |
Channel installation type Sensor switch |
Tie-up Type Sensor Switch |
Not Suitable |
|||
6 |
15, 30, 45, 60 |
D-C73L D-H7A1L |
BJ2-006 |
D-A72L D-A73L D-A76L |
10 |
15, 30, 45, 60, 75, 100, 125, 150 |
BJ2-010 |
||
16 |
15, 30, 45, 60, 75, 100, 125, 150, 175, 200 |
BJ2-016 |
Specification
Bore (mm) |
6 |
10 |
16 |
Operation Fluid |
Air |
||
Operation |
Double Acting |
||
Min. Operation Pressure |
1.05 MPa |
||
Max. Operation Pressure |
0.7 MPa |
||
Ambient and fluid temp |
5~60 ℃ |
||
Cushion |
ubber Gasket Cushion / Air Cushion |
||
Rod Operation Speed |
50~750 mm/s |
||
Tolerance Stroke |
+1.0 mm 0 mm |
||
Lubricant |
Non-lub |
||
Port Size |
M5×0.8 |

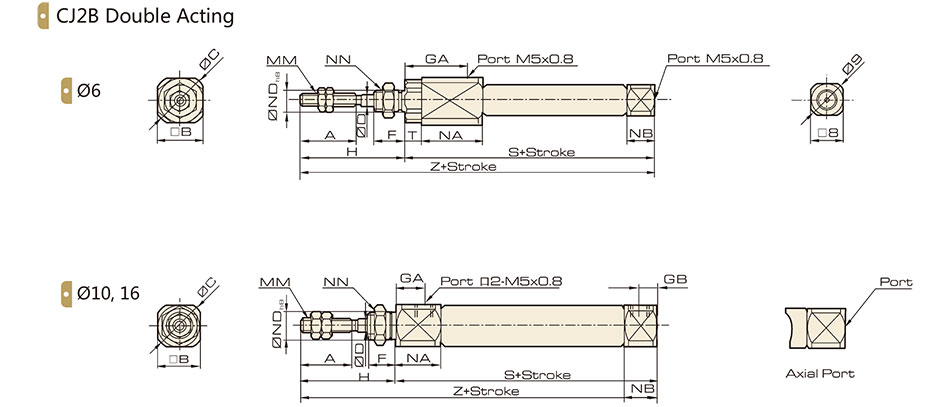

Overall Dimension
Dimension
Bore(mm) |
A |
B |
C |
D |
F |
GA |
GB |
H |
MM |
NA |
NB |
ND h8 |
NN |
S |
T |
Z |
6 |
15 |
12 |
14 |
3 |
8 |
14 5 |
- |
28 |
M3×0.5 |
16 |
7 |
6 |
M6×1.0 |
49 |
3 |
77 |
10 |
15 |
12 |
14 |
4 |
8 |
8 |
5 |
28 |
M4×0.7 |
12 5 |
95 |
8 |
M8×1.0 |
46 |
- |
74 |
16 |
15 |
18 |
20 |
5 |
8 |
8 |
5 |
28 |
M5×0.8 |
12.5 |
9.5 |
10 |
M10×1.0 |
47 |
- |
75 |

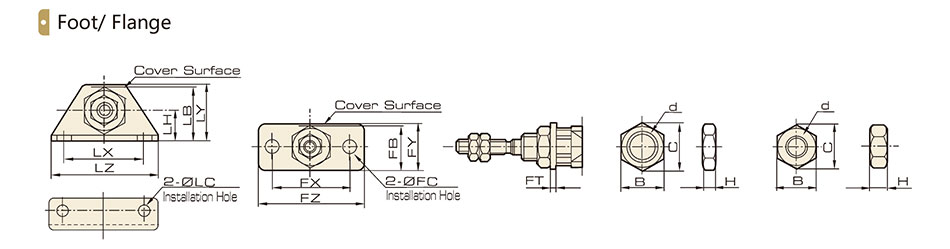

Dimension
Bore(mm) |
Foot Seat |
Flange |
Installation Nut |
Rod end Nut |
||||||||||||||||||||
Parts No. |
LB |
ФLC |
LH |
LX |
LY |
LZ |
Parts No. |
FB |
ФFC |
FX |
FY |
FZ |
FT |
Parts No. |
B |
C |
d |
H |
Parts No. |
B |
C |
d |
H |
|
6 |
CJ-L006B |
13 |
4.5 |
9 |
24 |
16.5 |
32 |
CJ-F006B |
11 |
4.5 |
24 |
14 |
32 |
1.6 |
SNJ-006B |
8 |
9.2 |
M6×1 |
4 |
NTJ006A |
5.5 |
6.4 |
M3×0.5 |
2.4 |
10 |
CJ-L010B |
15 |
4.5 |
9 |
24 |
16.5 |
32 |
CJ-F010B |
13 |
4.5 |
24 |
14 |
32 |
1.6 |
SNJ-010B |
11 |
12.7 |
M8×1 |
4 |
NTJ010A |
7 |
8.1 |
M4×0.7 |
3.2 |
16 |
CJ-L016B |
23 |
5.5 |
14 |
33 |
25 |
42 |
CJ-F016B |
19 |
5.5 |
33 |
20 |
42 |
2.3 |
SNJ-016B |
14 |
16.2 |
M10×1 |
4 |
NTJ015A |
8 |
9.2 |
MS×0.8 |
4 |

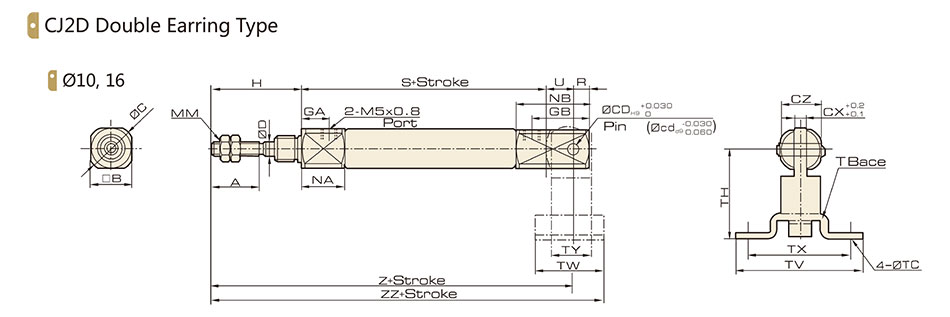

Bore(mm) |
A |
B |
C |
CD(cd) |
CX |
CZ |
D |
GA |
GB |
H |
MM |
NA |
NB |
R |
S |
U |
Z |
ZZ |
10 |
15 |
12 |
14 |
3.3 |
3.2 |
12 |
4 |
8 |
18 |
28 |
M4×0 7 |
12.5 |
22 5 |
5 |
46 |
8 |
82 |
93 |
16 |
15 |
18 |
20 |
5 |
6.5 |
18 |
5 |
8 |
23 |
28 |
M5×0.8 |
12.5 |
27.5 |
8 |
47 |
10 |
85 |
99 |
Bore(mm) |

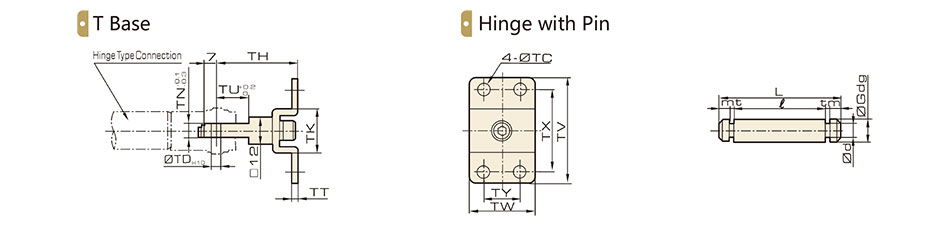

T Type piston rod clevis |
Pin for piston rod clevis |
|||||||||||||||||||
Part Code |
TC |
TDH10 |
TH |
TK |
TN |
TT |
TU |
TV |
TW |
TX |
TY |
Part Code |
Dd9 |
Фd |
L |
e |
m |
t |
|||
10 |
CJ-T010B |
4.5 |
3.3 |
+0.048 |
29 |
18 |
3.1 |
2 |
9 |
40 |
22 |
32 |
12 |
CD J010 |
3.3 |
-0.03 |
3 |
15.2 |
12 2 |
1.2 |
0.3 |
0 | -0.06 | ||||||||||||||||||||
16 |
CJ-T016B |
5.5 |
5 |
+0.048 |
35 |
20 |
6.4 |
2.3 |
14 |
48 |
28 |
38 |
16 |
CD-Z015 |
5 |
-0.03 |
4.8 |
22.7 |
18.3 |
1.5 |
0.7 |
0 | -0.06 |

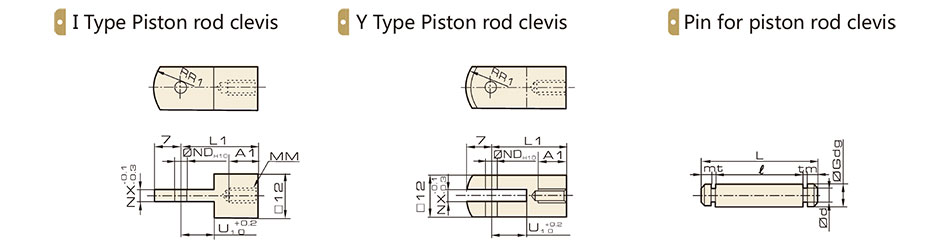

Bore(mm) |
I Type piston rod clevis |
Y Type piston rod clevis |
|
Pin for piston rod clevis |
||||||||||||||||||||||
Part Code |
A1 | NDH10 |
L1 |
MM |
U1 |
NX |
R1 |
Part Code |
A1 |
NDH10 |
L1 |
MM |
U1 |
NX |
R1 |
Part Code |
ФDdg |
L |
d |
e |
m |
t |
||||
10 |
I-J010B |
8 |
3.3 |
+0.048 |
21 |
M4×0.7 |
9 |
3.1 |
8 |
Y-J010B |
8 |
3.3 |
+0.048 |
21 |
M4×0.7 |
10 |
3.2 |
8 |
IY-J010 |
3.3 |
-0.03 |
16.2 |
3 |
12.2 |
1.7 |
0.3 |
0 | 0 | -0.06 | ||||||||||||||||||||||||
16 |
I-J016B |
8 |
5 |
+0.048 |
25 |
M5×0.8 |
14 |
6.4 |
12 |
Y-J016B |
11 |
5 |
+0.048 |
21 |
M5×0.8 |
10 |
6.5 |
12 |
IY-J015 |
5 |
0.03 |
16.6 |
4.8 |
12.2 |
1.5 |
0.7 |
0 | 0 | -0.06 |
