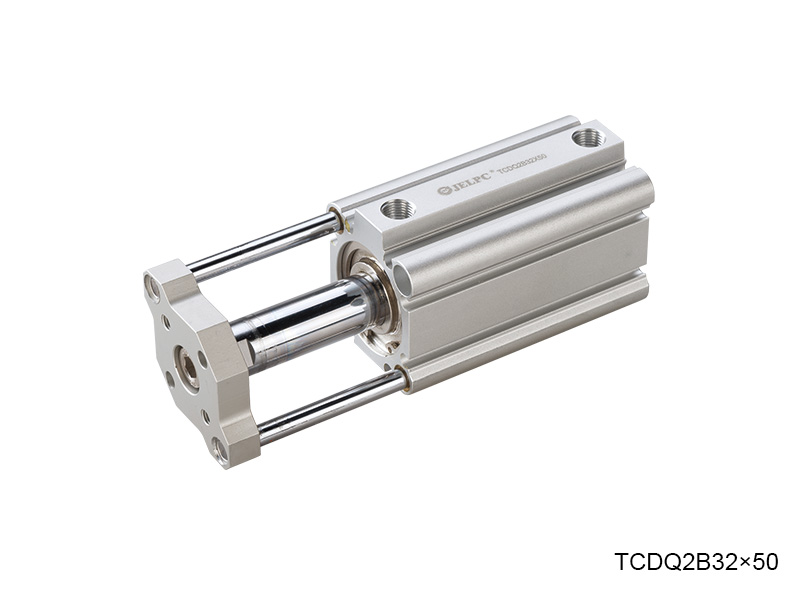

High-Strength TCQ2 Series

Guide Cylinder

Product parameters

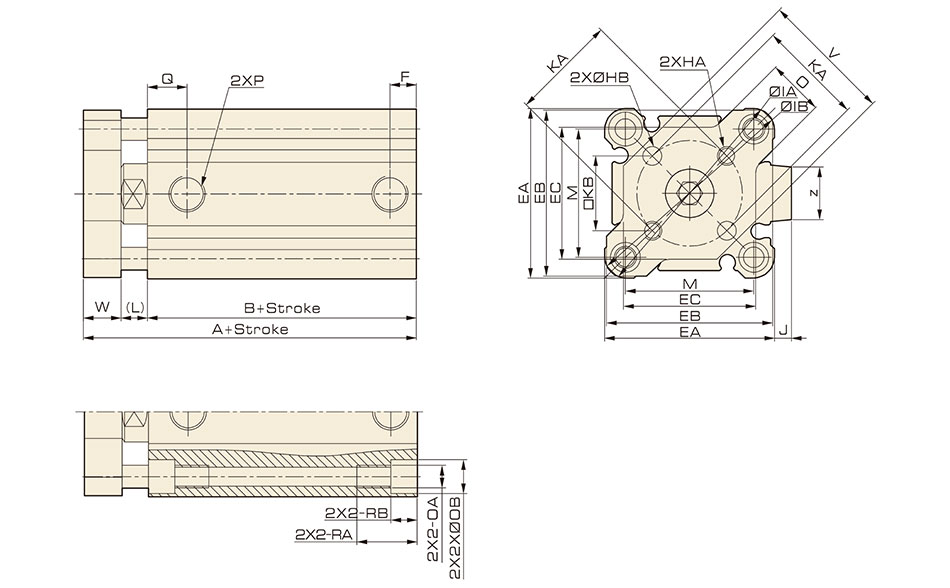

Product size

Features

1. Front cover with DU bearing, good guiding performance and wear resistance.

2. The shaft sealing material used PU material, PU material has high strength, good toughness, wear resistance, oil resistance, aging resistance, etc.

3. Riveting technology for the piston rod and piston to improve concentricity.

4. There are two reverse bar positioning on each side to enhance the load capacity for smoother operation.

5. Reduced noise when running inside with rubber crash pad.

Internal Structure

Parts

Number	Name	Number	Name
l	Copper tube	9	Piston rod
2	Socket head screw	10	Barrel
3	Fixed plate	11	Magnet base
4	Guide rod	12	Back cover
5	Dust ring	13	Piston
6	Circlips for holes	14	Magnet
7	O ring	15	C ring
8	Anti-collision gasket

Ordering Code

Specification

Bore (mm)		32	40	50	63	80	100
Operation		Double Acting
Working Medium		Air
Operating Pressure Range	Double Acting	0.1～1.0MPa
Proof Pressure		1.5MPa
Operating Temperature Range		-20～80℃
Operating Speed Range	Double Acting	30～500mm/s	30～350mm/s		30～250mm/s
Port Size		G1/8		G1/4		G3/8

Bore/ Symbol	Stroke Range (mm)	Without magnet							With magnet							EA	EB	EC
		A	B	F	Q	P			A	B	F	Q	P
						-	IN	IF					-	IN	TF
32	5	40	23	5.5	11.5	M5X0.8	-	-	50	33	7.5	10.5	G1/8	PT1/8	NPT1/8	45	44	35
	10-50			7.5	10.5	G1/8	PT1/8	NPT1/8
	75、 100	50	33
40	5-50	46.5	29.5	8	11	G1/8	PT1/8	NPT1/8	56.5	39.5	8	11	G1/8	PT1/8	NPT1/8	52	51.5	38
	75、 100	56.5	39.5
50	5-50	50.5	30.5	10.5	10.5	G1/4	PT1/4	NPT1/4	56.5	39.5	10.5	10.5	G1/4	PT1/4	NPT1/4	62	61	48.5
	75、 100	60.5	40.5
63	5-50	56	36	10.5	15	G1/4	PT1/4	NPT1/4	66	46	10.5	15	G1/4	PT1/4	NPT1/4	77	76	59
	75、100	66	46
80	5-50	67.5	43.5	12.5	16	G3/8	PT3/8	NPT3/8	77.5	53.5	12.5	15	G3/8	PT3/8	NPT3/8	98	97	75
	75、 100	77.5	53.5
100	5-50	79	53	13	23	G3/8	PT3/8	NPT3/8	89	63	13	23	G3/8	PT3/8	NPT3/8	117	116	92.5
	75、 100	89	63

Bore/Symbol	HA	OA	HB		IA	IB	J	KA	KB	L	M	N	OB	RA	RB	V	W	Z	O
32	M5X0.8	M6X1.0	5	+0.2	60	58.5	4.5	28±0.02	19.8	7	34	5.5	9	17	7	35	10	14	15
				0
40	M5X0.8	M 6X1.0	5	+0.2	69	67.5	5	33±0.02	23.3	7	40	5.5	9	17	7	42	10	14	15
				0
50	M6X1.0	M8X1.25	6	+0.2	86	84.5	7	42 ±0.02	29.7	8	50	6.6	11	22	8	54.5	12	19	16
				0
63	M6X1.0	M10X1.5	6	+0.2	103	100	7	50 ±0.02	35.4	8	60	9	14	28.5	10.5	68	12	19	19
				0
80	M8X1.25	M12X1.75	8	+0.2	132 1	129	6	65 ±0.02	46	10	77	11	17.5	35.5	13.5	86	14	25	22
				0
100	M10X1.5	M12X1.75	10	+0.2	156	153	6.5	80±0.02	56.6	10	94	11	17	35.5	13.5	108	16	25	25
				0
