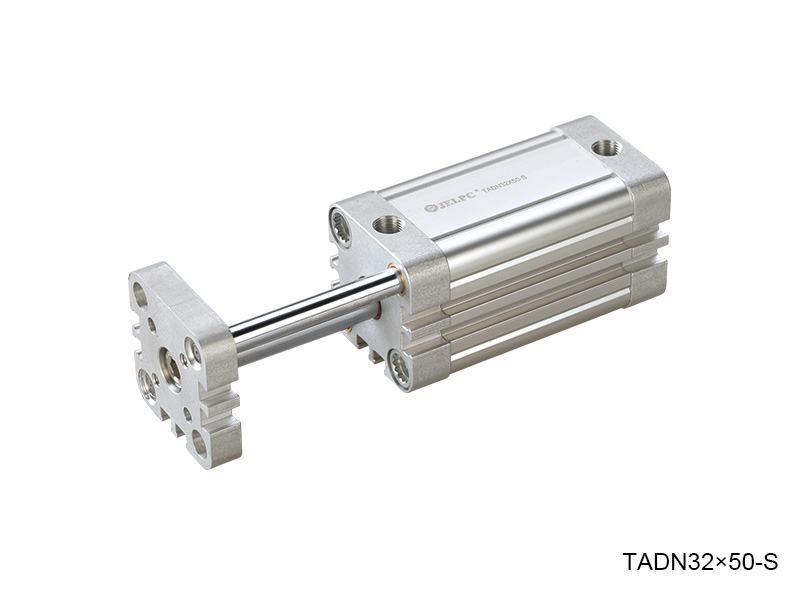

TADN Series Has A Wide Range Of Applications

Guide Cylinder

Product parameters

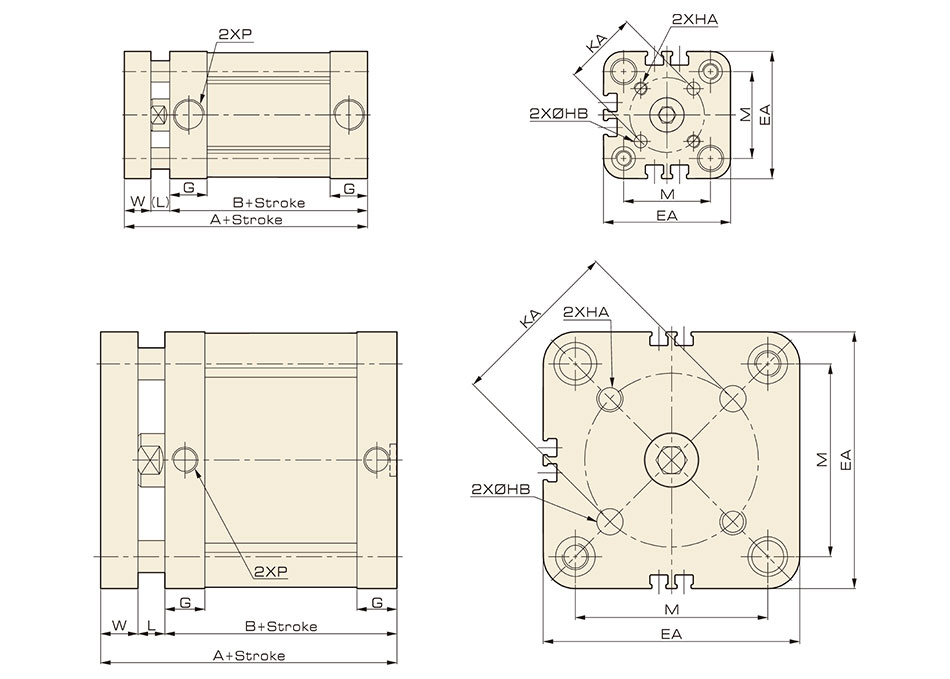

Product size

Features

1. TADN series compact cylinder accord with ISO21287 standard.

2. TADN series cylinder with compact structure, derived lots of variety types, and wide range of applications.

3. Both end use rubber gasket to absorb the remaining energy of the high speed movement and the machine cycle.

4. Every ammsebly way has large number of accessories, so it is very simple.

5. There are two reverse bar positioning on each side to enhance the load capacity for smoother operation.

Internal Structure

Parts

Number	Name	Number	Name
1	Fixed plate	11	C ring
2	Socket head screw	12	Anti-friction seal
3	Guide rod	13	O ring
4	Piston rod	14	Cover screw
5	Dust ring	15	Small gasket
6	Copper tube	16	Hexagon nut
7	Front cover	17	Piston
8	Bearing	18	Magnet
9	Anti-collision gasket	19	Back cover
10	O ring	20	Barrel

Ordering Code

Specification

Bore (mm)	20	25	32	40	50	63	80	100
Operation	Double Acting
Working Medium	Air
Standard Stroke	5～100mm
Operating Pressure Range	0.1～1.0MPa
Proof Pressure	1.5MPa
Operating Temperature Range	1.5MPa
Operating Speed Range	30～500mm/s
Port Size	G1/8

Bore Symbol	Stroke Range (mm)	With magnet					EA	M	HA	HB		KA	L	W
		A	B	P
				-	IN	TF
20	5-100	51	37	M5X0.8			36	22	M4X0.7	4	+0.2	17±0.02	6	8
											0
25	5-100	53	39	M5X0.8			40	26	M 5X0.8	5	+0.2	22±0.02	6	8
											0
32	5-100	61	44	G1/8	PT1/8	NPT1/8	47.5	32.5	M 5X0.8	5	+0.2	28±0.02	7	10
											0
40	5-100	62	45	G1/8	PT1/8	NPT1/8	55	38	M 5X0.8	5	+0.2	33±0.02	7	10
											0
50	5-100	65	45	G1/8	PT1/8	NPT1/8	66	46.5	M6X1.0	6	+0.2	42±0.02	8	12
											0
63	5-100	69	49	G1/8	PT1/8	NPT1/8	78.3	56.5	M6X1.0	6	+0.2	50±0.02	8	12
											0
80	5-100	78	54	G1/8	PT1/8	NPT1/8	96	72	M8X1.25	8	+0.2	65±0.02	10	14
											0
100	5-100	91	67	G1/8	PT1/8	NPT1/8	116	89	M10X1.5	10	+0.2	80±0.02	10	14
											0
