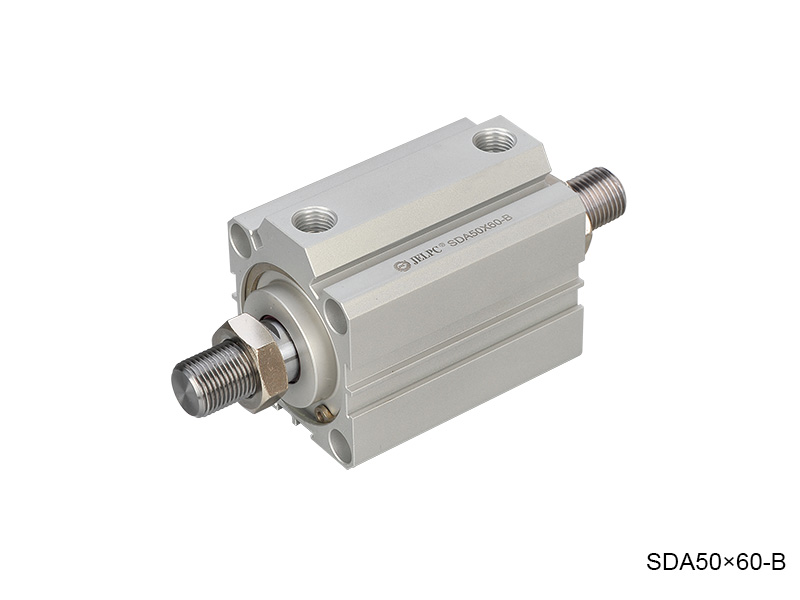

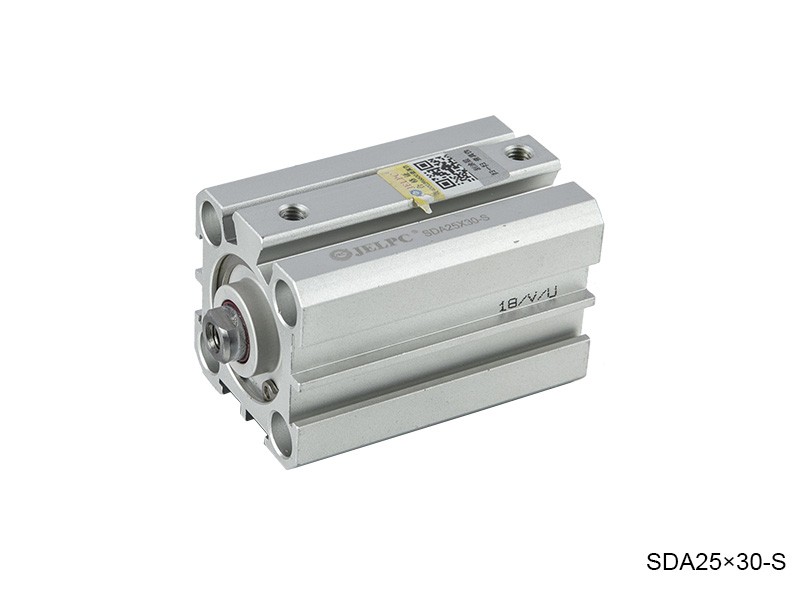

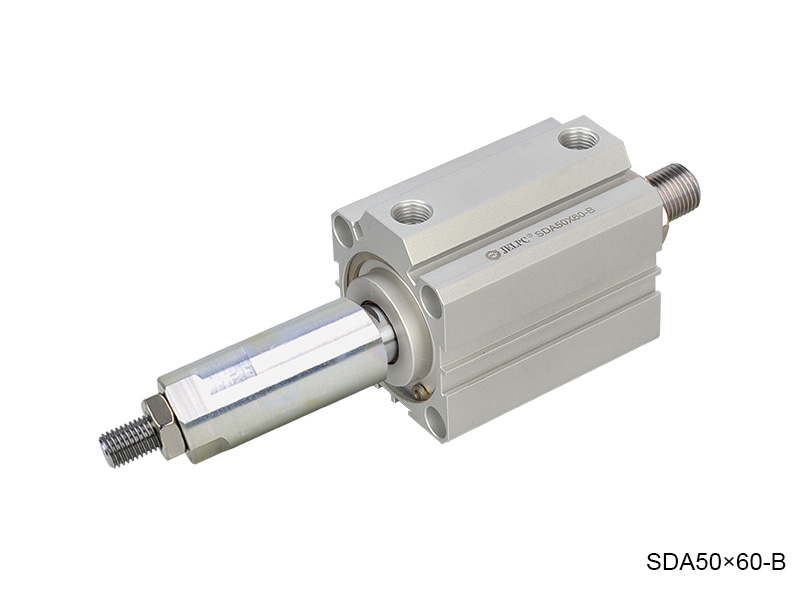

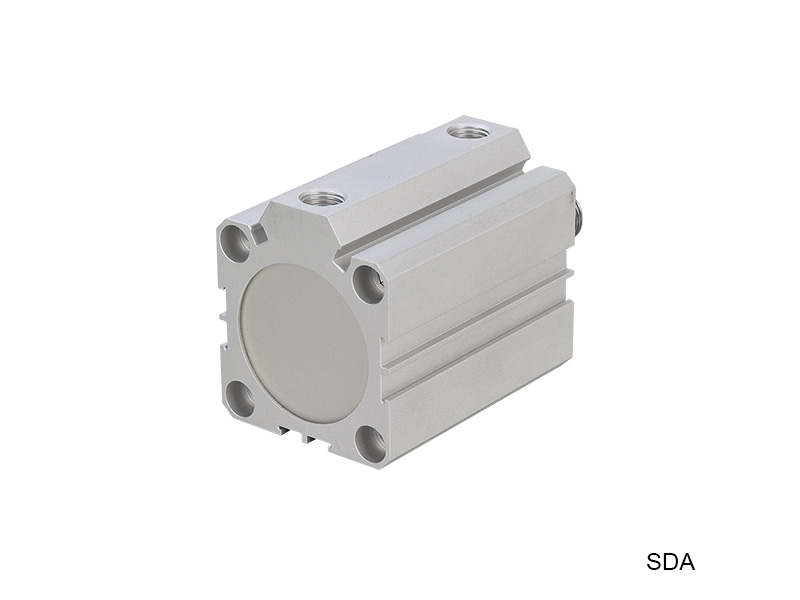

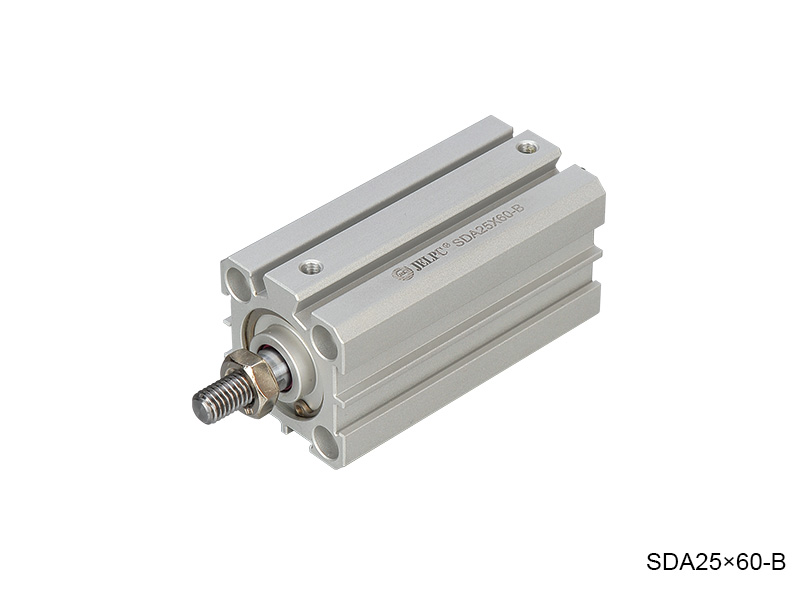

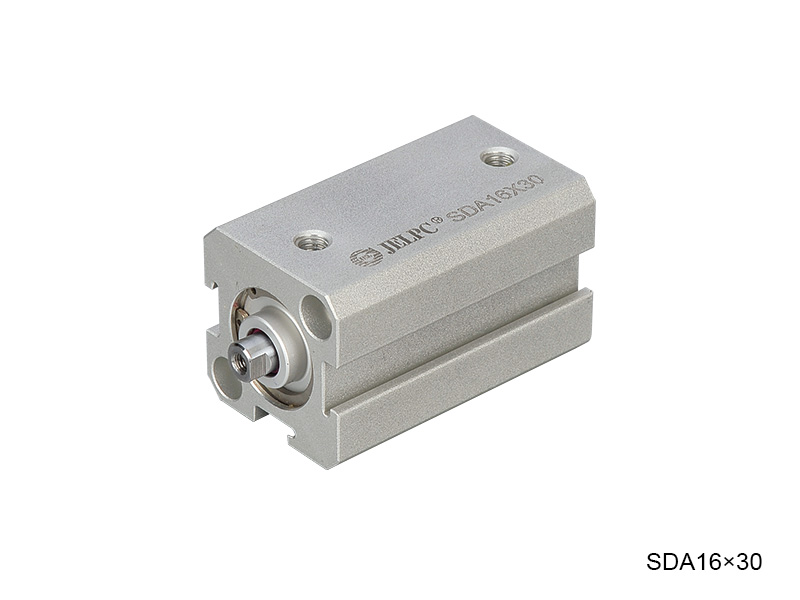

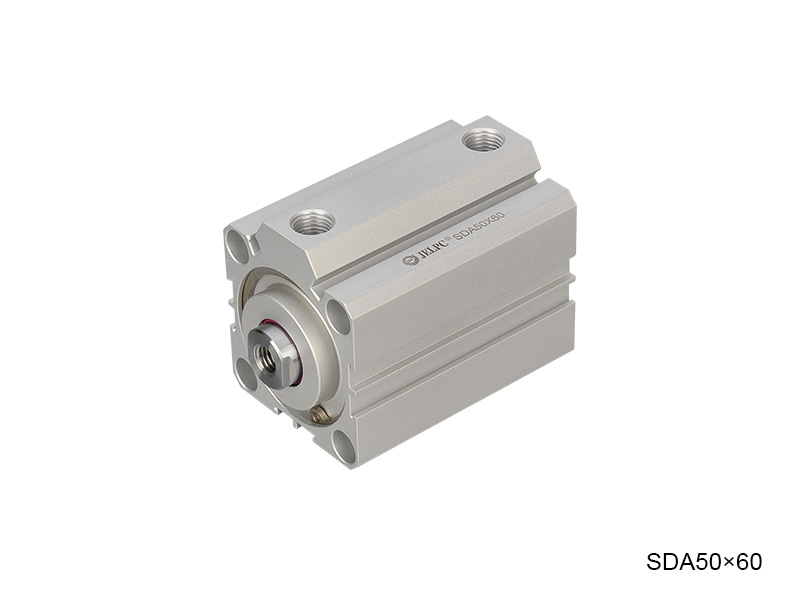

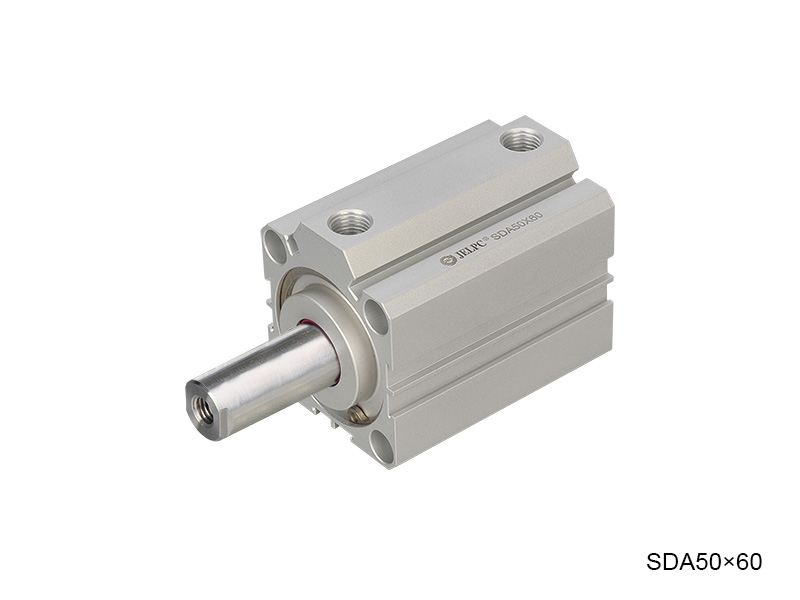

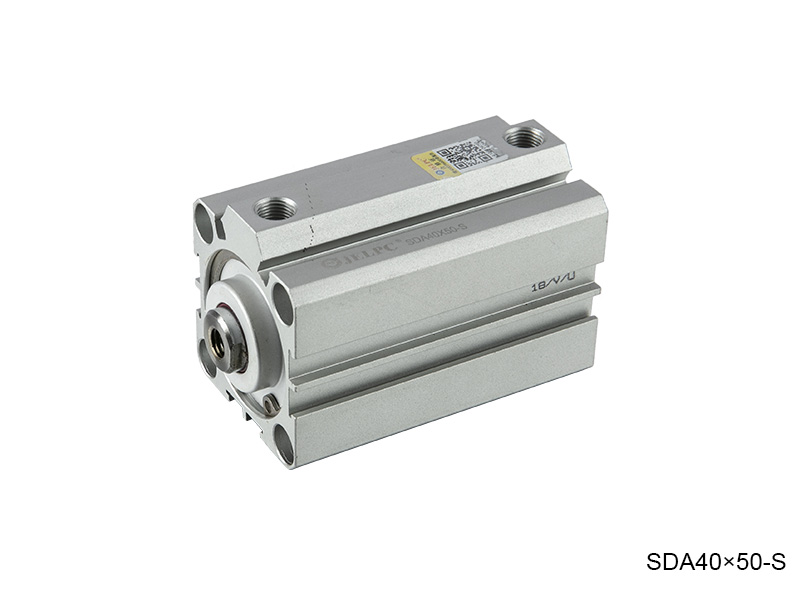

Pneumatic SDA Series Cylinder

Product parameters
Product size

Features

1. Improving for adapting wide range applications, using precise polishing of piston rod, more sense of products quality and longer life of front seal.

2. Adjust the structure to the optimal state, and ensure the smooth operation of the product.

3. The piston rod and the back cover cramping technology, improving product quality.

4. Combined with enterprise color planning, it is redesigned by new color system and precise treatment of particulars.

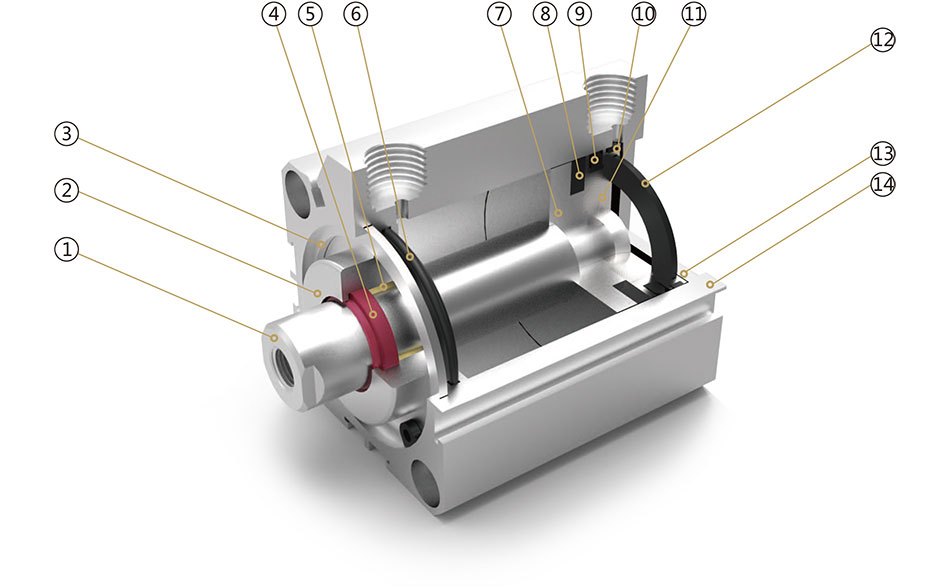

Internal Structure

Parts

Number	Name	Number	Name
1	Piston rod	8	Magnet
2	Front cover	9	Piston seal
3	Cclip	10	Anti-friction seal
4	Shaft seal	11	Magnet base
5	DU bearing	12	Anti-collision gasket
6	O ring	13	Back cover
7	Piston	14	Body

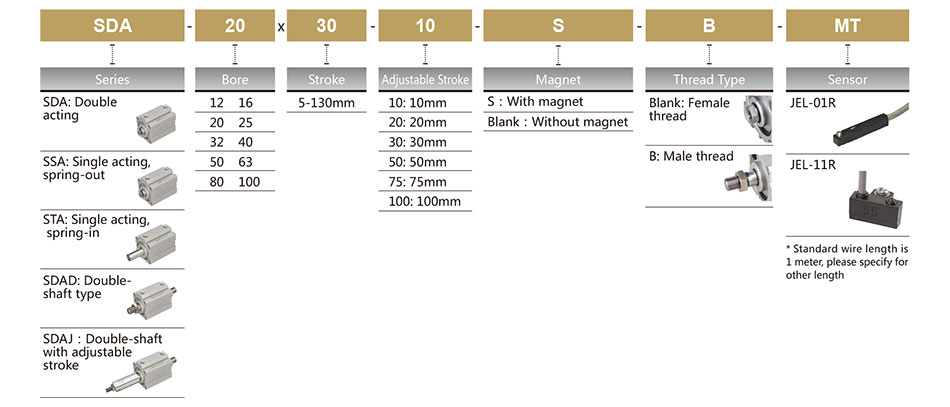

Ordering Code

Specification

Bore (mm)		12	16	20	25	32	40	50	63	80	100
Operation		Double Acting
		Spring-out / Single Acting Spring-in								-
Working Medium		Air
Operating Pressure Range	Double Acting	0.1～1.0MPa
	Single Acting	0.2～0.9MPa								-
Proof Pressure		1.5 MPa
Operating Temperature Range		-20～80 ℃
Operating Speed Range	Double Acting	30～500 mm/s					30 ~ 350 mm/s		30 ~ 250 mm/s
	Single Acting	50～500 mm/s								-
Port Size		M5×0.8				G1/8"		G1/4"		G3/8"

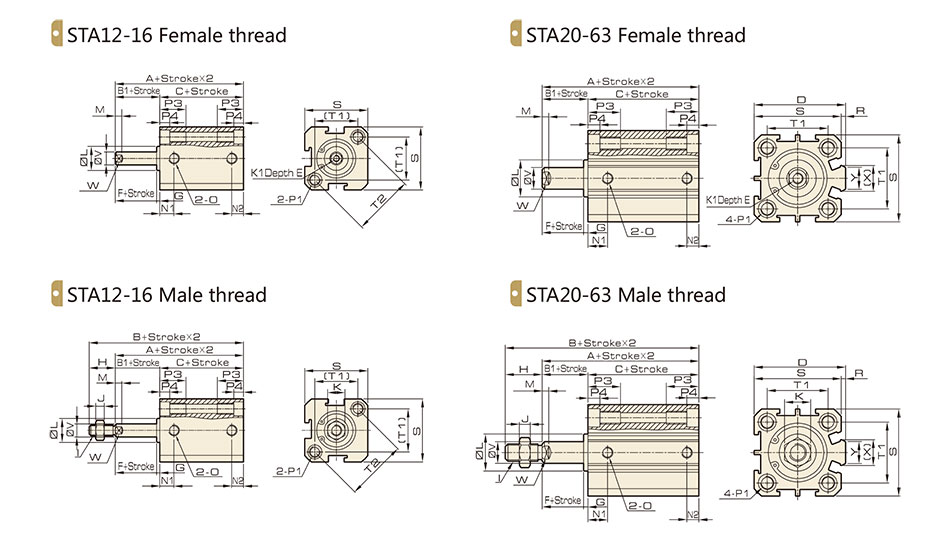

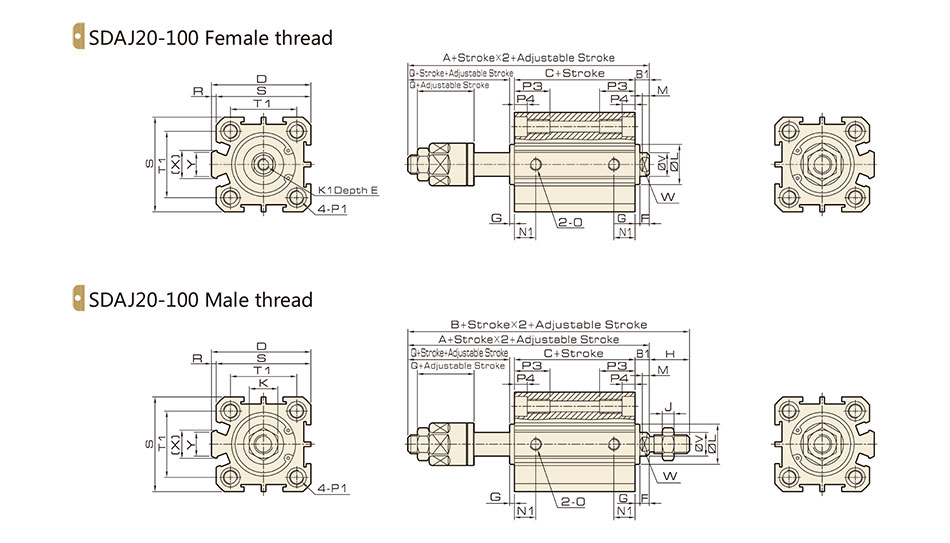

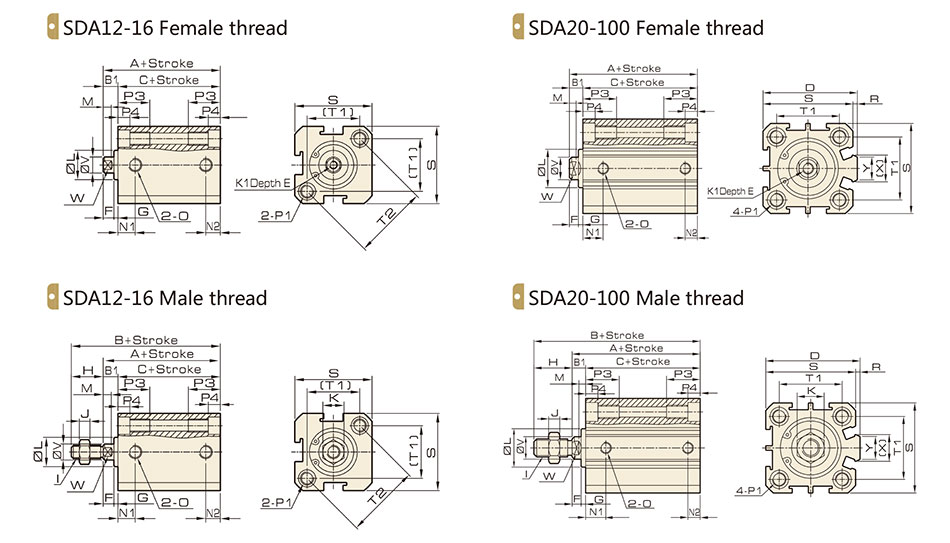

Overall Dimension

Dimension

Bore/Symbol	A		B		C		B1	D	E	F	G	H	I	J	K	K1	L	M
Type	Standard	With magnet	Standard	With magnet	Standard	With magnet	B1	D	E	F	G	H	I	J	K	K1	L	M
12	22	32	34	44	17	27	5	-	6	4	2	12	M5×0.8	4	8	M3×0.5	10	3
16	24	34	36	46	18.5	28.5	5.5	-	6	4	2	12	M5×0.8	4	8	M3×0.5	11	3
20	25	35	40	50	19.5	29.5	5.5	36	8	4	1.5	15	M6×1.0	5	10	M4×0.7	13	3
25	27	37	44	54	21	31	6	42	10	4	2	17	M8×1.25	6	14	M5×0.8	17	3
32	31.5	41.5	49.5	59.5	24.5	34.5	7	50	12	4	3	18	M10×1.25	6	17	M6×1.0	22	3
40	33	43	61	71	26	36	7	58.5	12	4	3	28	M14×1.5	8	22	M8×1.25	28	3
50	37	47	65	75	28	38	9	71.5	15	5	4	28	M18×1.5	9	27	M10×1. 5	38	3
63	41	51	69	79	32	42	9	84.5	15	5	4	28	M18×1.5	9	27	M10×1. 5	40	3
80	52	62	85	95	41	51	11	104	20	6	5	33	M22×1.5	13	32	M14×1.5	45	4
100	63	73	101	111	51	61	12	124	20	7	5	38	M26×1.5	12	36	M18×1.5	55	4

Bore/Symbol	N1		N2		O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
Stroke	S=5	S>5	S=5	S>5	O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
12	7.5		5		M5×08	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	-	25	16.3	23	6	5	-	-
16	8		5	5.5	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	-	29	19.8	28	6	5	-	-
20	8.5		5.5		M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	14	4.5	2	34	24	-	8	6	11.2	10
25	9		5.5		M5×08	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	15	5.5	2	40	28	-	10	8	12	10
32	9		6.5	8	G1/8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	16	5.5	6	44	34	-	12	10	18	14
40	9		7.5		G1/8	Double Side: Φ10, Cog: M8×1.25, Through Hole: Φ6.7	20	7.5	6.5	52	40	-	16	14	21	14
50	8	10.5	8	10.5	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	9.5	62	48	-	20	17	29.5	19
63	9.5	11	9.5	11	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	9.5	75	60	-	20	17	26	19
80	11.5	14	11.5	14	G3/8	Double Side: Φ15, Cog: M12×1.75, Through Hole: Φ10.3	25	10.5	10	94	74	-	25	22	36	26
100	15	20	15	18	G3/8	Double Side: Φ17.5, Cog: M14×2, Through Hole: Φ11.3	30	13	10	114	90	-	32	27	35.5	26

Bore/Symbol	A				B				C				B1	D	E	F	G	H	I	J	K	K1
Type	Standard		With magnet		Standard		With magnet		Standard		With magnet
Stroke	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30
12	32	42	42	52	44	54	54	64	27	37	37	47	5	-	6	4	2	12	M5×0.8	4	8	M3x0.5
16	34	44	44	54	46	56	56	66	28.5	38.5	38.5	48.5	5.5	-	6	4	2	12	M5×0.8	4	8	M3x0.5
20	35	45	45	55	50	60	60	70	29.5	39.5	39.5	49.5	5.5	36	8	4	1.5	15	M6×1.0	5	10	M4x0.7
25	37	47	47	57	54	64	64	74	31	41	41	51	6	42	10	4	2	17	M8×1.25	6	14	M5x0.8
32	41.5	51.5	51.5	61.5	59.5	69.5	69.5	79.5	34.5	44.5	44.5	54.5	7	50	12	4	3	18	M10×1.25	6	17	M6xl.O
40	43	53	53	63	71	81	81	91	36	46	46	56	7	58.5	12	4	3	28	M14×1.5	8	22	M8xl.25
50	47	57	57	67	75	85	85	95	38	48	48	58	9	71.5	15	5	4	28	M18×1.5	9	27	M10xl.5
63	51	61	61	71	79	89	89	99	42	52	52	62	9	84.5	15	5	4	28	M18×1.5	9	27	M10xl.5
80	62	72	72	82	95	105	105	115	51	61	61	71	11	104	20	6	5	33	M22×1.5	13	32	M14xl.5
100	73	83	83	93	111	121	121	131	61	71	71	81	12	124	20	7	5	38	M26×1.5	12	36	M18xl.5

Bore/Symbol	L	M	N1		N2		O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
Stroke	L	M	S=5	S>5	S=5	S>5	O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
12	10	3	7.5		5		M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	-	25	16.3	23	6	5	-	-
16	11	3	8		5	5.5	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	-	29	19.8	28	6	5	-	-
20	13	3	8.5		5.5		M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	14	4.5	2	34	24	-	8	6	11.2	10
25	17	3	9		5.5		M5×0.8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	15	5.5	2	40	28	-	10	8	12	10
32	22	3	9		6.5	8	G1/8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	16	5.5	6	44	34	-	12	10	18	14
40	28	3	9		7.5		G1/8	Double Side: Φ10, Cog: M8×1.25, Through Hole: Φ6.7	20	7.5	6.5	52	40	-	16	14	21	14
50	38	3	8	10.5	8	10.5	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	9.5	62	48	-	20	17	29.5	19
63	40	3	9.5	11	9.5	11	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	9.5	75	60	-	20	17	26	19
80	45	4	11.5	14	11.5	14	G3/8	Double Side: Φ15, Cog: M12×1.75, Through Hole: Φ10.3	25	10.5	10	94	74	-	25	22	36	26
100	55	4	15	20	15	18	G3/8	Double Side: Φ17.5, Cog: M14×2, Through Hole: Φ11.3	30	13 1	10	114	90	-	32	27	35.5	26

Bore/Symbol	A				B				C				B1	D	E	F	G	H	I	J	K	K1
Type	Standard		With magnet		Standard		With magnet		Standard		With magnet
Stroke	0 ＜S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30
12	32	42	42	52	44	54	54	64	27	37	37	47	5	-	6	4	2	12	M5×0.8	4	8	M3×0.5
16	34	44	44	54	46	56	56	66	28.5	38.5	38.5	48.5	5.5	-	6	4	2	12	M5×0.8	4	8	M3×0.5
20	35	45	45	55	50	60	60	70	29.5	39.5	39.5	49.5	5.5	36	8	4	1.5	15	M6×1.0	5	10	M4×0.7
25	37	47	47	57	54	64	64	74	31	41	41	51	6	42	10	4	2	17	M8×1.25	6	14	M5×0.8
32	41.5	51.5	51.5	61.5	59.5	69.5	69.5	79.5	34.5	44.5	44.5	54.5	7	50	12	4	3	18	M10×1.25	6	17	M6×1.0
40	43	53	53	63	71	81	81	91	36	46	46	56	7	58.5	12	4	3	28	M14×1.5	8	22	M8×1.25
50	47	57	57	67	75	85	85	95	38	48	48	58	9	71.5	15	5	4	28	M18×1.5	9	27	M10×1.5
63	51	61	61	71	79	89	89	99	42	52	52	62	9	84.5	15	5	4	28	M18×1.5	9	27	M10×1.5
80	62	72	72	82	95	105	105	115	51	61	61	71	11	104	20	6	5	33	M22×1.5	13	32	M14×1.5
100	73	83	83	93	111	121	121	131	61	71	71	81	12	124	20	7	5	38	M26×1.5	12	36	M18×1.5

Bore/Symbol	L	M	N1		N2		O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
Stroke	L	M	S=5	S>5	S>5	S>5	O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
12	10	3	7.5		5		M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	-	25	16.3	23	6	5	-	-
16	11	3	8		5	5.5	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	-	29	19.8	28	6	5	-	-
20	13	3	8.5		5.5		M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	14	4.5	2	34	24	-	8	6	11.2	10
25	17	3	9		5.5		M5×0.8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	15	5.5	2	40	28	-	10	8	12	10
32	22	3	9		6.5	8	G1/8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	16	5.5	6	44	34	-	12	10	18	14
40	28	3	9		7.5		G1/8	Double Side: Φ10, Cog: M8×1.25, Through Hole: Φ6.7	20	7.5	6.5	52	40	-	16	14	21	14
50	38	3	8	10.5	8	10.5	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	9.5	62	48	-	20	17	29.5	19
63 80 100	40 45 55	3	9.5	11	9.5	11	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	9.5	75	60	-	20	17	26	19
		4	11.5	14	11.5	14	G3/8	Double Side: Φ15, Cog: M12×1.75, Through Hole: Φ10.3	25	10.5	10	94	74	-	25	22	36	26
		4	15	20	15	18	G3/8	Double Side: Φ17.5, Cog: M14×2, Through Hole: Φ11.3	30	13	10	114	90		32	27	35.5	26

Bore/Symbol	A		B		C		B1	D	E	F	G	H	I	J	K	K1	L	M	N1
Type	Standard	With magnet	Standard	With magnet	Standard	With magnet	B1	D	E	F	G	H	I	J	K	K1	L	M	S=5	S>5
12	27	37	51	61	17	27	5	-	6	4	2	12	M5×0.8	4	8	M3×0.5	10	3	5.5	6.5
16	29.5	39.5	53.5	63.5	18.5	28.5	5.5	-	6	4	2	12	M5×0.8	4	8	M3×0.5	11	3	6.5	7.5
20	30.5	40.5	60.5	70.5	19.5	29.5	5.5	36	8	4	1.5	15	M6×1.0	5	10	M4×0.7	13	3	7.5
25	33	43	67	77	21	31	6	42	10	4	2	17	M8×1.25	6	14	M5×0.8	17	3	8
32	38.5	48.5	74.5	84.5	24.5	34.5	7	50	12	4	3	18	M10×1.25	6	17	M6×1.0	22	3	8	9
40	40	50	96	106	26	36	7	58.5	12	4	3	28	M14×1.5	8	22	M8×1.25	28	3	8	10
50	46	56	102	112	28	38	9	71.5	15	5	4	28	M18×1.5	9	27	M10×1.5	38	3	8	10.5
63	50	60	106	116	32	42	9	84.5	15	5	4	28	M18×1.5	9	27	M10×1.5	40	3	9.5	11
80	63	73	129	139	41	51	11	104	20	6	5	33	M22×1.5	13	32	M14×1.5	45	4	11.5	14
100	75	85	151	161	51	61	12	124	20	7	5	38	M26×1.5	12	36	M18×1.5	55	4	15	20

Bore/ Symbol	O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
12	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	-	25	16.3	23	6	5	-	-
16	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	-	29	19.8	28	6	5	-	-
20	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	14	4.5	2	34	24	-	8	6	11.2	10
25	M5×0.8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	15	5.5	2	40	28	-	10	8	12	10
32	G1/8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	16	5.5	6	44	34	-	12	10	18	14
40	G1/8	Double Side: Φ10, Cog: M8×1.25, Through Hole: Φ6.7	20	7.5	6.5	52	40	-	16	14	21	14
50	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	9.5	62	48	-	20	17	29.5	19
63	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	9.5	75	60	-	20	17	26	19
80	G3/8	Double Side: Φ15, Cog: M12×1.75, Through Hole: Φ10.3	25	10.5	10	94	74	-	25	22	36	26
100	G3/8	Double Side: Φ17.5, Cog: M14×2, Through Hole: Φ11.3	30	13	10	114	90	-	32	27	35.5	26

Bore/Symbol	A		B		C		B1	D	E	F	G	H	I	J	K	K1	L	M	N1
Type	Standard	With magnet	Standard	With magnet	Standard	With magnet	B1	D	E	F	G	H	I	J	K	K1	L	M	S=5	S>5
12	41	51	53	63	17	27	5	-	6	4	2	12	M5×0.8	4	8	M3×0.5	10	3	5.5	6.5
16	43	53	55	65	18.5	28.5	5.5	-	6	4	2	12	M5×0.8	4	8	M3×0.5	111	3	6.5	7.5
20	47.5	57.5	62.5	72.5	19.5	29.5	5.5	36	8	4	1.5	15	M6×1.0	5	10	M4×0.7	13	3	7.5
25	53	63	70	80	21	31	6	42	10	4	2	17	M8×1.25	6	14	M5×0.8	17	3	8
32	61.5	71.5	79.5	89.5	24.5	34.5	7	50	12	4	3	18	M10×1.25	6	17	M6×1.0	22	3	8	9
40	64	74	92	102	26	36	7	58.5	12	4	3	28	M14×1.5	8	22	M8×1.25	28	3	8	10
50	70	80	98	108	28	38	9	71.5	15	5	4	28	M18×1.5	9	27	M10×1.5	38	3	8	10.5
63	74	84	102	112	32	42	9	84.5	15	5	4	28	M18×1.5	9	27	M10×1.5	40	3	9.5	11
80	92.5	102.5	125.5	135.5	41	51	11	104	20	6	5	33	M22×1.5	13	32	M14×1.5	45	4	11.5	14
100	110.5	120.5	148.5	158.5	51	61	12	124	20	7	5	38	M26×1.5	12	36	M18×1.5	55	4	15	20

Bore/Symbol	O	P1	P3	P4	Q	R	S	T1	T2	V	W	X	Y
12	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	17	-	25	16.3	23	6	5	-	-
16	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	17	-	29	19.8	28	6	5	-	-
20	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	14	4.5	21	2	34	24	-	8	6	11.2	10
25	M5×0.8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	15	5.5	24	2	40	28	-	10	8	12	10
32	G1/8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	16	5.5	27	6	44	34	-	12	10	18	14
40	G1/8	Double Side: Φ10, Cog: M8×1.25, Through Hole: Φ6.7	20	7.5	28	6.5	52	40	z：	16	14	21	14
50	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	29	9.5	62	48	-	20	17	29.5	19
63	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	29	9.5	75	60	-	20	17	26	19
80	G3/8	Double Side: Φ15, Cog: M12×1.75, Through Hole: Φ10.3	25	10.5	35.5	10	94	74	-	25	22	36	26
100	G3/8	Double Side: Φ17.5, Cog: M14×2, Through Hole: Φ11.3	30	13	42.5	10	114	90	-	32	27	35.5	26

Bore/Symbol	A		B		C		B1	D	E	F	G	H	I	J	K	K1	L	M	N1
Type	Standard	With magnet	Standard	With magnet	Standard	With magnet	B1	D	E	F	G	H	I	J	K	K1	L	M	S=5	S>5
12	41	51	53	63	17	27	5	-	6	4	2	12	M5×0.8	4	8	M3×0.5	10	3	5.5	6.5
16	43	53	55	65	18.5	28.5	5.5	-	6	4	2	12	M5×0.8	4	8	M3×0.5	11	3	6.5	7.5
20	47.5	57.5	62.5	72.5	19.5	29.5	5.5	36	8	4	1.5	15	M6×1.0	5	10	M4×0.7	13	3	7.5
25	53	63	70	80	21	31	6	42	10	4	2	17	M8×1.25	6	14	M5×0.8	17	3	8
32	61.5	71.5	79.5	89.5	24.5	34.5	7	50	12	4	3	18	M10×1.25	6	17	M6×1.0	22	3	8	9
40	64	74	92	102	26	36	7	58.5	12	4	3	28	M14×1l.5	8	22	M8×1.25	28	3	8	10
50	70	80	98	108	28	38	9	71.5	15	5	4	28	M18×1.5	9	27	M10×1.5	38	3	8	10.5
63	74	84	102	112	32	42	9	84.5	15	5	4	28	M18×1.5	9	27	M10×1.5	40	3	9.5	11
80	92.5	102.5	125.5	135.5	41	51	11	104	20	6	5	33	M22×1.5	13	32	M14×1.5	45	4	11.5	14
100	110.5	120.5	148.5	158.5	51	61	12	124	20	7	5	38	M26×1.5	12	36	M18×1.5	55	4	15	20

Bore/Symbol	O	P1	P3	P4	m	R	S	T1	T2	V	W	X	Y
12	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	17	-	25	16.3	23	6	5	-	-
16	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	12	4.5	17	-	29	19.8	28	6	5	-	-
20	M5×0.8	Double Side: Φ6.5, Cog: M5×0.8, Through Hole: Φ4.2	14	4.5	21	2	34	24	-	8	6	11.2	10
25	M5×0.8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	15	5.5	24	2	40	28	-	10	8	12	10
32	G1/8	Double Side: Φ8.2, Cog: M6×1, Through Hole: Φ4.6	16	5.5	27	6	44	34	-	12	10	18	14
40	Gl/8	Double Side: Φ10, Cog: M8×1.25, Through Hole: Φ6.7	20	7.5	28	6.5	52	40	-	16	14	21	14
50	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	29	9.5	62	48	-	20	17	29.5	19
63	G1/4	Double Side: Φ11, Cog: M8×1.25, Through Hole: Φ6.7	25	8.5	29	9.5	75	60	-	20	17	26	19
80	G3/8	Double Side: Φ15, Cog: M12×1.75, Through Hole: Φ10.3	25	10.5	35.5	10	94	74	-	25	22	36	26
100	G3/8	Double Side: Φ17.5, Cog: M14×2, Through Hole: Φ11.3	30	13	42.5	10	114	90	-	32	27	35.5	26
