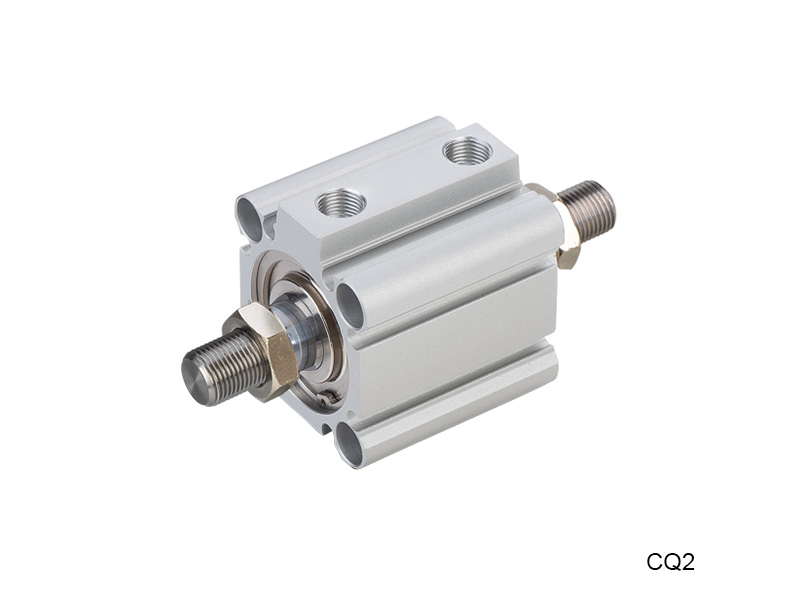

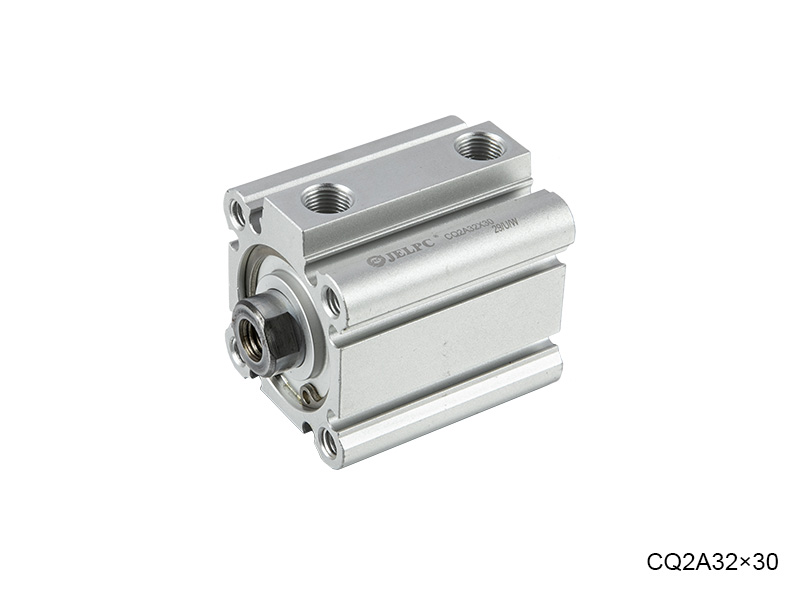

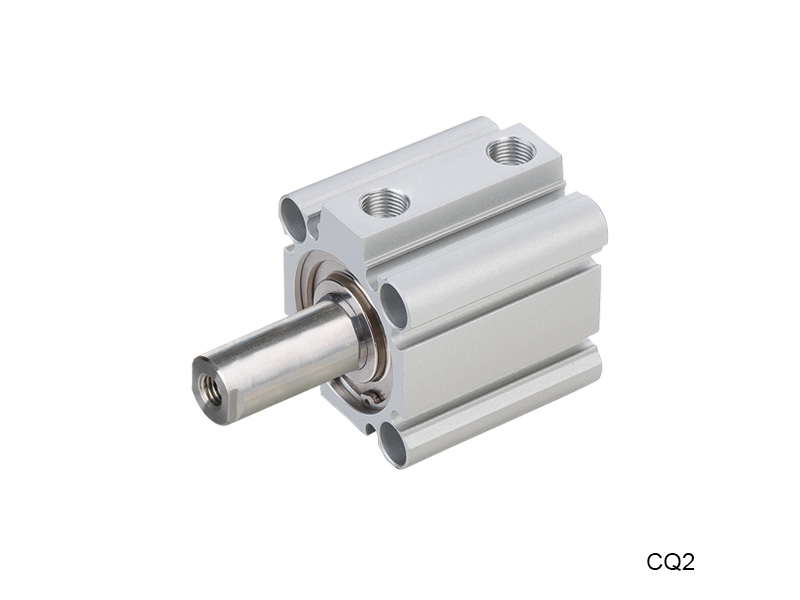

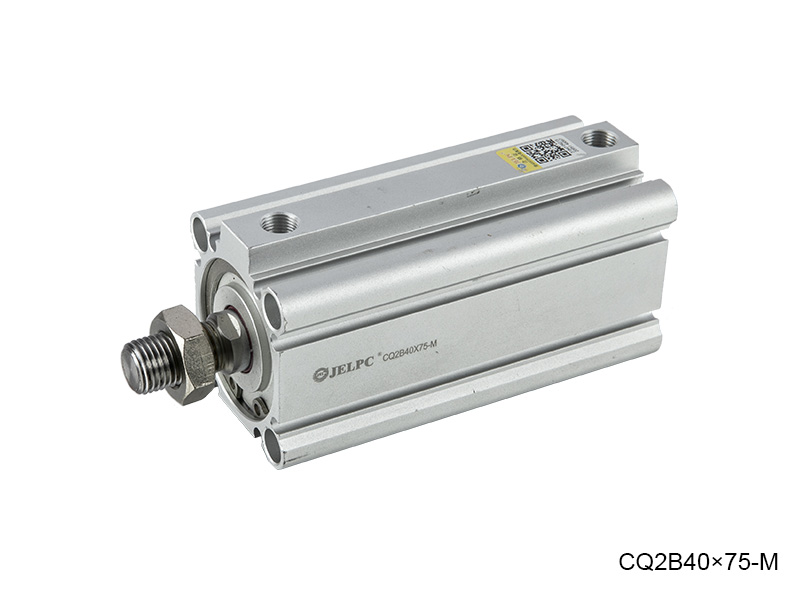

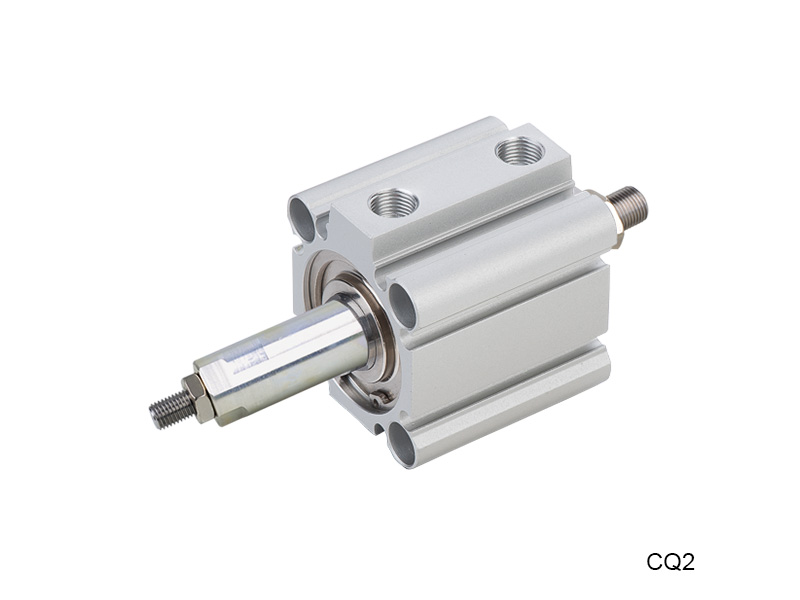

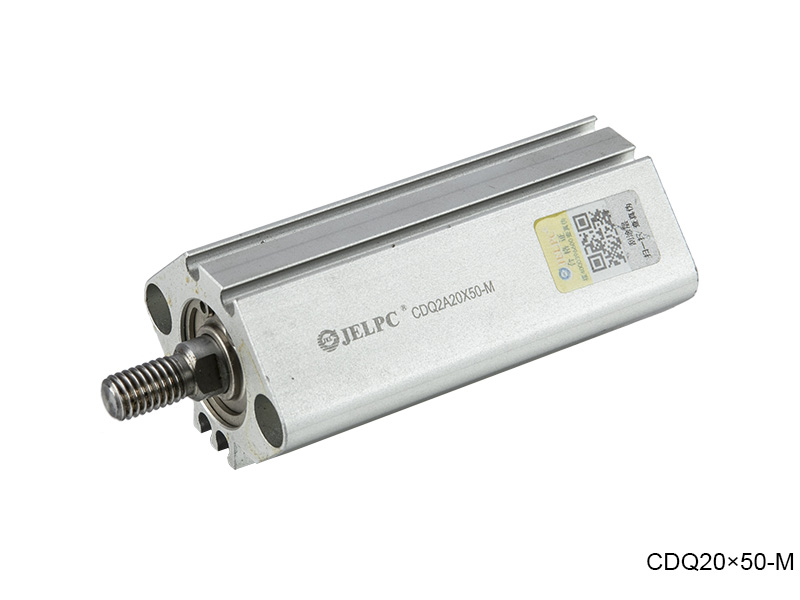

CQ2 Series Thin Type Cylinder

Thin Type

Product parameters
Product size

Features

1. Changed copper bearing and use DU bearing.

2. Changed NBR seal and use PU seal.

3. Changed anti-friction seal and use new POM anti-friction seal.

4. Using new SDA rolling technique for the piston rod and piston.

5. Using SDA rolling technique for the tail barrel (S＞100, end cover use snap ring structure).

6. Gasket use SDA anti-collision gasket structure.

7. Barrel appearance is same with SMC new type-CQ2 series,easy to install the sensor and save material.

Internal Structure

Parts

Number	Name	Number	Name
1	Piston rod	8	Piston
2	Shaft seal	9	Magnet
3	Front cover	10	Magnet base
4	C clip	11	Piston seal
5	DU bearing	12	Anti-friction seal
6	0 ring	13	Back cover
7	Anti-collision gasket	14	Body

Ordering Code

Specification

Bore (mm)		12	16	20	25	32	40	50	63	80	100
Operation		Double Acting
		Single Acting Spring-out / Single Acting Spring-in								-
Working Medium		Air
Operating Pressure Range	Double Acting	0.1～1.0MPa
	Single Acting	0.2～0.9MPa								-
Proof Pressure		1.5MPa
Operating Temperature Range		-20～80℃
Operating Speed	Double Acting	30～500mm/s				30～350mm/s			30～250mm/s
Range	Single Acting	50～500mm/s								-
Port Size		M5×0.8				G1/8		G1/4		G3/8

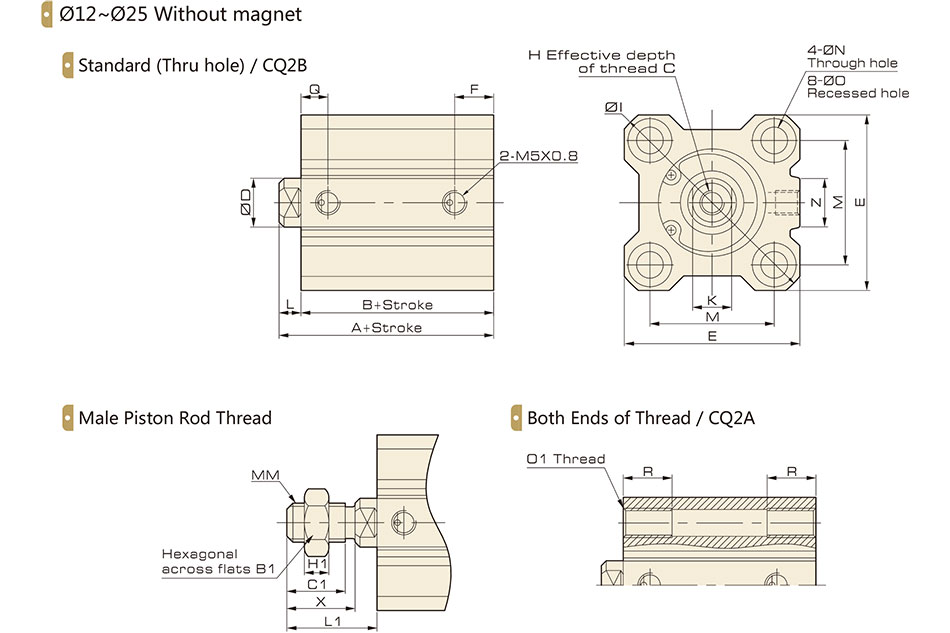

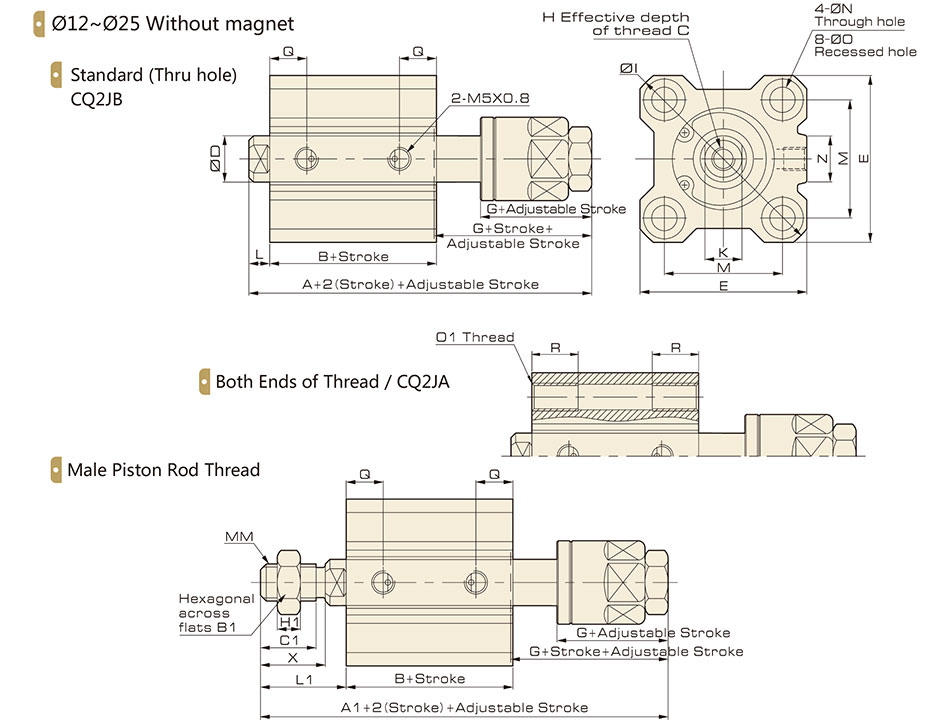

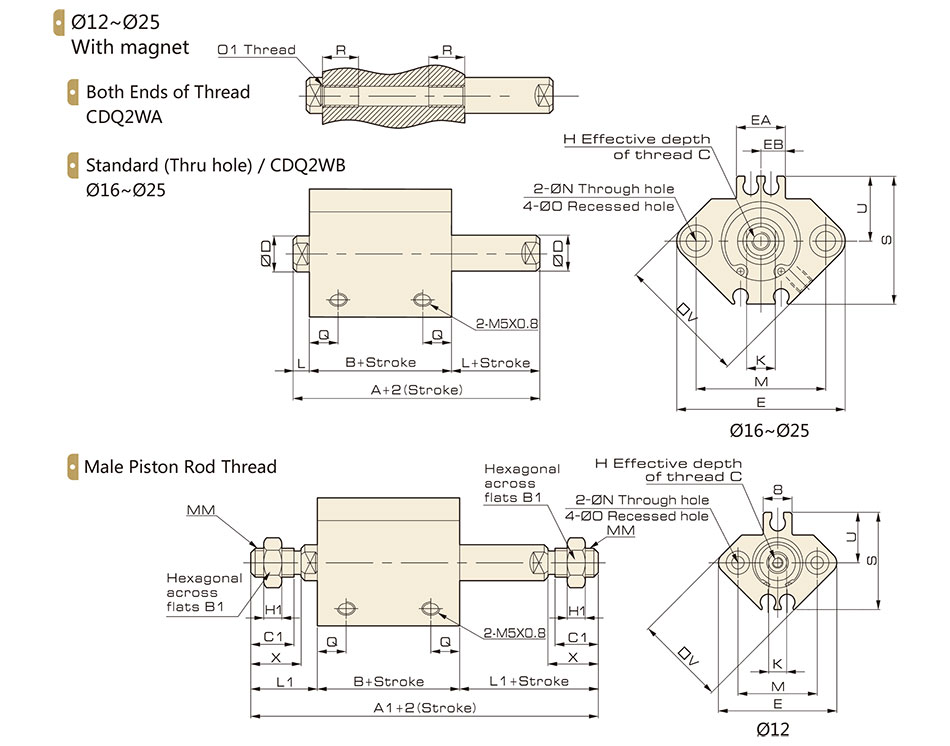

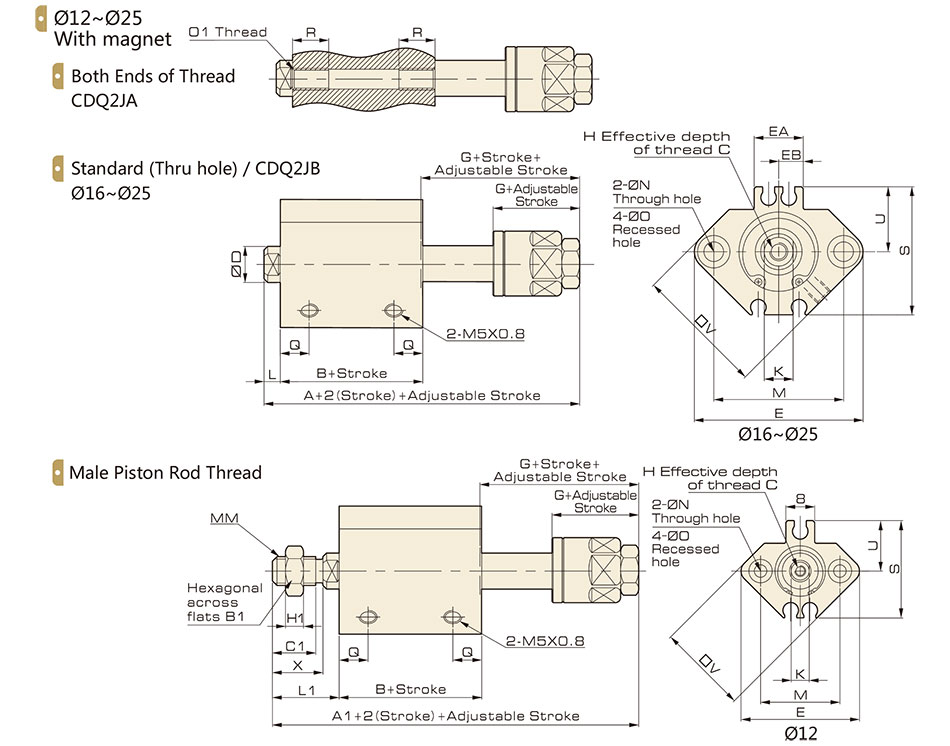

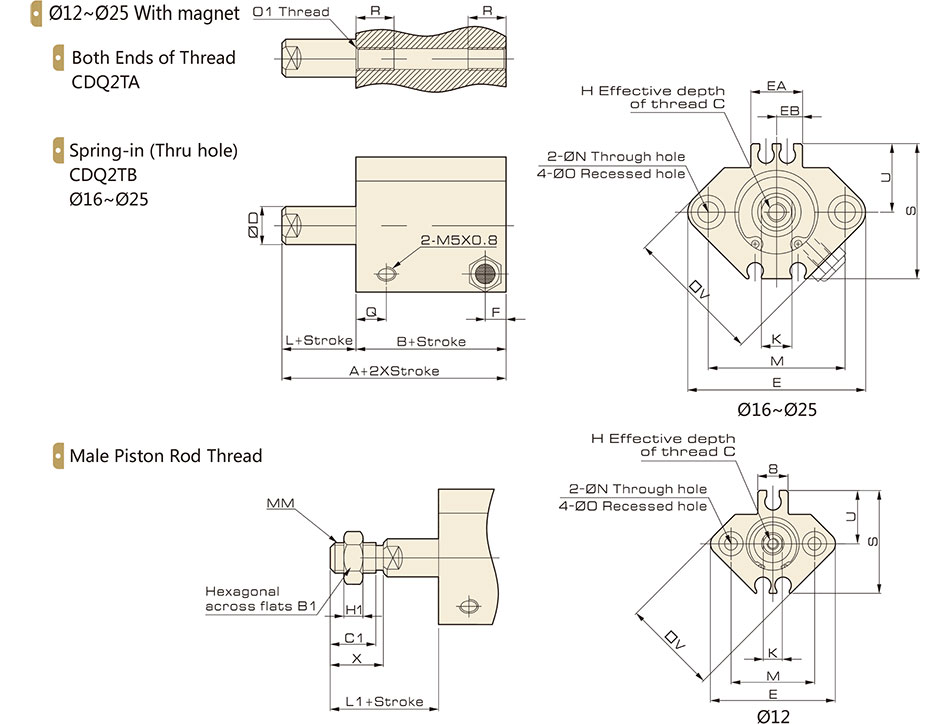

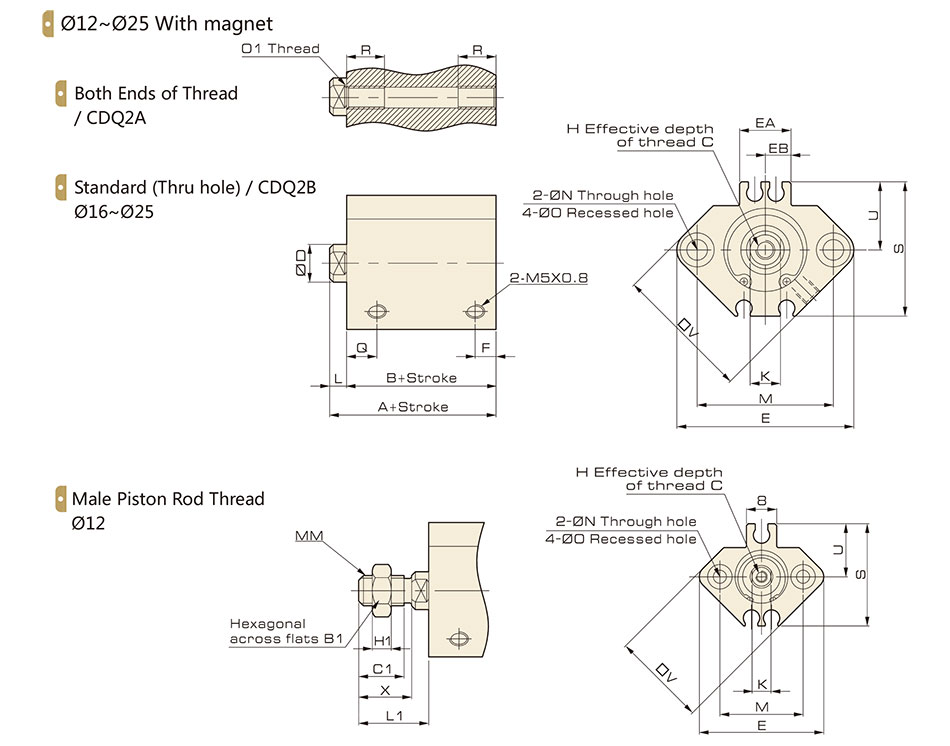

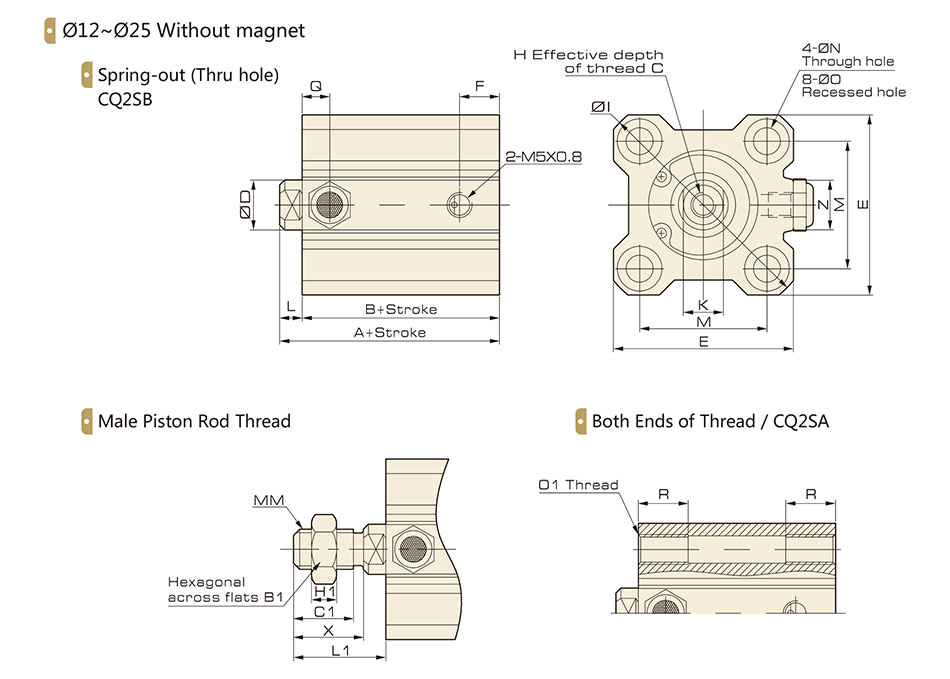

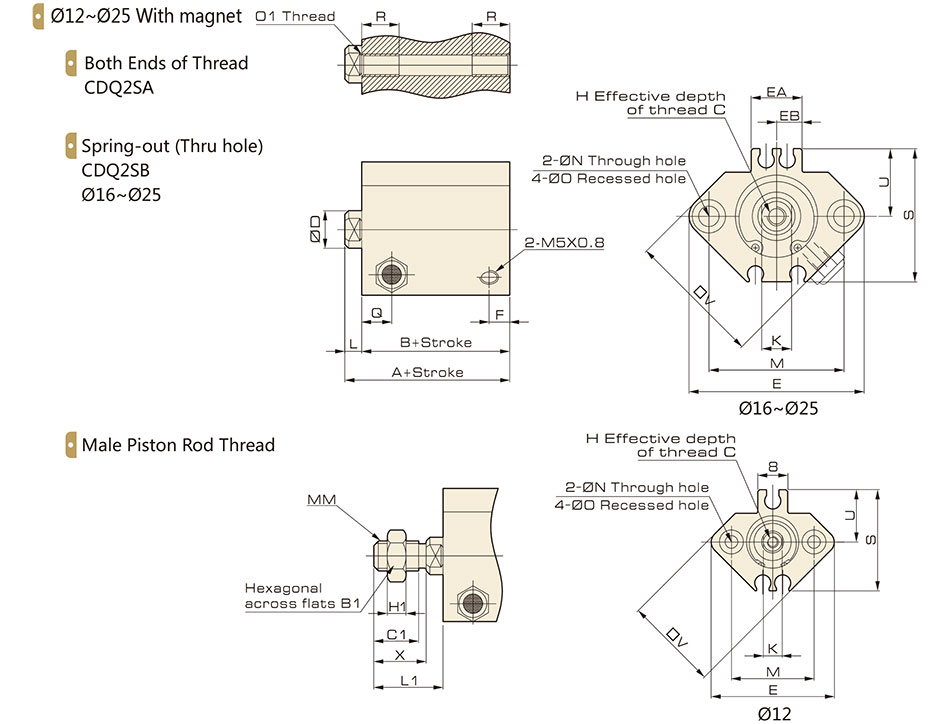

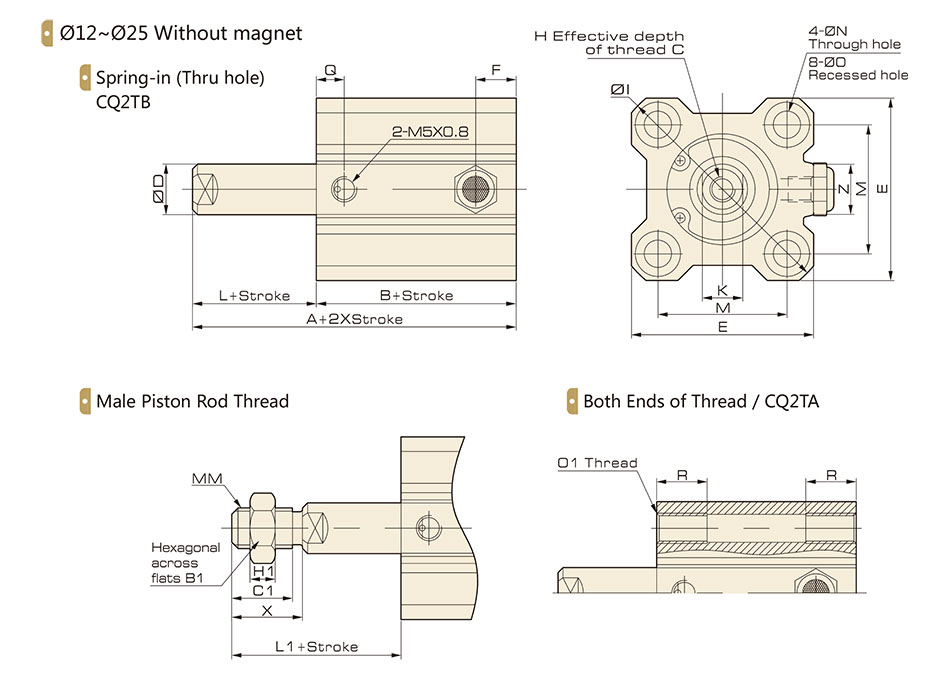

Overall Dimension

Dimension

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	F	H	I	K	L	M
12	5-30	20.5	17	6	6	25	5	M3×0.5	32	5	3.5	15.5
16	5-30	22	18.5	8	8	29	5.5	M4×0.7	38	6	3.5	20
20	5-50	24	19.5	7	10	36	5.5	M5×0.8	47	8	4.5	25.5
25	5-50	27.5	22.5	12	12	40	5.5	M6×1	52	10	5	28

Bore/Symbol	N	O	Q	Z	B1	C1	H1	L1	MM	X	O1	R
12	3.5	6.5 deep 3.5	7.5	-	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	8	10	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	10	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	10	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	F	H	I	K	L	M
12	5/10	30.5	27	6	6	25	5	M3×0.5	32	5	3.5	15.5
	15/20	40.5	37
16	5/10	32	28.5	8	8	29	5.5	M4×0.7	38	6	3.5	20
	15/20	42	38.5
20	5/10	34	29.5	7	10	36	5.5	M5×0.8	47	8	4.5	25.5
	15/20/25/30	44	39.5
25	5/10	37.5	32.5	12	12	40	5.5	M6×1	52	10	5	28
	15/20/25/30	47.5	42.5

Bore/Symbol	N	O	Q	Z	B1	C1	H1	L1	MM	X	01	R
12	3.5	6.5 deep 3.5	7.5	-	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	8	10	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	10	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	10	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	F	H	I	K	L	M
12	5/10	30.5	27	6	6	25	5	M3×0.5	32	5	3.5	15.5
	15/20	40.5	37
16	5/10	32	28.5	8	8	29	5.5	M4×0.7	38	6	3.5	20
	15/20	42	38.5
20	5/10	34	29.5	7	10	36	5.5	M5×0.8	47	8	4.5	25.5
	15/20/25/30	44	39.5
25	5/10	37.5	32.5	12	12	40	5.5	M6×1	52	10	5	28
	15/20/25/30	47.5	42.5

Bore/Symbol	N	O	Q	Z	B1	C1	H1	L1	MM	X	01	R
12	3.5	6.5 deep 3.5	7.5	-	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	8	10	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	10	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	10	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	H	I	K	L	M	N
12	5-30	32.2	25.2	6	6	25	M3×0.5	32	5	3.5	15.5	3.5
16	5-30	33	26	8	8	29	M4×0.7	38	6	3.5	20	3.5
20	5-50	35	26	7	10	36	M5×0.8	47	8	4.5	25.5	5.5
25	5-50	39	29	12	12	40	M6×1	52	10	5	28	5.5

Bore/Symbol	O	B	Z	A1	B1	C1	H1	L1	MM	X	01	R
12	6.5 deep 3.5	9	-	43.2	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	6.5 deep 3.5	9.5	10	57	10	10	5	15.5	M6×1	12	M4×0.7	7
20	9 deep 7	8	10	63	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9 deep 7	9	10	74	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	G	H	I	K	L	M	N
12	5-30	45.2	25.2	6	6	25	17	M3×0.5	32	5	3.5	15.5	3.5
16	5-30	50	26	8	8	29	21	M4×0.7	38	6	3.5	20	3.5
20	5-50	54	26	7	10	36	24	M5×0.8	47	8	4.5	25.5	5.5
25	5-50	60.5	29	12	12	40	27	M6×1	52	10	5	28	5.5

Bore/Symbol	O	Q	Z	A1	B1	C1	H1	L1	MM	X	01	R
12	6.5 deep 3.5	9	-	55.7	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	6.5 deep 3.5	9.5	10	62	10	10	5	15.5	M6×1	12	M4×0.7	7
20	9 deep 7	8	10	68	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9 deep 7	9	10	78	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	EA	EB	F	H	K	L	M	N
12	5-30	31.5	28	6	6	33	-	-	7	M3×0.5	5	3.5	22	3.5
16	5-30	34	30.5	8	8	37	13.2	6.6	5.5	M4×0.7	6	3.5	28	3.5
20	5-50	36	31.5	7	10	47	13.6	6.8	5.5	M5×0.8	8	4.5	36	5.5
25	5-50	37.5	32.5	12	12	52	13.6	6.8	5.5	M6×1	10	5	40	5.5

Bore/Symbol	O	B	S	U	V	B1	C1	H1	L1	MM	X	01	R
12	6.5 deep 3.5	9	27.5	14	25	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	6.5 deep 3.5	9.5	29.5	15	29	10	10	5	15.5	M6×1	12	M4×0.7	7
20	9 deep 7	8	35.5	18	36	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9 deep 7	9	40.5	21	40	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	m	E	EA	EB	F	H	K	L	M
12	5/10	41.5	38	6	6	33	-	-	7	M3×0.5	5	3.5	22
	15/20	51.5	48
16	5/10	44	40.5	8	8	37	13.2	6.6	5.5	M4×0.7	6	3.5	28
	15/20	54	50.5
20	5/10	46	41.5	7	10	47	13.6	6.8	5.5	M5×0.8	8	4.5	36
	15/20/25/30	56	51.5
25	5/10	47.5	42.5	12	12	52	13.6	6.8	5.5	M6×1	10	5	40
	15/20/25/30	57.5	52.5

Bore/Symbol	N	O	Q	S	U	V	B1	C1	H1	L1	MM	X	01	R
12	3.5	6.5 deep 3.5	9	27.5	14	25	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	9.5	29.5	15	29	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	35.5	18	36	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	40.5	21	40	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	EA	EB	F	H	K	L	M
12	5/10	41.5	38	6	6	33	-	-	7	M3×0.5	5	3.5	22
	15/20	51.5	48
16	5/10	44	40.5	8	8	37	13.2	6.6	5.5	M4×0.7	6	3.5	28
	15/20	54	50.5
20	5/10	46	41.5	7	10	47	13.6	6.8	5.5	M5×0.8	8	4.5	36
	15/20/25/30	56	51.5
25	5/10	47.5	42.5	12	12	52	13.6	6.8	5.5	M6×1	10	5	40
	15/20/25/30	57.5	52 5

Bore/Symbol	N	O	Q	S	U	V	B1	C1	H1	L1	MM	X	01	R
12	3.5	6.5 deep 3.5	9	27.5	14	25	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	9.5	29.5	15	29	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	35.5	18	36	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	40.5	21	40	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	EA	EB	H	K	L	M	N	M
12	5-30	39.4	32.4	6	6	33	-	-	M3×0.5	5	3.5	22	3.5	6.5 deep 3.5
16	5-30	43	36	8	8	37	13.2	6.6	M4×0.7	6	3.5	28	3.5	6.5 deep 3.5
20	5-50	47	38	7	10	47	13.6	6.8	M5×0.8	8	4.5	36	5.5	9 deep 7
25	5-50	49	39	12	12	52	13.6	6.8	M6×1	10	5	40	5.5	9 deep 7

Bore/Symbol	Q	S	U	V	A1	B1	C1	H1	L1	MM	X	01	R
12	9	27.5	14	25	60.4	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	9.5	29.5	15	29	67	10	10	5	15.5	M6×1	12	M4×0.7	7
20	8	35.5	18	36	75	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9	40.5	21	40	84	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	EA	EB	G	H	K	L	M	N
12	5-30	52.4	32.4	6	6	33	-	-	17	M3×0.5	5	3.5	22	3.5
16	5-30	60	36	8	8	37	13.2	6.6	21	M4×0.7	6	3.5	28	3.5
20	5-50	66	38	7	10	47	13.6	6.8	24	M5×0.8	8	4.5	36	5.5
25	5-50	70.5	39	12	12	52	13.6	6.8	27	M6×1	10	5	40	5.5

Bore/Symbol	LMT	B	S	U	V	A1	B1	C1	H1	L1	MM	X	01	R
12	6.5 deep 3.5	9	27.5	14	25	62.9	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	6.5 deep 3.5	9.5	29.5	15	29	72	10	10	5	15.5	M6×1	12	M4×0.7	7
20	9 deep 7	8	35.5	18	36	80	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9 deep 7	9	40.5	21	40	88	17	15	6	22.5	M10×1.25	17.5	M6×1	10

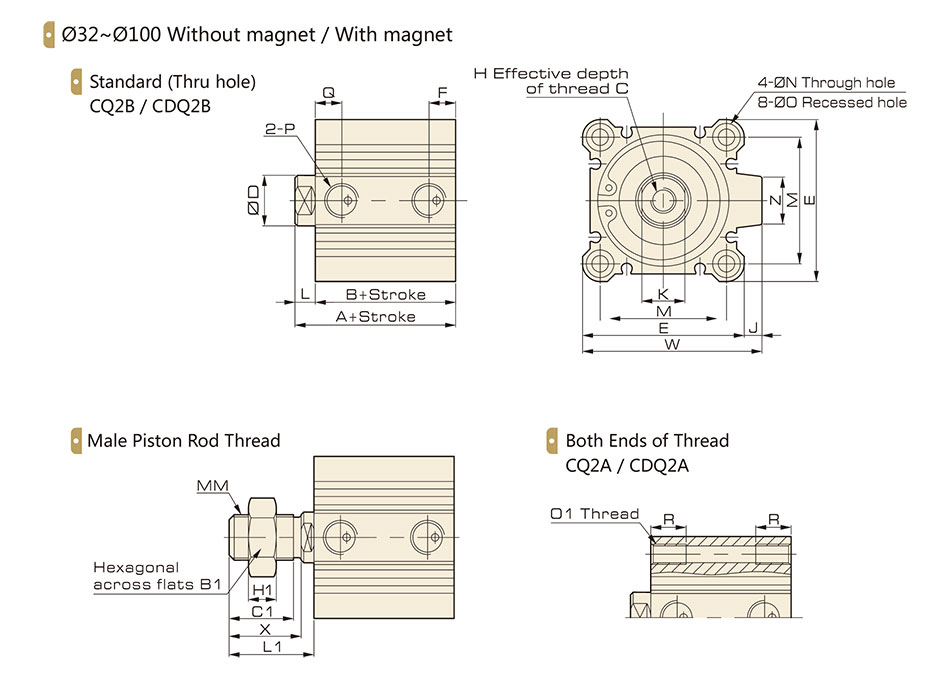

Bore/Symbol	Stroke Range (mm)	Without magnet				With magnet				C	D	E	H	J	K
		A	B	F	Q	A	B	F	Q
32	5	30	23	6.5	7.5	40	33	7.5	10	13	16	45	M8×1.25	4.5	14
	10-50			7.5	10
	50-100	40	33
40	5	36.5	29.5	8	11	46.5	39.5	7.5	12.5	13	16	52	M8×1.25	5	14
	10-50			7.5	12.5
	50-100	46.5	39.5
50	5	38.5	30.5	9	9	48.5	40.5	10.5	10.5	15	20	64	M10×1.5	7	17
	10-50			10.5	10.5
	50-100	48.5	40.5
63	5	44	36	9.5	14	54	46	10.5	15	15	20	77	M10×1.5	7	17
	10-50			10.5	15
	50-100	54	46
80	5-50	53.5	43.5	12.5	16	63.5	53.5	12.5	16	21	25	98	M16×2	6	22
	50-100	63.5	53.5
100	5-50	65	53	13	23	75	63	13	23	27	32	117	M20×2.5	6.5	27
	50-100	75	63

Bore/Symbol	L	M	N	O	P	W	Z	B1	C1	H1	L1	MM	X	01	R
32	7	34	5.5	9 deep 7	1/8	49.5	14	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
40	7	40	5.5	9 deep 7	1/8	57	15 I	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
50	8	50	6.6	11 deep 8	1/4	71	19	27	26	11	33.5	M18×1.5	28.5	M8×1.25	14
63	8	60	9	14 deep 10.5	1/4	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18
80	10	77	11	17.5 deep 13.5	3/8	104	25	32	32.5	13	43.5	M22×1.5	35.5	M12×1.75	22
100	12	94	11	17.5 deep 13.5	3/8	123.5	25	41	32.5	13	43.5	M26×1.5	35.5	M12×1.75	22

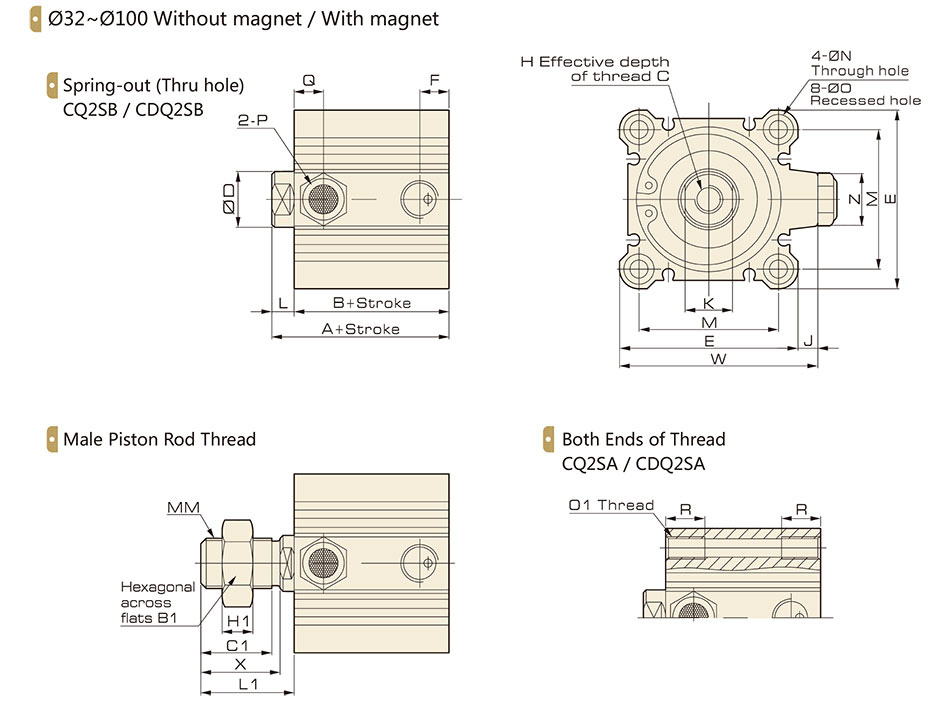

Bore/Symbol	Stroke Range (mm)	Without magnet				With magnet				C	D	E	H	J	K
		A	B	F	Q	A	B	F	Q
32	5/10	40	33	7.5	10	50	43	7.5	10	13	16	45	M8×1.25	4.5	14
	15/20/25/30	50	43			60	53
40	5/10	36.5	29.5	7.5	12.5	56.5	49.5	7.5	12.5	13	16	52	M8×1.25	5	14
	15/20/25/30	46.5	39.5			66.5	59.5
50	5/10	38.5	30.5	10.5	10.5	58.5	50.5	10.5	10.5	15	20	64	M10×1.5	7	17
	15/20/25/30	48.5	40.5			68.5	60.5
63	5/10	44	36	10.5	15	64	56	10.5	15	15	20	77	M10×1.5	7	17
	15/20/25/30	54	46			74	66

Bo re/Symbol	L	M	N	O	P	W	Z	B1	C1	H1	L1	MM	X	01	R
12	7	34	5.5	9 deep 7	1/8	49.5	14	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
16	7	40	5.5	9 deep 7	1/8	57	15	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
20	8	50	6.6	11 deep 8	1/4	71	19	27	26	11	33.5	M18×1.5	28.5	M8×1.25	14
25	8	60	9	14 deep 10.5	1/4	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18

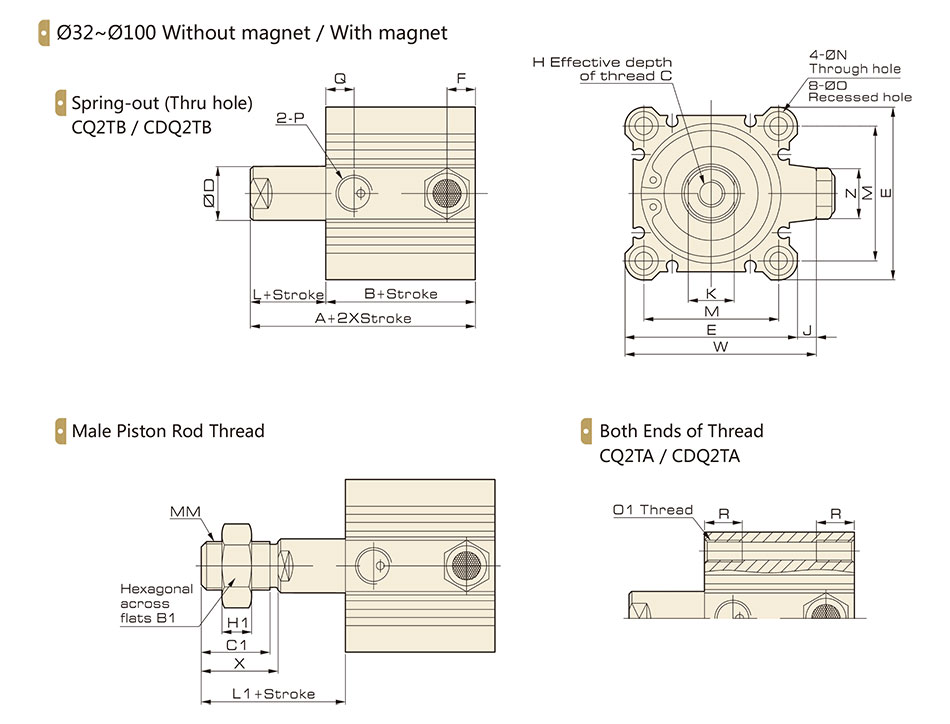

Bore/Symbol	Stroke Range (mm)	Without magnet				With magnet				C	D	E	H	J	K
		A	B	F	Q	A	B	F	Q
32	5/10	40	33	7.5	10	50	43	7.5	10	13	16	45	M8×1.25	4.5	14
	15/20/25/30	50	43			60	53
40	5/10	36.5	29.5	7.5	12.5	56.5	49.5	7.5	12.5	13	16	52	M8×1.25	5	14
	15/20/25/30	46.5	39.5			66.5	59.5
50	5/10	38.5	30.5	10.5	10.5	58.5	50.5	10.5	10.5	15	20	64	M10×1.5	7	17
	15/20/25/30	48.5	40.5			68.5	60.5
63	5/10	44	36	10.5	15	64	56	10.5	15	15	20	77	M10×1.5	7	17
	15/20/25/30	54	46			74	66

Bore/Symbol	L	M	N	O	P	W	Z	B1	C1	H1	L1	MM	X	01	R
12	7	34	5.5	9 deep 7	1/8	49.5	14	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
16	7	40	5.5	9 deep 7	1/8	57	15	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
20	8	50	6.6	11 deep 8	1/4	71	19	27	26	11	33.5	M18×1.5	28.5	M8×1.25	14
25	8	60	9	14 deep 10.5	1/4	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18

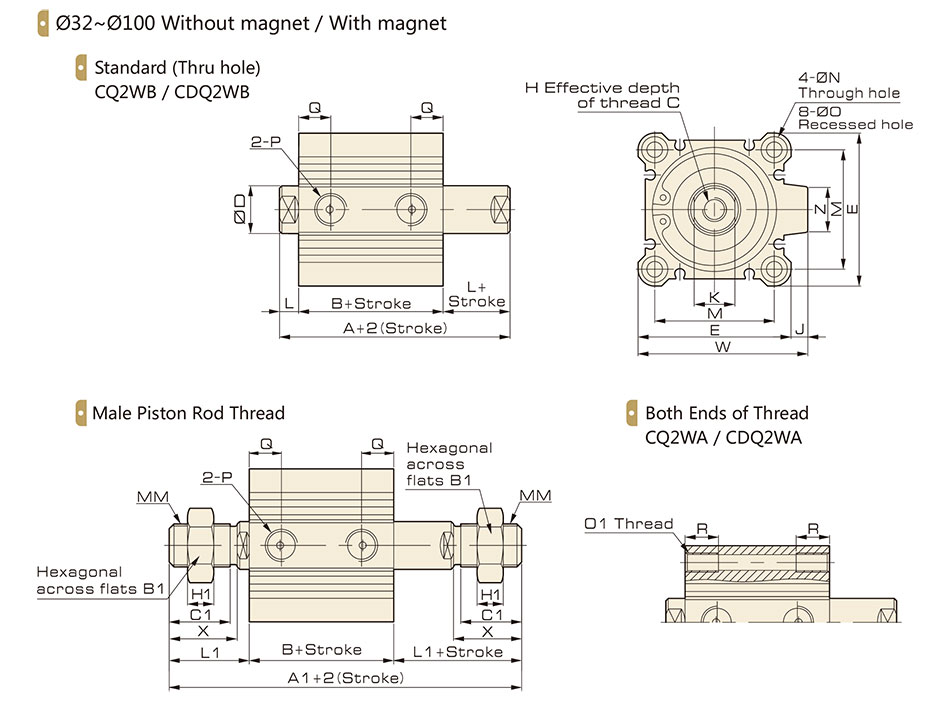

Bore/Symbol	Stroke Range (mm)	Without magnet			With magnet			C	D	E	H	J	K	L	M	N	O
		A	A1	B	A	A1	B
32	5-50	44.5	87.5	30.5	54.5	97.5	40.5	13	16	45	M8×1.25	4.5	14	7	34	5.5	9 deep 7
	50-100	54.5	97.5	40.5
40	5-50	54	97	40	64	107	50	13	16	52	M8×125	5	14	7	40	5.5	9 deep 7
	50-100	64	107	50
50	5-50	56.5	107.5	40.5	66.5	117.5	50.5	15	20	64	M10×1.5	7	17	8	50	6.6	11 deep 8
	50-100	66.5	117.5	50.5
63	5	58	109	42	68	119	52	15	20	77	M10×1.5	7	17	8	60	9	14 deep 10.5
	10-50
	50-100	68	119	52
80	5-50	71	138	51	81	148	61	21	25	98	M16×2	6	22	10	77	11	17 deep 13.5
	50-100	81	148	61
100	5-50	84.5	147.5	60.5	94.5	157.5	70.5	27	32	117	M20×2.5	6.5	27	12	94	11	17 deep 13.5
	50-100	94.5	157.5	70.5

Bore/Symbol	P	Q	W	Z	B1	C1	H1	L1	MM	X	01	R
32	1/8	10	49.5	14	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
40	1/8	13	57	15	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
50	1/4	13	71	19	27	26	11	33.5	M18×1.5	28.5	M8×1.25	14
63	1/4	Stroke 5mm: 14.5	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18
63	1/4	Stroke10~50mm and 50~100mm: 16	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18
80	3/8	16	104	25	32	32.5	13	43.5	M22×1.5	35.5	M12×1.75	22
100	3/8	20	123.5	25	41	32.5	16 1	43.5	M26×1.5	35.5	M 12×1.75	22

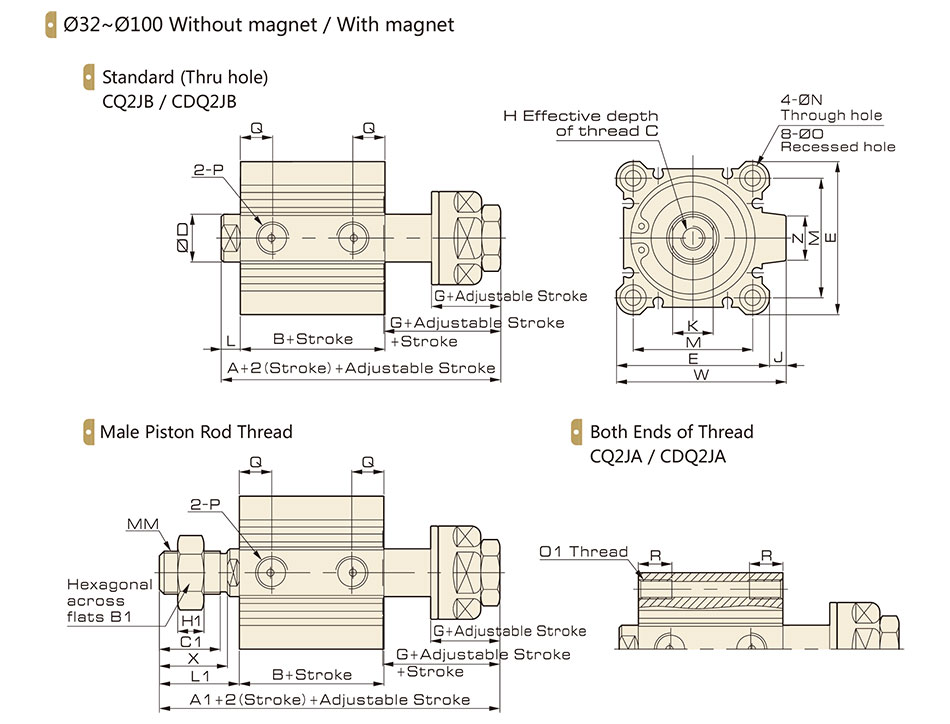

Bore/Symbol	Stroke Range	Without magnet			With magnet			C	D	E	G	H	J	K	L	M	N
	(mm)	A	A1	B	A	A1	B
32	5-50	65	86.5	30.5	75	96.5	40.5	13	16	45	28	M8×1.25	4.5	14	7	34	5.5
	50-100	75	96.5	40 5
40	5-50	745	96	40	84.5	106	50	13	16	52	28	M8×1.25	5	14	7	40	5.5
	50-100	84.5	106	50
50	5-50	77	102.5	40.5	87	112.5	50.5	15	20	64	29	M10×1.5	7	17	8	50	6.6
	50-100	87	112.5	50.5
63	5-50	78.5	104	42	88.5	114	52	15	20	77	29	M10×1.5	7	17	8	60	9
	50-100	88.5	114	52
80	5-50	96	129.5	51	106	139.5	61	21	25	98	35.5	M16×2	6	22	10	77	11
	50-100	106	139.5	61
100	5-50	114.5	146	60.5	124.5	156	70.5	27	32	117	42.5	M20×2.5	6.5	27	12	94	11
	50-100	124.5	156	70.5

Bore/Symbol	O	P	Q	W	Z	B1	C1	H1	L1	MM	X	01	R
32	9 deep 7	1/8	10	49 5	14	22	20 5	8	28 5	M14×1.5	23.5	M6×1	10
40	9 deep 7	1/8	13	57	15	22	20 5	8	28.5	M14×1.5	23.5	M6×1	10
50	11 deep 8	1/4	13	71	19	27	26	11	33 5	M18×1.5	28.5	M8×	14
63	14 deep 10.5	1/4	Stroke 5~50mm：14.5	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18
63	14 deep 10.5	1/4	Stroke 50~100mm：16	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18
80	17 deep 13.5	3/8	16	104	25	32	32.5	13	43.5	M22×1.5	35.5	M12×1.75	22
100	17 deep 13.5	3/8	20	123.5	25	41	32.5	16	43.5	M26×1.5	35.5	M12×1.75	22

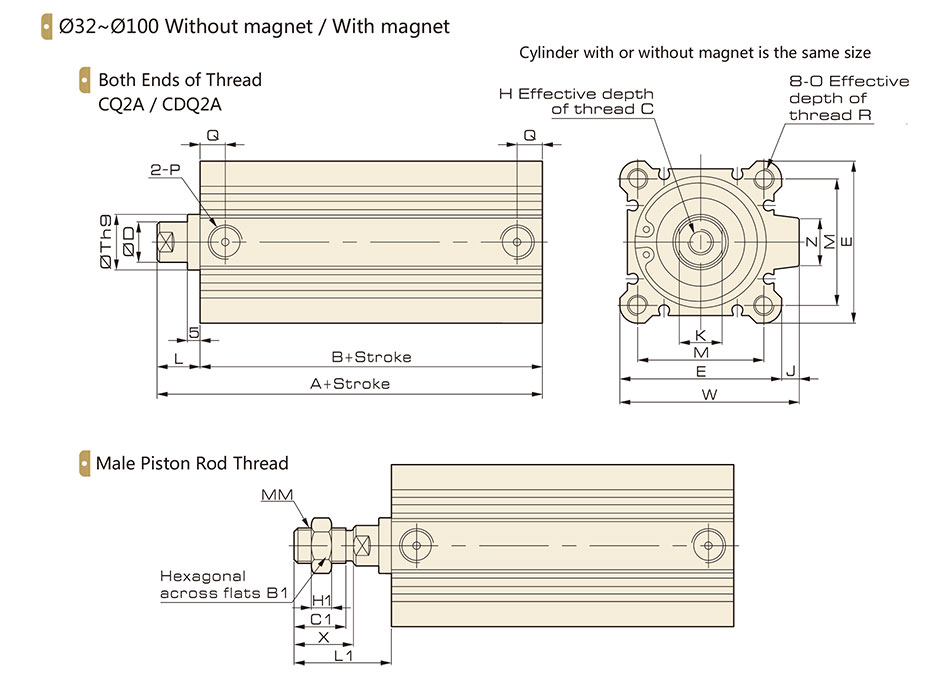

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	H	J	K	L	M	P	Q
32	100-300	62.5	45.5	13	16	45	M8×1.25	4.5	14	17	34	1/8	12.5
40		72	55	13	16	52	M8×1.25	5	14	17	40	1/8	14
50		73.5	55.5	15	20	64	M10×1.5	7	17	18	50	1/4	14
63		75	57	15	20	77	M10×1.5	7	17	18	60	1/4	16.5
80		86	66	21	25	98	M16×2	6	22	20	77	3/8	19
100		97.5	75.5	27	32	117	M20×2.5	6.5	27	22	94	3/8	23

Bore/Symbol	W	Z	B1	C1	H1	L1	MM	X	O	R	Th9
32	49.5	14	22	20.5	8	38.5	M14×1.5	23.5	M6×1	10	22	0
												-0.052
40	57	15	22	20.5	8	38.5	M14×1.5	23.5	M6×1	10	28	0
												-0.052
50	71	19	27	26	11	43.5	M18×1.5	28.5	M8×1.25	14	35	0
												-0.052
63	84	19	27	26	11	43.5	M18×1.5	28.5	M10×1.5	18	35	0
												-0.052
80	104	25	32	32.5	13	53.5	M22×1.5	35.5	M12×1.75	22	43	0
												-0.052
100	123.5	25	41	32.5	16	53.5	M26×1.5	35.5	M12×1.75	22	59	0
												-0.052

Valve

VALVE TERMINAL

CYLINDER

F.R.L

ACCESSORIES

Download

2D/3D CAD

Rail transit

Automobile

Textile machinery

Medical instrument

Industrial Automation

Innovation

Quality

Achievement

Company Profile

History

News

Career Opportunities

Web Menu

Product Search

Language

Exit Menu
