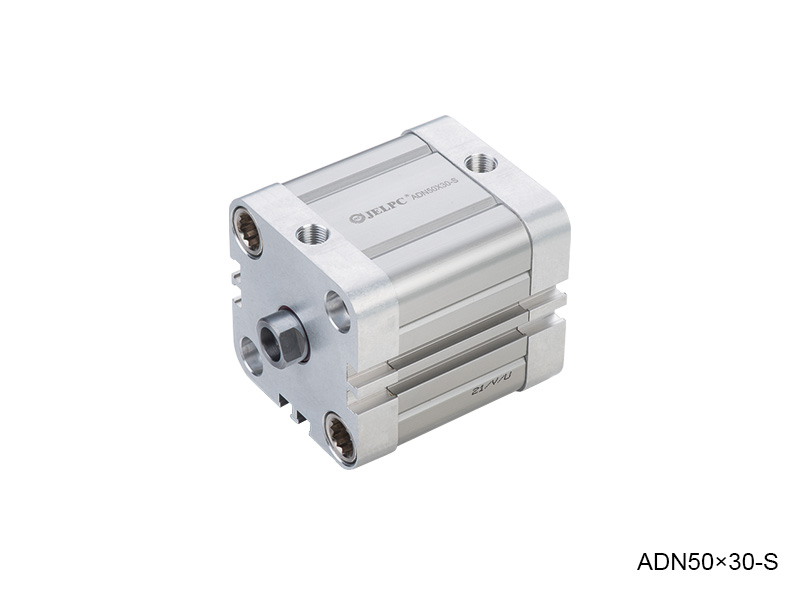

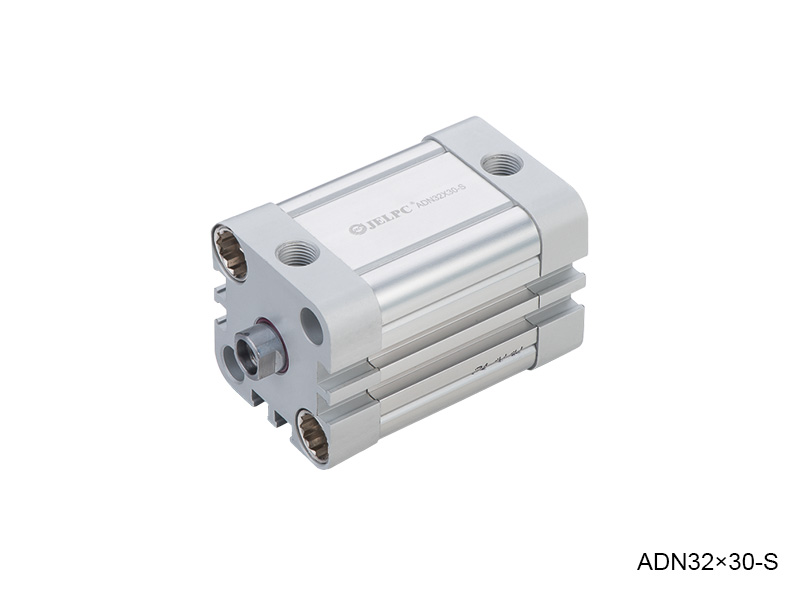

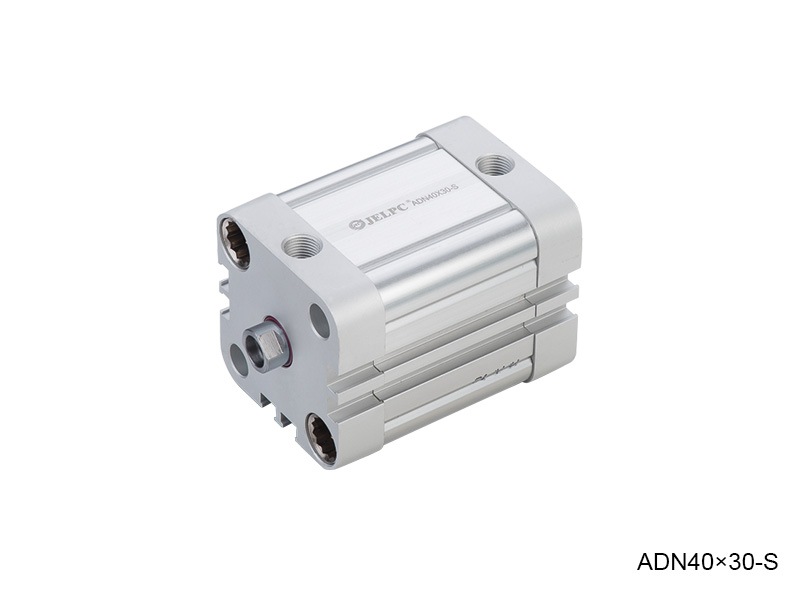

New Compact Cylinder ISO21287 Standard
Features
1. ADN series compact cylinder accord with ISO21287 standard.
2. ADN series cylinder with compact structure, derived lots of variety types, and wide range of applications.
3. Both end use rubber gasket to absorb the remaining energy of the high speed movement and the machine cycle.
4. Every ammsebly way has large number of accessories, so it is very sample.

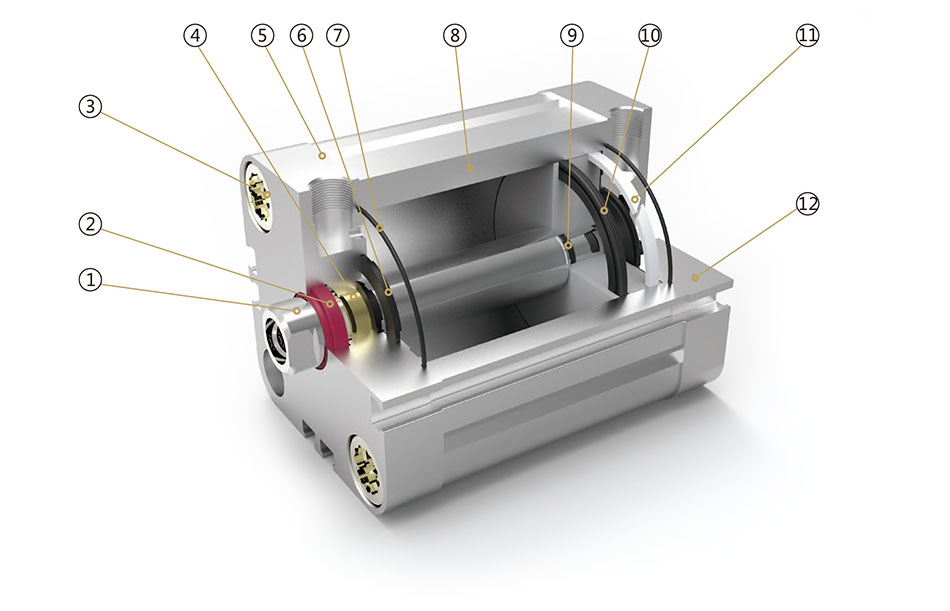

Internal Structure
Parts
Number |
Name |
Number |
Name |
1 |
Piston rod |
7 |
O ring |
2 |
Shaft seal |
8 |
Barrel |
3 |
Cover screw |
9 |
O ring |
4 |
DU bearing |
10 |
Piston seal |
5 |
Front cover |
11 |
Anti-friction seal |
6 |
Anti-collision gasket |
12 |
Back cover |

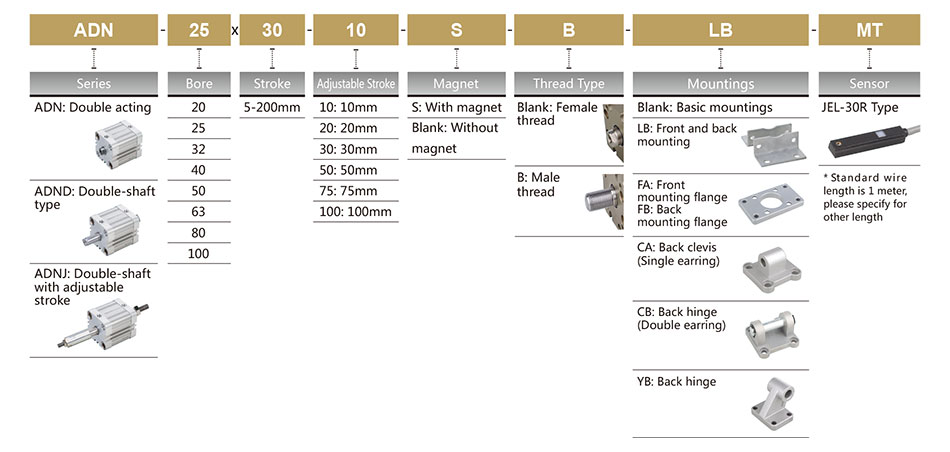

Ordering Code
Specification
Bore (mm) |
20 |
25 |
32 |
40 | 50 | 63 | 80 | 100 |
Operation |
Double Acting |
|||||||
Working Medium |
Air |
|||||||
Operating Pressure Range |
0.1~1.0MPa |
|||||||
Proof Pressure |
1.5MPa |
|||||||
Operating Temperature Range |
-20~80℃ |
|||||||
Operating Speed Range |
30~500mm/s |
|||||||
Port Size |
M5x0.8 |
G1/8" |

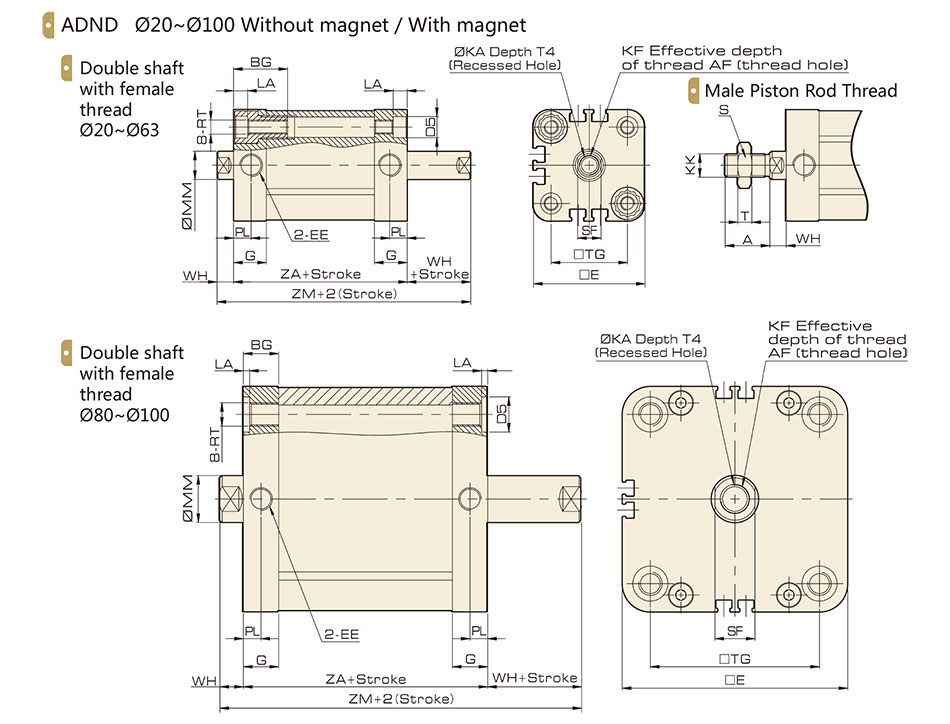

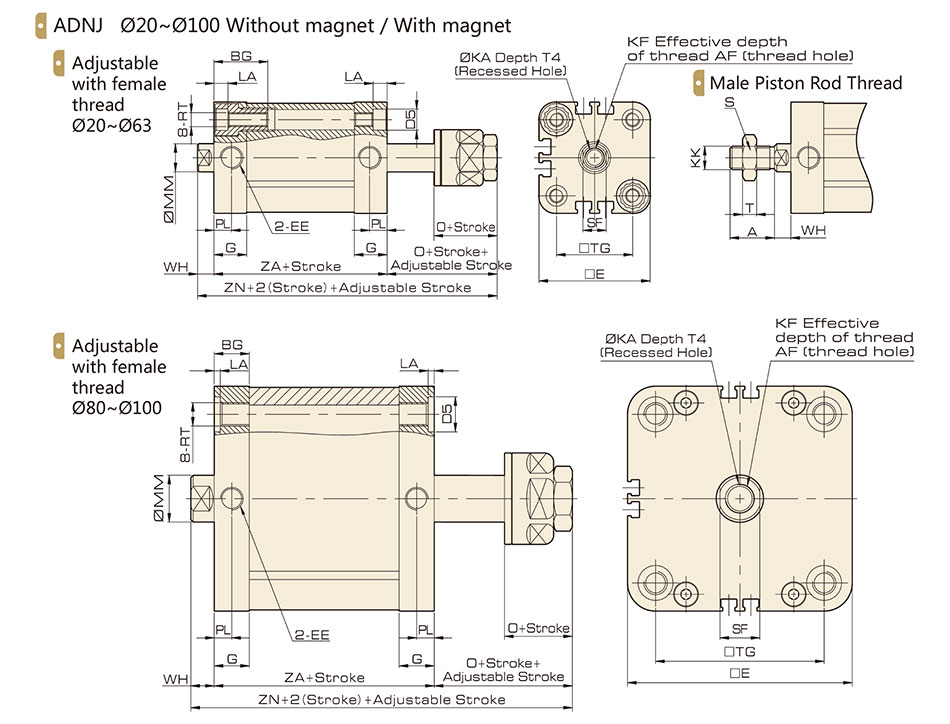

Overall Dimension
Dimension
Bore/Symbol |
Stroke Range (mm) |
A |
AF |
BG Min. |
D1 |
D5 |
E |
EE |
G |
KA |
KF |
KK |
LA |
20 |
5-200 |
16 |
14 |
15 |
9 |
9 |
36 |
M5 |
10.5 |
6.5 |
M6×1 |
M8×1.25 |
5 |
25 |
40 |
11 |
|||||||||||
32 |
19 |
16 |
16 |
47.5 |
G1/8 |
14 |
8.5 |
M8×1.25 |
M10×1.25 |
||||
40 |
55 | ||||||||||||
50 |
22 |
20 |
12 |
12 |
66 |
10.5 |
M10×1.5 |
M12×1.25 |
|||||
63 |
78.3 |
||||||||||||
80 |
28 |
17 |
96 |
15 |
12.5 |
M12×1.75 |
M16×l.5 |
- | |||||
100 |
116 |
21 |
Bore/Symbol |
MM |
PL |
RT |
S |
SF |
T |
T2 |
T4 |
TG |
WH | ZA |
ZB |
20 |
10 |
5 |
M5×0.8 |
12 |
9 |
5 |
2.1 |
2.6 |
22 |
6 |
37 |
43 |
25 |
26 |
39 |
45 |
|||||||||
32 |
12 |
7.5 |
M6×1 |
17 |
10 |
6 |
3.3 |
32.5 |
7 |
44 |
51 |
|
40 |
38 |
45 |
52 |
|||||||||
50 |
16 |
M8×1.25 |
13 |
7 |
2.6 |
4.7 |
46.5 |
8 |
53 |
|||
63 |
56.5 |
49 |
57 |
|||||||||
80 |
20 |
M10×1.5 |
23 |
17 |
8 |
6.1 |
72 |
10 |
54 |
64 |
||
100 |
89 |
67 |
77 |
Bore/Symbol |
Stroke Range (mm) |
A |
AF |
BG Min. |
D5 |
E |
EE |
G |
KA |
KF |
KK |
LA |
20 |
5-200 |
16 |
14 |
15 |
9 |
36 |
M5 |
10.5 |
6.5 |
M6×1 |
M8×1.25 |
5
|
25 |
40 |
11 |
||||||||||
32 |
19 |
16 |
16 |
47.5 |
G1/8 |
14 |
8.5 |
M8×1.25 |
M10×1.25 |
|||
40 |
55 | |||||||||||
50 |
22 |
20 |
12 |
66 |
10.5 |
M10×1.5 |
M12×1.25 |
|||||
63 |
78.3 |
|||||||||||
80 |
28 |
17 |
- |
96 |
15 |
12.5 |
M12×1.75 |
M16×1.5 |
- | |||
100 |
116 |
21 |
Bore/Symbol |
MM |
PL |
RT |
S |
SF |
T |
T4 |
TG WH |
ZA |
ZM |
|
20 |
10 |
5 |
M5×0.8 |
12 |
9 |
5 |
2.6 |
22 |
6 |
37 |
43 |
25 |
26 |
39 |
45 |
||||||||
32 |
12 |
7.5
|
M6×1 |
17 |
10 |
6 |
3.3 |
32.5 |
7 |
44 |
58 |
40 |
38 |
45 |
59 |
||||||||
50 |
16 |
M8×1.25 |
13 |
7 |
4.7 |
46.5 |
8 |
61 |
|||
63 |
56.5 |
49 |
65 |
||||||||
80 |
20 |
M10×1.5 |
23 |
17 |
8 |
6.1 |
72 |
10 |
54 |
74 |
|
100 |
89 |
67 |
87 |
Bore/Symbol |
Stroke Range (mm) |
A |
AF |
BG Min. |
D5 |
E |
EE |
G |
KA |
KF |
KK |
LA |
20 |
5-200 |
16 |
14 |
15 |
9 |
36 |
M5 |
10.5 |
6.5 |
M6×1 |
M8×1.25 |
5 |
25 |
40 |
11 |
||||||||||
32 |
19 |
16 |
16 |
47.5 |
G1/8 |
14 |
8.5 |
M8×1.25 |
M10×1.25 |
|||
40 |
55 |
|||||||||||
50 |
22 |
20 |
12 |
66 |
10.5 |
M10×1.5 |
M12×1.25 |
|||||
63 |
78.3 |
|||||||||||
80 |
28 |
17 |
|
96 |
15 |
12.5 |
M12×1.75 |
M16×1.5 |
- | |||
100 |
116 |
21 |
Bore/Symbol |
MM |
O |
PL |
RT |
S |
SF |
T |
T4 |
TG |
WH | ZA |
ZN |
20 |
10 |
19 |
5 |
M5×0.8 |
12 |
9 |
5 |
2.6 |
22 |
6 |
37 |
62 |
25 |
26 |
39 |
64 |
|||||||||
32 |
12 |
27 |
M6×1 |
17 |
10 |
6 |
3.3 |
32.5 |
7 |
44 |
78 |
|
40 |
38 |
45 |
79 |
|||||||||
50 |
16 |
28 |
7.5 |
M8×1.25 |
13 |
7 |
4.7 |
46.5 |
8 |
81 |
||
63 |
56.5 |
49 |
85 |
|||||||||
80 |
20 |
29 |
M10×1.5 |
23 |
17 |
8 |
6.1 |
72 |
10 |
54 |
93 |
|
100 |
89 |
67 |
96 |
