How is the water solenoid valve installed?

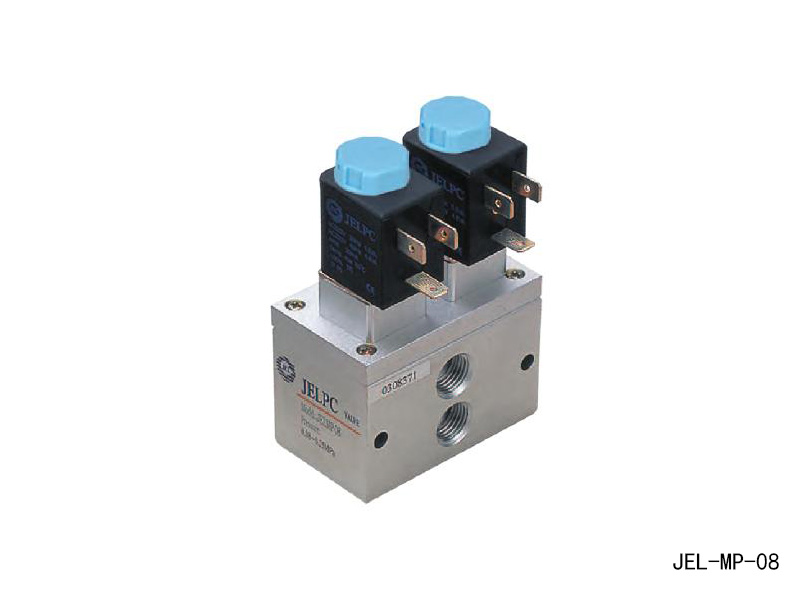

There is a closed cavity in the water solenoid valve with through holes in different directions. Each hole leads to a different tubing. The center of the cavity is the valve, and the two sides are two electromagnets. Which side of the magnet coil is energized on the valve body Which side will be attracted, through the movement of the control valve body to block or leak the different drain holes, and the oil inlet hole is normally open, the hydraulic oil will enter the different drain pipes, and then come through the oil pressure Propelling the piston of the oil cylinder, the piston drives the piston rod, and the piston rod drives the mechanical equipment to move. In this way, the electric current passing through the electromagnet controls the mechanical movement.

1. The electromagnetic pulse valve for water should ensure normal operation within the range of 15%-10% of the additional voltage of the power supply voltage.
2. When equipment, pay attention to the arrow on the valve body and the flow direction of the medium. It cannot be installed in a place where there is direct dripping or splashing. The solenoid valve should be straight up to the device.
3. When the solenoid valve is faulty or cleaned, in order to ensure the continuous operation of the system, the equipment should be bypassed.
4. The pipeline should be cleaned completely before solenoid valve equipment. The medium should be free of impurities. Install a filter before the valve.
5. After the electromagnetic pulse valve equipment, there must be no reverse pressure difference in the pipeline. And it needs to be energized several times to make it suitable for temperature before it can be put into use formally.
6. When receiving, pay attention that the sealing material cannot be used in excess. For example, when the thread is connected, the length of the receiving external thread cannot exceed the useful length of the solenoid valve internal thread, and use a file to chamfer at the half pitch of the front end of the external thread, starting from the 2nd thread of the thread Surround the sealing tape, otherwise excessive sealing tape or adhesive residue entering the inner cavity of the solenoid valve will cause problems.
7. In the case of lack of rigidity of the pipeline or water hammer, it is recommended to fix the pipes before and after the valve with brackets or other methods to prevent vibration caused by the operation of the solenoid valve.
8. Power control circuits and equipment related to solenoid valves, such as relays, switches, and contactors, should be connected firmly without looseness or oscillation. The electrical circuit should be connected to the corresponding secure line as the maintenance of the electrical circuit, otherwise it will affect Normal operation or damage of the solenoid valve.
9. After checking the preparatory experiment procedure of the water solenoid valve equipment, the fluid must be passed in for 3 to 5 test actions, and it can be put into formal use after it is recognized as normal.
